WE-LAN AQ Transformer

WE-LAN AQ Transformer Ethernet with speeds up to 1 Gbit/s. Improved solderability and AOI inspection due to half-vias with gold plating

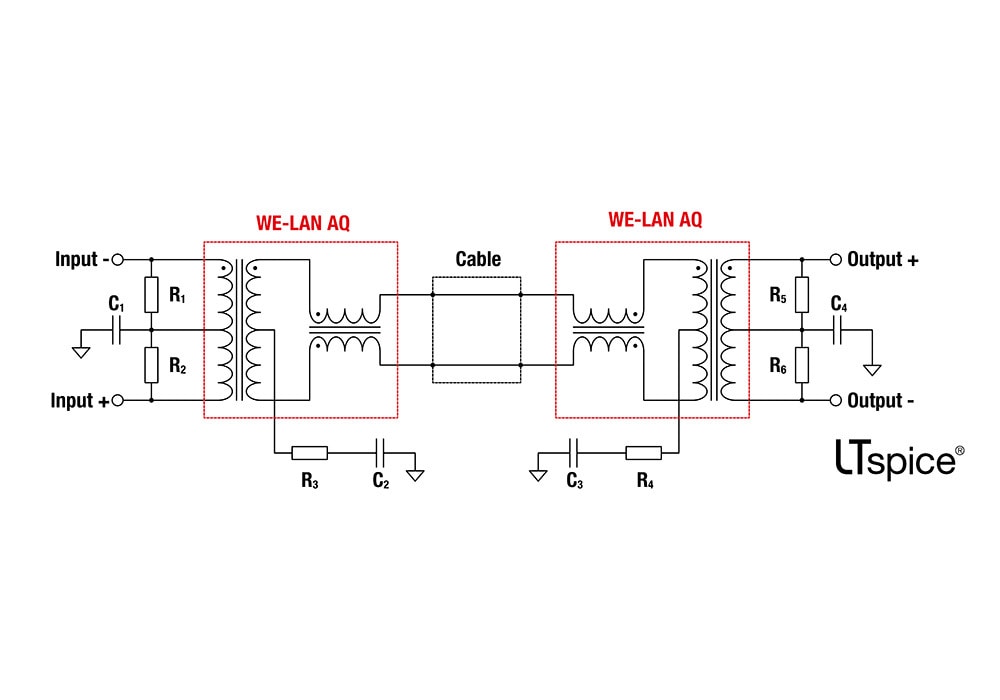

LTSpice files

LT
LTSpice_WE-LANAQ (rev22b).zip
|
405.6 KB

Characteristics

100 % automated production
Ethernet with speeds up to 1 Gbit/s

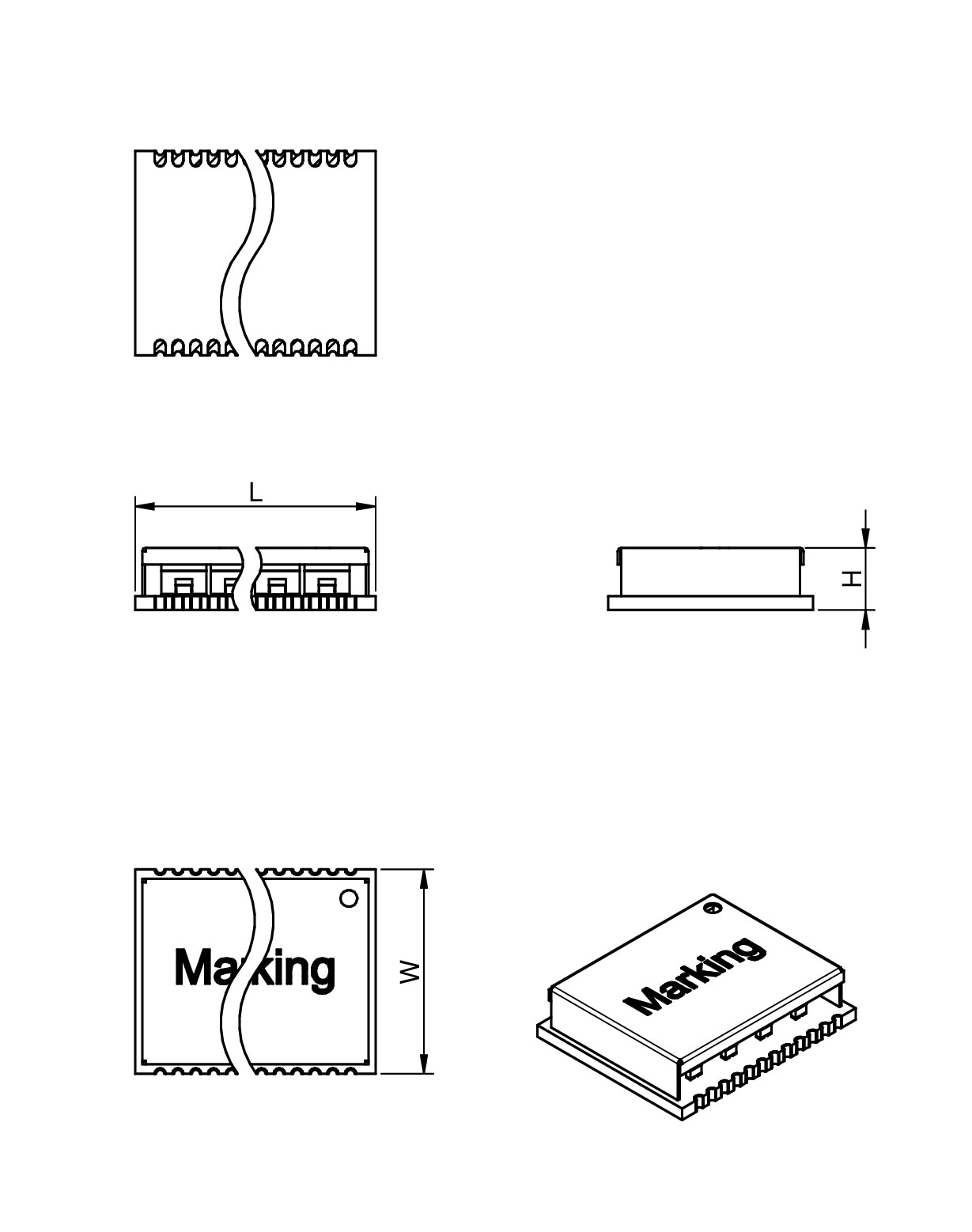

Low profile height of 4 mm

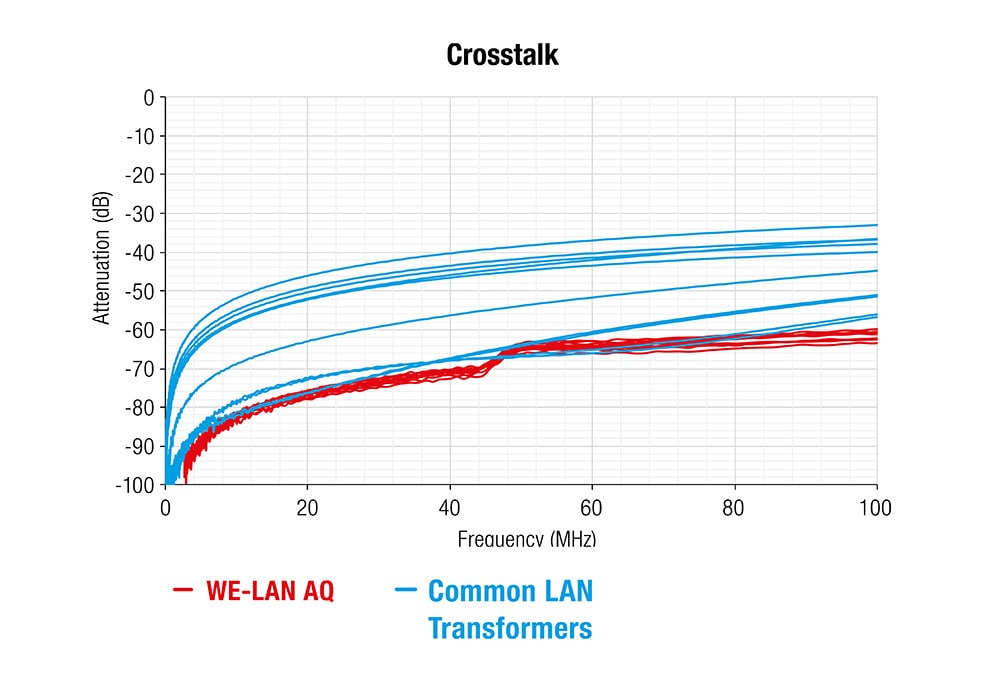

Improved return loss and crosstalk properties
Improved solderability and AOI inspection due to half-vias with gold plating
Compatible with existing LAN products

Reference Designs

RD016 Reference Design Gigabit Ethernet Front End
RD022 GB PoE+-Ethernet-USB“ adapter for industrial use with an EMC perspective

Applications

Suitable for industrial temperatures from –40 °C up to +85 °C
Compatible to industrial Ethernet systems like EtherCAT or Profinet
Compliant with most IC’s for Ethernet applications such as Microchip, Texas Instruments, Broadcom, Linear Technology
Hubs, routers, switches, IP cameras, IoT applications

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Data rate	Ports	PoE	Improved CMRR	Operating Temperature	V_T (V (RMS))	Mount	L (µH)
749010310	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LAN AQ (rev24a).IntLib \| 1.4 MB CDS Cadence_WE-LAN AQ (rev22a).zip \| 6.5 MB EAG Eagle_WE-LAN AQ (rev20a).lbr \| 50.9 KB KIC KiCad_WE-LANAQ (rev25a).zip \| 3.9 MB ZUK Cadstar_WE-LAN_AQ (rev20a).zip \| 79.4 KB CAD files ZIP IGS Download_IGS_WE-LANAQ-749010310 (rev1).igs \| 1.7 MB STP Download_STP_WE-LANAQ-749010310 (rev1).stp \| 668.7 KB Electric models ZIP PSP PSpice_WE-LANAQ (rev22b).zip \| 201.1 KB S S-Parameter_749010310 (rev20a).s6p \| 407.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10/100BASE-T	1	non-PoE	No	-40 °C up to +85 °C	1500	SMT	350
749020310	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LAN AQ (rev24a).IntLib \| 1.4 MB CDS Cadence_WE-LAN AQ (rev22a).zip \| 6.5 MB EAG Eagle_WE-LAN AQ (rev20a).lbr \| 50.9 KB KIC KiCad_WE-LANAQ (rev25a).zip \| 3.9 MB ZUK Cadstar_WE-LAN_AQ (rev20a).zip \| 79.4 KB CAD files ZIP IGS Download_IGS_WE-LANAQ-749020310 (rev1).igs \| 6.1 MB STP Download_STP_WE-LANAQ-749020310 (rev1).stp \| 2.3 MB Electric models ZIP PSP PSpice_WE-LANAQ (rev22b).zip \| 201.1 KB S S-Parameter_749020310 (rev20a).s6p \| 455.8 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10/100/1000BASE-T	1	non-PoE	No	-40 °C up to +105 °C	1500	SMT	350
749013310	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	9 files EDA models: Components ZIP ALT Altium_WE-LAN AQ (rev24a).IntLib \| 1.4 MB CDS Cadence_WE-LAN AQ (rev22a).zip \| 6.5 MB EAG Eagle_WE-LAN AQ (rev20a).lbr \| 50.9 KB KIC KiCad_WE-LANAQ (rev25a).zip \| 3.9 MB ZUK Cadstar_WE-LAN_AQ (rev20a).zip \| 79.4 KB CAD files ZIP IGS Download_WE-LANAQ_749013310_IGS (rev1).igs \| 2.3 MB STP Download_WE-LANAQ_749013310_STP (rev1).stp \| 922.3 KB Electric models ZIP PSP PSpice_WE-LANAQ (rev22b).zip \| 201.1 KB S S-Parameter_749013310 (rev22a).s6p \| 1.1 MB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10/100BASE-T	1	PoE (up to 350 mA)	No	-40 °C up to +85 °C	1500	SMT	180
749012310	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-LAN AQ (rev24a).IntLib \| 1.4 MB CDS Cadence_WE-LAN AQ (rev22a).zip \| 6.5 MB EAG Eagle_WE-LAN AQ (rev20a).lbr \| 50.9 KB KIC KiCad_WE-LANAQ (rev25a).zip \| 3.9 MB ZUK Cadstar_WE-LAN_AQ (rev20a).zip \| 79.4 KB CAD files ZIP IGS Download_WE-LANAQ_749012310_IGS (rev1).igs \| 2.3 MB STP Download_WE-LANAQ_749012310_STP (rev1).stp \| 922.2 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	10/100BASE-T	1	PoE+ (up to 720 mA)	No	-40 °C up to +85 °C	1500	SMT	150
749023310	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-LAN AQ (rev24a).IntLib \| 1.4 MB CDS Cadence_WE-LAN AQ (rev22a).zip \| 6.5 MB EAG Eagle_WE-LAN AQ (rev20a).lbr \| 50.9 KB KIC KiCad_WE-LANAQ (rev25a).zip \| 3.9 MB ZUK Cadstar_WE-LAN_AQ (rev20a).zip \| 79.4 KB CAD files ZIP IGS Download_WE-LANAQ_749023310_IGS (rev1).igs \| 7.8 MB STP Download_WE-LANAQ_749023310_STP (rev1).stp \| 2.9 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000 Base-T	1	PoE (up to 350 mA)	No	-40 °C up to +105 °C	1500	SMT	180
749022310	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WE-LAN AQ (rev24a).IntLib \| 1.4 MB CDS Cadence_WE-LAN AQ (rev22a).zip \| 6.5 MB EAG Eagle_WE-LAN AQ (rev20a).lbr \| 50.9 KB KIC KiCad_WE-LANAQ (rev25a).zip \| 3.9 MB ZUK Cadstar_WE-LAN_AQ (rev20a).zip \| 79.4 KB CAD files ZIP IGS Download_WE-LANAQ_749023310_IGS (rev1).igs \| 7.8 MB STP Download_WE-LANAQ_749023310_STP (rev1).stp \| 2.9 MB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1000 Base-T	1	PoE+ (up to 720 mA)	No	-40 °C up to +85 °C	1500	SMT	150

Order Code	Datasheet	Simulation
749010310	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
749020310	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
749013310	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
749012310	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
749023310	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document
749022310	SPEC PCN pending Due to a pending PCN, a modification of the component will be implemented soon. Please find the PCN below. If you have further questions please get in contact with our sales staff. SPEC Datasheet PCN PCN document

Samples

Order Code	Datasheet	Simulation	Downloads	Status	Data rate	Ports	PoE	Improved CMRR	Operating Temperature	V_T (V (RMS))	Mount	L (µH)	Samples

LANtastic Automation!

LANtastic Automation!

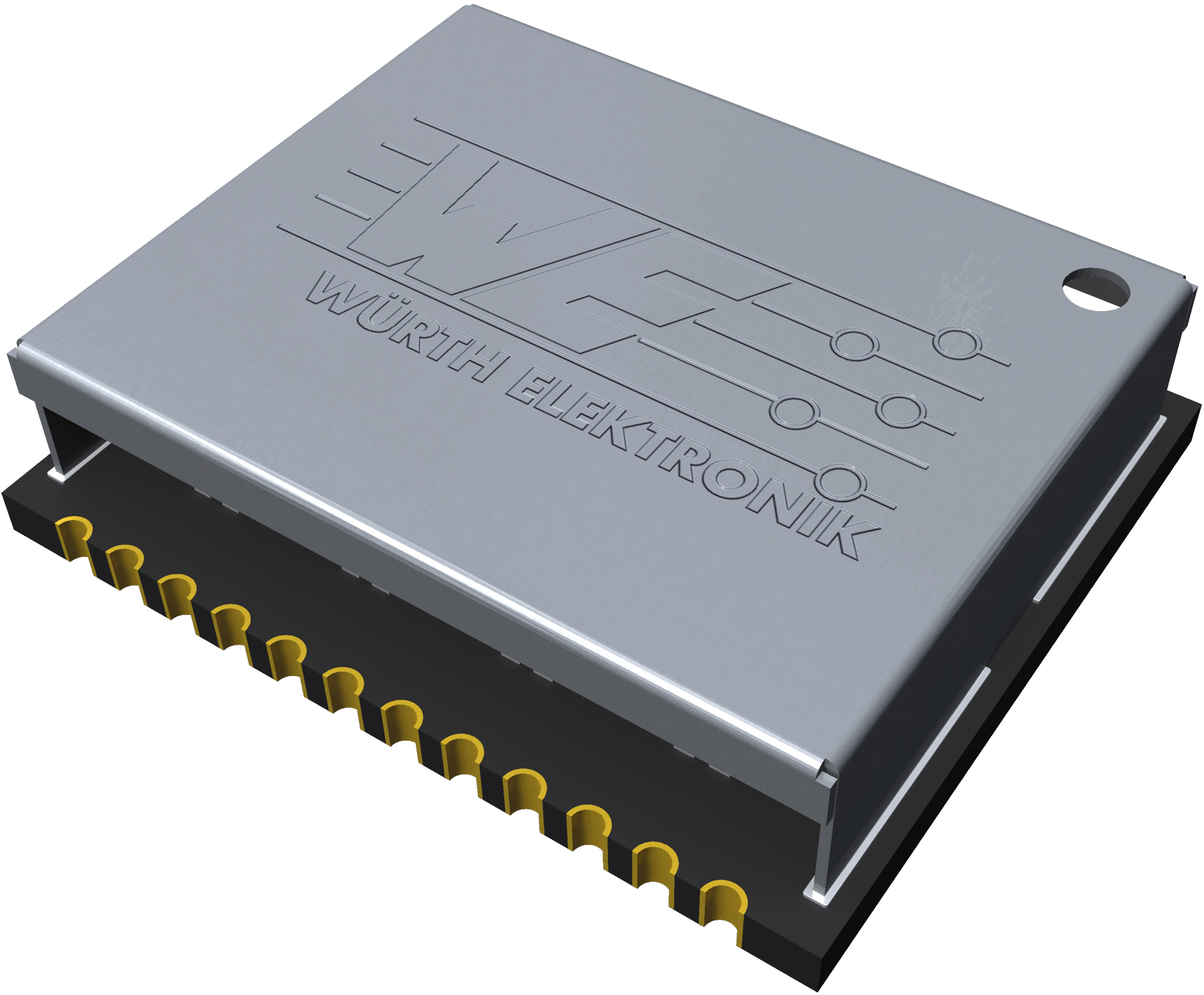

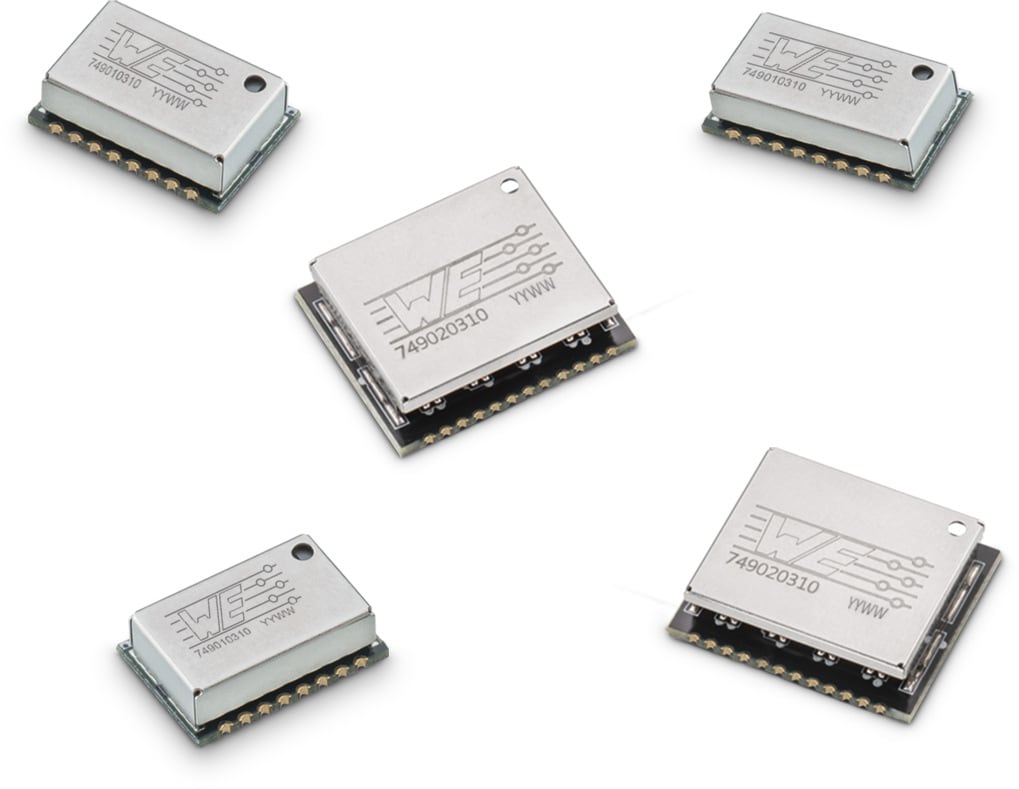

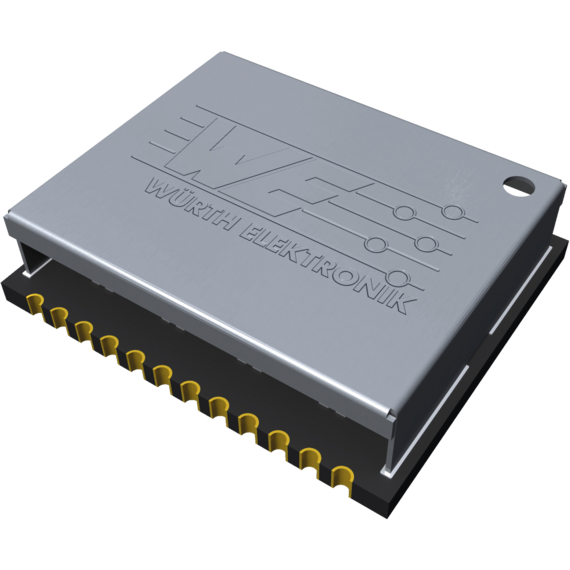

WE-LAN AQ Transformer

The WE-LAN AQ is a LAN transformer manufactured by a fully automated production process. Its innovative coil winding technique reduces the electrical variation and increases their reliability, while improving performance over a wide frequency range.

Würth Elektronik eiSos offers as well the LAN AQ series for POE applications up to 720 mA to extend the application areas for our customers. LAN transformers and RJ45 connectors suitable for different speeds and PoE current ratings can also be found in the further LAN product families.

Innovative Design

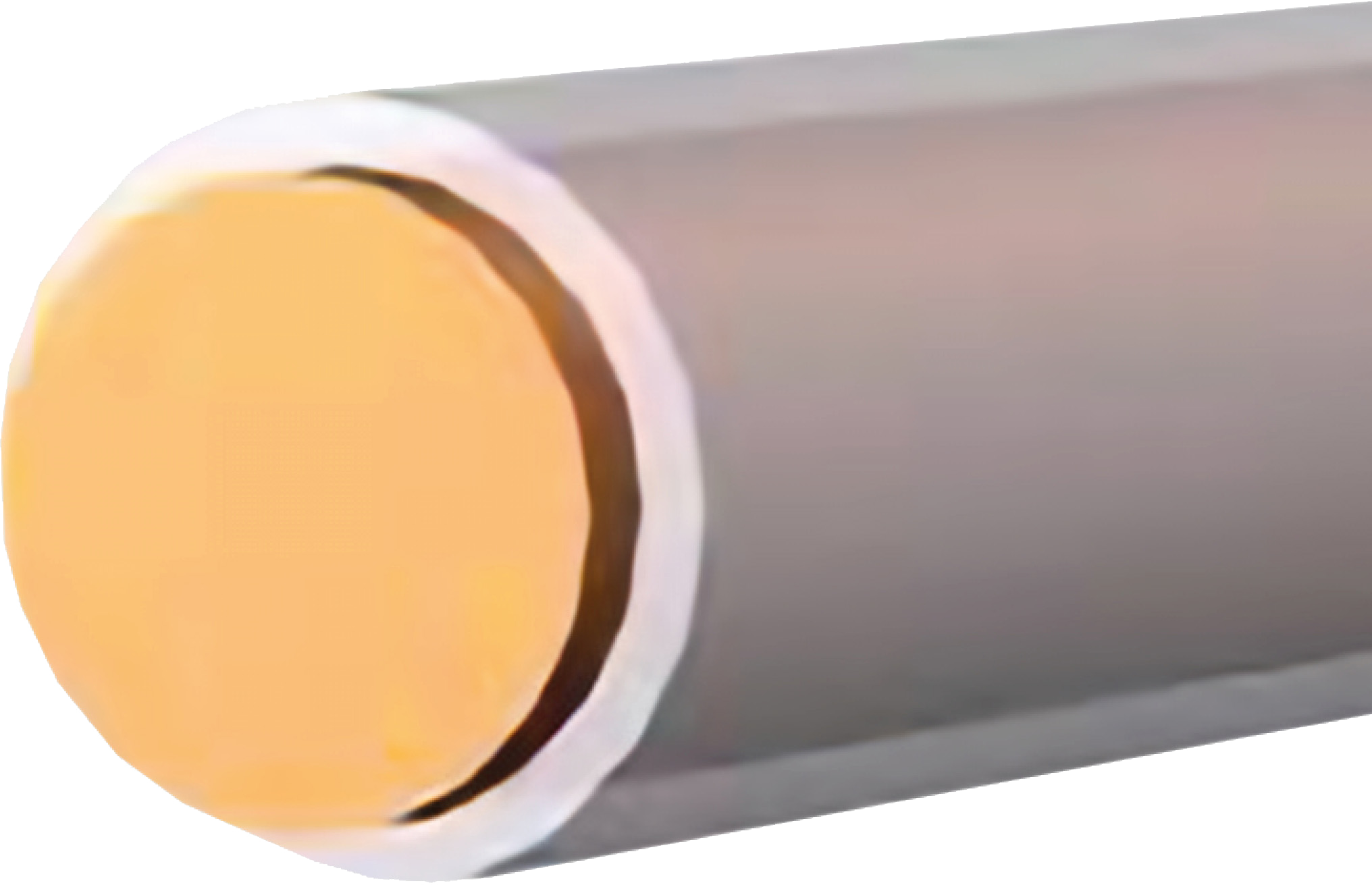

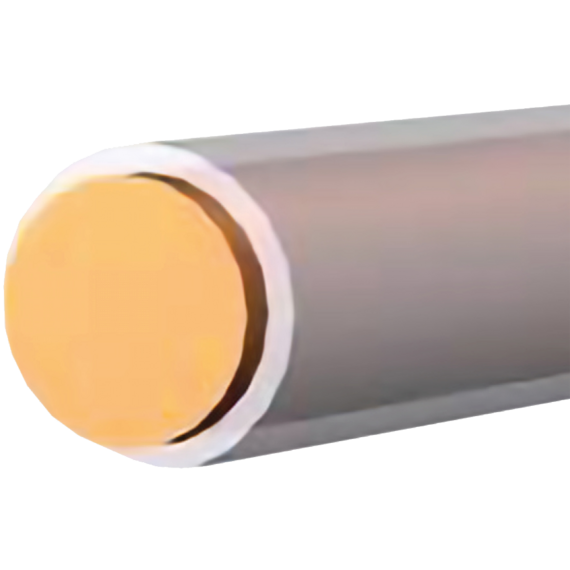

IEEE 802.3: Isolation voltage of 1.5 kV and compatibility with IEEE standards

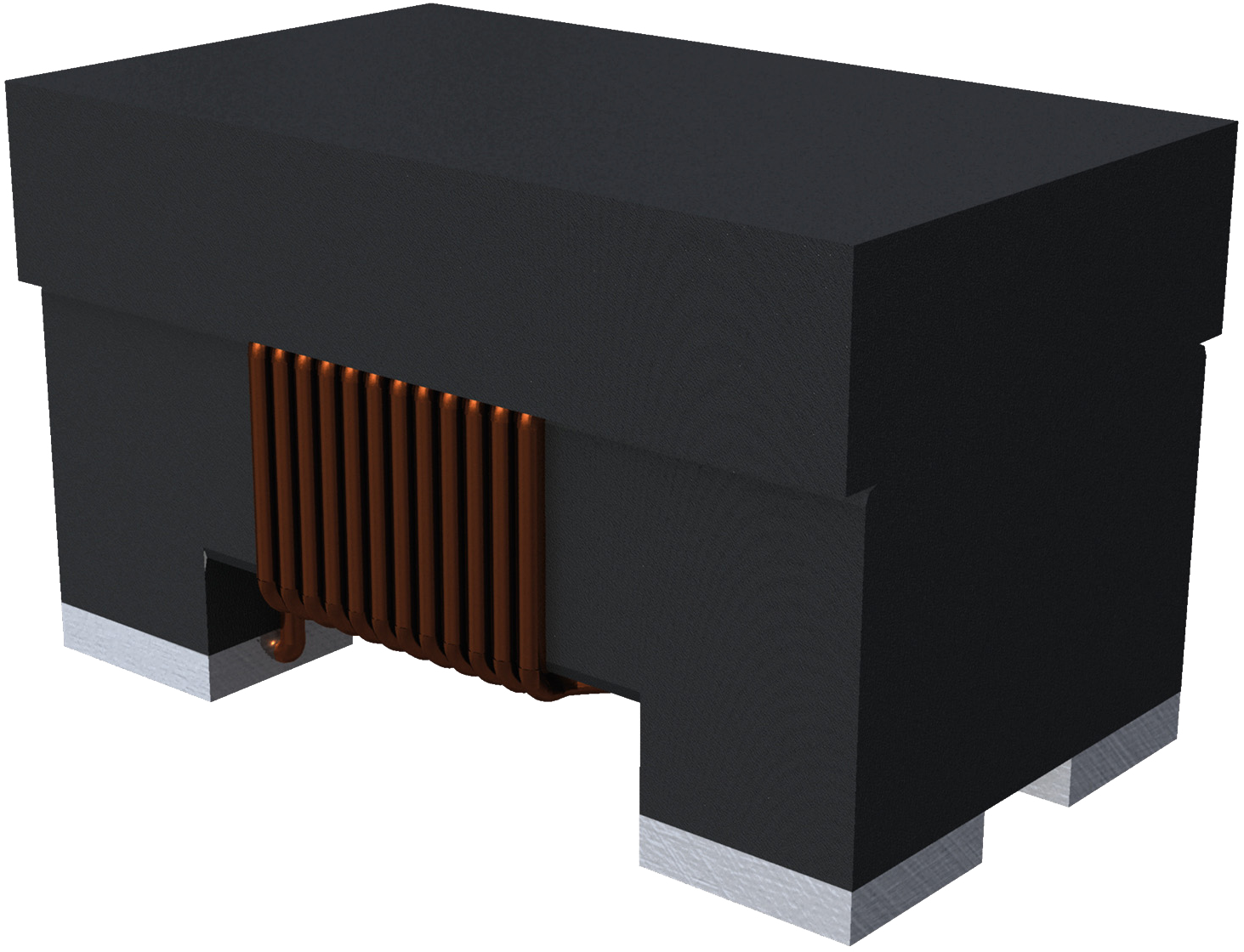

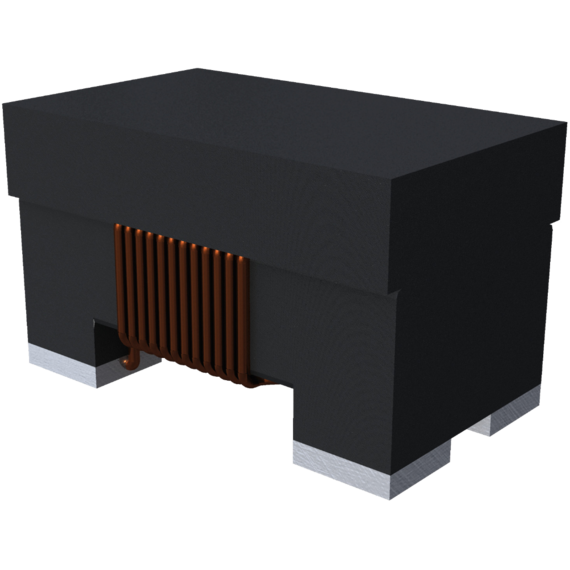

Machine-wound T-Bone cores: Tight tolerance and high production quality

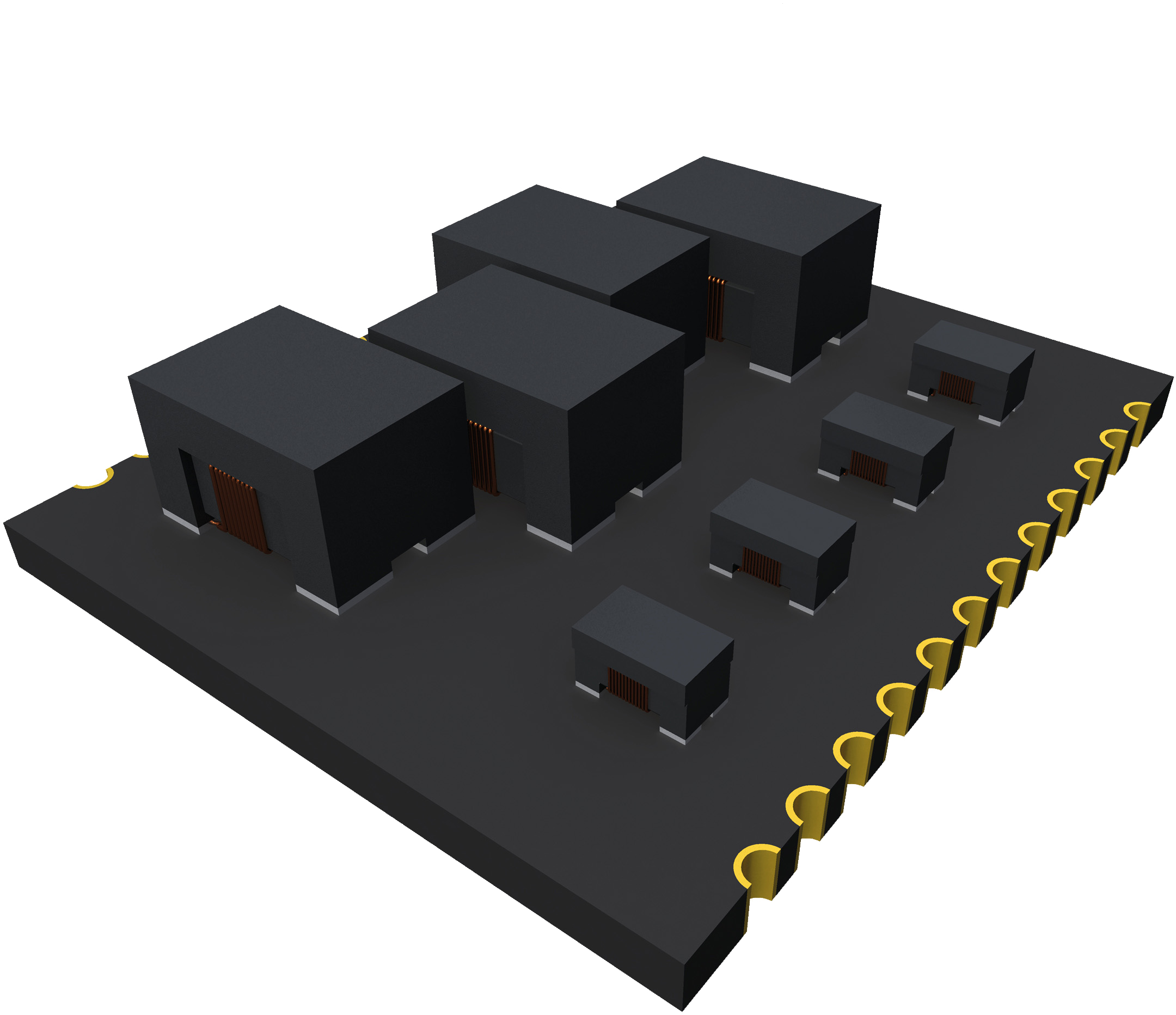

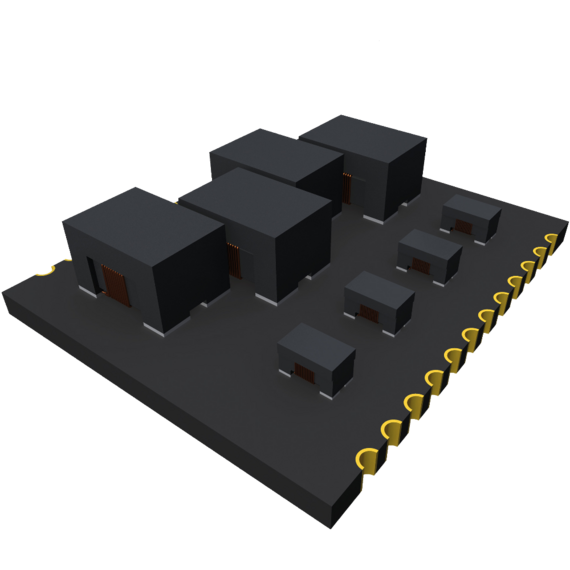

Fully automated manufacturing: reduced electrical variation, increased reliability and accurate matching of data lines

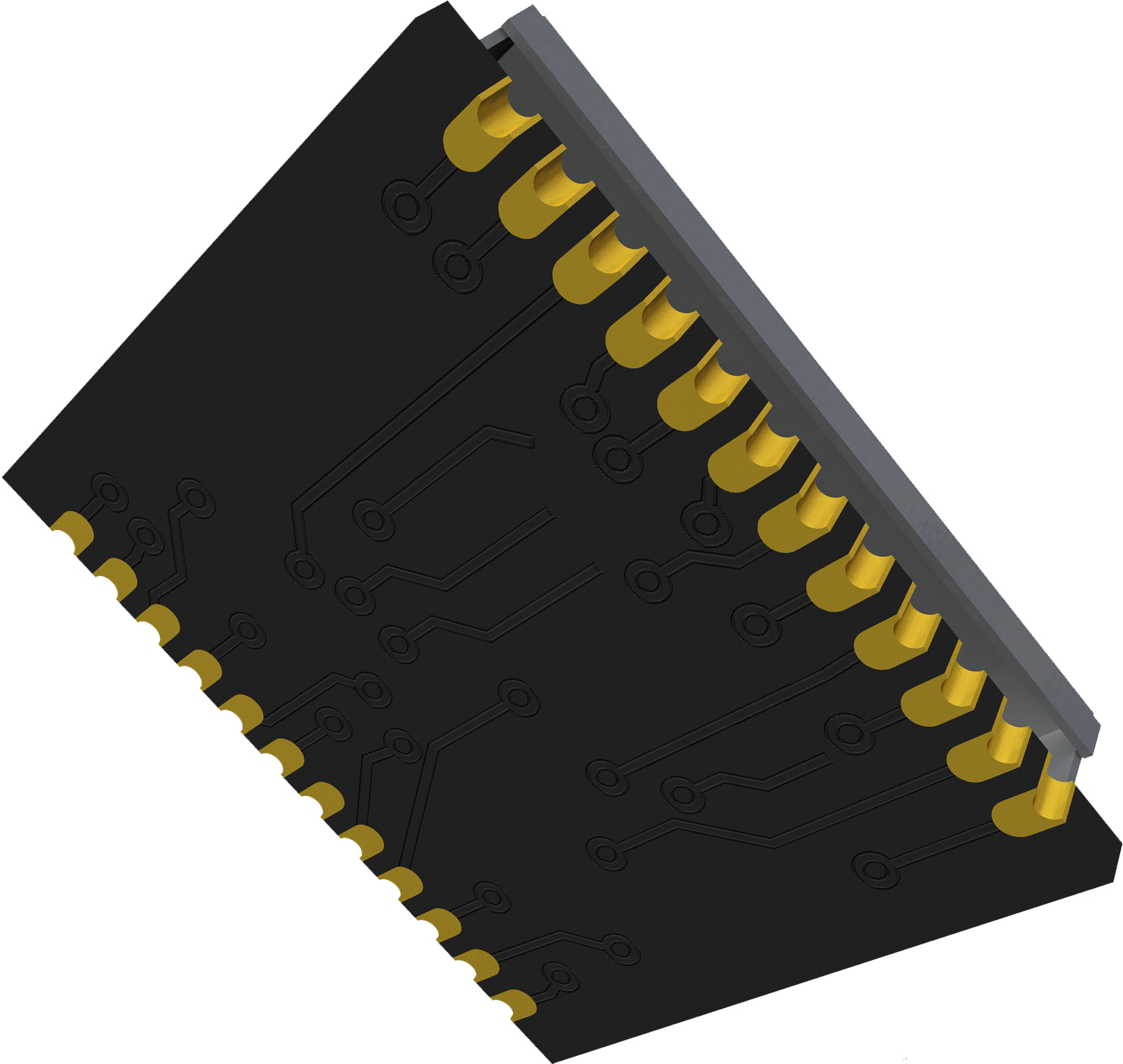

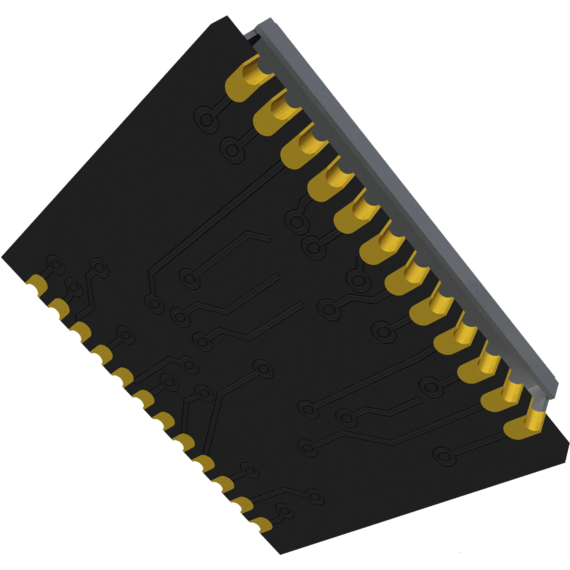

Gold plated half vias and pads on the bottom side: Improved solderability & AOI inspection and pad compatible to standard parts

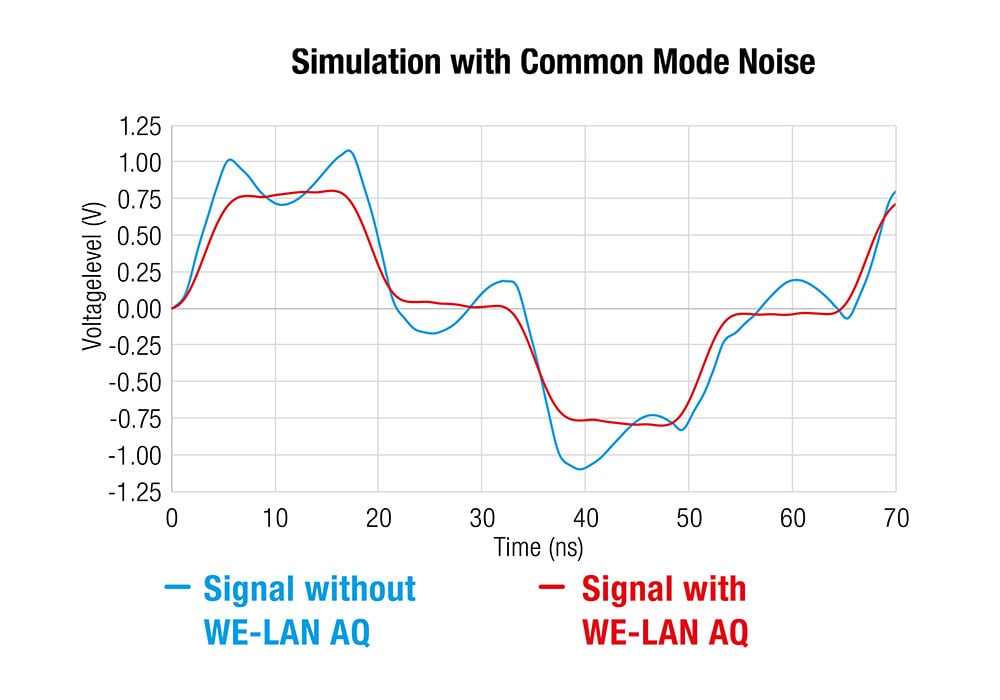

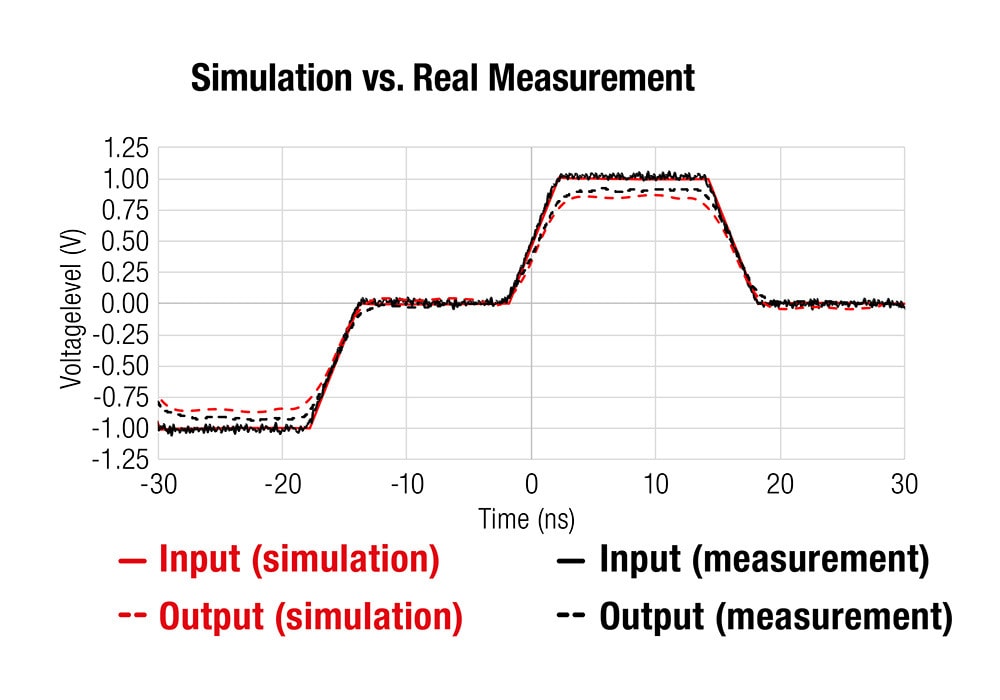

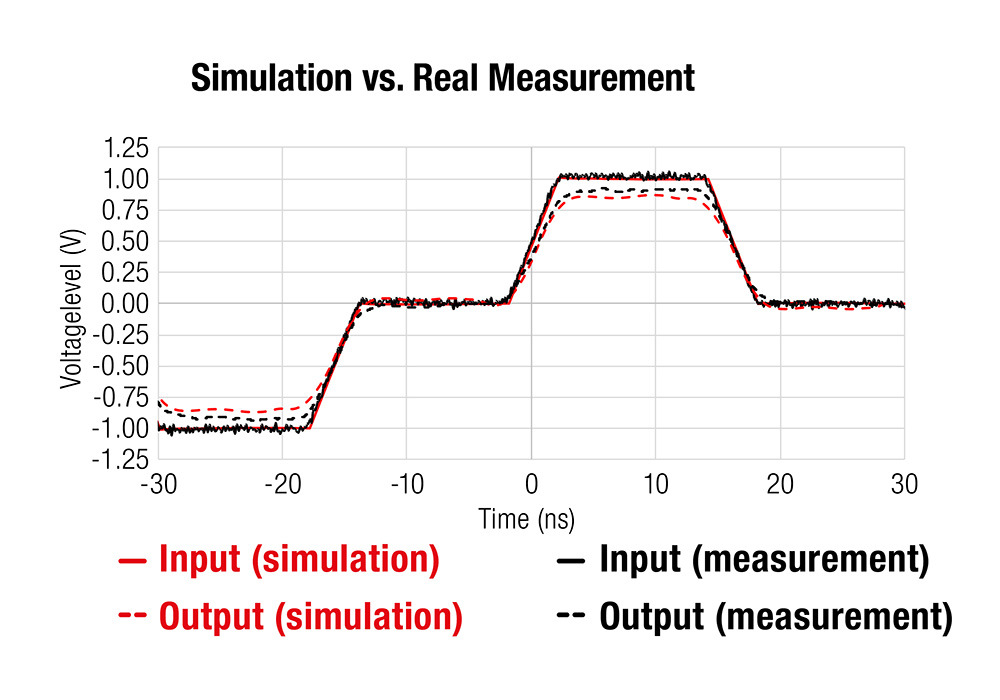

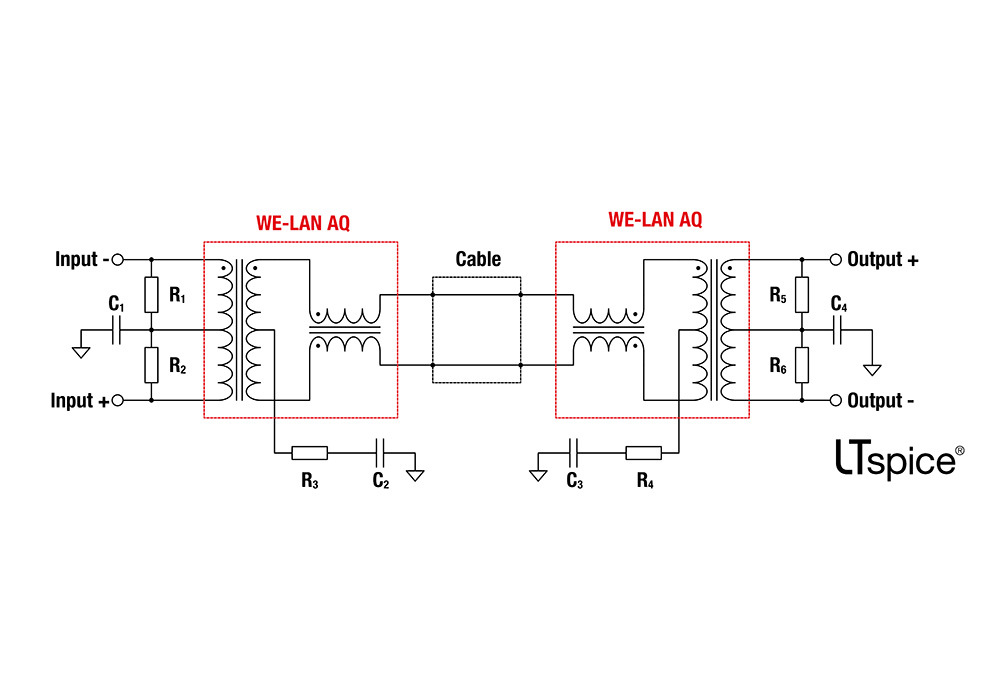

Characteristics & Simulation

The WE-LAN AQ transformers are characterised by reducing the electrical variation, increasing the reliability and improving perfomance over a wide frequency range.
