WCAP-CSGP MLCCs 6.3 V(DC)

LTSpice files

LT
LTSpice_WCAP-CSGP (rev24a).zip
|
73.4 KB

Characteristics

General purpose product series
Ceramic: X5R (Class II), X7R (Class II)
Temperature coefficient:
±15 % for X5R and X7R
Operating temperature:
-55 °C up to + 125 °C for X7R
-55 °C up to + 85 °C for X5R
Termination: Cu/Ni/Sn

Reference Designs

RD001 6 W Bipolar isolated auxiliary supply for SiC-MOSFET and IGBT gate driver
RD002 6 W Unipolar isolated auxiliary supply for SiC-MOSFET and IGBT gate driver
RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems
RD022 GB PoE+-Ethernet-USB“ adapter for industrial use with an EMC perspective

Applications

Coupling
Decoupling
Bypass
Smoothing
Filtering
Resonant circuit

Application Notes

Products

All

0201

0402

0603

0805

1206

1210

Order Code	Datasheet	Downloads	C	Tol. C	V_R (V (DC))	Size	Operating Temperature	DF (%)	R_ISO	Ceramic Type	L (mm)	W (mm)	H (mm)	Fl (mm)	Packaging	Filter Bag	Filter Stick	Design Kit
885012104004	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_0.6 x 0.3 x 0 (rev1).pdf \| 12.3 KB IGS IGS_0.6 x 0.3 x 0 (rev1).igs \| 52.9 KB STP STP_0.6 x 0.3 x 0 (rev1).stp \| 20.8 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 7 files as zip archive ZIP	10 nF	±20%	6.3	0201	-55 °C up to +85 °C	10	10 GΩ	X5R Class II	0.6	0.3	0.3	0.15	7" Tape & Reel	–	–	–
885012105001	SPEC	5 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP STP Download_STP_8850120050xx (rev1).stp \| 29.3 KB Download all 5 files as zip archive ZIP	100 nF	±20%	6.3	0402	-55 °C up to +85 °C	10	1 GΩ	X5R Class II	1	0.5	0.5	0.25	7" Tape & Reel	–	–	–
885012104003	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_0.6 x 0.3 x 0 (rev1).pdf \| 12.3 KB IGS IGS_0.6 x 0.3 x 0 (rev1).igs \| 52.9 KB STP STP_0.6 x 0.3 x 0 (rev1).stp \| 20.8 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 7 files as zip archive ZIP	100 nF	±20%	6.3	0201	-55 °C up to +85 °C	15	0.5 GΩ	X5R Class II	0.6	0.3	0.3	0.15	7" Tape & Reel	–	–	–
885012104009	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_0.6 x 0.3 x 0 (rev1).pdf \| 12.3 KB IGS IGS_0.6 x 0.3 x 0 (rev1).igs \| 52.9 KB STP STP_0.6 x 0.3 x 0 (rev1).stp \| 20.8 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 7 files as zip archive ZIP	100 nF	±10%	6.3	0201	-55 °C up to +85 °C	10	0.5 GΩ	X5R Class II	0.6	0.3	0.3	0.15	7" Tape & Reel	–	–	–
885012104010	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_0.6 x 0.3 x 0 (rev1).pdf \| 12.3 KB IGS IGS_0.6 x 0.3 x 0 (rev1).igs \| 52.9 KB STP STP_0.6 x 0.3 x 0 (rev1).stp \| 20.8 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 7 files as zip archive ZIP	220 nF	±10%	6.3	0201	-55 °C up to +85 °C	15	0.2 GΩ	X5R Class II	0.6	0.3	0.3	0.15	7" Tape & Reel	–	–	–
885012105004	SPEC	6 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP STP Download_STP_8850120050xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 6 files as zip archive ZIP	470 nF	±20%	6.3	0402	-55 °C up to +85 °C	10	0.2 GΩ	X5R Class II	1	0.5	0.5	0.25	7" Tape & Reel	–	–	–
885012206001	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 1.6x0.8x0.8x0 (rev1).pdf \| 12.3 KB IGS 1.6x0.8x0.8x0 (rev1).igs \| 76.4 KB STP Download_STP_8850122060xx (rev1).stp \| 29.4 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	470 nF	±10%	6.3	0603	-55 °C up to +125 °C	10	0.2 GΩ	X7R Class II	1.6	0.8	0.8	0.4	7" Tape & Reel	–	–	–
885012106001	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 1.6x0.8x0.8x0 (rev1).pdf \| 12.3 KB IGS 1.6x0.8x0.8x0 (rev1).igs \| 76.4 KB STP Download_STP_8850122060xx (rev1).stp \| 29.4 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	470 nF	±20%	6.3	0603	-55 °C up to +85 °C	10	0.2 GΩ	X5R Class II	1.6	0.8	0.8	0.4	7" Tape & Reel	–	–	–
885012105005	SPEC	6 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP STP Download_STP_8850120050xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 6 files as zip archive ZIP	680 nF	±20%	6.3	0402	-55 °C up to +85 °C	10	0.2 GΩ	X5R Class II	1	0.5	0.5	0.25	7" Tape & Reel	–	–	–
885012106002	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 1.6x0.8x0.8x0 (rev1).pdf \| 12.3 KB IGS 1.6x0.8x0.8x0 (rev1).igs \| 76.4 KB STP Download_STP_8850122060xx (rev1).stp \| 29.4 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	680 nF	±20%	6.3	0603	-55 °C up to +85 °C	10	0.2 GΩ	X5R Class II	1.6	0.8	0.8	0.4	7" Tape & Reel	–	–	–
885012105006	SPEC	6 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP STP Download_STP_8850120050xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 6 files as zip archive ZIP	1 µF	±20%	6.3	0402	-55 °C up to +85 °C	15	0.1 GΩ	X5R Class II	1	0.5	0.5	0.25	7" Tape & Reel	829485	8294851	–
885012206002	SPEC	6 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP STP Download_STP_8850120050xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 6 files as zip archive ZIP	1 µF	±10%	6.3	0603	-55 °C up to +125 °C	10	0.1 GΩ	X7R Class II	1.6	0.8	0.8	0.4	7" Tape & Reel	–	–	–
885012106003	SPEC	6 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP STP Download_STP_8850120050xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 6 files as zip archive ZIP	1 µF	±20%	6.3	0603	-55 °C up to +85 °C	10	0.1 GΩ	X5R Class II	1.6	0.8	0.8	0.4	7" Tape & Reel	–	–	–
885012104011	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/10/2024 SPEC Datasheet valid from 18/10/2024 PCN PCN document	7 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_0.6 x 0.3 x 0 (rev1).pdf \| 12.3 KB IGS IGS_0.6 x 0.3 x 0 (rev1).igs \| 52.9 KB STP STP_0.6 x 0.3 x 0 (rev1).stp \| 20.8 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 7 files as zip archive ZIP	1 µF	±20%	6.3	0201	-55 °C up to +85 °C	15	0.05 GΩ	X5R Class II	0.6	0.3	0.3	0.15	7" Tape & Reel	–	–	–
885012105007	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/10/2024 SPEC Datasheet valid from 18/10/2024 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP STP Download_STP_8850120050xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 6 files as zip archive ZIP	2.2 µF	±20%	6.3	0402	-55 °C up to +85 °C	10	0.05 GΩ	X5R Class II	1	0.5	0.5	0.25	7" Tape & Reel	–	–	–
885012106004	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 1.6x0.8x0.8x0 (rev1).pdf \| 12.3 KB IGS 1.6x0.8x0.8x0 (rev1).igs \| 76.4 KB STP Download_STP_8850122060xx (rev1).stp \| 29.4 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	2.2 µF	±20%	6.3	0603	-55 °C up to +85 °C	10	0.05 GΩ	X5R Class II	1.6	0.8	0.8	0.4	7" Tape & Reel	–	–	–
885012207001	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WCAP-CSGP_0805 (rev1).pdf \| 12.2 KB IGS IGS_MLCC_WACP-CSGP_0805 (rev1).igs \| 52.9 KB STP Download_STP_8850121070xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	2.2 µF	±10%	6.3	0805	-55 °C up to +125 °C	10	0.05 GΩ	X7R Class II	2	1.25	1.25	0.5	7" Tape & Reel	–	–	–
885012107001	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WCAP-CSGP_0805 (rev1).pdf \| 12.2 KB IGS IGS_MLCC_WACP-CSGP_0805 (rev1).igs \| 52.9 KB STP Download_STP_8850121070xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	2.2 µF	±20%	6.3	0805	-55 °C up to +85 °C	10	0.05 GΩ	X5R Class II	2	1.25	1.25	0.5	7" Tape & Reel	–	–	–
885012208001	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WCAP-CSGP_885012208001 (rev1).pdf \| 12.3 KB IGS IGS_MLCC_WCAP-CSGP_885012208001 (rev1).igs \| 52.8 KB STP Download_STP_8850122080xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	2.2 µF	±10%	6.3	1206	-55 °C up to +125 °C	10	0.05 GΩ	X7R Class II	3.2	1.6	1.15	0.6	7" Tape & Reel	–	–	–
885012107002	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WCAP-CSGP_0805 (rev1).pdf \| 12.2 KB IGS IGS_MLCC_WACP-CSGP_0805 (rev1).igs \| 52.9 KB STP Download_STP_8850121070xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	3.3 µF	±20%	6.3	0805	-55 °C up to +85 °C	10	0.03 GΩ	X5R Class II	2	1.25	1.25	0.5	7" Tape & Reel	–	–	–
885012105008	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/10/2024 SPEC Datasheet valid from 18/10/2024 PCN PCN document	6 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP STP Download_STP_8850120050xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 6 files as zip archive ZIP	4.7 µF	±20%	6.3	0402	-55 °C up to +85 °C	10	0.02 GΩ	X5R Class II	1	0.5	0.5	0.25	7" Tape & Reel	–	–	885050
885012106005	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 1.6x0.8x0.8x0 (rev1).pdf \| 12.3 KB IGS 1.6x0.8x0.8x0 (rev1).igs \| 76.4 KB STP Download_STP_8850122060xx (rev1).stp \| 29.4 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	4.7 µF	±20%	6.3	0603	-55 °C up to +85 °C	10	0.02 GΩ	X5R Class II	1.6	0.8	0.8	0.4	7" Tape & Reel	–	–	–
885012207002	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WCAP-CSGP_0805 (rev1).pdf \| 12.2 KB IGS IGS_MLCC_WACP-CSGP_0805 (rev1).igs \| 52.9 KB STP Download_STP_8850121070xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	4.7 µF	±10%	6.3	0805	-55 °C up to +125 °C	15	0.02 GΩ	X7R Class II	2	1.25	1.25	0.5	7" Tape & Reel	–	–	–
885012107003	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WCAP-CSGP_0805 (rev1).pdf \| 12.2 KB IGS IGS_MLCC_WACP-CSGP_0805 (rev1).igs \| 52.9 KB STP Download_STP_8850121070xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	4.7 µF	±20%	6.3	0805	-55 °C up to +85 °C	15	0.02 GΩ	X5R Class II	2	1.25	1.25	0.5	7" Tape & Reel	–	–	–
885012208002	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WACP-CSGP_1206_3.2x1.6x1.6x0 (rev1).pdf \| 12.1 KB IGS IGS_WACP_CSGP_1206_3.2x1.6x1.6x0 (rev1).igs \| 52 KB STP Download_STP_8850121080xx (rev1).stp \| 29.4 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	4.7 µF	±10%	6.3	1206	-55 °C up to +125 °C	10	0.02 GΩ	X7R Class II	3.2	1.6	1.6	0.6	7" Tape & Reel	–	–	–
885012108001	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WACP-CSGP_1206_3.2x1.6x1.6x0 (rev1).pdf \| 12.1 KB IGS IGS_WACP_CSGP_1206_3.2x1.6x1.6x0 (rev1).igs \| 52 KB STP Download_STP_8850121080xx (rev1).stp \| 29.4 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	4.7 µF	±20%	6.3	1206	-55 °C up to +85 °C	10	0.02 GΩ	X5R Class II	3.2	1.6	1.6	0.6	7" Tape & Reel	–	–	–
885012106006	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/10/2024 SPEC Datasheet valid from 18/10/2024 PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WCAP-CSGP_0603_885012106006 (rev1).pdf \| 12.3 KB IGS IGS_MLCC_WCAP-CSGP_0603_885012106006 (rev1).igs \| 52.7 KB STP Download_STP_8850122060xx (rev1).stp \| 29.4 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	10 µF	±20%	6.3	0603	-55 °C up to +85 °C	10	0.01 GΩ	X5R Class II	1.6	0.8	0.8	0.35	7" Tape & Reel	–	–	885060
885012207003	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WCAP-CSGP_0805 (rev1).pdf \| 12.2 KB IGS IGS_MLCC_WACP-CSGP_0805 (rev1).igs \| 52.9 KB STP Download_STP_8850121070xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	10 µF	±10%	6.3	0805	-55 °C up to +125 °C	10	0.01 GΩ	X7R Class II	2	1.25	1.25	0.5	7" Tape & Reel	–	–	–
885012107004	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WCAP-CSGP_0805 (rev1).pdf \| 12.2 KB IGS IGS_MLCC_WACP-CSGP_0805 (rev1).igs \| 52.9 KB STP Download_STP_8850121070xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	10 µF	±20%	6.3	0805	-55 °C up to +85 °C	15	0.01 GΩ	X5R Class II	2	1.25	1.25	0.5	7" Tape & Reel	–	–	–
885012208003	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WACP-CSGP_1206_3.2x1.6x1.6x0 (rev1).pdf \| 12.1 KB IGS IGS_WACP_CSGP_1206_3.2x1.6x1.6x0 (rev1).igs \| 52 KB STP Download_STP_8850121080xx (rev1).stp \| 29.4 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	10 µF	±10%	6.3	1206	-55 °C up to +125 °C	10	0.005 GΩ	X7R Class II	3.2	1.6	1.6	0.6	7" Tape & Reel	–	–	–
885012108002	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WACP-CSGP_1206_3.2x1.6x1.6x0 (rev1).pdf \| 12.1 KB IGS IGS_WACP_CSGP_1206_3.2x1.6x1.6x0 (rev1).igs \| 52 KB STP Download_STP_8850121080xx (rev1).stp \| 29.4 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	10 µF	±20%	6.3	1206	-55 °C up to +85 °C	10	0.005 GΩ	X5R Class II	3.2	1.6	1.6	0.6	7" Tape & Reel	–	–	–
885012109001	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WCAP-CSGP_1210_3.2x2.5x2.0x0 (rev1).pdf \| 12.3 KB IGS IGS_MLCC_WCAP-CSGP_1210_3.2x2.5x2.0x0 (rev1).igs \| 52.7 KB STP Download_STP_885012x090xx (rev1).stp \| 29.2 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	10 µF	±20%	6.3	1210	-55 °C up to +85 °C	10	0.01 GΩ	X5R Class II	3.2	2.5	2	0.75	7" Tape & Reel	–	–	–
885012105020	SPEC	9 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D Download_3D (rev1).pdf \| 12.2 KB IGS Download_IGS (rev1).igs \| 52.9 KB STP Download_STP (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 9 files as zip archive ZIP	10 µF	±20%	6.3	0402	-55 °C up to +85 °C	10	0.01 GΩ	X5R Class II	1	0.5	0.5	0.25	7" Tape & Reel	–	–	–
885012107005	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/10/2024 SPEC Datasheet valid from 18/10/2024 PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WCAP-CSGP_0805 (rev1).pdf \| 12.2 KB IGS IGS_MLCC_WACP-CSGP_0805 (rev1).igs \| 52.9 KB STP Download_STP_8850121070xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	22 µF	±20%	6.3	0805	-55 °C up to +85 °C	10	0.005 GΩ	X5R Class II	2	1.25	1.25	0.5	7" Tape & Reel	–	–	–
885012108003	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WACP-CSGP_1206_3.2x1.6x1.6x0 (rev1).pdf \| 12.1 KB IGS IGS_WACP_CSGP_1206_3.2x1.6x1.6x0 (rev1).igs \| 52 KB STP Download_STP_8850121080xx (rev1).stp \| 29.4 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	22 µF	±20%	6.3	1206	-55 °C up to +85 °C	10	0.002 GΩ	X5R Class II	3.2	1.6	1.6	0.6	7" Tape & Reel	–	–	–
885012109002	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/10/2024 SPEC Datasheet valid from 18/10/2024 PCN PCN document	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WACP_CSGP_1210_3.2x2.5x2.5x0 (rev1).pdf \| 12.3 KB IGS IGS_MLCC_WCAP_CSGP_1210_3.2x2.5x2.5x0 (rev1).igs \| 52.8 KB STP Download_STP_885012x09xxx (rev1).stp \| 29.2 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	22 µF	±20%	6.3	1210	-55 °C up to +85 °C	5	0.02 GΩ	X5R Class II	3.2	2.5	2.5	0.6	7" Tape & Reel	–	–	–
885012107006	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WCAP-CSGP_0805 (rev1).pdf \| 12.2 KB IGS IGS_MLCC_WACP-CSGP_0805 (rev1).igs \| 52.9 KB STP Download_STP_8850121070xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	47 µF	±20%	6.3	0805	-55 °C up to +85 °C	10	0.002 GΩ	X5R Class II	2	1.25	1.25	0.5	7" Tape & Reel	–	–	885070
885012108004	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP IGS IGS_MLCC_WCAP-CSGP_1206_3.2x1.6x1.6x0 (rev1).igs \| 52.3 KB STP Download_STP_8850121080xx (rev1).stp \| 29.4 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 7 files as zip archive ZIP	47 µF	±20%	6.3	1206	-55 °C up to +85 °C	10	0.002 GΩ	X5R Class II	3.2	1.6	1.6	0.5	7" Tape & Reel	–	–	–
885012109003	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WACP_CSGP_1210_3.2x2.5x2.5x0 (rev1).pdf \| 12.3 KB IGS IGS_MLCC_WCAP_CSGP_1210_3.2x2.5x2.5x0 (rev1).igs \| 52.8 KB STP Download_STP_885012x09xxx (rev1).stp \| 29.2 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	47 µF	±20%	6.3	1210	-55 °C up to +85 °C	10	0.002 GΩ	X5R Class II	3.2	2.5	2.5	0.75	7" Tape & Reel	–	–	–
885012108005	SPEC	7 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP IGS IGS_MLCC_WCAP-CSGP_1206_3.2x1.6x1.6x0 (rev1).igs \| 52.3 KB STP Download_STP_8850121080xx (rev1).stp \| 29.4 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 7 files as zip archive ZIP	100 µF	±20%	6.3	1206	-55 °C up to +85 °C	10	0.001 GΩ	X5R Class II	3.2	1.6	1.6	0.5	7" Tape & Reel	–	–	885080
885012109004	SPEC	8 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev24b).IntLib \| 898 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CDS Cadence_WCAP-CSGP (rev24b).zip \| 685.2 KB EAG Eagle_WCAP-CSGP (rev24c).lbr \| 1.1 MB CAD files ZIP 3D 3D_MLCC_WACP_CSGP_1210_3.2x2.5x2.5x0 (rev1).pdf \| 12.3 KB IGS IGS_MLCC_WCAP_CSGP_1210_3.2x2.5x2.5x0 (rev1).igs \| 52.8 KB STP Download_STP_885012x09xxx (rev1).stp \| 29.2 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev24a).zip \| 331.9 KB Download all 8 files as zip archive ZIP	100 µF	±20%	6.3	1210	-55 °C up to +85 °C	10	0.001 GΩ	X5R Class II	3.2	2.5	2.5	0.6	7" Tape & Reel	–	–	885080

Order Code	Datasheet	Simulation
885012104004	SPEC
885012105001	SPEC
885012104003	SPEC
885012104009	SPEC
885012104010	SPEC
885012105004	SPEC
885012206001	SPEC
885012106001	SPEC
885012105005	SPEC
885012106002	SPEC
885012105006	SPEC
885012206002	SPEC
885012106003	SPEC
885012104011	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/10/2024 SPEC Datasheet valid from 18/10/2024 PCN PCN document
885012105007	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/10/2024 SPEC Datasheet valid from 18/10/2024 PCN PCN document
885012106004	SPEC
885012207001	SPEC
885012107001	SPEC
885012208001	SPEC
885012107002	SPEC
885012105008	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/10/2024 SPEC Datasheet valid from 18/10/2024 PCN PCN document
885012106005	SPEC
885012207002	SPEC
885012107003	SPEC
885012208002	SPEC
885012108001	SPEC
885012106006	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/10/2024 SPEC Datasheet valid from 18/10/2024 PCN PCN document
885012207003	SPEC
885012107004	SPEC
885012208003	SPEC
885012108002	SPEC
885012109001	SPEC
885012105020	SPEC
885012107005	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/10/2024 SPEC Datasheet valid from 18/10/2024 PCN PCN document
885012108003	SPEC
885012109002	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 17/10/2024 SPEC Datasheet valid from 18/10/2024 PCN PCN document
885012107006	SPEC
885012108004	SPEC
885012109003	SPEC
885012108005	SPEC
885012109004	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	C	Tol. C	V_R (V (DC))	Size	Operating Temperature	DF (%)	R_ISO	Ceramic Type	L (mm)	W (mm)	H (mm)	Fl (mm)	Packaging	Filter Bag	Filter Stick	Design Kit	Samples

Applications Notes, Documents and Videos

Support Note SN011: Why does the capacity of MLCCs change?

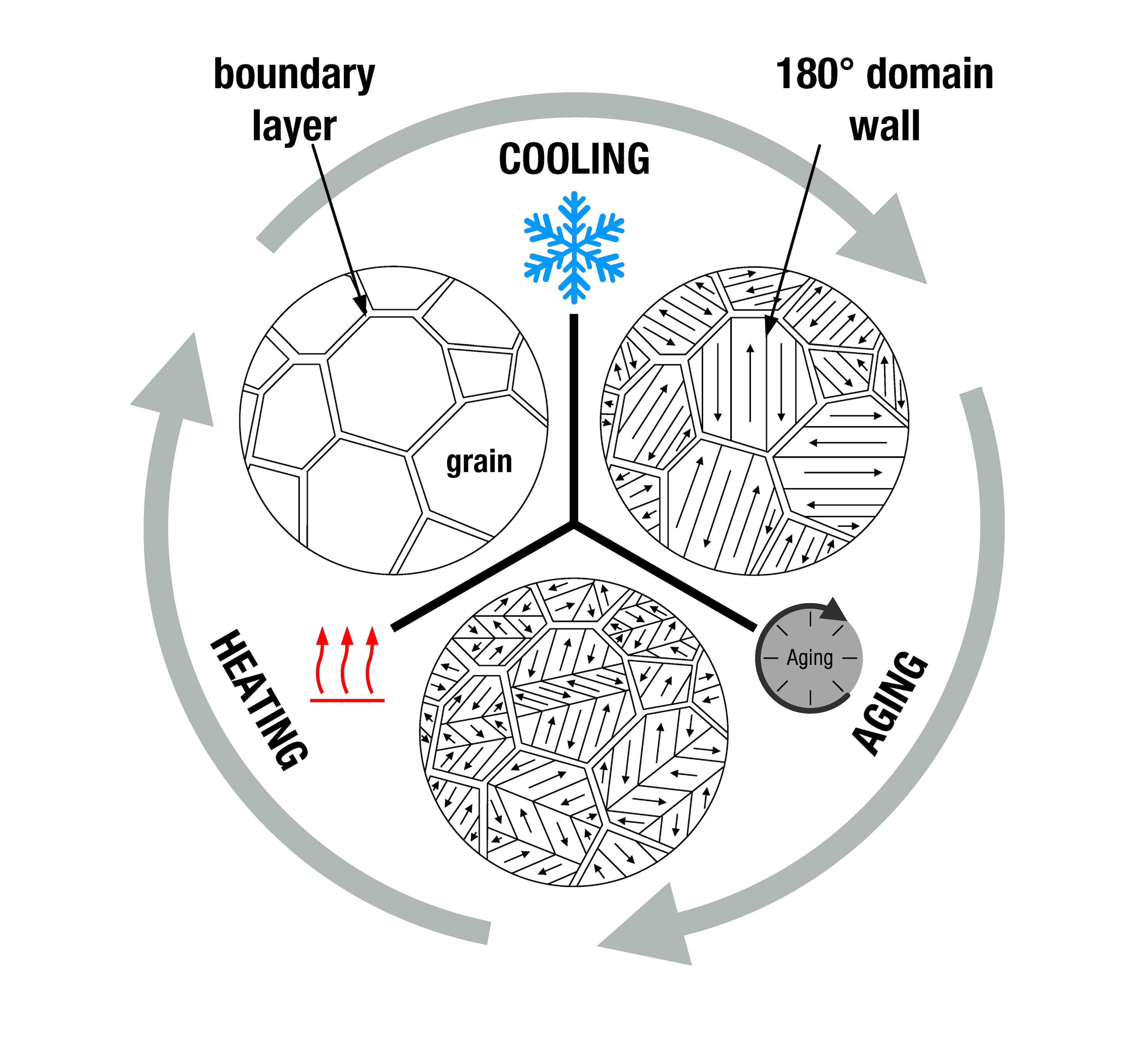

Why does the capacity of MLCCs change? Ambient temperature, structural changes or component tolerances play an important role. This document provides an overview of the most important factors, how these can be reduced by using a different material or external influences

Read more PDF

Application Note ANP062: LC Filter Design With MLCCs: Why The Applied Voltage Matters

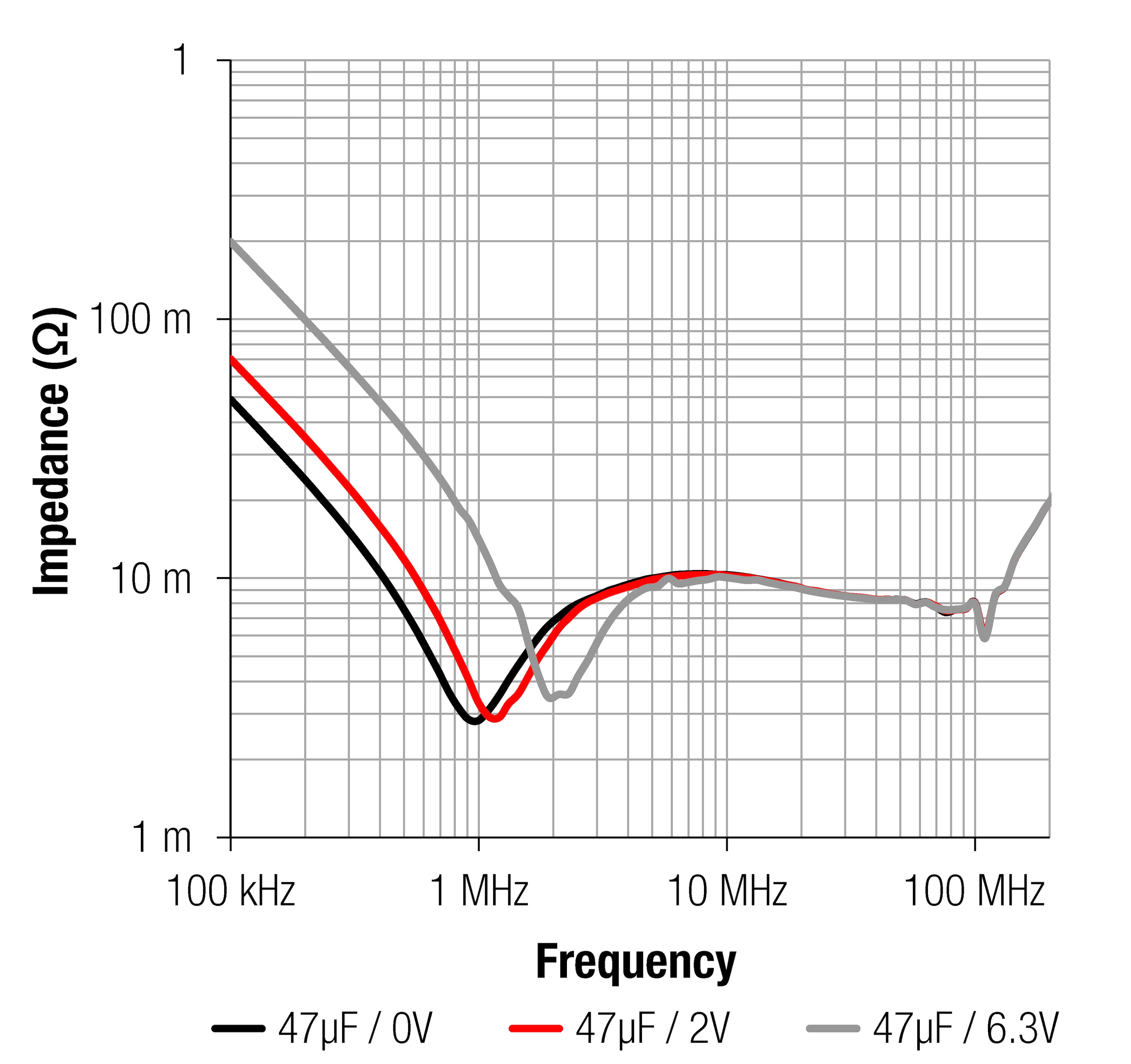

How does the DC voltage influence the behavior of an capacitor, and hence the filter design? Simulated and measured results are compared with different components and materials.

Read more PDF

Application Note ANP109: Impedance Spectra of Different Capacitor Technologies

Impedance and capacitance spectra are common representations of frequency dependent electrical properties of capacitors. The interpretation of such spectra provides a wide range of electrochemical, physical and technical relevant information and need to be separated from the ever-present measurement artifacts as well as parasitic effects.

Read more PDF

Application Note ANP114 Voltage and Frequency Dependence of Ferroelectric Class 2 Multilayer Ceramic Capacitors

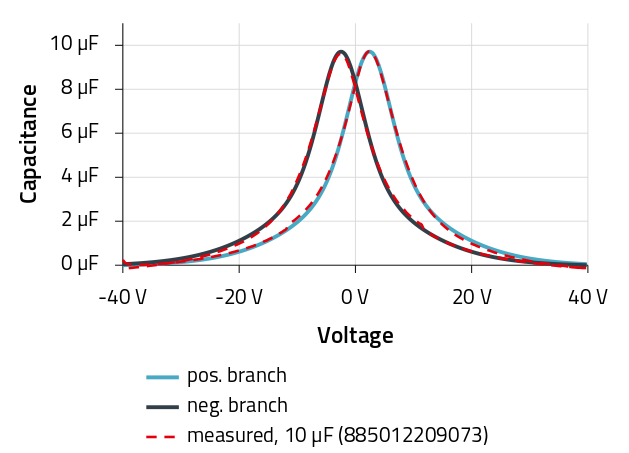

After introducing ferroelectricity, a mathematical model for the capacitance-voltage behavior of multilayer ceramic capacitors (MLCCs) is derived from a dipole polarization model. The parameters of the model are reduced to two fitting parameters.

Read more PDF

MLCC Start: Class 1 or Class 2?

Multilayer Cermaic Capacitors are separated into different classes. What are the differences between Class 1 and Class 2 MLCC’s and what are the key parameters? We provide a short overview.

Read more PDF

MLCC - Soft Termination

In the MLCCs - Soft Termination (WCAP-CSST) series, a layer of conductive polymer is used between the electrodes and the terminal surfaces. The polymer can compensate for certain mechanical deformations and therefore reduce the probability of fractures. This is illustrated by a bending test described in the data sheet.

Read more PDF

Application Note ANP123 Long- and Short-Term Voltage Dependence of Ferroelectric Class 2 MLCCs

For the design-in process, it has become a common procedure to employ simulation software such as SPICE. The developer may load files for multilayer ceramic capacitors (MLCCs) into the software to simulate the influence of the voltage and frequency behavior of the MLCCs on the circuit. To make this simulation computationally efficient, it is necessary to implement elegant mathematical models for the MLCCs.

Read more PDF
