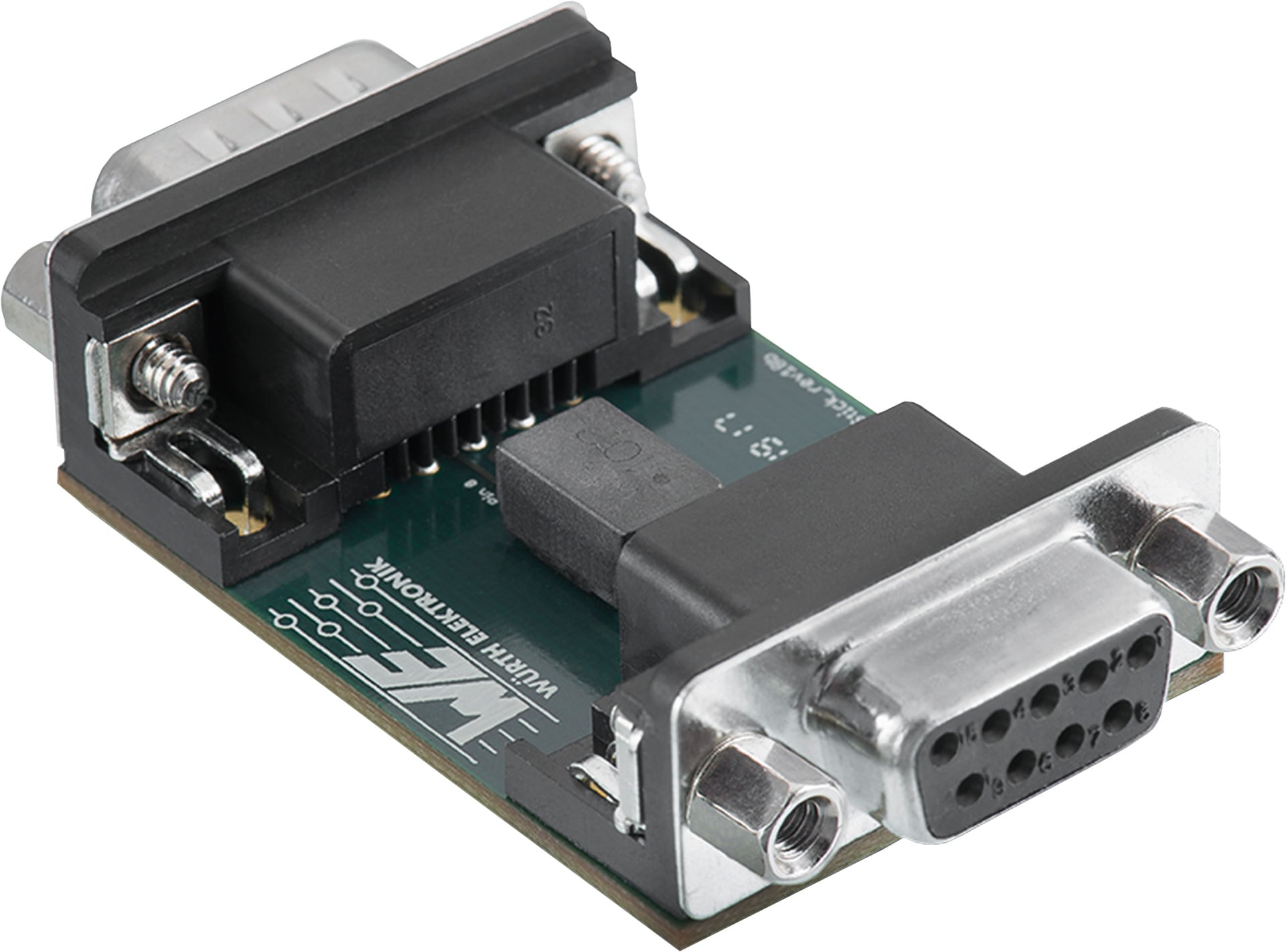

Filter Stick RS-485 Profibus EMC

Characteristics

Ready fabricated and populated RS-485 filter stick for test purposes
Fast testing of the filter effect on the system under test
Straightforward design implementation through BOM and layout files

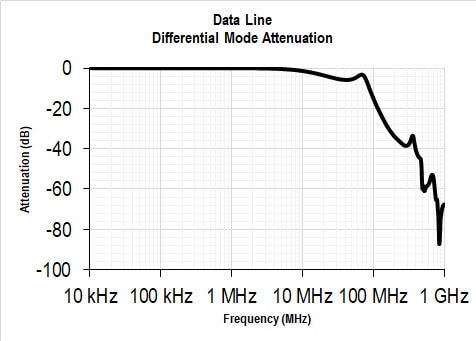

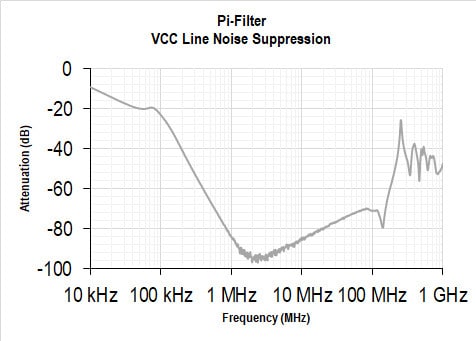

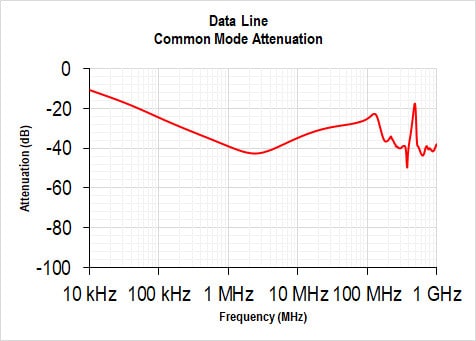

Prevention of negative influence on the operating behavior due to interference emissions, electrostatic discharges (ESD) and fast transients (burst)
Filtering directly at the interface

Applications

RS-485 applications with 9-pin D-SUB connectors and pin assignment according to PROFIBUS definition

Application Notes

ANP083 Adapter PCB for filtering electromagnetic interference on an RS-485 interface
PDF

PCB layout files

The RS-485 EMC and ESD solution can be easily integrated into designs. PCB layout files (Gerber) can be downloaded here.

Download Gerber File here

Products

Order Code	Datasheet	Simulation	Downloads	Status	Product series
744222	SPEC		8 files EDA models: Components ZIP ALT WE-SL2 (rev22a).IntLib \| 117.5 KB CDS Cadence_WE-SL2 (rev18a).zip \| 242 KB EAG Eagle_WE-SL2 (rev20a).lbr \| 21 KB KIC KiCad_WE-SL2 (rev25a).zip \| 115.6 KB ZUK Cadstar_WE-SL2 (rev20a).zip \| 5.9 KB CAD files ZIP IGS WE-SL2_74422 (rev1).igs \| 1.7 MB STP WE-SL2_74422 (rev1).stp \| 557.7 KB Electric models ZIP PSP PSpice_WE-SL2 (rev22a).zip \| 9.1 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-SL2 SMT Common Mode Line Filter
82357050560	SPEC		8 files EDA models: Components ZIP ALT WE-VE (rev22a).IntLib \| 105 KB CDS Cadence_WE-VE (rev21a).zip \| 109.5 KB EAG Eagle_WE-VE (rev19a).lbr \| 30.3 KB KIC KiCad_WE-VE (rev25a).zip \| 51.2 KB ZUK Cadstar_WE-VE (rev21a).zip \| 6.3 KB CAD files ZIP IGS WE-VE_0402_VE (rev1).igs \| 157.9 KB STP WE-VE_0402_VE (rev1).stp \| 60.4 KB Electric models ZIP PSP PSpice_WE-VE (rev25a).zip \| 9.8 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-VE ESD Suppressor
885012005013	SPEC		9 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev25b).IntLib \| 912.5 KB CDS Cadence_WCAP-CSGP (rev25d).zip \| 707.7 KB EAG Eagle_WCAP-CSGP (rev25c).lbr \| 1.2 MB KIC KiCad_WCAP-CSGP (rev25a).zip \| 277.3 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CAD files ZIP 3D 1.0x0.5x0.5x0 (rev1).pdf \| 12.2 KB IGS 1.0x0.5x0.5x0 (rev1).igs \| 52.9 KB STP Download_STP_8850120050xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev25b).zip \| 336.5 KB Download all 9 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WCAP-CSGP MLCCs 10 V(DC)
885012105006	SPEC		7 files EDA models: Components ZIP ALT Altium_WCAP-CSGP (rev25b).IntLib \| 912.5 KB CDS Cadence_WCAP-CSGP (rev25d).zip \| 707.7 KB EAG Eagle_WCAP-CSGP (rev25c).lbr \| 1.2 MB KIC KiCad_WCAP-CSGP (rev25a).zip \| 277.3 KB ZUK Cadstar_WCAP-CSGP (rev21c).zip \| 46.5 KB CAD files ZIP STP Download_STP_8850120050xx (rev1).stp \| 29.3 KB Electric models ZIP PSP PSpice_WCAP-CSGP (rev25b).zip \| 336.5 KB Download all 7 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WCAP-CSGP MLCCs 6.3 V(DC)
618009231221	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 25/12/2025 SPEC Datasheet valid from 26/12/2025	–	7 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev25a).IntLib \| 19 MB CDS Cadence_WR-DSUB (rev25a).zip \| 82.7 MB EAG Eagle_WR-DSUB (rev25a).lbr \| 583.3 KB KIC KiCad_WR-DSUB (rev25a).zip \| 208 MB CAD files ZIP 3D 3D_618009231221 (rev1).pdf \| 829.5 KB IGS IGES_618009231221 (rev1).iges \| 3.2 MB STP STP_618009231221 (rev1).stp \| 930.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	WR-DSUB PCB
618009231121	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 25/12/2025 SPEC Datasheet valid from 26/12/2025	–	7 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev25a).IntLib \| 19 MB CDS Cadence_WR-DSUB (rev25a).zip \| 82.7 MB EAG Eagle_WR-DSUB (rev25a).lbr \| 583.3 KB KIC KiCad_WR-DSUB (rev25a).zip \| 208 MB CAD files ZIP 3D 618009231121 (rev1).pdf \| 435.8 KB IGS 618009231121 (rev1).iges \| 3.9 MB STP 618009231121 (rev1).stp \| 845.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	WR-DSUB PCB
74269241152	SPEC		10 files EDA models: Components ZIP ALT WE-TMSB (rev24a).IntLib \| 67.5 KB CDS Cadence_WE-TMSB (rev24a).zip \| 206 KB EAG Eagle_WE-TMSB (rev24a).lbr \| 29.3 KB KIC KiCad_WE-TMSB (rev25a).zip \| 110.2 KB ZUK Cadstar_WE-TMSB (rev20a).zip \| 7.3 KB CAD files ZIP 3D 3D_WE-TMSB-0402 (rev1).pdf \| 25.8 KB IGS IGS_WE-TMSB-0402 (rev1).igs \| 77 KB STP STP_WE-TMSB-0402 (rev1).stp \| 63 KB Electric models ZIP PSP PSpice_WE-TMSB (rev24a).zip \| 5.9 KB S S-Parameters_WE-TMSB (rev21a).zip \| 1.9 MB Download all 10 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	WE-TMSB Tiny Multilayer Suppression Bead

Order Code	Datasheet	Simulation
744222	SPEC
82357050560	SPEC
885012005013	SPEC
885012105006	SPEC
618009231221	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 25/12/2025 SPEC Datasheet valid from 26/12/2025	–
618009231121	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 25/12/2025 SPEC Datasheet valid from 26/12/2025	–
74269241152	SPEC

Samples

Order Code	Datasheet	Simulation	Downloads	Status	Product series	Samples

Plug and Play!

To avoid reduced integrity of the data transfer due to interference and to pass EMC tests, components matched to the data lines are necessary.

For simplified implementation, the adapter stick was designed, which contains a complete filter circuit for the selected application. The filter stick is plugged into the corresponding interface for test purposes. If the test is passed with the filter stick plugged in, the filter circuit can be integrated into the system.

1. Plug in filter stick
2. Check filter effect
3. Implement the circuit in the system
