ComponentsActive ComponentsPower Modules (MagI³C Series)Isolated Converter

MagI³C-FIRM Fixed Isolated Regulator Module

NEW

Regulated output voltage

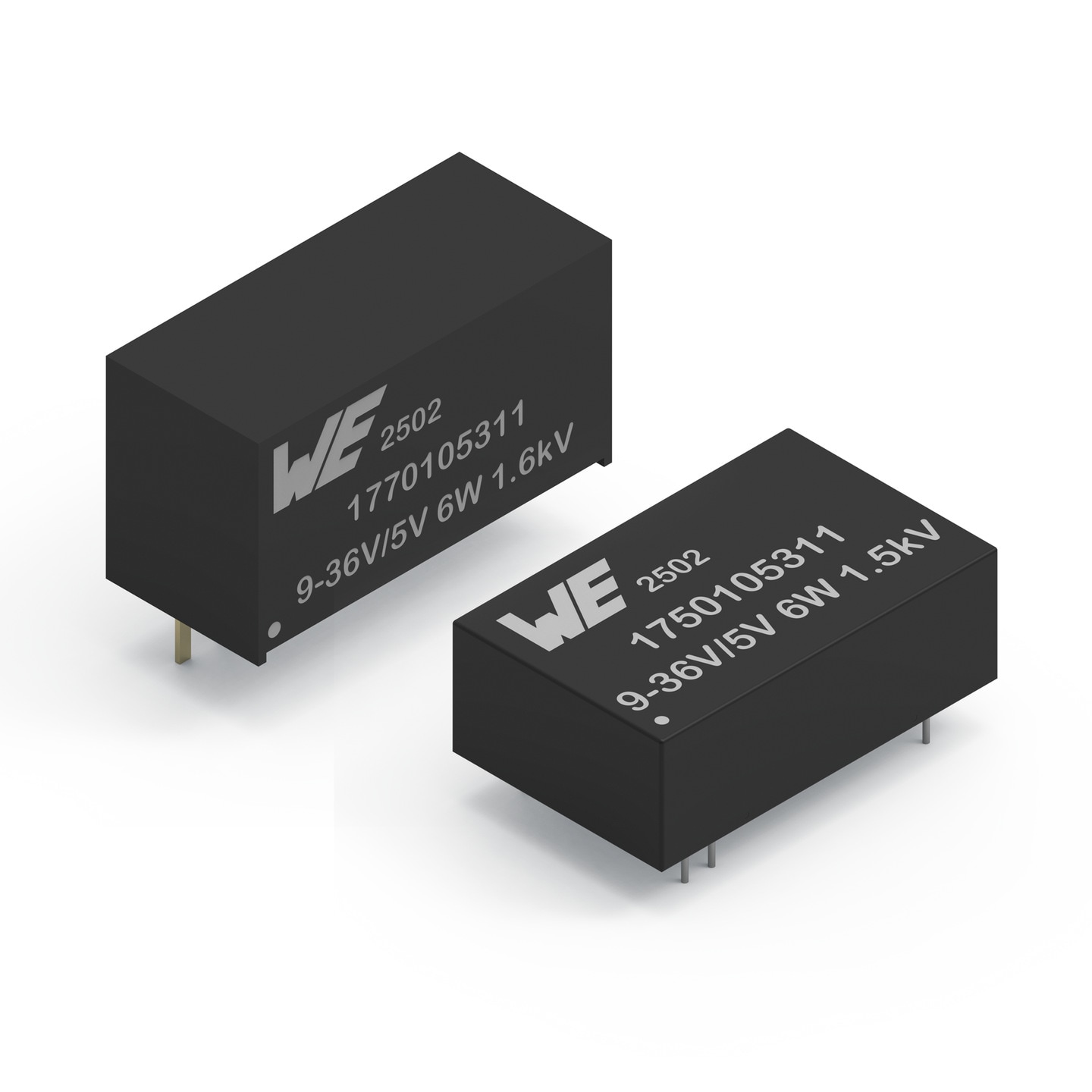

MagI³C-FIRM Fixed Isolated Regulator Module
SizeDimen­sionsL
(mm)		W
(mm)		H
(mm)		Mount
NEWDIP-24
 32 20 10.8 THT
NEWSIP-8
 22 9.5 12 THT

Characteristics

  • Simple design (no transformer design know how required)
  • Leaded through-hole package for easy manufacturing and prototyping
  • Stand-alone solution (CIN and COUT integrated, no external components)
  • Simple functional isolation for overvoltage protection, avoiding ground loops, ground shift and noise in signal path or sensor systems
  • High output power
  • Regulated VOUT
  • ON/OFF control Pin
  • Industrial standard package and pin configuration
  • Low conducted and radiated EMI (compliant to EN55032 / CISPR-32 class B)
  • UL62368 certified

Applications

  • Data acquisition
  • Test and measurement systems
  • Interface and microcontroller supply
  • Industrial controls

Application Notes

MagI³C Power Module Designer

Enables quick & easy design-in of a power module without DC/DC converter knowledge.

Power Module Designer in REDEXPERT

Altium Design Example

Performance optimized layouts via copy & paste. Learn more about Altium design examples to speed up your design-in.

Watch tutorial

Products

All
DIP-24
SIP-8
Reset all
Filter article data
Filter by
Delete all
 show  articles in 2 product lines
 articles in 2 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Simu­lation
Downloads
Status
Vin max.(V)
VOUT(V)
PO(W)
VISO(V)
Type of Insulation
L(mm)
W(mm)
H(mm)
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN

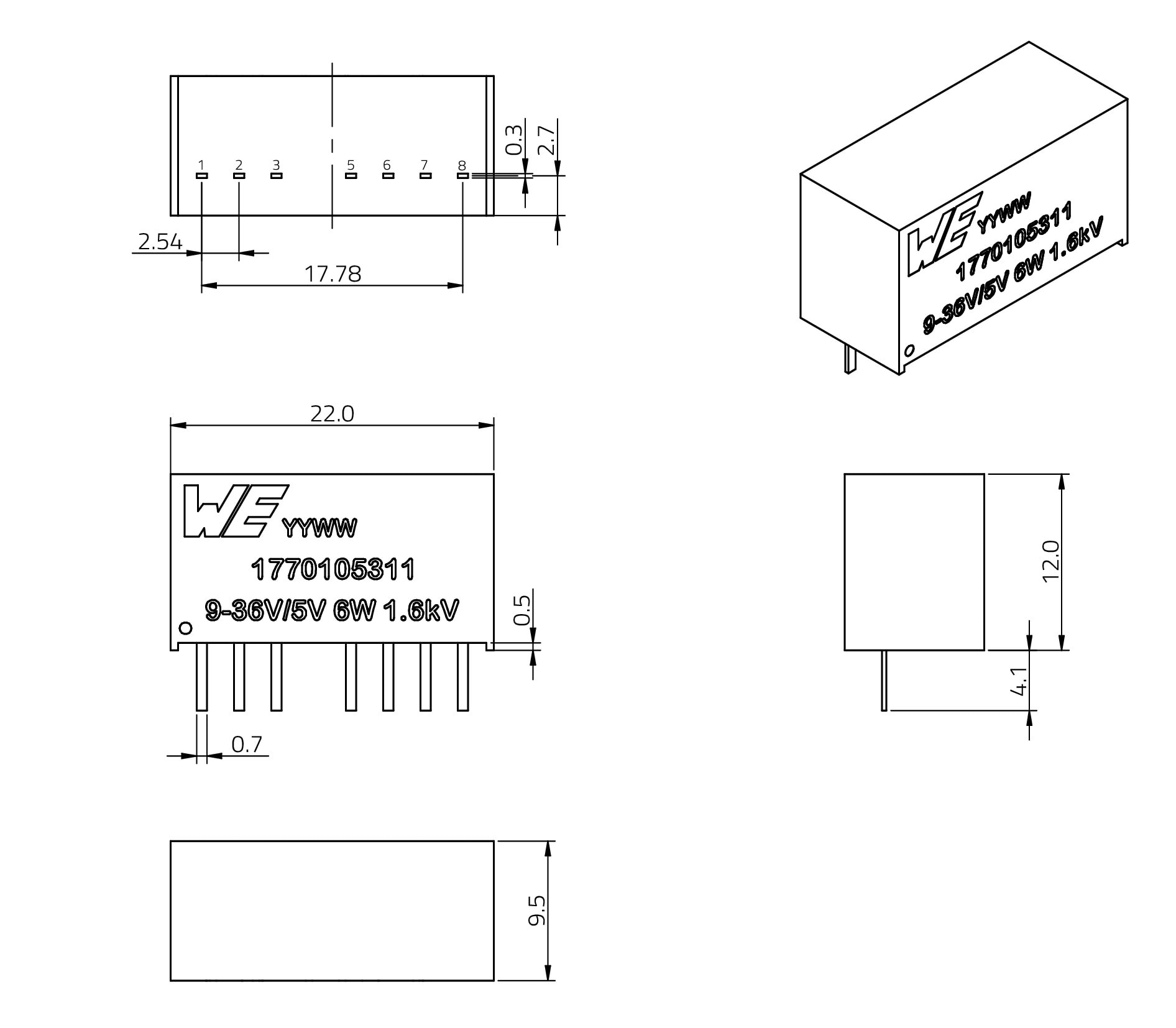

MagI³C-FIRM Fixed Isolated Regulator Module
1770105311
SPEC36 V, 5, 6 W
Simu­lation
Availability
–
Downloads3 files

Status
NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
Input Voltage36 V
Output Voltage 5
Total Output Power6 W
Isolation Voltage1600 V
Type of InsulationFunctional
Length22 mm
Width9.5 mm
Height12 mm
–Check availability

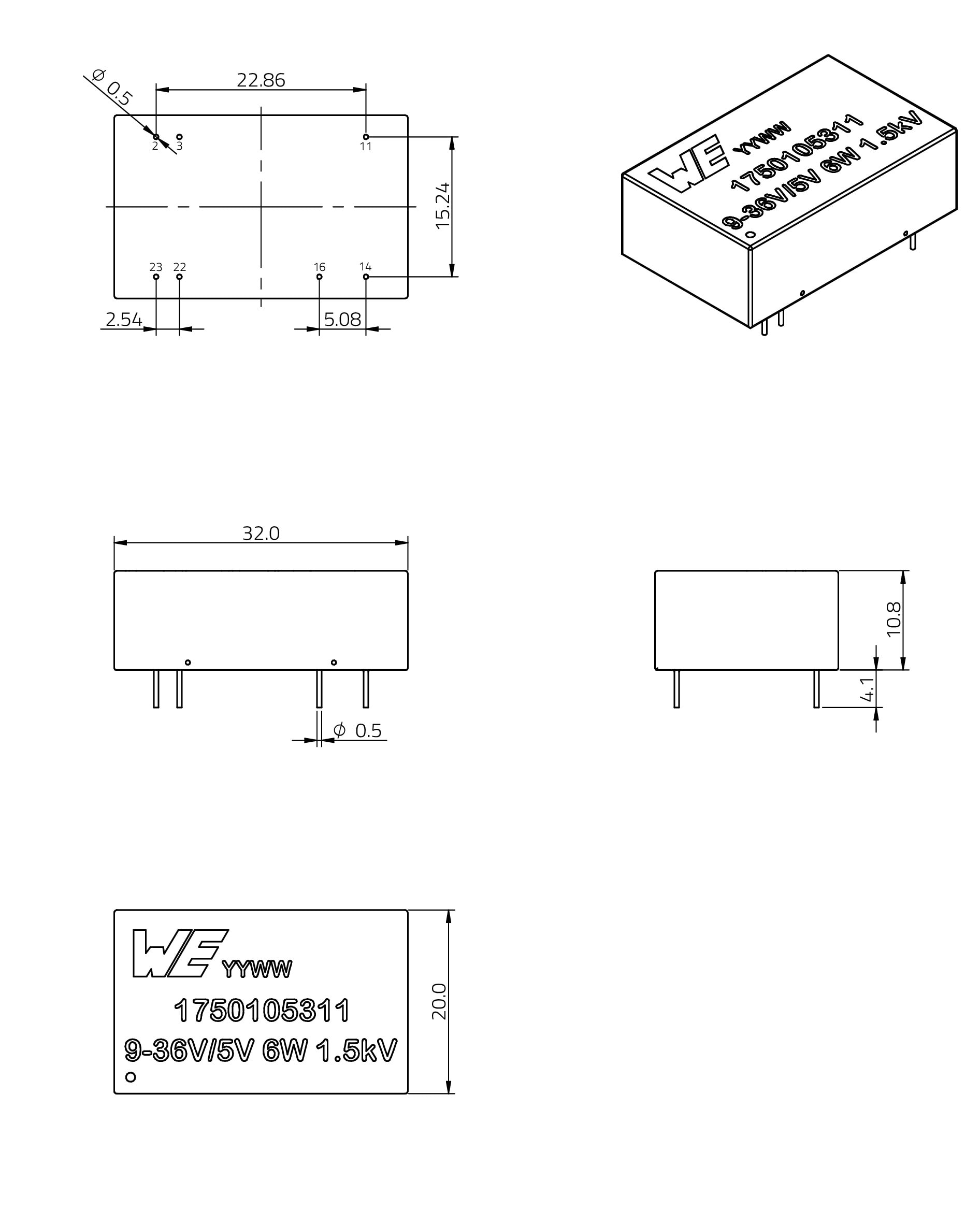

MagI³C-FIRM Fixed Isolated Regulator Module
1750105311
SPEC36 V, 5, 6 W
Simu­lation
Availability
–
Downloads3 files

Status
NewProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
iProduct is new in our portfolio and production is active. Expected lifetime: >10 years.
Input Voltage36 V
Output Voltage 5
Total Output Power6 W
Isolation Voltage1500 V
Type of InsulationFunctional
Length32 mm
Width20 mm
Height10.8 mm
–Check availability
