Overview
| Topology | Battery Management System |
| Input voltage | 800 V |
| IC revision | B |
Description

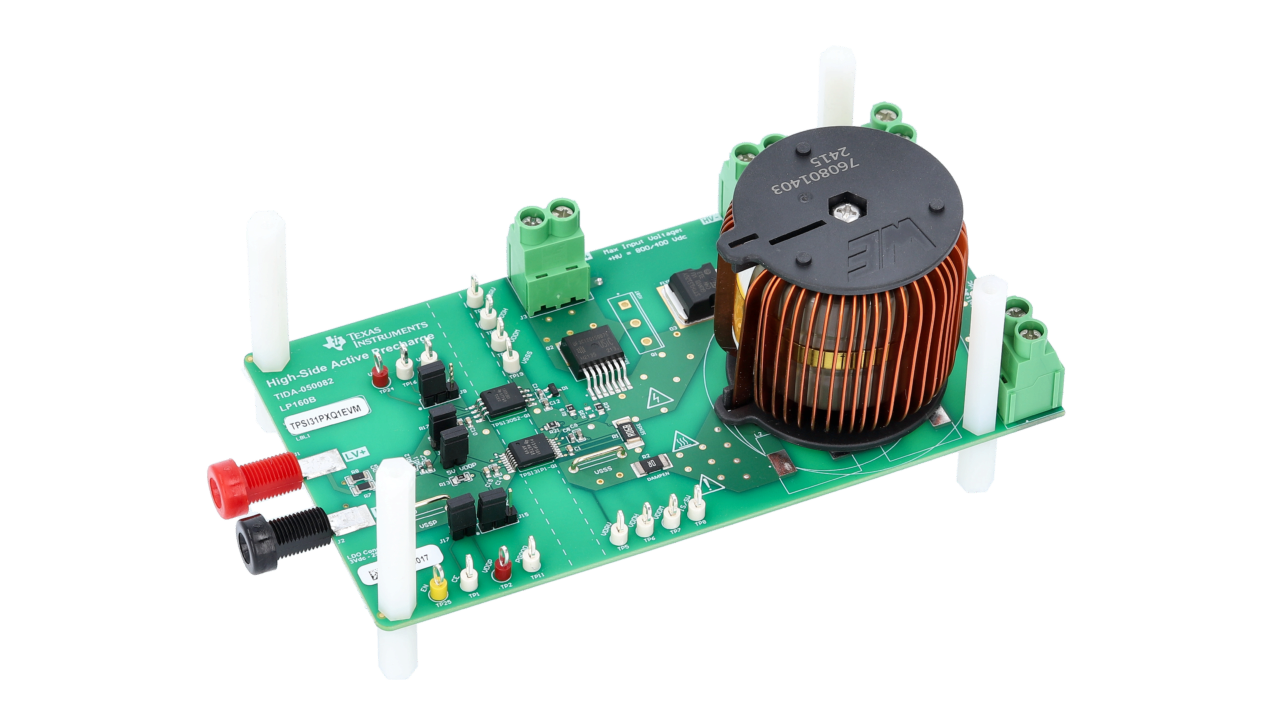

The TPSI31Px-Q1 evaluation module (EVM) helps designers evaluate the operation and performance of TPSI31P1-Q1 in an electric vehicle (EV) or hybrid electric vehicle (HEV) high-side active precharge application for charging a DC-link capacitor. TPSI31PXQ1EVM: 800VDC with 10AAVG
Features
- PSI31PXQ1EVM for charging 2mF capacitor to 800V in 160 ms
- TPSI31PXQ1EVM-400 for charging 2mF capacitor to 400V in 180 ms
- Integrated hysteretic charging current control, no additional logic needed
- No isolated secondary supply required
- 5-kVRMS reinforced isolationDual isolated high-speed comparators with integrated voltage reference ±1.5%
Typical applications
- Alternative Energy
- Energy Storage and Battery Management
- Automotive and Transportation
More information
Products
| Order Code | Datasheet | Downloads | Status | Product series | L (µH) | IR (A) | ISAT (A) | RDC max. (mΩ) | Pins (pcs) | Pitch (mm) | Rows | H (mm) | Gender | Type | Packaging | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 760801403 | SPEC | 8 files | Active i| Production is active. Expected lifetime: >10 years. | WE-TORPFC Toroidal PFC Chokes | 355 | 12.3 | 23 | 35 | – | – | – | 50 | – | – | – | |
 | 61300211121 | SPEC | 7 files | Active i| Production is active. Expected lifetime: >10 years. | WR-PHD Pin Header - Single | – | 3 | – | – | 2 | 2.54 | Single | – | Pin Header | Straight | Bag |
| Order Code | Datasheet | |
|---|---|---|
| 760801403 | SPEC |
| 61300211121 | SPEC |
| Samples |
|---|
| Order Code | Datasheet | Downloads | Status | Product series | L (µH) | IR (A) | ISAT (A) | RDC max. (mΩ) | Pins (pcs) | Pitch (mm) | Rows | H (mm) | Gender | Type | Packaging | Samples |
|---|
