WE-TORPFC Toroidal PFC Chokes

Size	Dimensions	H (mm)	Ø OD (mm)

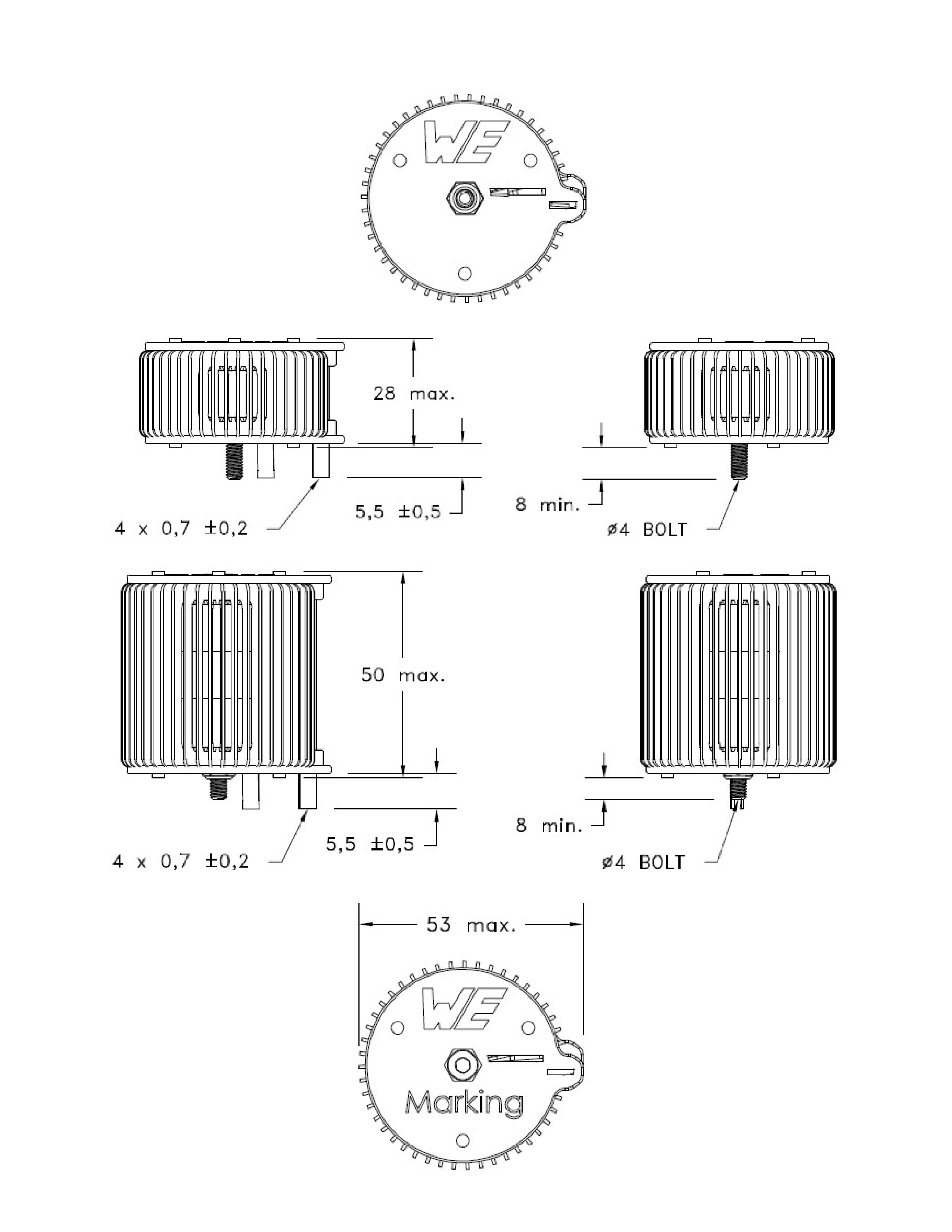

T37		-	53

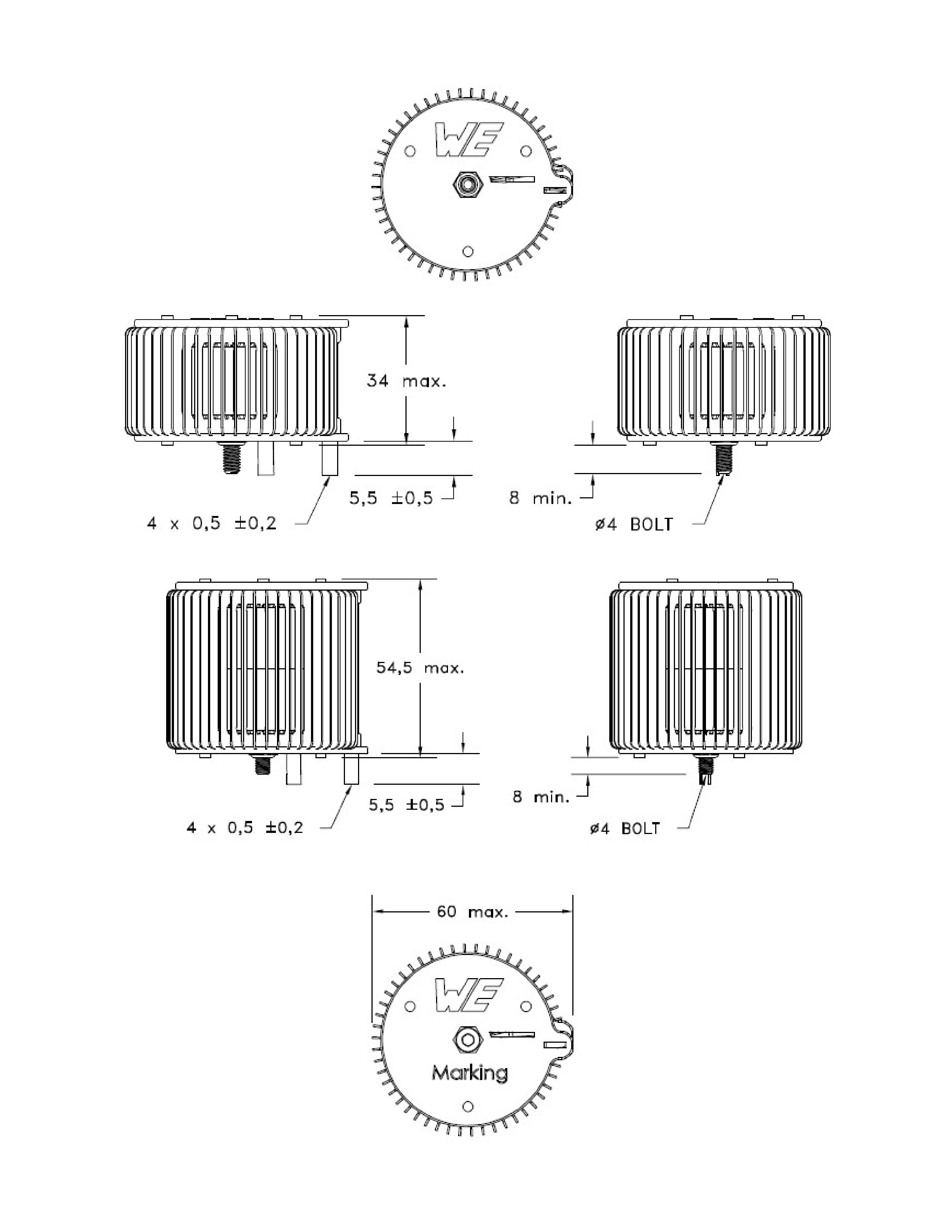

T43		-	60

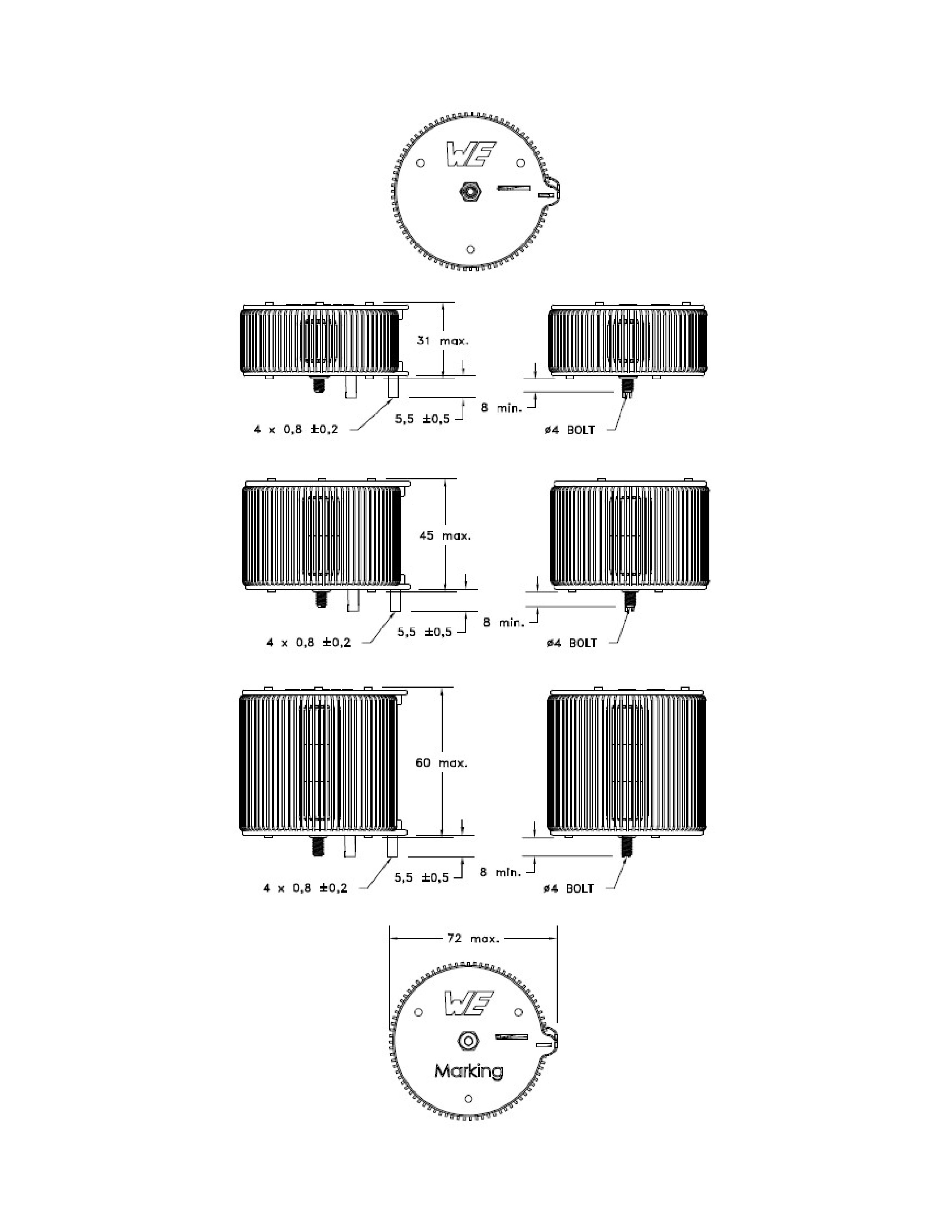

T50		-	72

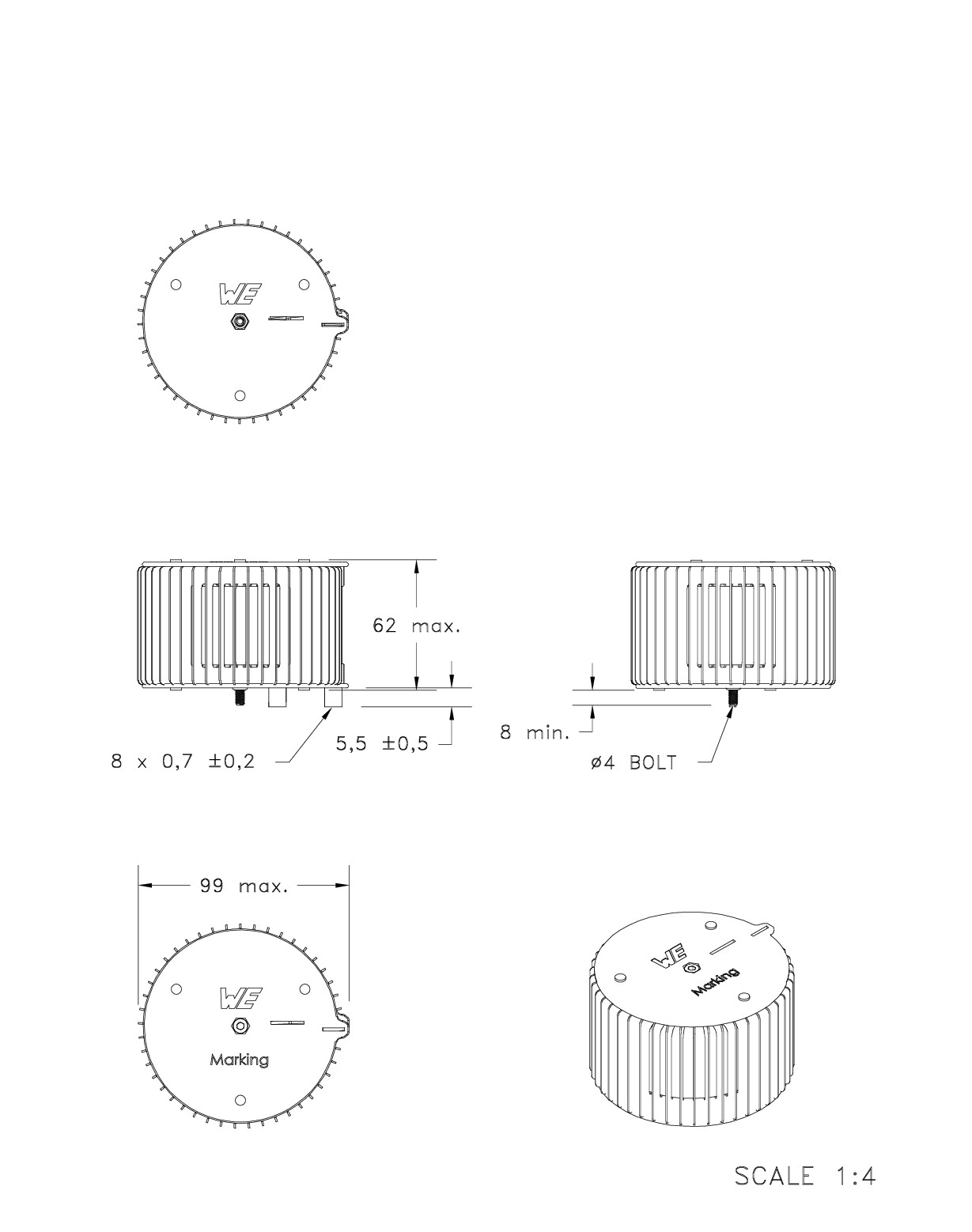

T75		62	99

LTSpice files

LT
LTSpice_WE-TORPFC (rev25a).zip
|
2 KB

Characteristics

Typical topology Boost CCM
Offline working voltage
Flat Wire windings, low DCR and allow better cooling
Operating Temperature Range -40ºC to +155ºC

Applications

Fixed chargers on streets and garages (EV charger)
Solar Inverters
Industrial or Medical AC-DC
Telecom PSU

Products

All

T37

T43

T50

T75

	Order Code	Datasheet	Downloads	Status	L (µH)	I_R (A)	I_SAT (A)	R_{DC max.} (mΩ)	Samples
	760800401	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB CAD files ZIP 3D Download_3D_WE-TORPFC_76080X401 (rev1).pdf \| 18.4 MB IGS Download_IGS_WE-TORPFC-76080X401 (rev1).igs \| 18.4 MB STP Download_STP_WE-TORPFC-760800401 (rev1).STEP \| 5.9 MB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	118	13.9	9.5	22
	760801401	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB CAD files ZIP 3D Download_3D_WE-TORPFC_76080X401 (rev1).pdf \| 18.4 MB IGS Download_IGS_WE-TORPFC-76080X401 (rev1).igs \| 18.4 MB STP Download_STP_WE-TORPFC-760801401 (rev1).STEP \| 5.9 MB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	118	13.9	23	22
	760801122	SPEC	5 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB Download all 5 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	132.75	25.3	45	14
	760800301	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB CAD files ZIP 3D Download_3D_WE-TORPFC_76080X301 (rev1).pdf \| 19.3 MB IGS Download_IGS_WE-TORPFC-76080X301 (rev1).igs \| 14.1 MB STP Download_STP_WE-TORPFC-760800301 (rev1).STEP \| 4.4 MB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	180	24.5	43	20
	760801301	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB CAD files ZIP 3D Download_3D_WE-TORPFC_76080X301 (rev1).pdf \| 19.3 MB IGS Download_IGS_WE-TORPFC-76080X301 (rev1).igs \| 14.1 MB STP Download_STP_WE-TORPFC-760801301 (rev1).STEP \| 4.4 MB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	180	24.5	105	20
	760800201	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB CAD files ZIP 3D Download_3D_WE-TORPFC_76080X201 (rev1).pdf \| 22.9 MB IGS Download_IGS_WE-TORPFC-76080X201 (rev1).igs \| 26 MB STP Download_STP_WE-TORPFC-760800201 (rev1).STEP \| 7.9 MB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	194	12.4	19	40
	760801201	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB CAD files ZIP 3D Download_3D_WE-TORPFC_76080X201 (rev1).pdf \| 22.9 MB IGS Download_IGS_WE-TORPFC-76080X201 (rev1).igs \| 26 MB STP Download_STP_WE-TORPFC-760801201 (rev1).STEP \| 7.9 MB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	194	12.4	37	40
	760800101	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB CAD files ZIP 3D Download_3D_WE-TORPFC_76080X101 (rev1).pdf \| 3.8 MB IGS Download_IGS_WE-TORPFC-76080X101 (rev1).igs \| 18.4 MB STP Download_STP_WE-TORPFC-760800101 (rev1).STEP \| 6 MB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	255	11.2	10.5	36
	760801101	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB CAD files ZIP 3D Download_3D_WE-TORPFC_76080X101 (rev1).pdf \| 3.8 MB IGS Download_IGS_WE-TORPFC-76080X101 (rev1).igs \| 18.4 MB STP Download_STP_WE-TORPFC-760801101 (rev1).STEP \| 6 MB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB Download all 8 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	255	11.2	24	36
	760800403	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB CAD files ZIP 3D Download_3D_WE-TORPFC_76080X403 (rev1).pdf \| 21.9 MB IGS Download_IGS_WE-TORPFC-76080X403 (rev1).igs \| 18.8 MB STP Download_STP_WE-TORPFC-760800403 (rev1).STEP \| 5.9 MB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	355	12.3	9.5	35
	760801403	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB CAD files ZIP 3D Download_3D_WE-TORPFC_76080X403 (rev1).pdf \| 21.9 MB IGS Download_IGS_WE-TORPFC-76080X403 (rev1).igs \| 18.8 MB STP Download_STP_WE-TORPFC-760801403 (rev1).STEP \| 5.9 MB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	355	12.3	23	35
	760800202	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB CAD files ZIP 3D Download_3D_WE-TORPFC_76080X202 (rev1).pdf \| 23.7 MB IGS Download_IGS_WE-TORPFC-76080X202 (rev1).igs \| 22.2 MB STP Download_STP_WE-TORPFC-760800202 (rev1).STEP \| 6.5 MB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	389	11.5	19	50
	760801202	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB CAD files ZIP 3D Download_3D_WE-TORPFC_76080X202 (rev1).pdf \| 23.7 MB IGS Download_IGS_WE-TORPFC-76080X202 (rev1).igs \| 22.2 MB STP Download_STP_WE-TORPFC-760801202 (rev1).STEP \| 6.5 MB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	389	11.5	37	50
	760800102	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB CAD files ZIP 3D Download_3D_WE-TORPFC_76080X102 (rev1).pdf \| 20.8 MB IGS Download_IGS_WE-TORPFC-76080X102 (rev1).igs \| 18.4 MB STP Download_STP_WE-TORPFC-760800102 (rev1).STEP \| 6.1 MB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	510	9.8	10.5	55
	760801102	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB CAD files ZIP 3D Download_3D_WE-TORPFC_76080X102 (rev1).pdf \| 20.8 MB IGS Download_IGS_WE-TORPFC-76080X102 (rev1).igs \| 18.4 MB STP Download_STP_WE-TORPFC-760801102 (rev1).STEP \| 6.1 MB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	510	9.8	24	55
	760800203	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB CAD files ZIP 3D Download_3D_WE-TORPFC_76080X203 (rev1).pdf \| 24.8 MB IGS Download_IGS_WE-TORPFC-76080X203 (rev1).igs \| 22.4 MB STP Download_STP_WE-TORPFC-760800203 (rev1).STEP \| 6.6 MB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	584	11.7	19	65
	760801203	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB CAD files ZIP 3D Download_3D_WE-TORPFC_76080X203 (rev1).pdf \| 24.8 MB IGS Download_IGS_WE-TORPFC-76080X203 (rev1).igs \| 22.4 MB STP Download_STP_WE-TORPFC-760801203 (rev1).STEP \| 6.6 MB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	584	11.7	37	65
	760801321	SPEC	8 files EDA models: Components ZIP ALT Altium_WE-TORPFC (rev25a).IntLib \| 10.6 MB CDS Cadence_WE-TORPFC (rev25a).zip \| 55.9 MB EAG Eagle_WE-TORPFC (rev25a).lbr \| 56.7 KB CAD files ZIP 3D Download_3D_WE-TORPFC_76080X301 (rev1).pdf \| 19.3 MB IGS Download_IGS_WE-TORPFC-76080X301 (rev1).igs \| 14.1 MB STP Download_STP_WE-TORPFC-760801321 (rev1).STEP \| 7.3 MB Electric models ZIP LT LTSpice_WE-TORPFC (rev25a).zip \| 2 KB PSP PSpice_WE-TORPFC (rev25a).zip \| 5.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	720	17.2	38	42

	Order Code	Datasheet
	760800401	SPEC
	760801401	SPEC
	760801122	SPEC
	760800301	SPEC
	760801301	SPEC
	760800201	SPEC
	760801201	SPEC
	760800101	SPEC
	760801101	SPEC
	760800403	SPEC
	760801403	SPEC
	760800202	SPEC
	760801202	SPEC
	760800102	SPEC
	760801102	SPEC
	760800203	SPEC
	760801203	SPEC
	760801321	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	L (µH)	I_R (A)	I_SAT (A)	R_{DC max.} (mΩ)	Samples
