Onsemi NCH-RSL10 | Demoboard LIGHTING-CONNECTIVITY-GEVB
LIGHTING-1-GEVK: Connected Lighting Platform for LED Control
Overview
| Topology | Other Topology |
Description

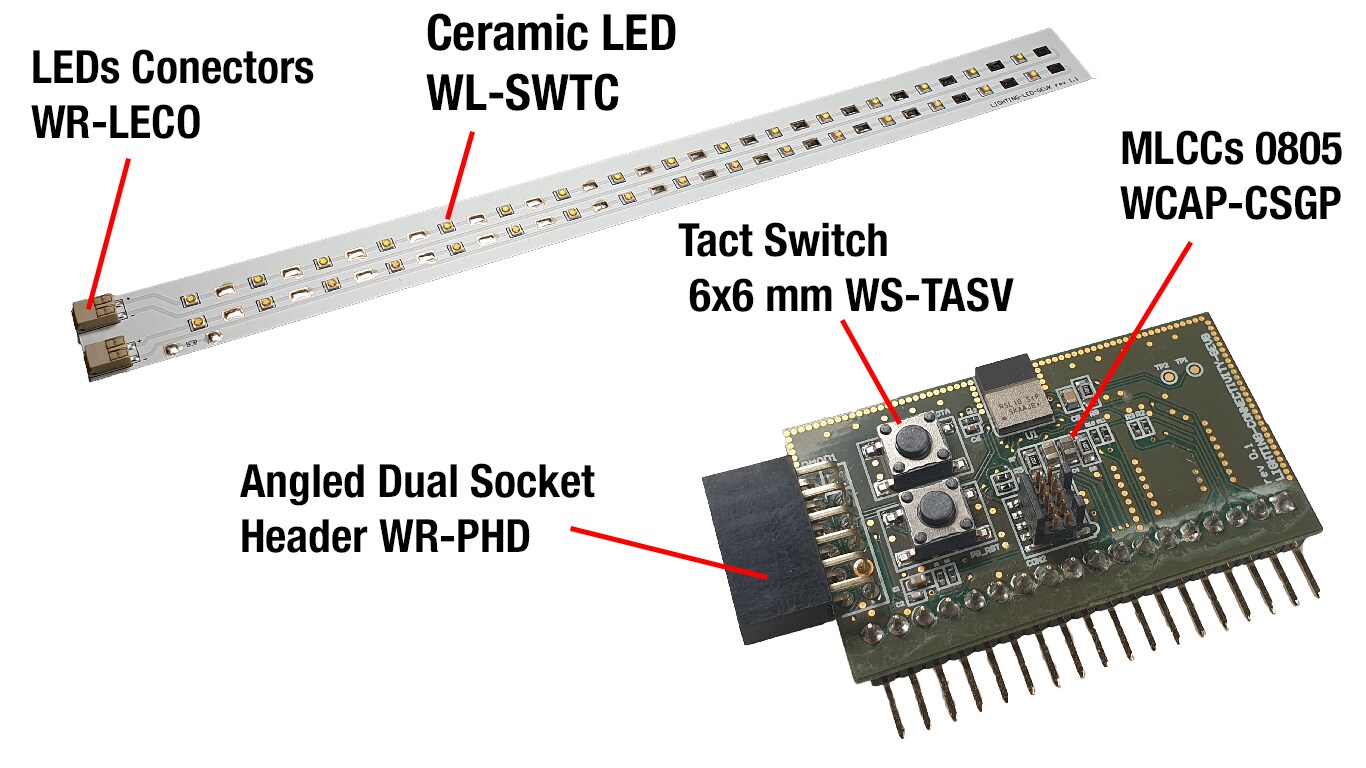

The Connected Lighting Platform is a modular development kit for prototyping cost-effective, industrial LED lighting solutions. The platform is extremely energy efficient and features wireless control (on/off, dimming, etc.) and two independently controlled LED channels that provide a maximum brightness of 7000 lumens.
Features
- High-power lighting features
- Up to 2 Strings of 16 LEDs (7000 Lumen)
- Dual independent LED Channel
- White balance control (12-bit Dimmer from 0 to Max)
- Multiple connectivity options
- Bluetooth® Low Energy
- Power Over Ethernet (PoE)
- Compliant with multiple industry standards
- High efficiency power conversion ( >90% at full load )
More information
All technical functions in detail
Products
Order Code | Datasheet | Simulation | Downloads | Status | Product series | C | Tol. C | VR(V (DC)) | Size | Operating Temperature | DF(%) | RISO | Ceramic Type | L(mm) | W(mm) | Fl(mm) | Packaging | Pins | Type | Mount | IR(mA) | Working Voltage(V (AC)) | H(mm) | Operation Force(g) | Electrical Life(Cycles) | Actuator Color | Vaporphase process | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WCAP-CSGP MLCCs 25 V(DC), 1 µF, ±20% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 25 V(DC) | Capacitance1 µF | Capacitance±20% | Rated Voltage25 V (DC) | Size0603 | Operating Temperature -55 °C up to +85 °C | Dissipation Factor10 % | Insulation Resistance0.5 GΩ | Ceramic TypeX5R Class II | Length1.6 mm | Width0.8 mm | Pad Dimension0.4 mm | Packaging7" Tape & Reel | – | – | – | – | – | Height0.8 mm | – | – | – | – | |||||
| WCAP-CSGP MLCCs 10 V(DC), 22 µF, ±20% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 10 V(DC) | Capacitance22 µF | Capacitance±20% | Rated Voltage10 V (DC) | Size0805 | Operating Temperature -55 °C up to +85 °C | Dissipation Factor10 % | Insulation Resistance0.005 GΩ | Ceramic TypeX5R Class II | Length2 mm | Width1.25 mm | Pad Dimension0.5 mm | Packaging7" Tape & Reel | – | – | – | – | – | Height1.25 mm | – | – | – | – | |||||
 | WS-TASV SMT Tact Switch 6x6 mm, –, – | Simulation– | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWS-TASV SMT Tact Switch 6x6 mm | – | – | Rated Voltage12 V (DC) | – | Operating Temperature -40 °C up to +85 °C | – | Insulation Resistance100 MΩ | – | – | – | – | PackagingTape and Reel | – | – | – | Rated Current50 mA | – | Height4.3 mm | Operation Force160 g | Electrical Life1000000 Cycles | Actuator ColorBlack | Vaporphase processnot specified | |||
 | WR-PHD Pin Header - Single, –, – | Simulation– | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-PHD Pin Header - Single | – | – | – | – | Operating Temperature -40 °C up to +105 °C | – | Insulation Resistance1000 MΩ | – | Length45.72 mm | – | – | PackagingBag | Pins18 | TypeAngled | MountTHT | Rated Current3000 mA | Working Voltage250 V (AC) | – | – | – | – | – | ||
 | WR-PHD Socket Header - Dual, –, – | Simulation– | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-PHD Socket Header - Dual | – | – | – | – | Operating Temperature -40 °C up to +105 °C | – | Insulation Resistance1000 MΩ | – | Length15.74 mm | – | – | PackagingTray | Pins12 | TypeAngled | MountTHT | Rated Current3000 mA | Working Voltage250 V (AC) | – | – | – | – | – |
Suitable Reference Designs
A Bright Future for Connected Lighting
Connected Lighting Platform for LED Control
