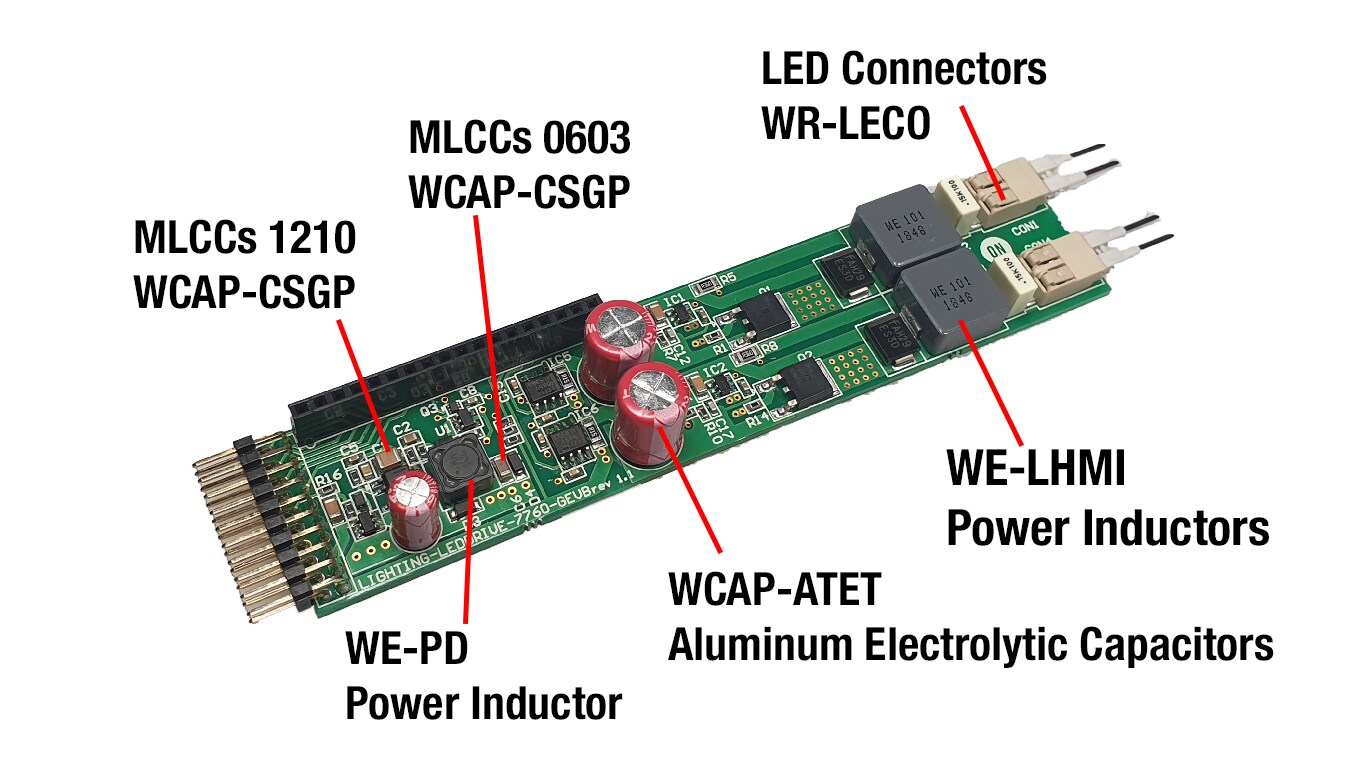

Onsemi FL7760 | Demoboard LIGHTING-1-GEVK - LIGHTING-LEDDRIVE-7760-GEVB
LIGHTING-1-GEVK: Connected Lighting Platform for LED Control
Overview
| Topology | Other Topology |
Description
The Connected Lighting Platform is a modular development kit for prototyping cost-effective, industrial LED lighting solutions. The platform is extremely energy efficient and features wireless control (on/off, dimming, etc.) and two independently controlled LED channels that provide a maximum brightness of 7000 lumens.
Features
- High-power lighting features
- Up to 2 Strings of 16 LEDs (7000 Lumen)
- Dual independent LED Channel
- White balance control (12-bit Dimmer from 0 to Max)
- Multiple connectivity options
- Bluetooth® Low Energy
- Power Over Ethernet (PoE)
- Compliant with multiple industry standards
- High efficiency power conversion ( >90% at full load )
More information
All technical functions in detail
Products
Order Code | Datasheet | Simulation | Downloads | Status | Product series | C | Tol. C | VR(V (DC)) | Size | Operating Temperature | DF(%) | RISO | L(mm) | W(mm) | H(mm) | Fl(mm) | Ceramic Type | Packaging | Q(%) | L(µH) | IRP,40K(A) | RDC max.(mΩ) | fres(MHz) | Version | ISAT,10%(A) | ISAT,30%(A) | Mount | Endurance(h) | IRIPPLE(mA) | ILeak(µA) | Pitch(mm) | Ø D(mm) | Pins | Type | IR(A) | Working Voltage(V (AC)) | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WCAP-CSGP MLCCs 25 V(DC), 1 nF, ±5% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 25 V(DC) | Capacitance1 nF | Capacitance±5% | Rated Voltage25 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | – | Insulation Resistance10 GΩ | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Ceramic TypeNP0 Class I | Packaging7" Tape & Reel | Q-Factor1000 % | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |||||
| WCAP-CSGP MLCCs 50 V(DC), 47 nF, ±10% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 50 V(DC) | Capacitance47 nF | Capacitance±10% | Rated Voltage50 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | Dissipation Factor3 % | Insulation Resistance10 GΩ | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Ceramic TypeX7R Class II | Packaging7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |||||
| WCAP-CSGP MLCCs 25 V(DC), 100 nF, ±10% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 25 V(DC) | Capacitance100 nF | Capacitance±10% | Rated Voltage25 V (DC) | Size0603 | Operating Temperature -55 °C up to +125 °C | Dissipation Factor3.5 % | Insulation Resistance5 GΩ | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Ceramic TypeX7R Class II | Packaging7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |||||
 | WCAP-CSST Soft Termination, 100 nF, ±10% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSST Soft Termination | Capacitance100 nF | Capacitance±10% | Rated Voltage100 V (DC) | Size1206 | Operating Temperature -55 °C up to +125 °C | Dissipation Factor2.5 % | Insulation Resistance1 GΩ | Length3.2 mm | Width1.6 mm | Height1.25 mm | Pad Dimension0.6 mm | Ceramic TypeX7R Class II | Packaging7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ||||
| WCAP-CSGP MLCCs 25 V(DC), 1 µF, ±20% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 25 V(DC) | Capacitance1 µF | Capacitance±20% | Rated Voltage25 V (DC) | Size0603 | Operating Temperature -55 °C up to +85 °C | Dissipation Factor10 % | Insulation Resistance0.5 GΩ | Length1.6 mm | Width0.8 mm | Height0.8 mm | Pad Dimension0.4 mm | Ceramic TypeX5R Class II | Packaging7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |||||
 | WCAP-ATET Aluminum Electrolytic Capacitors, 2.2 µF, ±20% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-ATET Aluminum Electrolytic Capacitors | Capacitance2.2 µF | Capacitance±20% | Rated Voltage250 V (DC) | – | – | Dissipation Factor10 % | – | Length11 mm | – | – | – | – | PackagingAmmopack | – | – | – | – | – | – | – | – | – | Endurance 1000 | Ripple Current42 mA | Leakage Current11 µA | Pitch2.5 mm | Diameter6.3 mm | – | – | – | – | ||||
| WCAP-CSGP MLCCs 25 V(DC), 2.2 µF, ±10% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 25 V(DC) | Capacitance2.2 µF | Capacitance±10% | Rated Voltage25 V (DC) | Size1210 | Operating Temperature -55 °C up to +125 °C | Dissipation Factor3.5 % | Insulation Resistance0.2 GΩ | Length3.2 mm | Width2.5 mm | Height1.6 mm | Pad Dimension0.75 mm | Ceramic TypeX7R Class II | Packaging7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |||||
| WCAP-ATET Aluminum Electrolytic Capacitors, 22 µF, ±20% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-ATET Aluminum Electrolytic Capacitors | Capacitance22 µF | Capacitance±20% | Rated Voltage100 V (DC) | – | – | Dissipation Factor7 % | – | Length12.5 mm | – | – | – | – | PackagingAmmopack | – | – | – | – | – | – | – | – | – | Endurance 2000 | Ripple Current90 mA | Leakage Current22 µA | Pitch5 mm | Diameter10 mm | – | – | – | – | ||||
| WCAP-CSGP MLCCs 16 V(DC), 22 µF, ±20% | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWCAP-CSGP MLCCs 16 V(DC) | Capacitance22 µF | Capacitance±20% | Rated Voltage16 V (DC) | Size1206 | Operating Temperature -55 °C up to +85 °C | Dissipation Factor10 % | Insulation Resistance0.005 GΩ | Length3.2 mm | Width1.6 mm | Height1.6 mm | Pad Dimension0.5 mm | Ceramic TypeX5R Class II | Packaging7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | |||||
 | WE-PD SMT Power Inductor, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-PD SMT Power Inductor | – | – | – | Size7345 | Operating Temperature -40 °C up to +125 °C | – | – | Length7.3 mm | Width7.3 mm | Height4.5 mm | – | – | – | – | Inductance1000 µH | Performance Rated Current0.37 A | DC Resistance6000 mΩ | Self Resonant Frequency2.2 MHz | VersionRobust | Saturation Current @ 10%0.25 A | Saturation Current @ 30%0.31 A | MountSMT | – | – | – | – | – | Pins2 | – | Rated Current0.2 A | – | ||||
 | WR-PHD Socket Header - Single, –, – | Simulation– | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-PHD Socket Header - Single | – | – | – | – | Operating Temperature -40 °C up to +105 °C | – | Insulation Resistance1000 MΩ | Length46.22 mm | – | – | – | – | PackagingTray | – | – | – | – | – | – | – | – | MountTHT | – | – | – | Pitch2.54 mm | – | Pins18 | TypeStraight | Rated Current3 A | Working Voltage250 V (AC) | ||
 | Simulation– | Downloads7 files | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWR-PHD Pin Header - Dual | – | – | – | – | Operating Temperature -40 °C up to +105 °C | – | Insulation Resistance1000 MΩ | Length25.4 mm | – | – | – | – | PackagingBag | – | – | – | – | – | – | – | – | MountTHT | – | – | – | Pitch2.54 mm | – | Pins20 | TypeAngled | Rated Current3 A | Working Voltage250 V (AC) | |||
 | WE-LHMI SMT Power Inductor, –, – | Status Activei| Production is active. Expected lifetime: >10 years. | Product seriesWE-LHMI SMT Power Inductor | – | – | – | Size1365 | Operating Temperature -40 °C up to +125 °C | – | – | Length13.65 mm | Width12.5 mm | Height6.2 mm | – | – | – | – | Inductance100 µH | Performance Rated Current3.2 A | DC Resistance165 mΩ | Self Resonant Frequency2.4 MHz | – | Saturation Current @ 10%3.45 A | Saturation Current @ 30%6.8 A | MountSMT | – | – | – | – | – | – | – | – | – |
