Material Properties | |
---|---|
Isolationsmaterial | PBT |
Isolation Brennbarkeitsklasse | UL94 V-0 |
Farbe | Schwarz |
Kontaktmaterial | Phosphorbronze |
Kontaktbeschichtung | Zinn |
General Information | |
---|---|
Betriebstemperatur | -40 °C up to +125 °C |
Einhaltung | RoHS |
IR 1 | 3 A |
Arbeitsspannung | 50 V (AC) |
Spannungsfestigkeit | 500 V (AC) |
Kontaktwiderstand | 20 mΩ |
Raster | 2.54 mm |
Gender | Weiblich |

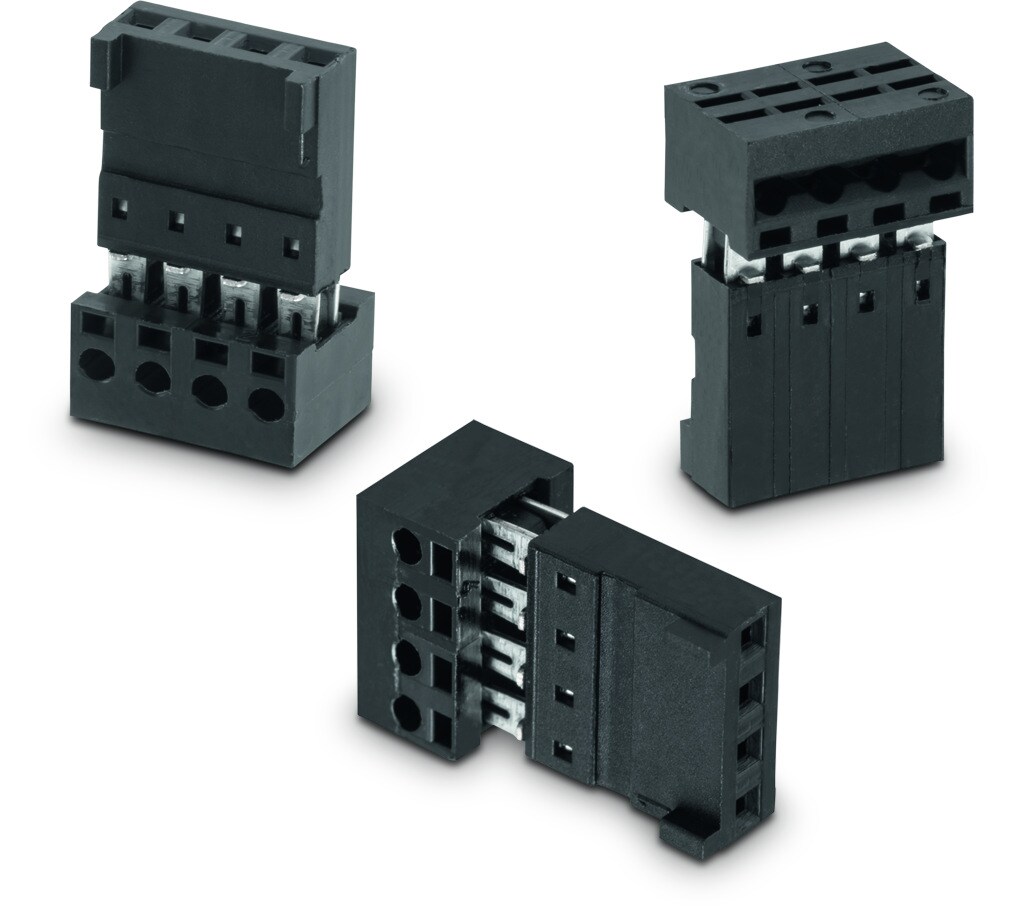

Typ | Right Angled IDC Receptacle |
Wire Properties | |
---|---|
Solid Wire Section (AWG) | 22 to 24 (AWG) |
Solid Wire Section (Metric) | 0.326 to 0.205 (mm²) |
Stranded Wire Section (AWG) | 22 to 24 (AWG) |
Stranded Wire Section (Metric) | 0.326 to 0.205 (mm²) |
Packaging Properties | |
---|---|
Verpackung | Stange; Tube |
Artikeldaten
Artikel Nr. | Datenblatt | Downloads | Status | Pins (pcs) | Raster (mm) | Gender | Typ | IR 1 (A) | Arbeitsspannung (V (AC)) | PCB/Kabel/Panel | Kontaktwiderstand (mΩ) | Tol. R | L (mm) | Stranded Wire Section (AWG) | Stranded Wire Section (Metric) | Verpackung | Design Kit | Muster | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() | 661002151922 | SPEC | 3 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 2 | 2.54 | Weiblich | Right Angled IDC Receptacle | 3 | 50 | Kabel | 20 | max. | 5.08 | 22 to 24 (AWG) | 0.326 to 0.205 (mm²) | Tube | – | |
![]() | 661003151922 | SPEC | 3 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 3 | 2.54 | Weiblich | Right Angled IDC Receptacle | 3 | 50 | Kabel | 20 | max. | 7.62 | 22 to 24 (AWG) | 0.326 to 0.205 (mm²) | Tube | – | |
![]() | 661004151922 | SPEC | 3 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 4 | 2.54 | Weiblich | Right Angled IDC Receptacle | 3 | 50 | Kabel | 20 | max. | 10.16 | 22 to 24 (AWG) | 0.326 to 0.205 (mm²) | Tube | – | |
![]() | 661005151922 | SPEC | 3 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 5 | 2.54 | Weiblich | Right Angled IDC Receptacle | 3 | 50 | Kabel | 20 | max. | 12.7 | 22 to 24 (AWG) | 0.326 to 0.205 (mm²) | Tube | – | |
![]() | 661006151922 | SPEC | 3 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 6 | 2.54 | – | – | 3 | – | – | 20 | max. | – | – | – | Stange | – | |
![]() | 661008151922 | SPEC | 3 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 8 | 2.54 | Weiblich | Right Angled IDC Receptacle | 3 | 50 | Kabel | 20 | max. | 20.32 | 22 to 24 (AWG) | 0.326 to 0.205 (mm²) | Tube | 612690 | |
![]() | 661010151922 | SPEC | 3 Dateien | Aktiv i| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | 10 | 2.54 | Weiblich | Right Angled IDC Receptacle | 3 | 50 | Kabel | 20 | max. | 25.4 | 22 to 24 (AWG) | 0.326 to 0.205 (mm²) | Tube | – |
Artikel Nr. | Datenblatt | |
---|---|---|
![]() | 661002151922 | SPEC |
![]() | 661003151922 | SPEC |
![]() | 661004151922 | SPEC |
![]() | 661005151922 | SPEC |
![]() | 661006151922 | SPEC |
![]() | 661008151922 | SPEC |
![]() | 661010151922 | SPEC |
Muster |
---|
Artikel Nr. | Datenblatt | Downloads | Status | Pins (pcs) | Raster (mm) | Gender | Typ | IR 1 (A) | Arbeitsspannung (V (AC)) | PCB/Kabel/Panel | Kontaktwiderstand (mΩ) | Tol. R | L (mm) | Stranded Wire Section (AWG) | Stranded Wire Section (Metric) | Verpackung | Design Kit | Muster |
---|
