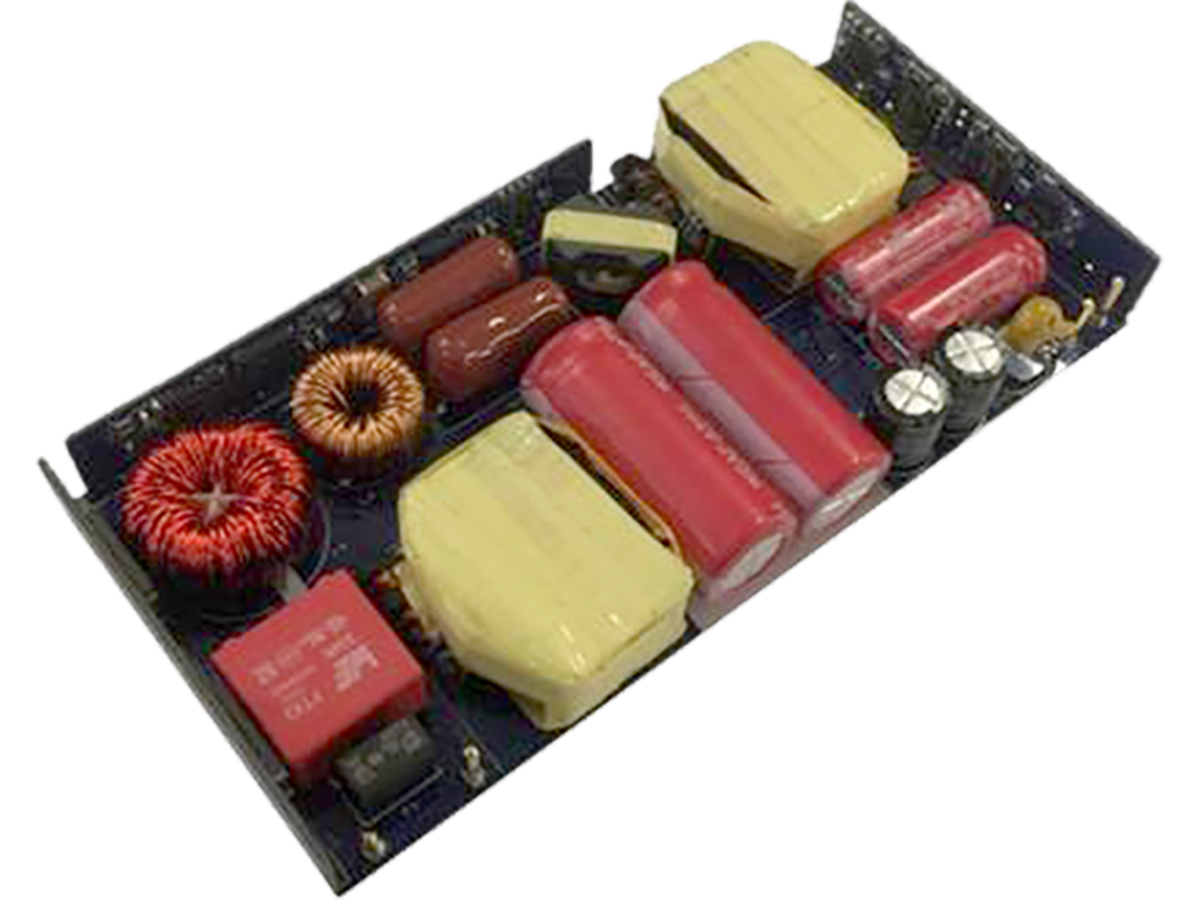

Navitas Semiconductor Inc NVE031B-A1 | Demoboard Nve031b

Details

TopologieLLC Resonanzwandler

Beschreibung

This design uses a Critical Conduction Mode (CrCM/DCM) PFC (AC-400 VDC), followed by an LLC DC-DC (400-19 VDC). For both stages, the switching frequency was increased to the maximum allowed by the off-the-shelf control ICs available. The board is designed to be a ‘demonstration’ board, and is not yet optimized as a production design. With this design, a power density of 2.18 W/cc or 35.75 W/in3 is achieved, which is around 2x typical and 40% more than the best-on-class Si-based design today. Customer designs are expected to achieve even higher power density. The PFC section is a standard ON Semi NCP1615 CrCM/DCM powering 2x NV6115 (parallel) GaNFast Power ICs directly. Critical mode PFC (also known as boundary mode) is a soft-switching topology which allows higher frequency operation. The DC-DC section uses the NCP13992 current-mode resonant controller (LLC) driving NV6115s. The NV6115s have monolithically-integrated gate drivers, so the NCP13992’s drivers are not used and loss is minimized.

Typische Anwendungen

  • PFC
  • LLC

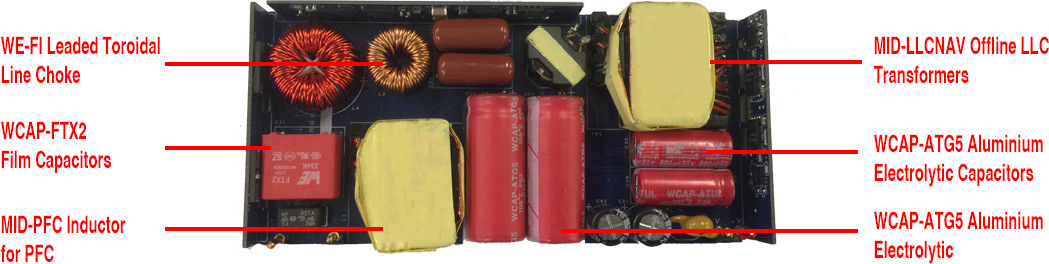

Artikeldaten

Artikel Nr. Daten­blatt Simu­lation Downloads ProduktserieIRP,40K
(A)
ISAT1
(A)
ISAT,30%
(A)
RDC
(mΩ)
fres
(MHz)
IR
(A)
L
(µH)
RDC max.
(mΩ)
VR
(V (AC))
VT
(V (AC))
MaterialL
(mm)
W
(mm)
H
(mm)
Montageart Muster
7443251600SPEC
8 Dateien WE-HCI SMT-Hochstrominduktivität 6.25 3.2 6.5 34.5 18 16 37.95 Superflux 10.5 10.2 4.7 SMT
7448030509SPEC
9 Dateien WE-CMBNC Stromkompensierte Netzdrossel Nanokristallin 5 9000 32 300 2100 Nanokristallin 23 13.5 26 THT
7447018SPEC
6 Dateien WE-FI Funkentstördrossel 2.5 150 100 16.5 10.7 THT
750317229SPEC
4 Dateien Transformer 190 3000 26.5 32.1 11 THT
750317297SPEC
4 Dateien Inductor 77.5 500 26.5 31.2 11 THT
Artikel Nr. Daten­blatt Simu­lation
7443251600SPEC
7448030509SPEC
7447018SPEC
750317229SPEC
750317297SPEC
Muster
Artikel Nr. Daten­blatt Simu­lation Downloads ProduktserieIRP,40K
(A)
ISAT1
(A)
ISAT,30%
(A)
RDC
(mΩ)
fres
(MHz)
IR
(A)
L
(µH)
RDC max.
(mΩ)
VR
(V (AC))
VT
(V (AC))
MaterialL
(mm)
W
(mm)
H
(mm)
Montageart Muster
