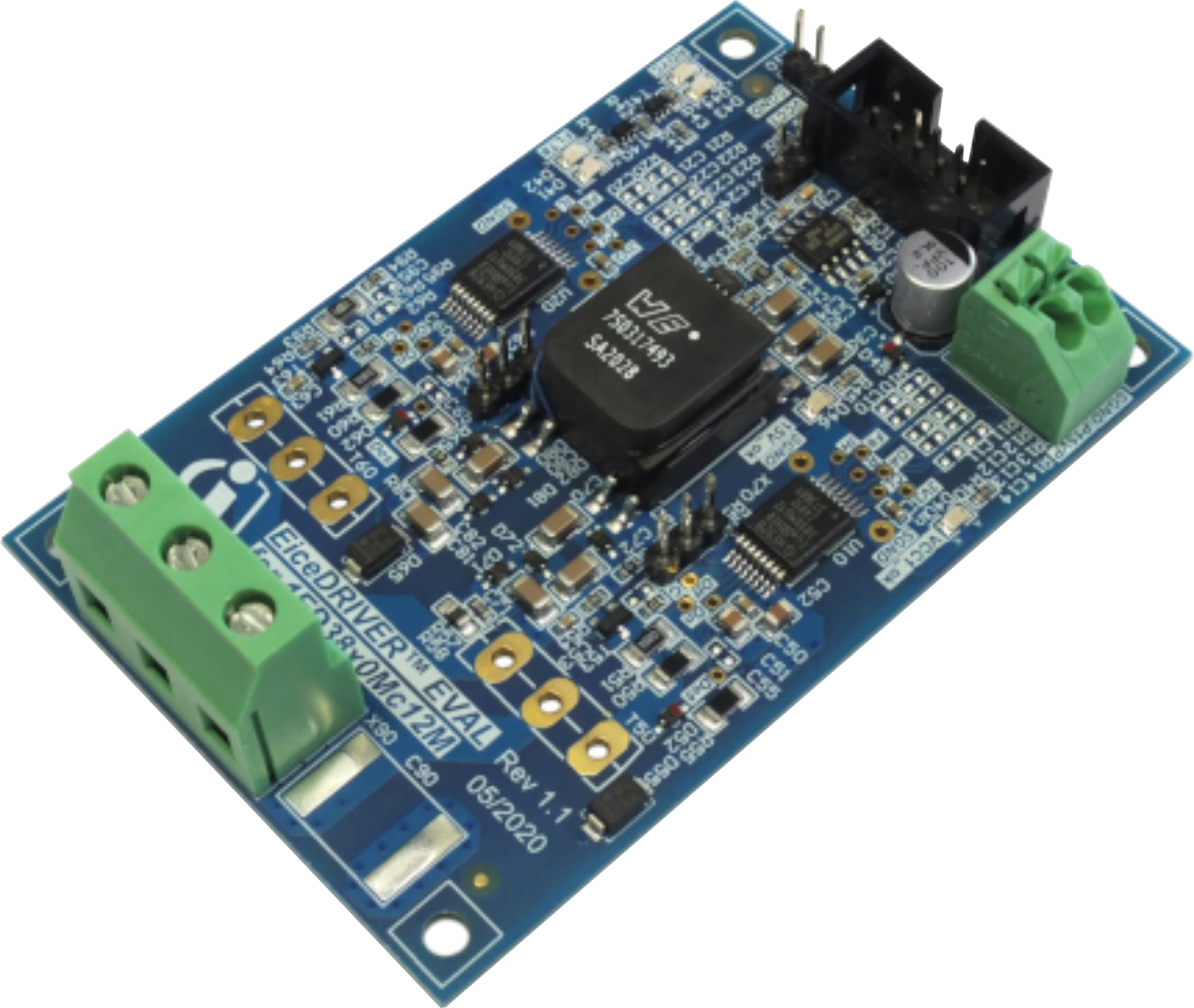

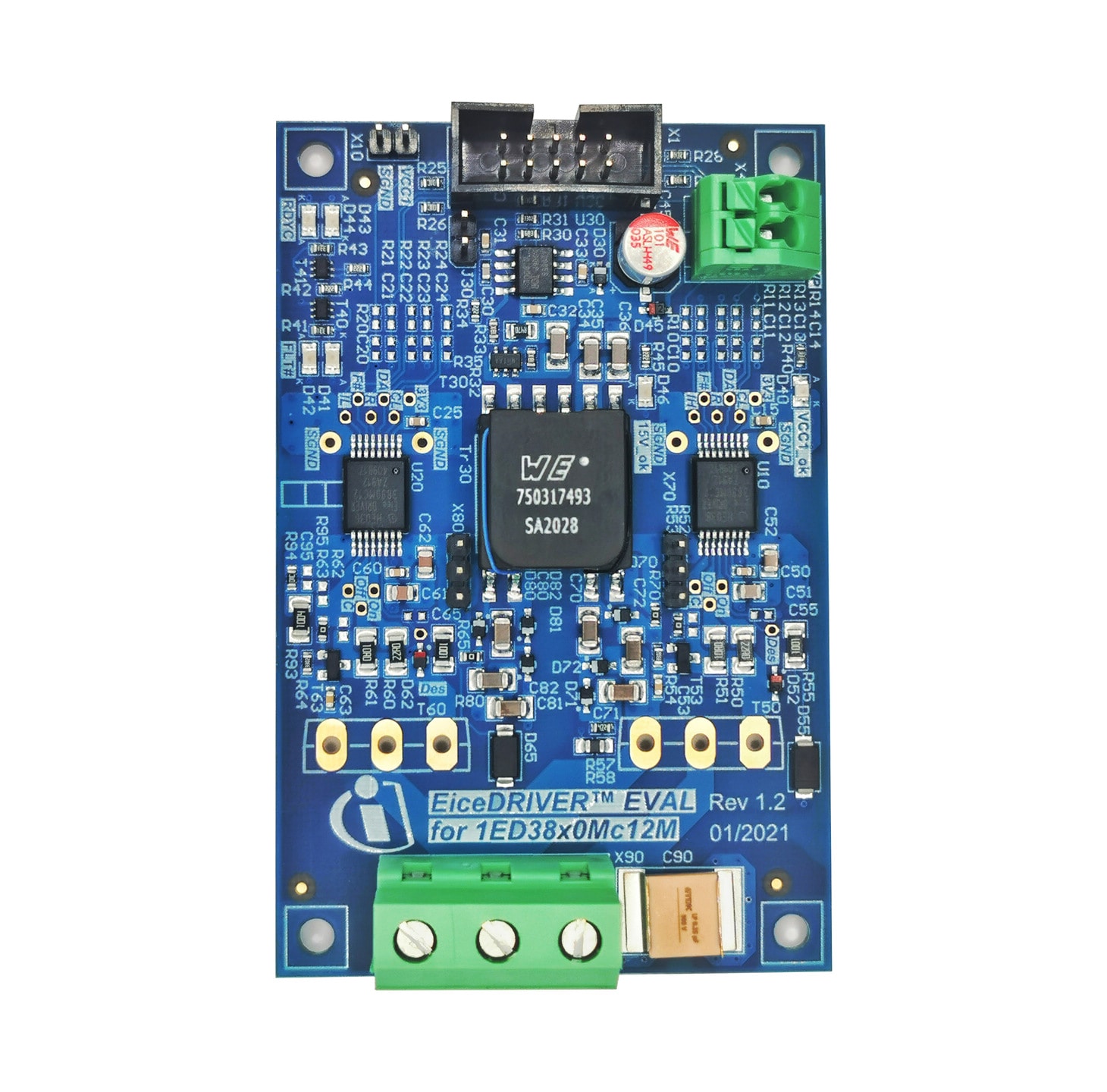

Infineon Technologies 1ED3890MX12M | Demoboard EVAL-1ED3890MX12M
Evaluation board description and getting started guide
Details
| Topologie | Gegentaktwandler (Halbbrücken) |
| Eingangsspannung | 3.2-3.5 V |
| Schaltfrequenz | 100 kHz |
| Ausgang 1 | 40 V |
| IC-Revision | 1.4 |
Beschreibung
This user guide is intended to introduce and provide an overview of the gate driver evaluation board Eval-1ED3890Mx12M with the 1ED3890MC12M or 1ED3890MU12M gate driver ICs, including the functionality,adjustment possibilities and key features of the Infineon EiceDRIVER™ 1ED-X3 Digital gate driver IC family.The Eval-1ED3890Mx12M board is designed to evaluate the functionalities and capabilities of 1ED3890MC12M or 1ED3890MU12M gate drivers ICs.This user guide will only selectively present the key features of the gate driver, and the reference manual and the datasheet to observe the full functionality and flexibility of the 1ED3890MC12M or 1ED3890MU12M gate drivers and Eval-1ED3890Mx12M.
Eigenschaften
- I2C bus for parameter adjustment, state and fault feedback, ADC measurements and condition monitoring
- Adjustable Clamp/Clamp driver/ADC pin
- Two precise VCEsat detection (DESAT2) circuit with fault output, adjustable leading edge blanking time and individually adjustable trigger voltages, filter times
- Two-level turn-off (TLTO) with adjustable slopes, plateau time and plateau level
- Adjustable soft turn-off after desaturation detection
- Adjustable hardware UVLO with hysteresis for IGBTs and MOSFETs on both VCC2 and VEE2 rails with active shutdown
- ADC measurement of internal parameters: supply voltages and internal temperature
- 40 V absolute maximum output supply voltage
- ± 9 A typical sourcing and sinking gate current capability
- High common-mode transient immunity CMTI = 200 kV/µs
- Small space-saving DSO-16 fine-pitch package with large creepage distance ( >8 mm)
- Gate driver safety certification according to UL 1577 and VDE 0884-11
Typische Anwendungen
- Motor control and drives
- Uninterruptible Power Supply (UPS)
Weiterführende Informationen
All technical functions in detail

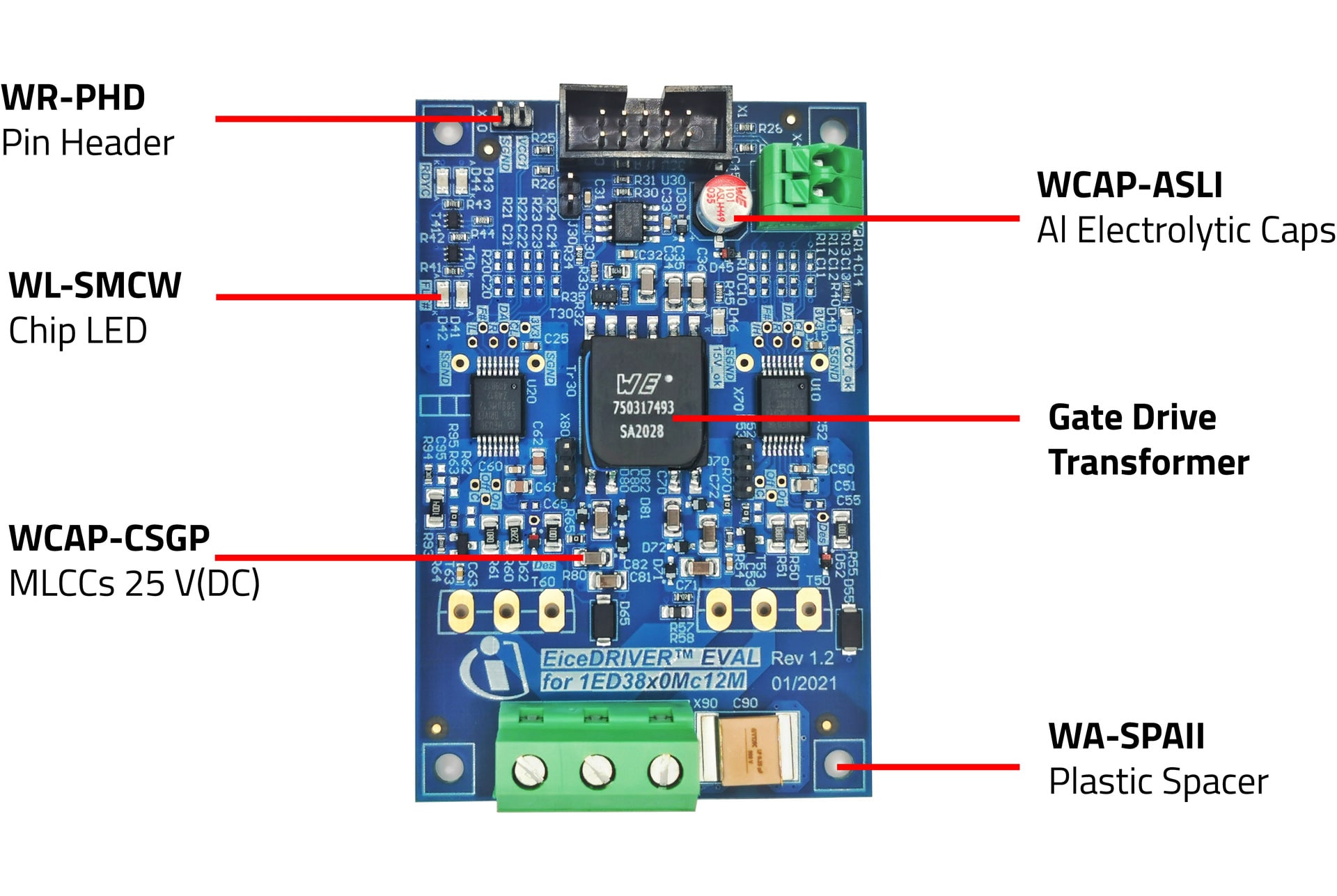

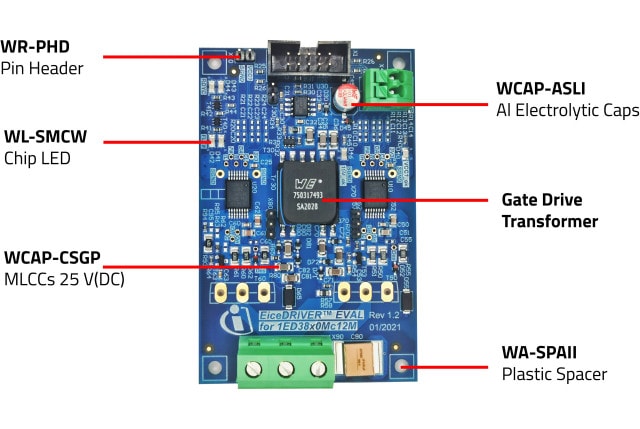

Artikeldaten
Artikel Nr. | Datenblatt | Simulation | Downloads | Status | Produktserie | λDom typ.(nm) | Farbe | λPeak typ.(nm) | IV typ.(mcd) | VF typ.(V) | Chiptechnologie | 2θ50% typ.(°) | C | Tol. C | VR(V (DC)) | Bauform | Betriebstemperatur | DF(%) | RISO | Keramiktyp | L(mm) | B(mm) | H(mm) | Fl(mm) | Verpackung | Schlüsselweite(mm) | Ti | Brennbarkeitsklasse | Endurance(h) | IRIPPLE(mA) | Z(mΩ) | ILeak(µA) | Ø D(mm) | Pins | Typ | Montageart | IR(A) | Arbeitsspannung(V (AC)) | Muster | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | WL-SMCW SMT Mono-color Chip LED Waterclear, 570 nm, Hellgrün | Status Aktivi| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | ProduktserieWL-SMCW SMT Mono-color Chip LED Waterclear | dominante Wellenlänge [typ.]570 nm | FarbeHellgrün | Spitzen-Wellenlänge [typ.]572 nm | Lichtstärke [typ.]40 mcd | Durchlassspannung [typ.]2 V | ChiptechnologieAlInGaP | Abstrahlwinkel Phi 0° [typ.]140 ° | – | – | – | Bauform0805 | Betriebstemperatur -40 °C up to +85 °C | – | – | – | Länge2 mm | Breite1.25 mm | Höhe0.7 mm | – | VerpackungTape and Reel | – | – | – | – | – | – | – | – | – | – | MontageartSMT | – | – | ||||
| WL-SMCW SMT Mono-color Chip LED Waterclear, 625 nm, Rot | Status Aktivi| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | ProduktserieWL-SMCW SMT Mono-color Chip LED Waterclear | dominante Wellenlänge [typ.]625 nm | FarbeRot | Spitzen-Wellenlänge [typ.]630 nm | Lichtstärke [typ.]150 mcd | Durchlassspannung [typ.]2 V | ChiptechnologieAlInGaP | Abstrahlwinkel Phi 0° [typ.]140 ° | – | – | – | Bauform0805 | Betriebstemperatur -40 °C up to +85 °C | – | – | – | Länge2 mm | Breite1.25 mm | Höhe0.7 mm | – | VerpackungTape and Reel | – | – | – | – | – | – | – | – | – | – | MontageartSMT | – | – | ||||
 | WCAP-ASLI Aluminium-Elektrolytkondensatoren, –, – | Status Aktivi| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | ProduktserieWCAP-ASLI Aluminium-Elektrolytkondensatoren | – | – | – | – | – | – | – | Kapazität100 µF | Kapazität±20% | Nennspannung35 V (DC) | Bauform6.3 x 7.7 | Betriebstemperatur -55 °C up to +105 °C | Verlustfaktor14 % | Isolationswiderstand1 MΩ | – | Länge7.7 mm | Breite6.6 mm | – | – | Verpackung15" Tape & Reel | – | – | – | Endurance 2000 | Rippelstrom300 mA | Impedanz380 mΩ | Leckstrom35 µA | Durchmesser6.3 mm | – | – | MontageartV-Chip SMT | – | – | ||||
| WCAP-CSGP MLCCs 25 V(DC), –, – | Status Aktivi| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | ProduktserieWCAP-CSGP MLCCs 25 V(DC) | – | – | – | – | – | – | – | Kapazität4.7 µF | Kapazität±20% | Nennspannung25 V (DC) | Bauform0805 | Betriebstemperatur -55 °C up to +85 °C | Verlustfaktor10 % | Isolationswiderstand0.02 GΩ | KeramiktypX5R Klasse II | Länge2 mm | Breite1.25 mm | Höhe1.25 mm | Pad Dimension0.5 mm | Verpackung7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | – | – | |||||
| WCAP-CSGP MLCCs 25 V(DC), –, – | Status Aktivi| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | ProduktserieWCAP-CSGP MLCCs 25 V(DC) | – | – | – | – | – | – | – | Kapazität10 µF | Kapazität±10% | Nennspannung25 V (DC) | Bauform1206 | Betriebstemperatur -55 °C up to +125 °C | Verlustfaktor10 % | Isolationswiderstand0.01 GΩ | KeramiktypX7R Klasse II | Länge3.2 mm | Breite1.6 mm | Höhe1.6 mm | Pad Dimension0.5 mm | Verpackung7" Tape & Reel | – | – | – | – | – | – | – | – | – | – | – | – | – | |||||
 | WA-SPAII Plastic Spacer Stud, metric, internal/ internal, –, – | Simulation– | Status Aktivi| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | – | – | – | – | – | – | – | – | – | – | – | Betriebstemperatur -30 °C up to +110 °C | – | – | – | Länge15 mm | – | – | – | VerpackungBeutel | Schlüsselweite6 mm | InnengewindeM3 | BrennbarkeitsklasseUL94 HB | – | – | – | – | – | – | – | – | – | – | ||||
 | WR-PHD Stiftleisten - Einreihig, –, – | Simulation– | Status Aktivi| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | ProduktserieWR-PHD Stiftleisten - Einreihig | – | – | – | – | – | – | – | – | – | – | – | Betriebstemperatur -40 °C up to +105 °C | – | Isolationswiderstand1000 MΩ | – | Länge5.08 mm | – | – | – | VerpackungBeutel | – | – | – | – | – | – | – | – | Pins2 | TypGerade | MontageartTHT | Nennstrom3 A | Arbeitsspannung250 V (AC) | |||
 | WR-PHD Stiftleisten - Einreihig, –, – | Simulation– | Status Aktivi| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | ProduktserieWR-PHD Stiftleisten - Einreihig | – | – | – | – | – | – | – | – | – | – | – | Betriebstemperatur -40 °C up to +105 °C | – | Isolationswiderstand1000 MΩ | – | Länge7.62 mm | – | – | – | VerpackungBeutel | – | – | – | – | – | – | – | – | Pins3 | TypGerade | MontageartTHT | Nennstrom3 A | Arbeitsspannung250 V (AC) | |||
 | WA-SCRW Linsenkopfschraube M3 mit Kreuzschlitz, –, – | Simulation– | Status Aktivi| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | ProduktserieWA-SCRW Linsenkopfschraube M3 mit Kreuzschlitz | – | – | – | – | – | – | – | – | – | – | – | Betriebstemperatur -30 °C up to +85 °C | – | – | – | Länge5 mm | – | – | – | VerpackungLose | – | – | BrennbarkeitsklasseUL94 V-0 | – | – | – | – | – | – | – | – | – | – | |||
750317493 | WE-AGDT Auxiliary Gate Drive Transformer, –, – | Simulation– | Downloads– | Status Aktivi| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | Produktserie WE-AGDT Auxiliary Gate Drive Transformer | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | ||
750318016 | Gate Drive Transformer, –, – | Simulation– | Downloads– | Status Aktivi| Produktion ist aktiv. Erwartete Lebenszeit: >10 Jahre. | Produktserie Gate Drive Transformer | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – | – |
