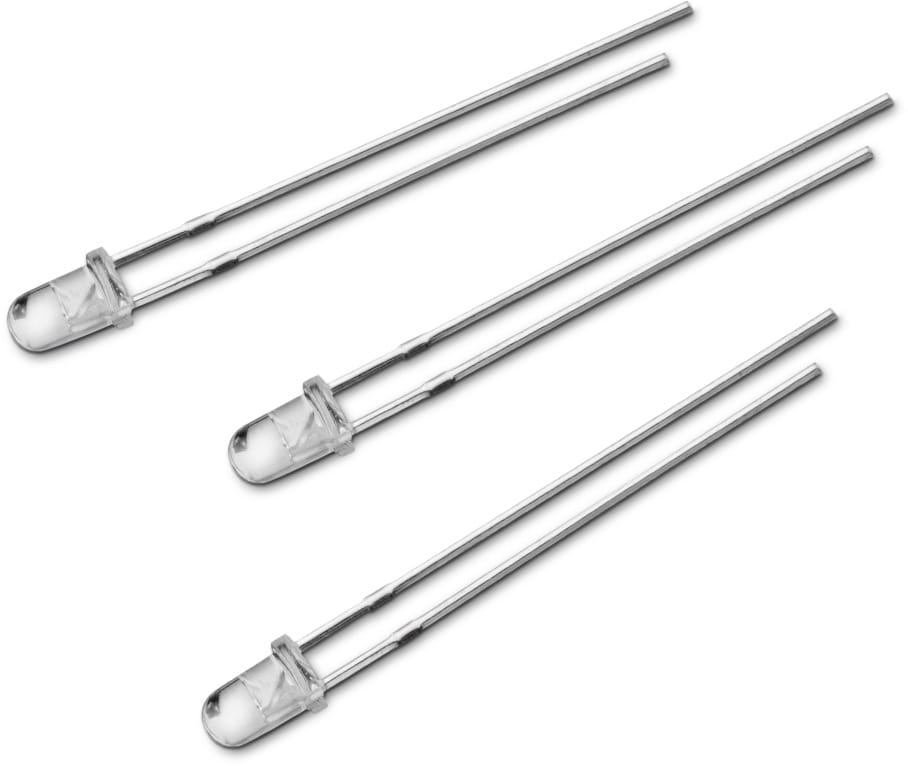

WL-TIRW THT Infrared Round Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount

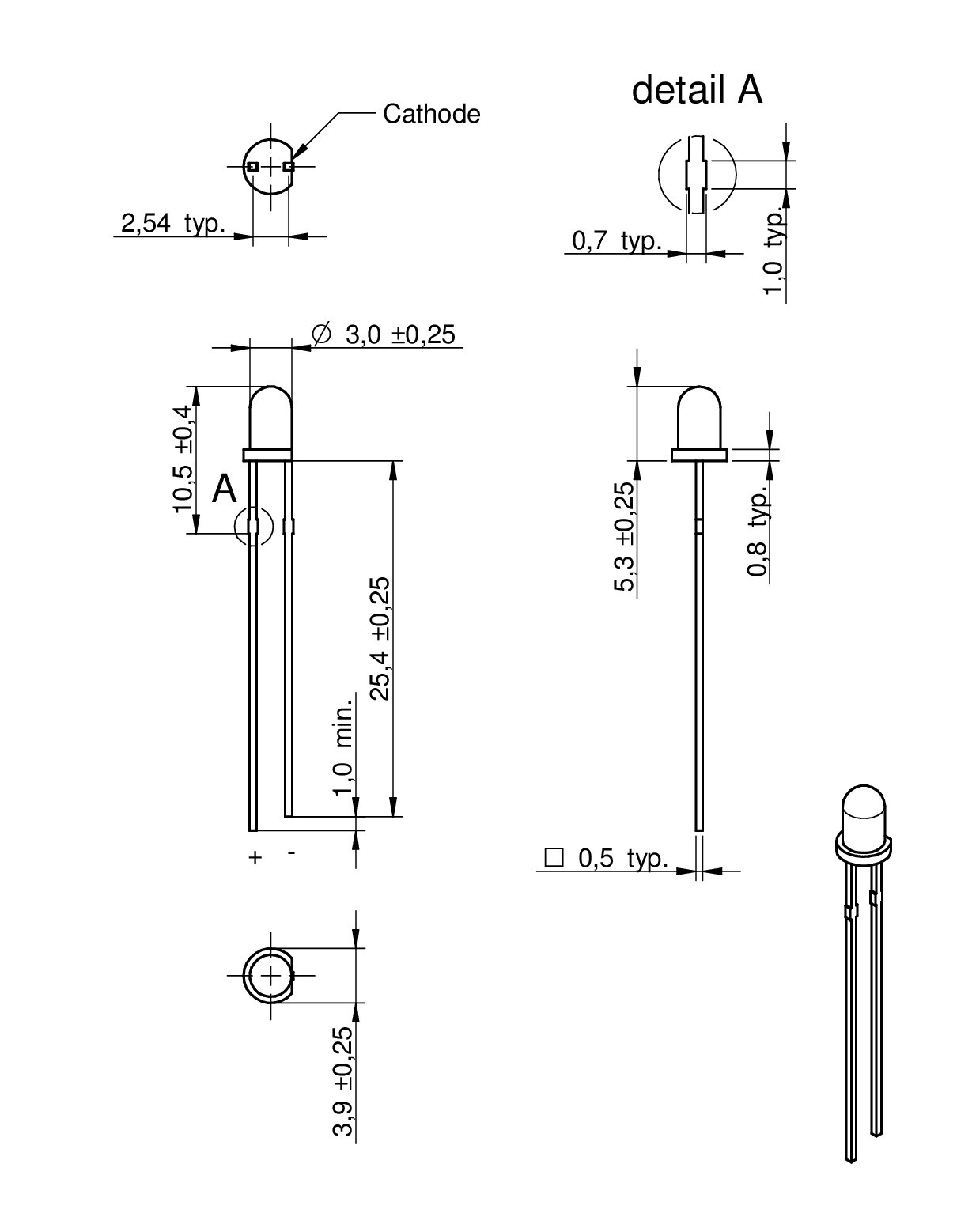

3 mm - without stopper		3	3	5.3	THT

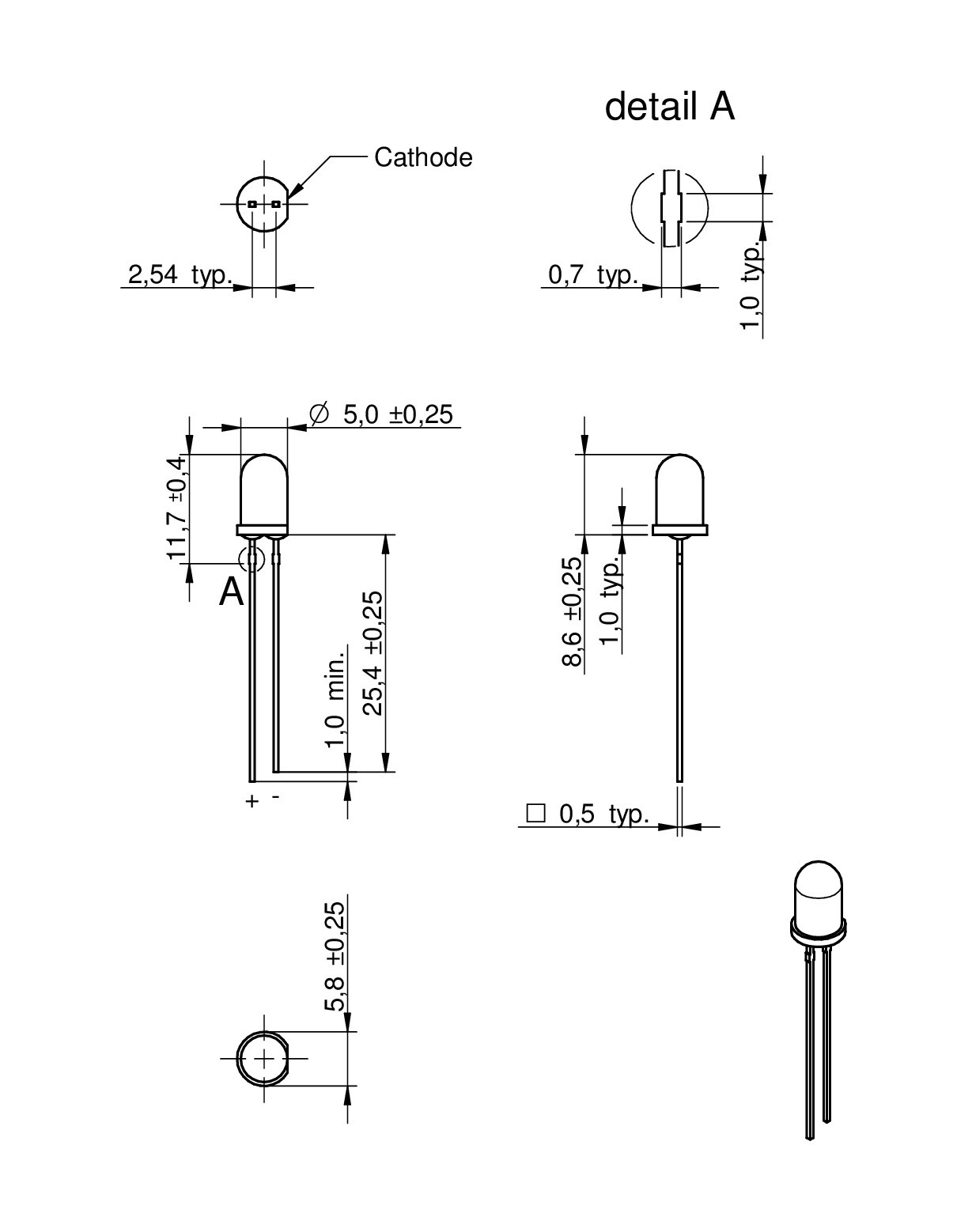

5 mm - without stopper		5.8	5	8.6	THT

LTSpice files

LT
LTSpice_WL-TIRW (rev22a).zip
|
1.9 KB

Characteristics

Infrared Emitter
Very High Radiant Intensity
standard size 3mm and 5mm
Fast switching

Applications

Sensor Technology
Distance measurement
Remote control
Smoke detectors
Data Transmission

Products

All

3 mm - without stopper

5 mm - without stopper

Reset all

Filter article data

show article in 2 product lines

article in 2 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.}(nm)	λ_{Centroid max.}	I_{e typ.}(mW/sr)	V_{F typ.}(V)	2θ_{50% typ.}(°)	Chip Technology	Design Kit
15400585A3590	850 nm, 845.0, 85 mW/sr	Simulation	Downloads7 files EDA models: Components ZIP ALT Altium_WL-TIRW (rev22c).IntLib \| 47 KB CDS Cadence_WL-TIRW (rev19a).zip \| 168.5 KB EAG Eagle_WL-TIRW (rev21a).lbr \| 18.6 KB CAD files ZIP IGS Download_IGS_WL-TIRW-5mm (rev1).igs \| 233.3 KB STP Download_STP_WL-TIRW-5mm (rev1).stp \| 74.2 KB Electric models ZIP PSP PSpice_WL-TIRW (rev22a).zip \| 3.2 KB Certificates ZIP CER IR_LED_certificate_WL-TIRW-5mm_1540585A3590 (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Peak Wavelength [typ.]850 nm	Centroid Wavelength [max.]845.0	Radiant Intensity [typ.]85 mW/sr	Forward Voltage [typ.]1.5 V	Viewing Angle Phi 0° [typ.]35 °	Chip TechnologyAlGaAs	Design Kit 154150
15400385A3590	850 nm, 845.0, 60 mW/sr	Simulation	Downloads7 files EDA models: Components ZIP ALT Altium_WL-TIRW (rev22c).IntLib \| 47 KB CDS Cadence_WL-TIRW (rev19a).zip \| 168.5 KB EAG Eagle_WL-TIRW (rev21a).lbr \| 18.6 KB CAD files ZIP IGS Download_IGS_WL-TIRW-3mm (rev1).igs \| 197.1 KB STP Download_STP_WL-TIRW-3mm (rev1).stp \| 72.7 KB Electric models ZIP PSP PSpice_WL-TIRW (rev22a).zip \| 3.2 KB Certificates ZIP CER IR_LED_certificate_WL-TIRW-3mm_15400385A3590 (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Peak Wavelength [typ.]850 nm	Centroid Wavelength [max.]845.0	Radiant Intensity [typ.]60 mW/sr	Forward Voltage [typ.]1.5 V	Viewing Angle Phi 0° [typ.]35 °	Chip TechnologyAlGaAs	Design Kit 154150
15400594A3590	940 nm, 940.0, 75 mW/sr	Simulation	Downloads7 files EDA models: Components ZIP ALT Altium_WL-TIRW (rev22c).IntLib \| 47 KB CDS Cadence_WL-TIRW (rev19a).zip \| 168.5 KB EAG Eagle_WL-TIRW (rev21a).lbr \| 18.6 KB CAD files ZIP IGS Download_IGS_WL-TIRW-5mm (rev1).igs \| 233.3 KB STP Download_STP_WL-TIRW-5mm (rev1).stp \| 74.2 KB Electric models ZIP PSP PSpice_WL-TIRW (rev22a).zip \| 3.2 KB Certificates ZIP CER IR_LED_certificate_WL-TIRW-5mm_15400594A3590 (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Peak Wavelength [typ.]940 nm	Centroid Wavelength [max.]940.0	Radiant Intensity [typ.]75 mW/sr	Forward Voltage [typ.]1.3 V	Viewing Angle Phi 0° [typ.]35 °	Chip TechnologyAlGaAs	Design Kit 154150
15400394A3590	940 nm, 940.0, 30 mW/sr	Simulation	Downloads7 files EDA models: Components ZIP ALT Altium_WL-TIRW (rev22c).IntLib \| 47 KB CDS Cadence_WL-TIRW (rev19a).zip \| 168.5 KB EAG Eagle_WL-TIRW (rev21a).lbr \| 18.6 KB CAD files ZIP IGS Download_IGS_WL-TIRW-3mm (rev1).igs \| 197.1 KB STP Download_STP_WL-TIRW-3mm (rev1).stp \| 72.7 KB Electric models ZIP PSP PSpice_WL-TIRW (rev22a).zip \| 3.2 KB Certificates ZIP CER IR_LED_certificate_WL-TIRW-3mm (rev1).pdf \| 1.2 MB Download all 7 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Peak Wavelength [typ.]940 nm	Centroid Wavelength [max.]940.0	Radiant Intensity [typ.]30 mW/sr	Forward Voltage [typ.]1.3 V	Viewing Angle Phi 0° [typ.]35 °	Chip TechnologyAlGaAs	Design Kit 154150

Suitable for

WL-TDRW THT Photodiode Round Waterclear

WL-TDRB THT Photodiode Round Black

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Infrared LEDs & Photodetectors
