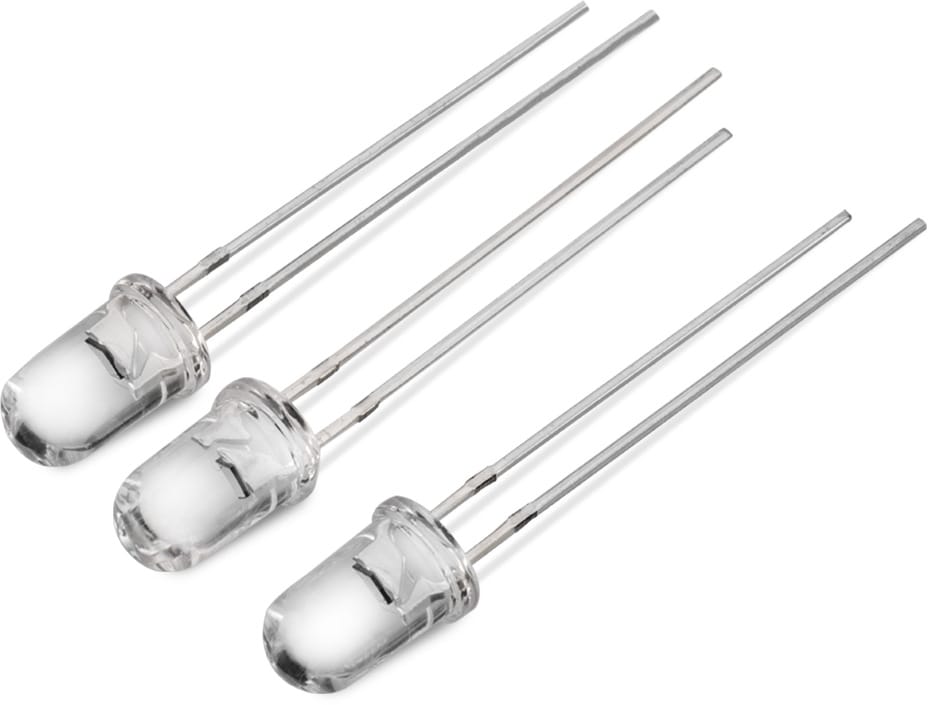

WL-TDRW THT Photodiode Round Waterclear

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount

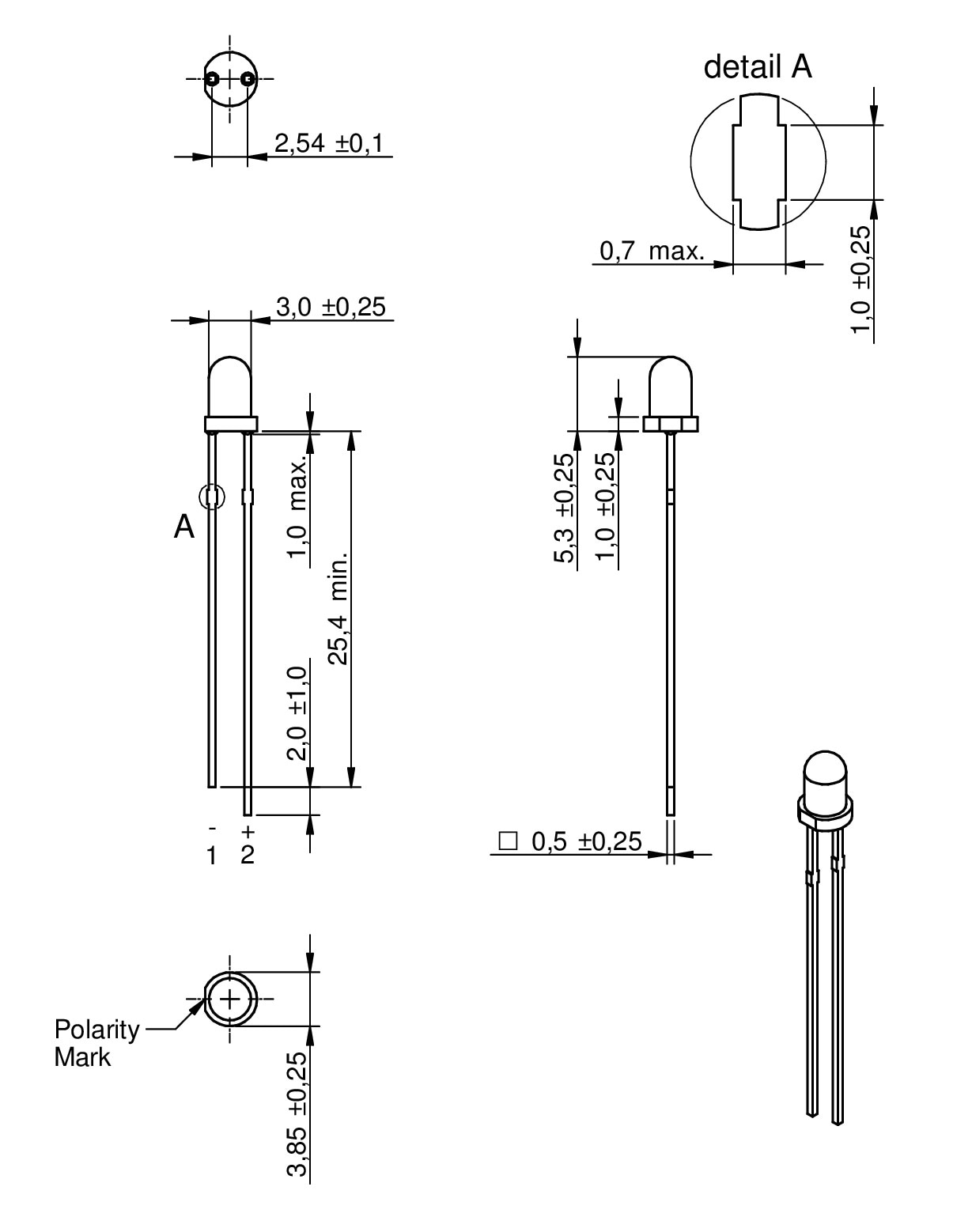

3 mm - without stopper		3	3.85	5.3	THT

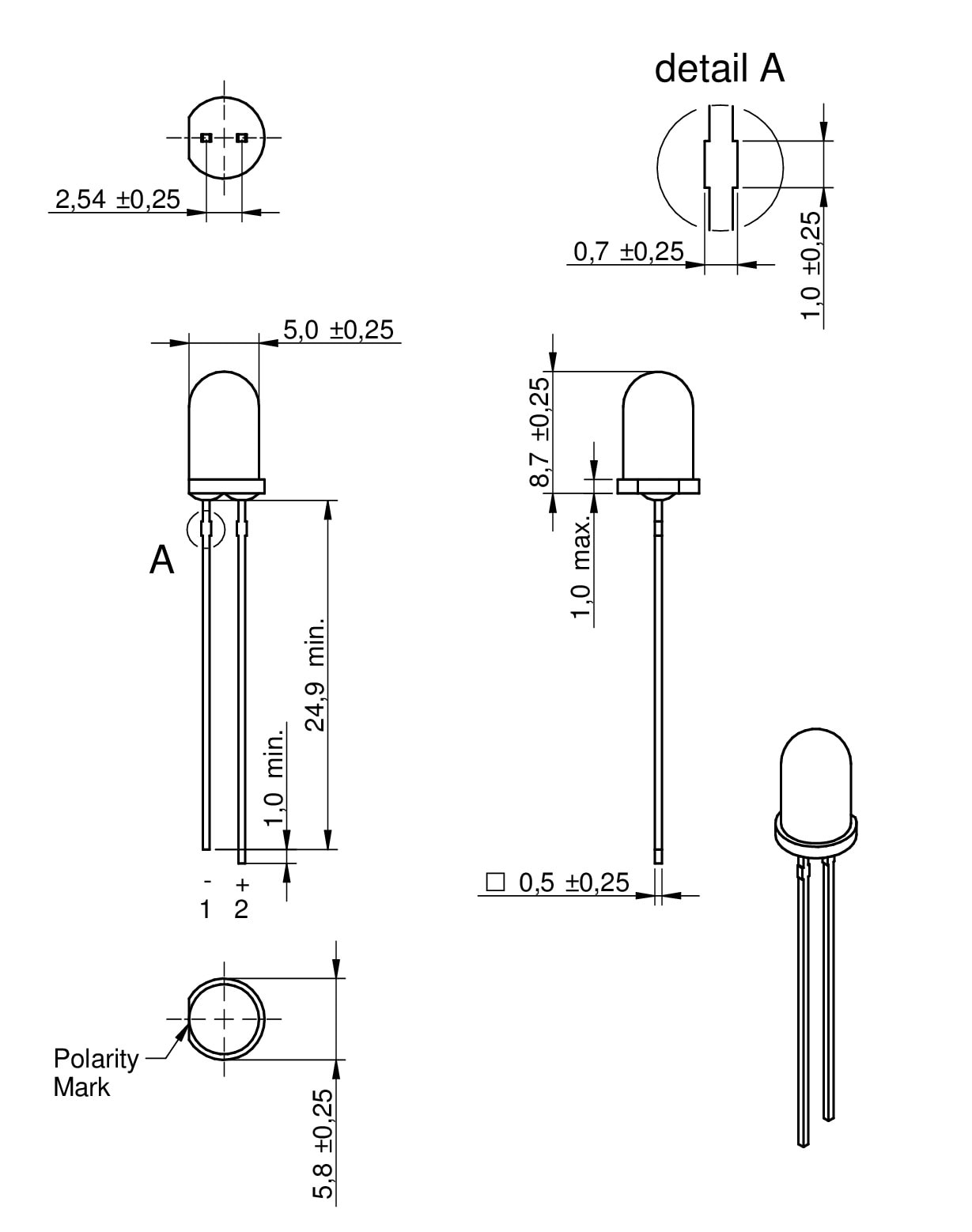

5 mm - without stopper		5.8	5	8.7	THT

Characteristics

Standard THT 5mm package size
High reliability
Detector for visible and infrared light
Fast switching times
Low power consumption
High sensitivity

Applications

Touch screen
Cleaning roboter
Remote controller
Optoelectronic switch
Video camera
Security systems

Application Notes

ANO014 Signal transmission using IR diodes and photodetectors
PDF

Products

All

3 mm - without stopper

5 mm - without stopper

Filter article data

show articles in 2 product lines

articles in 2 product lines

Log in now to view availability and request availability forecasts. LOGIN

Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.}(nm)	λ_min.(nm)	λ_max.(nm)	I_{P typ.}(µA)	I_{D max.}(nA)	2θ_{50% typ.}(°)	SamplesAvailability & Sample

Log in now to view availability and request availability forecasts. LOGIN
1540051EA3590	SPEC940 nm, 400 nm, 1100 nm	Simulation	Availability –	Downloads6 files ALT Altium_WL-TDRW (rev22c).IntLib \| 45.5 KB CDS Cadence_WL-TDRW (rev20a).zip \| 124.7 KB EAG Eagle_WL-TDRW (rev20b).lbr \| 17.7 KB KIC KiCad_WL-TDRW (rev26a).zip \| 31.9 KB IGS Download_IGS_1540051EA3590 (rev1).igs \| 231 KB STP Download_STP_1540051EA3590 (rev1).stp \| 49.4 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Wavelength of Peak Sensitivity [typ.]940 nm	Range of Spectral Bandwidth [min.]400 nm	Range of Spectral Bandwidth [max.]1100 nm	Photo Current [typ.]28 µA	Dark Current [max.]30 nA	Viewing Angle Phi 0° [typ.]35 °	–Check availability
1540031EA4590	SPEC940 nm, 400 nm, 1100 nm	Simulation	Availability –	Downloads6 files ALT Altium_WL-TDRW (rev22c).IntLib \| 45.5 KB CDS Cadence_WL-TDRW (rev20a).zip \| 124.7 KB EAG Eagle_WL-TDRW (rev20b).lbr \| 17.7 KB KIC KiCad_WL-TDRW (rev26a).zip \| 31.9 KB IGS Download_IGS_1540031EA4590 (rev1).igs \| 233.8 KB STP Download_STEP_1540031EA4590 (rev1).stp \| 48.4 KB	Status ActiveProduction is active. Expected lifetime: >10 years. iProduction is active. Expected lifetime: >10 years.	Wavelength of Peak Sensitivity [typ.]940 nm	Range of Spectral Bandwidth [min.]400 nm	Range of Spectral Bandwidth [max.]1100 nm	Photo Current [typ.]40 µA	Dark Current [max.]100 nA	Viewing Angle Phi 0° [typ.]45 °	–Check availability
