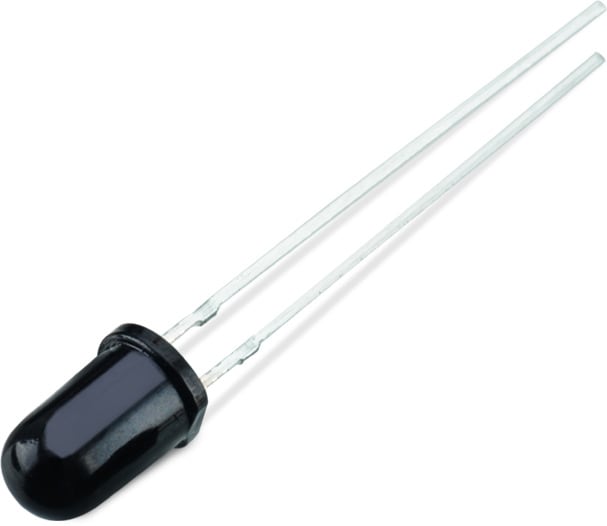

WL-TDRB THT Photodiode Round Black

Size	Dimensions	L (mm)	W (mm)	H (mm)	Mount
3 mm - without stopper		3	3.85	5.3	THT
5 mm - without stopper		5.8	5	8.7	THT

Characteristics

Standard THT 5mm package size
High reliability
Detector with daylight filter
Fast switching times
Low power consumption
High sensitivity
Suitable for near infrared radiation

Applications

Photointerrupter
Touch screen
Cleaning roboter
Industrial electronics
Remote controller
Optoelectronic switch
Security systems

Application Notes

ANO014 Signal transmission using IR diodes and photodetectors
PDF

Products

All

3 mm - without stopper

5 mm - without stopper

Filter article data

show article in 2 product lines

article in 2 product lines

Order Code	Datasheet	Simulation	Downloads	Status	λ_{Peak typ.}(nm)	λ_min.(nm)	λ_max.(nm)	I_{P typ.}(µA)	I_{D max.}(nA)	2θ_{50% typ.}(°)	SamplesAvailability & Sample
1540051EC3590	SPEC940 nm, 700 nm, 1100 nm	Simulation	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WL-TDRB (rev22c).IntLib \| 45.5 KB CDS Cadence_WL-TDRB (rev20a).zip \| 124.4 KB EAG Eagle_WL-TDRB (rev20b).lbr \| 17.9 KB KIC KiCad_WL-TDRB (rev26a).zip \| 32 KB CAD files ZIP IGS Download_IGS_1540051EC3590 (rev1).igs \| 231 KB STP Download_STP_1540051EC3590 (rev1).stp \| 49.4 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Wavelength of Peak Sensitivity [typ.]940 nm	Range of Spectral Bandwidth [min.]700 nm	Range of Spectral Bandwidth [max.]1100 nm	Photo Current [typ.]31 µA	Dark Current [max.]30 nA	Viewing Angle Phi 0° [typ.]35 °	–Check availability
1540031EC4590	SPEC940 nm, 750 nm, 1100 nm	Simulation	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WL-TDRB (rev22c).IntLib \| 45.5 KB CDS Cadence_WL-TDRB (rev20a).zip \| 124.4 KB EAG Eagle_WL-TDRB (rev20b).lbr \| 17.9 KB KIC KiCad_WL-TDRB (rev26a).zip \| 32 KB CAD files ZIP IGS Download_IGS_1540031EC4590 (rev1).igs \| 233.8 KB STP Download_STEP_1540031EC4590 (rev1).stp \| 48.5 KB Download all 6 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Wavelength of Peak Sensitivity [typ.]940 nm	Range of Spectral Bandwidth [min.]750 nm	Range of Spectral Bandwidth [max.]1100 nm	Photo Current [typ.]30 µA	Dark Current [max.]10 nA	Viewing Angle Phi 0° [typ.]45 °	–Check availability
