Characteristics
- New fixation
- Pre-fixing of the clip with additional assembling of the Snap Ferrite
- Classification of the clip: min. UL94 HB
- Colour of the clip: electronic grey; black on request available
Applications

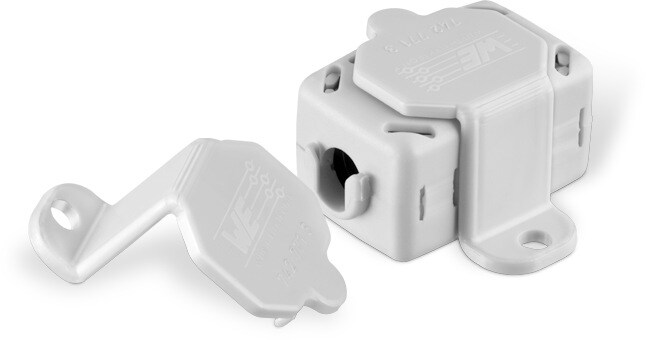

- Especially for the fixation of STAR-TEC, STAR-TEC LFS and STAR-FIX Snap Ferrites
- Reusable thanks to STAR-KEY technology, ideal for testing and measuring purposes in EMC laboratories
Products

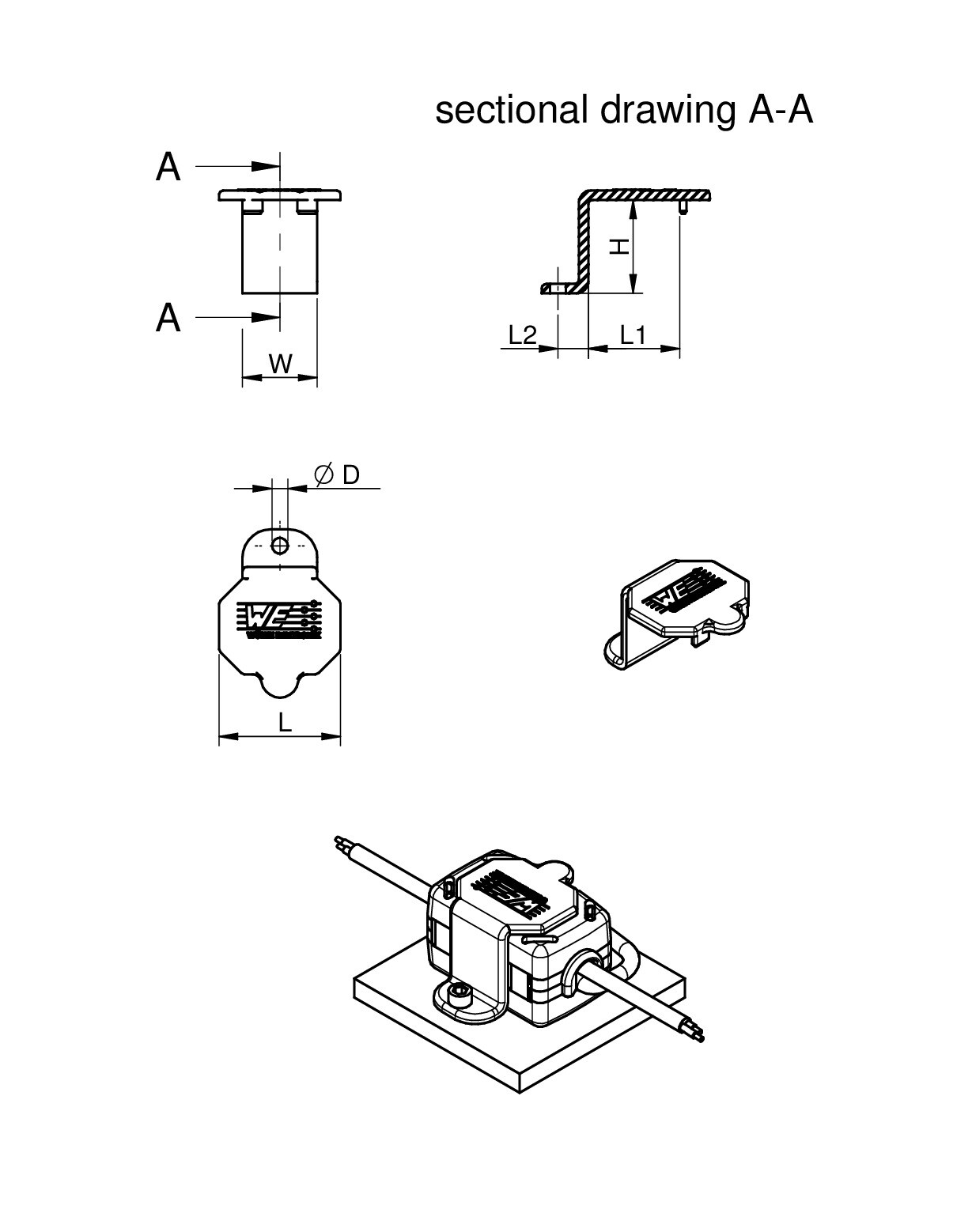

| Order Code | Datasheet | Downloads | L (mm) | W (mm) | H (mm) | Color | Suitable for | Alpha-Rack | Design Kit | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 | 7427711 | SPEC | 2 files | 26 | 16 | 18.5 | Grey | 74272733 74271733 74271733S 74271111 74271111S 74271112 74271112S 74271633 74271633S | 742707001 | 742711 | |
 | 7427713 | SPEC | 2 files | 26 | 16 | 20 | Grey | 74271131 74271132 74272131 74272132 | 742707001 | 742711 | |
 | 7427722 | SPEC | 2 files | 26 | 16 | 29 | Grey | 74271221 74271222 74272221 74272222 | 742707001 | 742711 |
| Samples |
|---|
| Order Code | Datasheet | Downloads | L (mm) | W (mm) | H (mm) | Color | Suitable for | Alpha-Rack | Design Kit | Samples |
|---|
