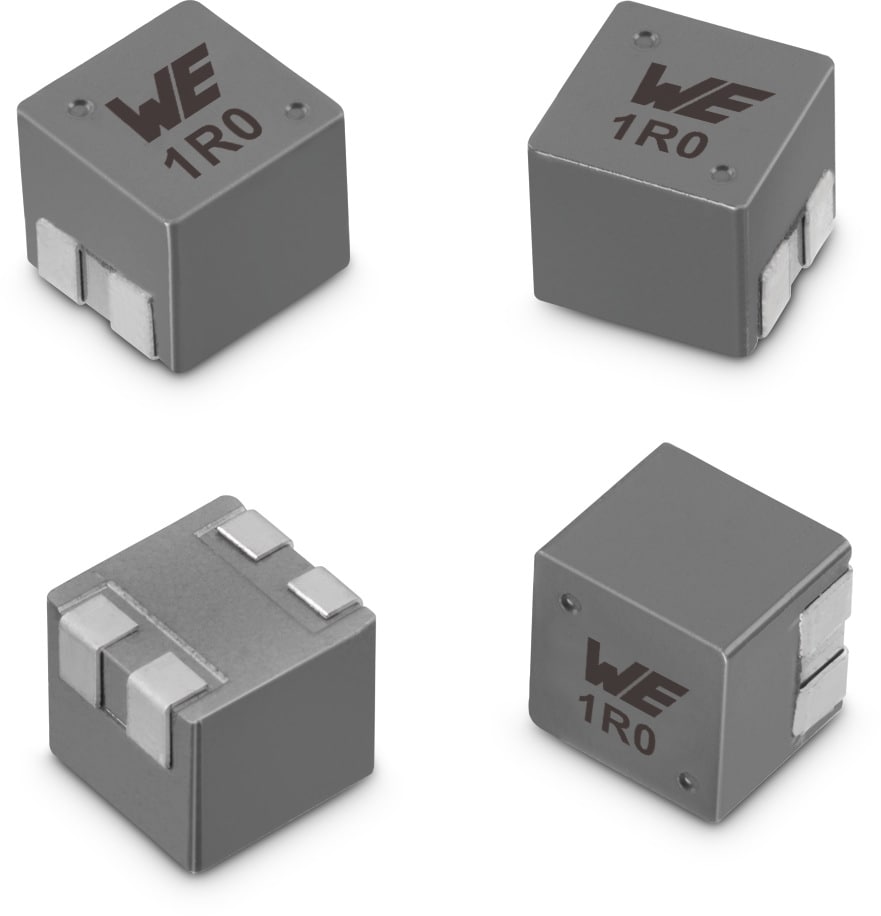

WE-MCRI Magnetically shielded. Better Leakage Inductance (Lk) and Rated Current (Ir) than comparable components.

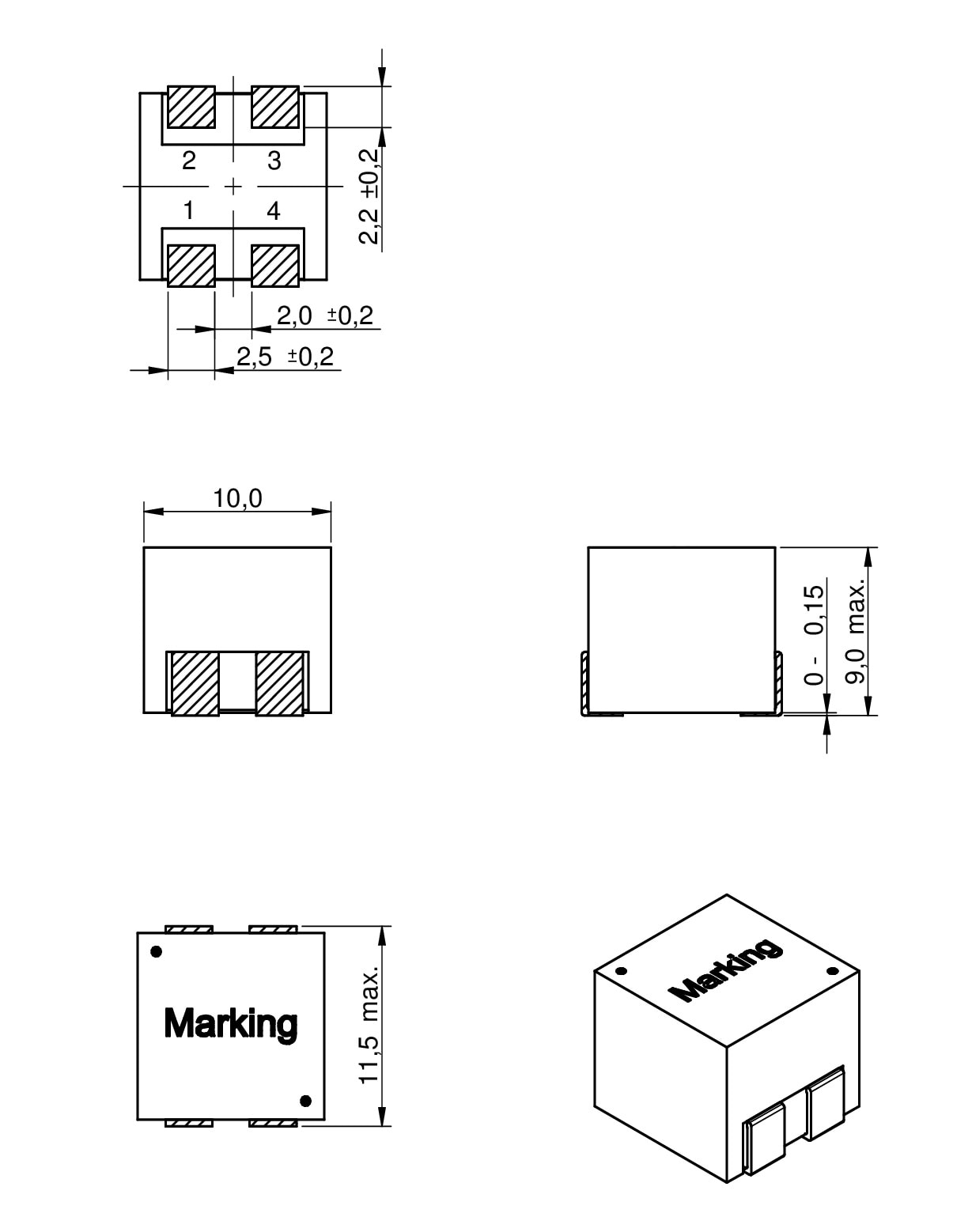

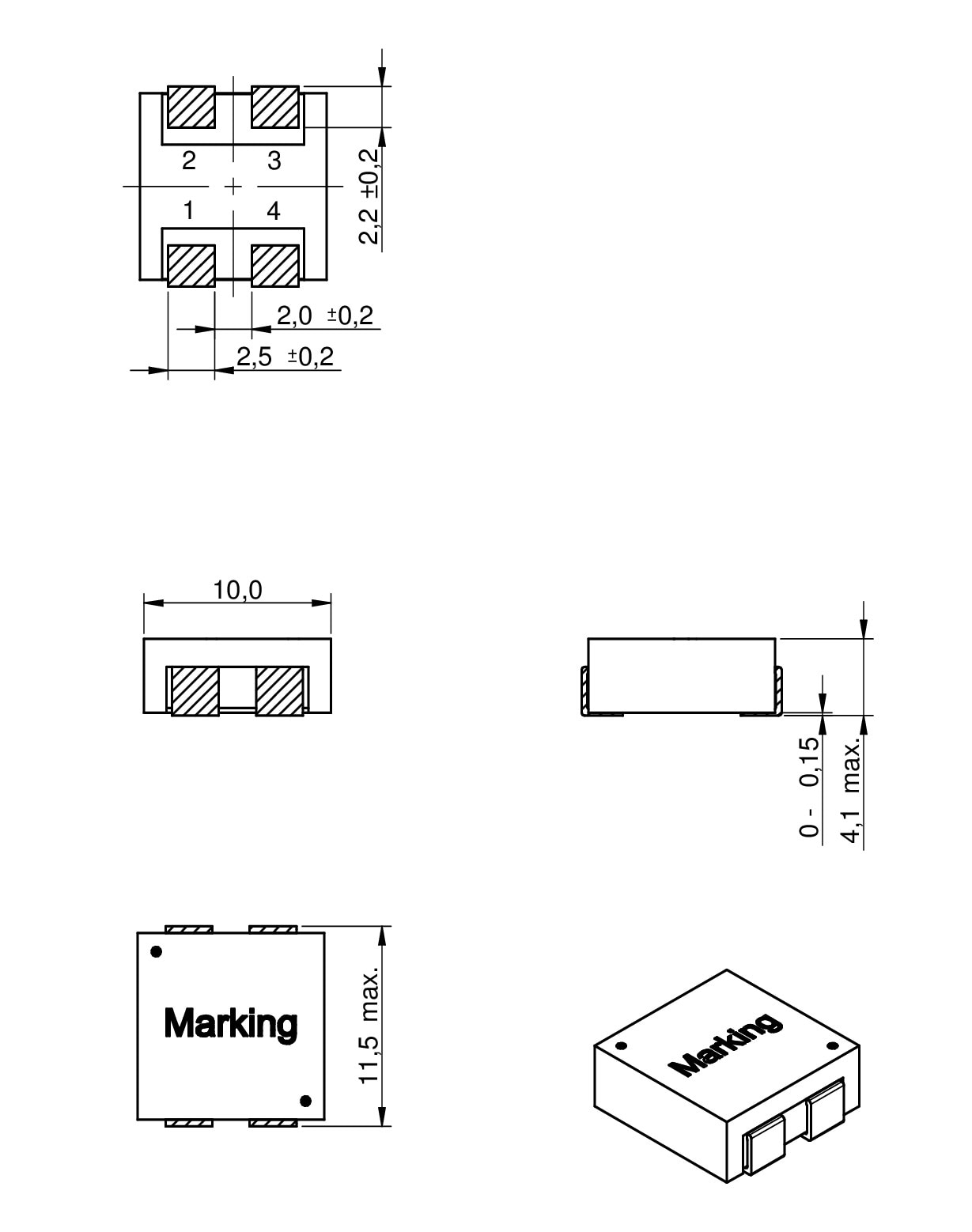

Size	Dimensions	L (mm)	W (mm)	H (mm)
1040		11	10	4
1090		11	10	9

LTSpice files

LT
LTSpice_WE-MCRI (rev24a).zip
|
2.5 KB

Characteristics

Composite core material allows high saturation current and compact design
Better Leakage Inductance (Lk) and Rated Current (Ir) than comparable components
Magnetically shielded
1:1 Transformer
Operation temperature: -40°C to +125°C

Applications

Isolated converter application (e.g. Flyback converter)
Buck, Boost, Sepic, Zeta, CUK Converter
Switching regulator with second, unregulated output voltage

Application Notes

Products

All

1040

1090

Reset all

Filter article data

show article in 2 product lines

article in 2 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	L₁(µH)	L₂(µH)	n	I_R(A)	I_{R 2}(A)	I_SAT1(A)	I_SAT2(A)	R_{DC1 max}(mΩ)	R_{DC2 max}(mΩ)	L_S(µH)
7448990010	1 µH, 1 µH, 1:1	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1090 (rev1).igs \| 1016.9 KB STP Download_STP_WE-MCRI-1090 (rev1).stp \| 418.4 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB PSP PSpice_WE-MCRI (rev22a).zip \| 5.8 KB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 11 µH	Inductance 21 µH	Turns Ratio1:1	Rated Current17 A	Rated Current 217 A	Saturation Current 143.5 A	Saturation Current 243.5 A	DC Resistance 15.6 mΩ	DC Resistance 25.6 mΩ	Leakage Inductance0.17 µH
7448991010	1 µH, 1 µH, 1:1	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1040 (rev1).igs \| 1017.1 KB STP Download_STP_WE-MCRI-1040 (rev1).stp \| 288.5 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 11 µH	Inductance 21 µH	Turns Ratio1:1	Rated Current12 A	Rated Current 212 A	Saturation Current 130.2 A	Saturation Current 230.2 A	DC Resistance 17.5 mΩ	DC Resistance 27.5 mΩ	Leakage Inductance0.16 µH
7448990015	1.5 µH, 1.5 µH, 1:1	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1090 (rev1).igs \| 1016.9 KB STP Download_STP_WE-MCRI-1090 (rev1).stp \| 418.4 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB PSP PSpice_WE-MCRI (rev22a).zip \| 5.8 KB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 11.5 µH	Inductance 21.5 µH	Turns Ratio1:1	Rated Current12.5 A	Rated Current 212.5 A	Saturation Current 134 A	Saturation Current 234 A	DC Resistance 19.4 mΩ	DC Resistance 29.4 mΩ	Leakage Inductance0.18 µH
7448991015	1.5 µH, 1.5 µH, 1:1	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1040 (rev1).igs \| 1017.1 KB STP Download_STP_WE-MCRI-1040 (rev1).stp \| 288.5 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 11.5 µH	Inductance 21.5 µH	Turns Ratio1:1	Rated Current11.1 A	Rated Current 211.1 A	Saturation Current 128.1 A	Saturation Current 228.1 A	DC Resistance 110 mΩ	DC Resistance 210 mΩ	Leakage Inductance0.17 µH
7448990022	2.2 µH, 2.2 µH, 1:1	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1090 (rev1).igs \| 1016.9 KB STP Download_STP_WE-MCRI-1090 (rev1).stp \| 418.4 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB PSP PSpice_WE-MCRI (rev22a).zip \| 5.8 KB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 12.2 µH	Inductance 22.2 µH	Turns Ratio1:1	Rated Current11.5 A	Rated Current 211.5 A	Saturation Current 129.5 A	Saturation Current 229.5 A	DC Resistance 112.5 mΩ	DC Resistance 212.5 mΩ	Leakage Inductance0.19 µH
7448991022	2.2 µH, 2.2 µH, 1:1	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1040 (rev1).igs \| 1017.1 KB STP Download_STP_WE-MCRI-1040 (rev1).stp \| 288.5 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 12.2 µH	Inductance 22.2 µH	Turns Ratio1:1	Rated Current8.2 A	Rated Current 28.2 A	Saturation Current 120.6 A	Saturation Current 220.6 A	DC Resistance 116.5 mΩ	DC Resistance 216.5 mΩ	Leakage Inductance0.18 µH
7448991027	2.7 µH, 2.7 µH, 1:1	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1040 (rev1).igs \| 1017.1 KB STP Download_STP_WE-MCRI-1040 (rev1).stp \| 288.5 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 12.7 µH	Inductance 22.7 µH	Turns Ratio1:1	Rated Current7.4 A	Rated Current 27.4 A	Saturation Current 116.5 A	Saturation Current 216.5 A	DC Resistance 116.8 mΩ	DC Resistance 216.8 mΩ	Leakage Inductance0.2 µH
7448990033	3.3 µH, 3.3 µH, 1:1	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1090 (rev1).igs \| 1016.9 KB STP Download_STP_WE-MCRI-1090 (rev1).stp \| 418.4 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB PSP PSpice_WE-MCRI (rev22a).zip \| 5.8 KB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 13.3 µH	Inductance 23.3 µH	Turns Ratio1:1	Rated Current7.5 A	Rated Current 27.5 A	Saturation Current 128.2 A	Saturation Current 228.2 A	DC Resistance 126 mΩ	DC Resistance 226 mΩ	Leakage Inductance0.22 µH
7448991033	3.3 µH, 3.3 µH, 1:1	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1040 (rev1).igs \| 1017.1 KB STP Download_STP_WE-MCRI-1040 (rev1).stp \| 288.5 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 13.3 µH	Inductance 23.3 µH	Turns Ratio1:1	Rated Current6.8 A	Rated Current 26.8 A	Saturation Current 114.3 A	Saturation Current 214.3 A	DC Resistance 123.5 mΩ	DC Resistance 223.5 mΩ	Leakage Inductance0.21 µH
7448990047	4.7 µH, 4.7 µH, 1:1	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1090 (rev1).igs \| 1016.9 KB STP Download_STP_WE-MCRI-1090 (rev1).stp \| 418.4 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB PSP PSpice_WE-MCRI (rev22a).zip \| 5.8 KB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 14.7 µH	Inductance 24.7 µH	Turns Ratio1:1	Rated Current5.9 A	Rated Current 25.9 A	Saturation Current 124.2 A	Saturation Current 224.2 A	DC Resistance 140 mΩ	DC Resistance 240 mΩ	Leakage Inductance0.235 µH
7448991047	4.7 µH, 4.7 µH, 1:1	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1040 (rev1).igs \| 1017.1 KB STP Download_STP_WE-MCRI-1040 (rev1).stp \| 288.5 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 14.7 µH	Inductance 24.7 µH	Turns Ratio1:1	Rated Current6.2 A	Rated Current 26.2 A	Saturation Current 113.8 A	Saturation Current 213.8 A	DC Resistance 129 mΩ	DC Resistance 229 mΩ	Leakage Inductance0.225 µH
7448990068	6.8 µH, 6.8 µH, 1:1	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1090 (rev1).igs \| 1016.9 KB STP Download_STP_WE-MCRI-1090 (rev1).stp \| 418.4 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB PSP PSpice_WE-MCRI (rev22a).zip \| 5.8 KB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 16.8 µH	Inductance 26.8 µH	Turns Ratio1:1	Rated Current5 A	Rated Current 25 A	Saturation Current 121.2 A	Saturation Current 221.2 A	DC Resistance 151.5 mΩ	DC Resistance 251.5 mΩ	Leakage Inductance0.245 µH
7448991068	6.8 µH, 6.8 µH, 1:1	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1040 (rev1).igs \| 1017.1 KB STP Download_STP_WE-MCRI-1040 (rev1).stp \| 288.5 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 16.8 µH	Inductance 26.8 µH	Turns Ratio1:1	Rated Current5 A	Rated Current 25 A	Saturation Current 112 A	Saturation Current 212 A	DC Resistance 144 mΩ	DC Resistance 244 mΩ	Leakage Inductance0.24 µH
7448990082	8.2 µH, 8.2 µH, 1:1	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1090 (rev1).igs \| 1016.9 KB STP Download_STP_WE-MCRI-1090 (rev1).stp \| 418.4 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB PSP PSpice_WE-MCRI (rev22a).zip \| 5.8 KB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 18.2 µH	Inductance 28.2 µH	Turns Ratio1:1	Rated Current4.8 A	Rated Current 24.8 A	Saturation Current 118.5 A	Saturation Current 218.5 A	DC Resistance 163 mΩ	DC Resistance 263 mΩ	Leakage Inductance0.26 µH
7448991082	8.2 µH, 8.2 µH, 1:1	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1040 (rev1).igs \| 1017.1 KB STP Download_STP_WE-MCRI-1040 (rev1).stp \| 288.5 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 18.2 µH	Inductance 28.2 µH	Turns Ratio1:1	Rated Current4.7 A	Rated Current 24.7 A	Saturation Current 111.3 A	Saturation Current 211.3 A	DC Resistance 146 mΩ	DC Resistance 246 mΩ	Leakage Inductance0.25 µH
7448990100	10 µH, 10 µH, 1:1	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1090 (rev1).igs \| 1016.9 KB STP Download_STP_WE-MCRI-1090 (rev1).stp \| 418.4 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB PSP PSpice_WE-MCRI (rev22a).zip \| 5.8 KB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 110 µH	Inductance 210 µH	Turns Ratio1:1	Rated Current4.5 A	Rated Current 24.5 A	Saturation Current 117 A	Saturation Current 217 A	DC Resistance 169 mΩ	DC Resistance 269 mΩ	Leakage Inductance0.27 µH
7448991100	10 µH, 10 µH, 1:1	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1040 (rev1).igs \| 1017.1 KB STP Download_STP_WE-MCRI-1040 (rev1).stp \| 288.5 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 110 µH	Inductance 210 µH	Turns Ratio1:1	Rated Current3.7 A	Rated Current 23.7 A	Saturation Current 19.8 A	Saturation Current 29.8 A	DC Resistance 162 mΩ	DC Resistance 262 mΩ	Leakage Inductance0.3 µH
7448990150	15 µH, 15 µH, 1:1	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1090 (rev1).igs \| 1016.9 KB STP Download_STP_WE-MCRI-1090 (rev1).stp \| 418.4 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB PSP PSpice_WE-MCRI (rev22a).zip \| 5.8 KB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 115 µH	Inductance 215 µH	Turns Ratio1:1	Rated Current3.9 A	Rated Current 23.9 A	Saturation Current 19.5 A	Saturation Current 29.5 A	DC Resistance 187 mΩ	DC Resistance 287 mΩ	Leakage Inductance0.3 µH
7448991150	15 µH, 15 µH, 1:1	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1040 (rev1).igs \| 1017.1 KB STP Download_STP_WE-MCRI-1040 (rev1).stp \| 288.5 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 115 µH	Inductance 215 µH	Turns Ratio1:1	Rated Current3.25 A	Rated Current 23.25 A	Saturation Current 17.8 A	Saturation Current 27.8 A	DC Resistance 195 mΩ	DC Resistance 295 mΩ	Leakage Inductance0.32 µH
7448990220	22 µH, 22 µH, 1:1	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1090 (rev1).igs \| 1016.9 KB STP Download_STP_WE-MCRI-1090 (rev1).stp \| 418.4 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB PSP PSpice_WE-MCRI (rev22a).zip \| 5.8 KB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 122 µH	Inductance 222 µH	Turns Ratio1:1	Rated Current3.4 A	Rated Current 23.4 A	Saturation Current 18.1 A	Saturation Current 28.1 A	DC Resistance 1106 mΩ	DC Resistance 2106 mΩ	Leakage Inductance0.335 µH
7448991220	22 µH, 22 µH, 1:1	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1040 (rev1).igs \| 1017.1 KB STP Download_STP_WE-MCRI-1040 (rev1).stp \| 288.5 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 122 µH	Inductance 222 µH	Turns Ratio1:1	Rated Current2.2 A	Rated Current 22.2 A	Saturation Current 16.1 A	Saturation Current 26.1 A	DC Resistance 1160 mΩ	DC Resistance 2160 mΩ	Leakage Inductance0.33 µH
7448990330	33 µH, 33 µH, 1:1	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1090 (rev1).igs \| 1016.9 KB STP Download_STP_WE-MCRI-1090 (rev1).stp \| 418.4 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB PSP PSpice_WE-MCRI (rev22a).zip \| 5.8 KB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 133 µH	Inductance 233 µH	Turns Ratio1:1	Rated Current2.9 A	Rated Current 22.9 A	Saturation Current 16.8 A	Saturation Current 26.8 A	DC Resistance 1145 mΩ	DC Resistance 2145 mΩ	Leakage Inductance0.35 µH
7448991330	33 µH, 33 µH, 1:1	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1040 (rev1).igs \| 1017.1 KB STP Download_STP_WE-MCRI-1040 (rev1).stp \| 288.5 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 133 µH	Inductance 233 µH	Turns Ratio1:1	Rated Current2.05 A	Rated Current 22.05 A	Saturation Current 15 A	Saturation Current 25 A	DC Resistance 1230 mΩ	DC Resistance 2230 mΩ	Leakage Inductance0.34 µH
7448990470	47 µH, 47 µH, 1:1	Simulation	Downloads10 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1090 (rev1).igs \| 1016.9 KB STP Download_STP_WE-MCRI-1090 (rev1).stp \| 418.4 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB PSP PSpice_WE-MCRI (rev22a).zip \| 5.8 KB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 10 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 147 µH	Inductance 247 µH	Turns Ratio1:1	Rated Current2.3 A	Rated Current 22.3 A	Saturation Current 16 A	Saturation Current 26 A	DC Resistance 1240 mΩ	DC Resistance 2240 mΩ	Leakage Inductance0.37 µH
7448991470	47 µH, 47 µH, 1:1	Simulation	Downloads9 files EDA models: Components ZIP ALT Altium_WE-MCRI (rev24a).IntLib \| 155.5 KB CDS Cadence_WE-MCRI (rev22a).zip \| 429.5 KB EAG Eagle_WE-MCRI (rev19a).lbr \| 40.8 KB KIC KiCad_WE-MCRI (rev25b).zip \| 166.1 KB ZUK Download_Cadstar_WE-MCRI (rev19a).zip \| 10.4 KB CAD files ZIP IGS Download_IGS_WE-MCRI-1040 (rev1).igs \| 1017.1 KB STP Download_STP_WE-MCRI-1040 (rev1).stp \| 288.5 KB Electric models ZIP ADS ADS_WE-MCRI (rev24a).zip \| 7.9 MB S S-Parameter_WE-MCRI (rev21a).zip \| 3 MB Download all 9 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Inductance 147 µH	Inductance 247 µH	Turns Ratio1:1	Rated Current1.5 A	Rated Current 21.5 A	Saturation Current 14.4 A	Saturation Current 24.4 A	DC Resistance 1340 mΩ	DC Resistance 2340 mΩ	Leakage Inductance0.35 µH

An Excellent Duet!

Coupled Inductors

The WE-MCRI is an innovative molded coupled inductor with fully automated bifilar winding process. It offers an almost ideal coupling coefficient up to 0.995. The WE-MCRI features a soft saturation behavior with its crystalline core structure and distributed air gap.

The coupled inductor range includes high voltage isolation versions up to 2 kV, low profile types and versions with various turns ratios.

alttext yt_img_for_code_MVDAugIsUJ0.jpg 1733995093

The innovative design in detail

Der verteilte Luftspalt innerhalb der kristallinen Kernstruktur

The distributed air gap within the crystalline structure

High coupling coefficient

Soft saturation

Overview of typical applications

Multi Output Buck

Isolation: Isolated/Non-isolated
Multiple Output: Yes
Output: Non-inverted
Complexity: Low
Cost: Low
Product Series Recommendation: WE-DPC HV, WE-TDC HV, WE-MTCI

Flyback

Isolation: Isolated/Non-isolated
Multiple Output: Yes
Output: Non-inverted
Complexity: Low
Cost: Low
Product Series Recommendation: WE-TDC HV, WE-MTCI

SEPIC

Isolation: Isolated/Non-isolated
Multiple Output: Yes
Output: Non-inverted
Complexity: Low
Cost: Low
Product Series Recommendation: WE-DD, WE-CFWI, WE-MTCI, WE-MCRI

ZETA

Isolation: Isolated/Non-isolated
Multiple Output: Yes
Output: Non-inverted
Complexity: Low
Cost: Low
Product Series Recommendation: WE-DPC, WE-CFWI, WE-DCT

Cuk

Isolation: Isolated/Non-isolated
Multiple Output: Yes
Output: Non-inverted
Complexity: Low
Cost: Low
Product Series Recommendation: WE-CFWI, WE-DD, WE-MCRI

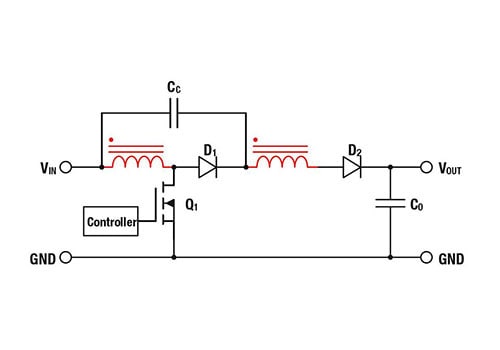

High Step-up Boost

Isolation: Nicht isoliert

Mehrere Ausgänge: Nein

Ausgang: Non-inverted

Komplexität: Moderat

Kosten: Niedrig

Empfohlene Produktserien: WE-EHPI, WE-MTCI

Simulate now in REDEXPERT

The online platform for easier component selection

Simulate now in REDEXPERT

The online platform for easier component selection

Important features:

The world’s most accurate AC loss model Inductor simulation and selection for DC/DC converters
Ability to compare inductance/current and temperature rise/DC current using interactive measurement curves
Filter settings for over 20 electrical and mechanical parameters
Online platform based on measured values
Order free samples directly
Direct access to product datasheets

Visit REDEXPERT

Demo Board

Dual-Output Isolated Buck Converter

Demo Board

Dual-Output Isolated Buck Converter

With the High Voltage Coupled Inductor WE-CPIB HV, an additional isolated output in a buck converter can be achieved, with minimal solution size and design effort.

Demo Module Features:

USB powered
Single and Dual-output buck operation
Output LED indicator

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT loss simulation

Find the best inductor!

REDEXPERT has the world’s most accurate AC loss model, which even includes the DC-bias current. With dedicated DC-DC topologies or the generic loss simulator, you can accurately determine the AC and DC losses for your converter. The model includes the core material, shape and winding structure of the inductor. REDEXPERT recommends suitable inductors and allows you to add more filters to find the best inductor for your application.

Learn more

Schematic representations of the REDEXPERT loss simulator
