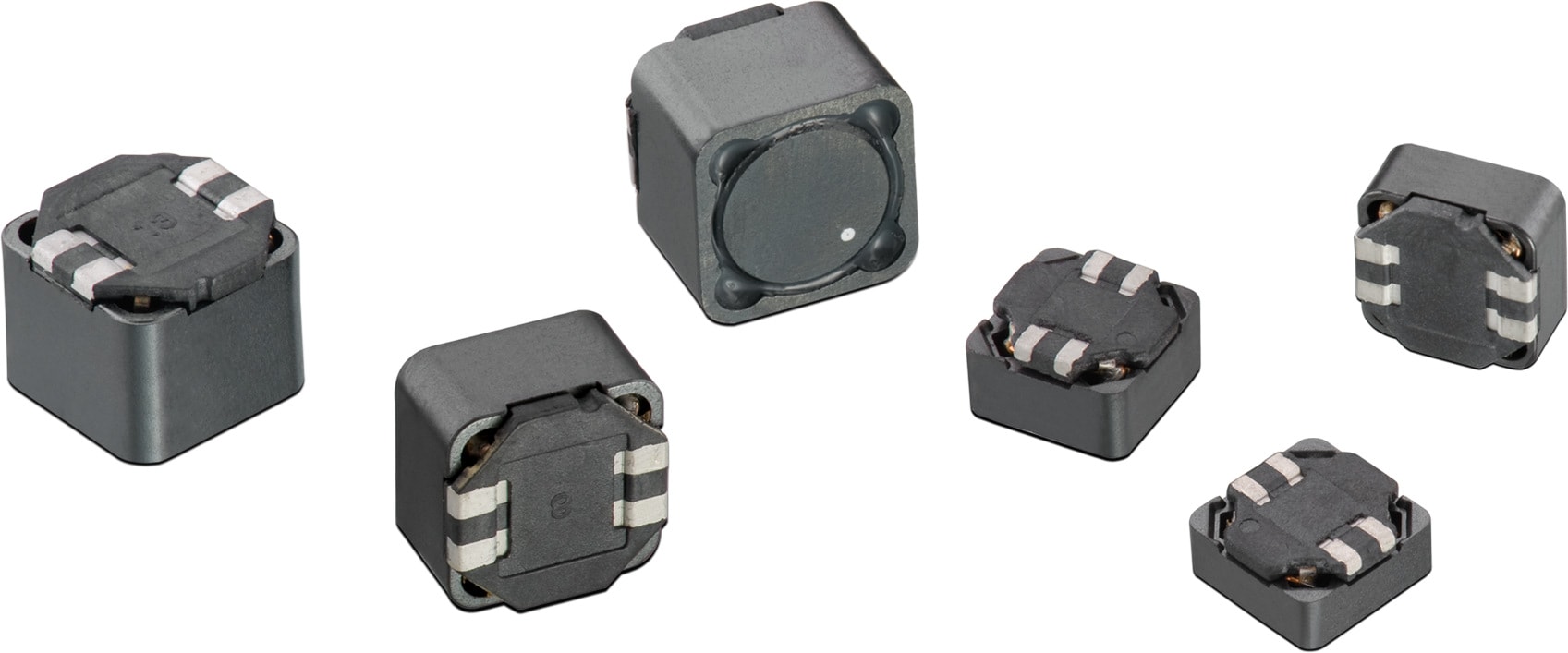

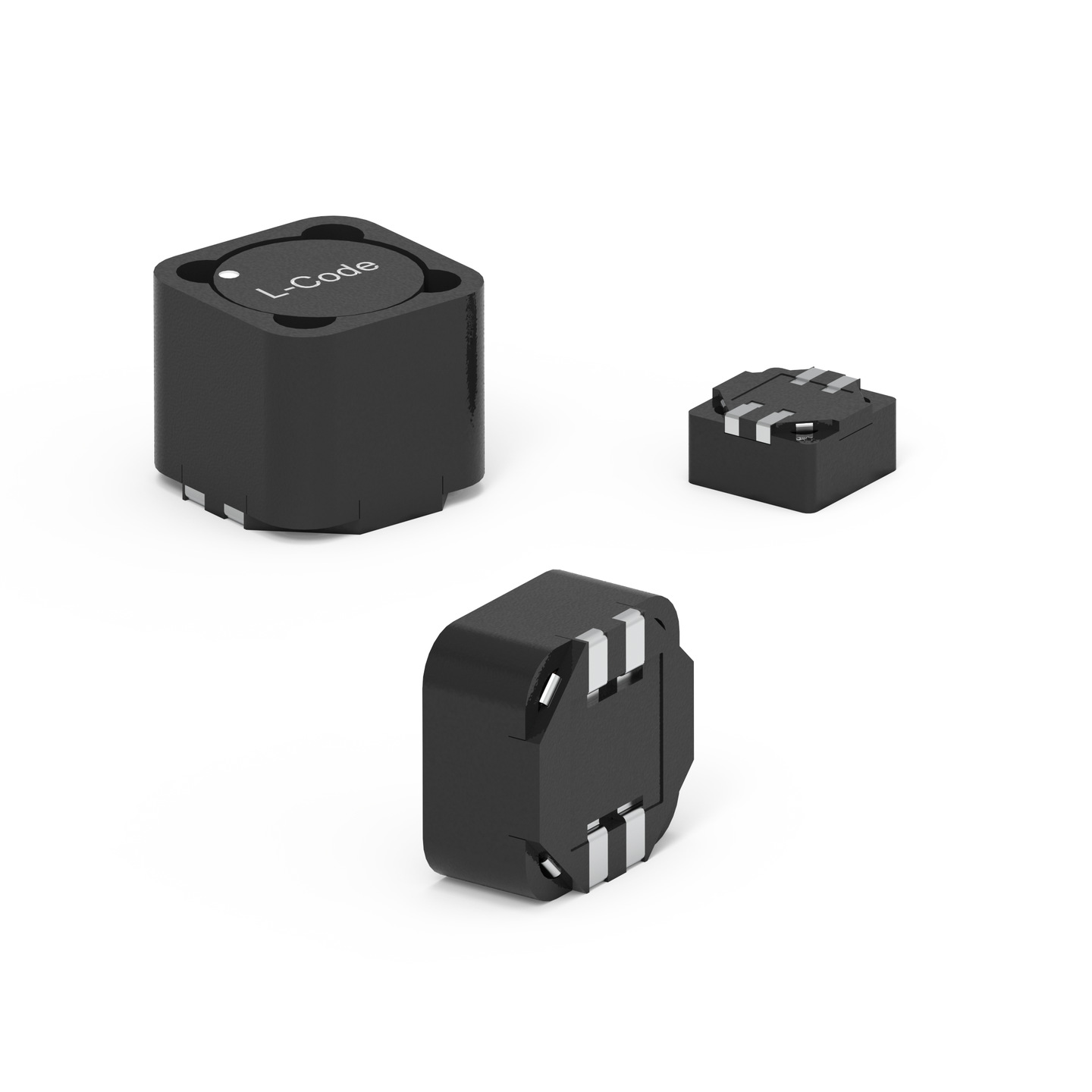

WE-DD SMT Shielded Coupled Inductor | Passive Components

Size	L (mm)	W (mm)	H (mm)
7332 straight	7.3	7.3	4
7345 straight	7.3	7.3	4.8
1260 straight	12.5	12.5	6.5
1280 straight	12.5	12.5	8.5
1260 crossed	12.5	12.5	6.5
1280 crossed	12.5	12.5	8.5
1210 crossed	12.5	12.5	10.5
7345 crossed	7.3	7.3	4.8
7355 crossed	7.3	7.3	5.8

LTSpice files

LT

LTSpice_WE-DD (rev22a).zip

|

7 KB

Characteristics

1:1 transformer
Double inductor with two identical windings
5 different sizes available
Operating temperature: –40 ºC to +125 ºC
Recommended solder profile: Reflow
Custom designs on request

Applications

For SEPIC and CUK topologies
Flyback applications
Switching regulators with second, unregulated output voltage

Application Notes

An Excellent Duet!

The WE-MCRI is an innovative molded coupled inductor with fully automated bifilar winding process. It offers an almost ideal coupling coefficient up to 0.995.

Product video and more

Products

All

7332 straight

7345 straight

1260 straight

1280 straight

1260 crossed

1280 crossed

1210 crossed

7345 crossed

7355 crossed

Reset all

Filter article data

show article in 9 product lines

article in 9 product lines

Reset all

Order Code	Datasheet	Simulation	Downloads	Status	L₁ (µH)	L₂ (µH)	I_R (A)	I_{R 2} (A)	I_SAT (A)	R_{DC1 typ} (Ω)	R_{DC2 typ} (Ω)	R_{DC1 max} (Ω)	R_{DC2 max} (Ω)	f_res (MHz)	Type	Design Kit
744878001		Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_7332_Straight (rev1).igs \| 2.6 MB STP WE-DD_7332_Straight (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 1.3 µH	Inductance 2 1.3 µH	Rated Current 4.4 A	Rated Current 2 4.4 A	Saturation Current 6.3 A	DC Resistance 1 0.027 Ω	DC Resistance 2 0.027 Ω	DC Resistance 1 0.035 Ω	DC Resistance 2 0.035 Ω	Self Resonant Frequency 60 MHz	Type Straight	Design Kit 744870
744874001	1.5 µH, 1.5 µH, 5.85 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1260 (rev1).igs \| 1.7 MB STP Download_STP_WE-DD_1260 (rev1).stp \| 1.7 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 1.5 µH	Inductance 2 1.5 µH	Rated Current 5.85 A	Rated Current 2 5.85 A	Saturation Current 14 A	DC Resistance 1 0.012 Ω	DC Resistance 2 0.012 Ω	DC Resistance 1 0.016 Ω	DC Resistance 2 0.016 Ω	Self Resonant Frequency 70 MHz	Type Straight	Design Kit –
744873001	1.5 µH, 1.5 µH, 6.25 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 1.5 µH	Inductance 2 1.5 µH	Rated Current 6.25 A	Rated Current 2 6.25 A	Saturation Current 18 A	DC Resistance 1 0.011 Ω	DC Resistance 2 0.011 Ω	DC Resistance 1 0.015 Ω	DC Resistance 2 0.015 Ω	Self Resonant Frequency 75 MHz	Type Straight	Design Kit –
7448700015	1.5 µH, 1.5 µH, 8.6 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 1.5 µH	Inductance 2 1.5 µH	Rated Current 8.6 A	Rated Current 2 8.6 A	Saturation Current 17.5 A	DC Resistance 1 0.012 Ω	DC Resistance 2 0.012 Ω	DC Resistance 1 0.016 Ω	DC Resistance 2 0.016 Ω	Self Resonant Frequency 60 MHz	Type Crossed	Design Kit –
744877001		Simulation	Downloads 10 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP 3D 744877xxx_3D (rev1).pdf \| 1.9 MB IGS 744877xxx (rev1).igs \| 2.5 MB STP 744877xxx (rev1).stp \| 825.5 KB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 10 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 1.8 µH	Inductance 2 1.8 µH	Rated Current 4.7 A	Rated Current 2 4.7 A	Saturation Current 6.5 A	DC Resistance 1 0.025 Ω	DC Resistance 2 0.025 Ω	DC Resistance 1 0.034 Ω	DC Resistance 2 0.034 Ω	Self Resonant Frequency 58 MHz	Type Straight	Design Kit 744870
7448709022	2.2 µH, 2.2 µH, 4.1 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_1210_Crossed (rev1).igs \| 3.4 MB STP WE-DD_1210_Crossed (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 2.2 µH	Inductance 2 2.2 µH	Rated Current 4.1 A	Rated Current 2 4.1 A	Saturation Current 19 A	DC Resistance 1 0.015 Ω	DC Resistance 2 0.015 Ω	DC Resistance 1 0.017 Ω	DC Resistance 2 0.017 Ω	Self Resonant Frequency 45 MHz	Type Crossed	Design Kit –
744878002		Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_7332_Straight (rev1).igs \| 2.6 MB STP WE-DD_7332_Straight (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 2.4 µH	Inductance 2 2.4 µH	Rated Current 3.6 A	Rated Current 2 3.6 A	Saturation Current 4.8 A	DC Resistance 1 0.042 Ω	DC Resistance 2 0.042 Ω	DC Resistance 1 0.052 Ω	DC Resistance 2 0.052 Ω	Self Resonant Frequency 53 MHz	Type Straight	Design Kit 744870
744877002		Simulation	Downloads 10 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP 3D 744877xxx_3D (rev1).pdf \| 1.9 MB IGS 744877xxx (rev1).igs \| 2.5 MB STP 744877xxx (rev1).stp \| 825.5 KB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 10 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 2.4 µH	Inductance 2 2.4 µH	Rated Current 4.2 A	Rated Current 2 4.2 A	Saturation Current 5.6 A	DC Resistance 1 0.031 Ω	DC Resistance 2 0.031 Ω	DC Resistance 1 0.042 Ω	DC Resistance 2 0.042 Ω	Self Resonant Frequency 50 MHz	Type Straight	Design Kit 744870
744874002	2.4 µH, 2.4 µH, 5.5 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1260 (rev1).igs \| 1.7 MB STP Download_STP_WE-DD_1260 (rev1).stp \| 1.7 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 2.4 µH	Inductance 2 2.4 µH	Rated Current 5.5 A	Rated Current 2 5.5 A	Saturation Current 11.5 A	DC Resistance 1 0.013 Ω	DC Resistance 2 0.013 Ω	DC Resistance 1 0.017 Ω	DC Resistance 2 0.017 Ω	Self Resonant Frequency 54 MHz	Type Straight	Design Kit –
744873002	2.4 µH, 2.4 µH, 6 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 2.4 µH	Inductance 2 2.4 µH	Rated Current 6 A	Rated Current 2 6 A	Saturation Current 14 A	DC Resistance 1 0.012 Ω	DC Resistance 2 0.012 Ω	DC Resistance 1 0.016 Ω	DC Resistance 2 0.016 Ω	Self Resonant Frequency 54 MHz	Type Straight	Design Kit –
744870002	2.4 µH, 2.4 µH, 7.8 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 2.4 µH	Inductance 2 2.4 µH	Rated Current 7.8 A	Rated Current 2 7.8 A	Saturation Current 15 A	DC Resistance 1 0.014 Ω	DC Resistance 2 0.014 Ω	DC Resistance 1 0.018 Ω	DC Resistance 2 0.018 Ω	Self Resonant Frequency 40 MHz	Type Crossed	Design Kit –
744878003		Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_7332_Straight (rev1).igs \| 2.6 MB STP WE-DD_7332_Straight (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 3.3 µH	Inductance 2 3.3 µH	Rated Current 3.3 A	Rated Current 2 3.3 A	Saturation Current 4 A	DC Resistance 1 0.052 Ω	DC Resistance 2 0.052 Ω	DC Resistance 1 0.064 Ω	DC Resistance 2 0.064 Ω	Self Resonant Frequency 49 MHz	Type Straight	Design Kit –
744877003		Simulation	Downloads 11 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP 3D 744877xxx_3D (rev1).pdf \| 1.9 MB IGS 744877xxx (rev1).igs \| 2.5 MB IGS WE-DD_7345_Straight (rev1).igs \| 2.9 MB STP 744877xxx (rev1).stp \| 825.5 KB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 11 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 3.3 µH	Inductance 2 3.3 µH	Rated Current 3.7 A	Rated Current 2 3.7 A	Saturation Current 5 A	DC Resistance 1 0.04 Ω	DC Resistance 2 0.04 Ω	DC Resistance 1 0.052 Ω	DC Resistance 2 0.052 Ω	Self Resonant Frequency 46 MHz	Type Straight	Design Kit 744870
744874003	3.3 µH, 3.3 µH, 4.91 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1260 (rev1).igs \| 1.7 MB STP Download_STP_WE-DD_1260 (rev1).stp \| 1.7 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 3.3 µH	Inductance 2 3.3 µH	Rated Current 4.91 A	Rated Current 2 4.91 A	Saturation Current 8.9 A	DC Resistance 1 0.017 Ω	DC Resistance 2 0.017 Ω	DC Resistance 1 0.021 Ω	DC Resistance 2 0.021 Ω	Self Resonant Frequency 45 MHz	Type Straight	Design Kit –
744873003	3.3 µH, 3.3 µH, 5.14 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 3.3 µH	Inductance 2 3.3 µH	Rated Current 5.14 A	Rated Current 2 5.14 A	Saturation Current 11 A	DC Resistance 1 0.017 Ω	DC Resistance 2 0.017 Ω	DC Resistance 1 0.022 Ω	DC Resistance 2 0.022 Ω	Self Resonant Frequency 41 MHz	Type Straight	Design Kit –
744870003	3.3 µH, 3.3 µH, 7.1 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 3.3 µH	Inductance 2 3.3 µH	Rated Current 7.1 A	Rated Current 2 7.1 A	Saturation Current 12 A	DC Resistance 1 0.016 Ω	DC Resistance 2 0.016 Ω	DC Resistance 1 0.021 Ω	DC Resistance 2 0.021 Ω	Self Resonant Frequency 30 MHz	Type Crossed	Design Kit –
7448709033	3.3 µH, 3.3 µH, 3.7 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_1210_Crossed (rev1).igs \| 3.4 MB STP WE-DD_1210_Crossed (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 3.3 µH	Inductance 2 3.3 µH	Rated Current 3.7 A	Rated Current 2 3.7 A	Saturation Current 15.5 A	DC Resistance 1 0.017 Ω	DC Resistance 2 0.017 Ω	DC Resistance 1 0.02 Ω	DC Resistance 2 0.02 Ω	Self Resonant Frequency 35 MHz	Type Crossed	Design Kit –
744878004		Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_7332_Straight (rev1).igs \| 2.6 MB STP WE-DD_7332_Straight (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 4.7 µH	Inductance 2 4.7 µH	Rated Current 1.3 A	Rated Current 2 1.3 A	Saturation Current 3 A	DC Resistance 1 0.065 Ω	DC Resistance 2 0.065 Ω	DC Resistance 1 0.075 Ω	DC Resistance 2 0.075 Ω	Self Resonant Frequency 46 MHz	Type Straight	Design Kit 744870
744877004		Simulation	Downloads 10 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP 3D 744877xxx_3D (rev1).pdf \| 1.9 MB IGS 744877xxx (rev1).igs \| 2.5 MB STP 744877xxx (rev1).stp \| 825.5 KB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 10 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 4.7 µH	Inductance 2 4.7 µH	Rated Current 2.55 A	Rated Current 2 2.55 A	Saturation Current 4 A	DC Resistance 1 0.052 Ω	DC Resistance 2 0.052 Ω	DC Resistance 1 0.064 Ω	DC Resistance 2 0.064 Ω	Self Resonant Frequency 42 MHz	Type Straight	Design Kit 744870
744874004	4.7 µH, 4.7 µH, 4.22 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1260 (rev1).igs \| 1.7 MB STP Download_STP_WE-DD_1260 (rev1).stp \| 1.7 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 4.7 µH	Inductance 2 4.7 µH	Rated Current 4.22 A	Rated Current 2 4.22 A	Saturation Current 8 A	DC Resistance 1 0.023 Ω	DC Resistance 2 0.023 Ω	DC Resistance 1 0.028 Ω	DC Resistance 2 0.028 Ω	Self Resonant Frequency 39 MHz	Type Straight	Design Kit 744870
744871004	4.7 µH, 4.7 µH, 3 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1260 (rev1).igs \| 1.7 MB STP Download_STP_WE-DD_1260 (rev1).stp \| 1.7 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 4.7 µH	Inductance 2 4.7 µH	Rated Current 3 A	Rated Current 2 3 A	Saturation Current 8 A	DC Resistance 1 0.023 Ω	DC Resistance 2 0.023 Ω	DC Resistance 1 0.028 Ω	DC Resistance 2 0.028 Ω	Self Resonant Frequency 20 MHz	Type Crossed	Design Kit 744870
744873004	4.7 µH, 4.7 µH, 4.87 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 4.7 µH	Inductance 2 4.7 µH	Rated Current 4.87 A	Rated Current 2 4.87 A	Saturation Current 10 A	DC Resistance 1 0.019 Ω	DC Resistance 2 0.019 Ω	DC Resistance 1 0.024 Ω	DC Resistance 2 0.024 Ω	Self Resonant Frequency 32 MHz	Type Straight	Design Kit 744870
744870004	4.7 µH, 4.7 µH, 3.6 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 4.7 µH	Inductance 2 4.7 µH	Rated Current 3.6 A	Rated Current 2 3.6 A	Saturation Current 10 A	DC Resistance 1 0.025 Ω	DC Resistance 2 0.025 Ω	DC Resistance 1 0.03 Ω	DC Resistance 2 0.03 Ω	Self Resonant Frequency 34 MHz	Type Crossed	Design Kit 744870
7448709047	4.7 µH, 4.7 µH, 3.6 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_1210_Crossed (rev1).igs \| 3.4 MB STP WE-DD_1210_Crossed (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 4.7 µH	Inductance 2 4.7 µH	Rated Current 3.6 A	Rated Current 2 3.6 A	Saturation Current 13 A	DC Resistance 1 0.019 Ω	DC Resistance 2 0.019 Ω	DC Resistance 1 0.023 Ω	DC Resistance 2 0.023 Ω	Self Resonant Frequency 30 MHz	Type Crossed	Design Kit –
744878005		Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_7332_Straight (rev1).igs \| 2.6 MB STP WE-DD_7332_Straight (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 5.6 µH	Inductance 2 5.6 µH	Rated Current 1.5 A	Rated Current 2 1.5 A	Saturation Current 3 A	DC Resistance 1 0.095 Ω	DC Resistance 2 0.095 Ω	DC Resistance 1 0.12 Ω	DC Resistance 2 0.12 Ω	Self Resonant Frequency 26 MHz	Type Straight	Design Kit –
744877005		Simulation	Downloads 10 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP 3D 744877xxx_3D (rev1).pdf \| 1.9 MB IGS 744877xxx (rev1).igs \| 2.5 MB STP 744877xxx (rev1).stp \| 825.5 KB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 10 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 5.6 µH	Inductance 2 5.6 µH	Rated Current 1.9 A	Rated Current 2 1.9 A	Saturation Current 3.5 A	DC Resistance 1 0.08 Ω	DC Resistance 2 0.08 Ω	DC Resistance 1 0.095 Ω	DC Resistance 2 0.095 Ω	Self Resonant Frequency 23 MHz	Type Straight	Design Kit –
744878006		Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_7332_Straight (rev1).igs \| 2.6 MB STP WE-DD_7332_Straight (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 6.8 µH	Inductance 2 6.8 µH	Rated Current 1.4 A	Rated Current 2 1.4 A	Saturation Current 2.8 A	DC Resistance 1 0.11 Ω	DC Resistance 2 0.11 Ω	DC Resistance 1 0.135 Ω	DC Resistance 2 0.135 Ω	Self Resonant Frequency 25 MHz	Type Straight	Design Kit –
744877006		Simulation	Downloads 10 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP 3D 744877xxx_3D (rev1).pdf \| 1.9 MB IGS 744877xxx (rev1).igs \| 2.5 MB STP 744877xxx (rev1).stp \| 825.5 KB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 10 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 6.8 µH	Inductance 2 6.8 µH	Rated Current 1.8 A	Rated Current 2 1.8 A	Saturation Current 3.2 A	DC Resistance 1 0.085 Ω	DC Resistance 2 0.085 Ω	DC Resistance 1 0.102 Ω	DC Resistance 2 0.102 Ω	Self Resonant Frequency 20 MHz	Type Straight	Design Kit –
744874006	6.8 µH, 6.8 µH, 3.9 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1260 (rev1).igs \| 1.7 MB STP Download_STP_WE-DD_1260 (rev1).stp \| 1.7 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 6.8 µH	Inductance 2 6.8 µH	Rated Current 3.9 A	Rated Current 2 3.9 A	Saturation Current 6.8 A	DC Resistance 1 0.027 Ω	DC Resistance 2 0.027 Ω	DC Resistance 1 0.032 Ω	DC Resistance 2 0.032 Ω	Self Resonant Frequency 33 MHz	Type Straight	Design Kit –
744871006	6.8 µH, 6.8 µH, 2.8 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1260 (rev1).igs \| 1.7 MB STP Download_STP_WE-DD_1260 (rev1).stp \| 1.7 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 6.8 µH	Inductance 2 6.8 µH	Rated Current 2.8 A	Rated Current 2 2.8 A	Saturation Current 6.5 A	DC Resistance 1 0.035 Ω	DC Resistance 2 0.035 Ω	DC Resistance 1 0.04 Ω	DC Resistance 2 0.04 Ω	Self Resonant Frequency 20 MHz	Type Crossed	Design Kit –
744870006	6.8 µH, 6.8 µH, 3.2 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 6.8 µH	Inductance 2 6.8 µH	Rated Current 3.2 A	Rated Current 2 3.2 A	Saturation Current 8 A	DC Resistance 1 0.027 Ω	DC Resistance 2 0.027 Ω	DC Resistance 1 0.035 Ω	DC Resistance 2 0.035 Ω	Self Resonant Frequency 18 MHz	Type Crossed	Design Kit –
7448709068	6.8 µH, 6.8 µH, 3.3 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_1210_Crossed (rev1).igs \| 3.4 MB STP WE-DD_1210_Crossed (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 6.8 µH	Inductance 2 6.8 µH	Rated Current 3.3 A	Rated Current 2 3.3 A	Saturation Current 11.5 A	DC Resistance 1 0.026 Ω	DC Resistance 2 0.026 Ω	DC Resistance 1 0.031 Ω	DC Resistance 2 0.031 Ω	Self Resonant Frequency 23 MHz	Type Crossed	Design Kit –
744878008		Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_7332_Straight (rev1).igs \| 2.6 MB STP WE-DD_7332_Straight (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 8.2 µH	Inductance 2 8.2 µH	Rated Current 1.3 A	Rated Current 2 1.3 A	Saturation Current 2.7 A	DC Resistance 1 0.115 Ω	DC Resistance 2 0.115 Ω	DC Resistance 1 0.14 Ω	DC Resistance 2 0.14 Ω	Self Resonant Frequency 22 MHz	Type Straight	Design Kit –
744877008		Simulation	Downloads 10 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP 3D 744877xxx_3D (rev1).pdf \| 1.9 MB IGS 744877xxx (rev1).igs \| 2.5 MB STP 744877xxx (rev1).stp \| 825.5 KB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 10 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 8.2 µH	Inductance 2 8.2 µH	Rated Current 1.7 A	Rated Current 2 1.7 A	Saturation Current 2.9 A	DC Resistance 1 0.091 Ω	DC Resistance 2 0.091 Ω	DC Resistance 1 0.11 Ω	DC Resistance 2 0.11 Ω	Self Resonant Frequency 17 MHz	Type Straight	Design Kit –
744878100		Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_7332_Straight (rev1).igs \| 2.6 MB STP WE-DD_7332_Straight (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 10 µH	Inductance 2 10 µH	Rated Current 1 A	Rated Current 2 1 A	Saturation Current 2 A	DC Resistance 1 0.125 Ω	DC Resistance 2 0.125 Ω	DC Resistance 1 0.15 Ω	DC Resistance 2 0.15 Ω	Self Resonant Frequency 30 MHz	Type Straight	Design Kit 744870
744877100		Simulation	Downloads 10 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP 3D 744877xxx_3D (rev1).pdf \| 1.9 MB IGS 744877xxx (rev1).igs \| 2.5 MB STP 744877xxx (rev1).stp \| 825.5 KB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 10 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 10 µH	Inductance 2 10 µH	Rated Current 1.1 A	Rated Current 2 1.1 A	Saturation Current 2.8 A	DC Resistance 1 0.11 Ω	DC Resistance 2 0.11 Ω	DC Resistance 1 0.12 Ω	DC Resistance 2 0.12 Ω	Self Resonant Frequency 27 MHz	Type Straight	Design Kit 744870
744874100	10 µH, 10 µH, 3.28 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1260 (rev1).igs \| 1.7 MB STP Download_STP_WE-DD_1260 (rev1).stp \| 1.7 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 10 µH	Inductance 2 10 µH	Rated Current 3.28 A	Rated Current 2 3.28 A	Saturation Current 5.25 A	DC Resistance 1 0.038 Ω	DC Resistance 2 0.038 Ω	DC Resistance 1 0.044 Ω	DC Resistance 2 0.044 Ω	Self Resonant Frequency 24 MHz	Type Straight	Design Kit 744870
744871100	10 µH, 10 µH, 2 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1260 (rev1).igs \| 1.7 MB STP Download_STP_WE-DD_1260 (rev1).stp \| 1.7 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 10 µH	Inductance 2 10 µH	Rated Current 2 A	Rated Current 2 2 A	Saturation Current 5 A	DC Resistance 1 0.044 Ω	DC Resistance 2 0.044 Ω	DC Resistance 1 0.05 Ω	DC Resistance 2 0.05 Ω	Self Resonant Frequency 20 MHz	Type Crossed	Design Kit 744870
744873100	10 µH, 10 µH, 4.2 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 10 µH	Inductance 2 10 µH	Rated Current 4.2 A	Rated Current 2 4.2 A	Saturation Current 7.5 A	DC Resistance 1 0.031 Ω	DC Resistance 2 0.031 Ω	DC Resistance 1 0.042 Ω	DC Resistance 2 0.042 Ω	Self Resonant Frequency 20 MHz	Type Straight	Design Kit 744870
744870100	10 µH, 10 µH, 2.7 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 10 µH	Inductance 2 10 µH	Rated Current 2.7 A	Rated Current 2 2.7 A	Saturation Current 7 A	DC Resistance 1 0.038 Ω	DC Resistance 2 0.038 Ω	DC Resistance 1 0.044 Ω	DC Resistance 2 0.044 Ω	Self Resonant Frequency 18 MHz	Type Crossed	Design Kit 744870
7448709100	10 µH, 10 µH, 3.2 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_1210_Crossed (rev1).igs \| 3.4 MB STP WE-DD_1210_Crossed (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 10 µH	Inductance 2 10 µH	Rated Current 3.2 A	Rated Current 2 3.2 A	Saturation Current 8 A	DC Resistance 1 0.033 Ω	DC Resistance 2 0.033 Ω	DC Resistance 1 0.04 Ω	DC Resistance 2 0.04 Ω	Self Resonant Frequency 20 MHz	Type Crossed	Design Kit 744870
744873150	15 µH, 15 µH, 3.3 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 15 µH	Inductance 2 15 µH	Rated Current 3.3 A	Rated Current 2 3.3 A	Saturation Current 6.1 A	DC Resistance 1 0.041 Ω	DC Resistance 2 0.041 Ω	DC Resistance 1 0.055 Ω	DC Resistance 2 0.055 Ω	Self Resonant Frequency 14 MHz	Type Straight	Design Kit –
744878220		Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_7332_Straight (rev1).igs \| 2.6 MB STP WE-DD_7332_Straight (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 22 µH	Inductance 2 22 µH	Rated Current 0.7 A	Rated Current 2 0.7 A	Saturation Current 1.5 A	DC Resistance 1 0.245 Ω	DC Resistance 2 0.245 Ω	DC Resistance 1 0.3 Ω	DC Resistance 2 0.3 Ω	Self Resonant Frequency 20 MHz	Type Straight	Design Kit –
744877220		Simulation	Downloads 10 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP 3D 744877xxx_3D (rev1).pdf \| 1.9 MB IGS 744877xxx (rev1).igs \| 2.5 MB STP 744877xxx (rev1).stp \| 825.5 KB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 10 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 22 µH	Inductance 2 22 µH	Rated Current 0.8 A	Rated Current 2 0.8 A	Saturation Current 1.8 A	DC Resistance 1 0.215 Ω	DC Resistance 2 0.215 Ω	DC Resistance 1 0.26 Ω	DC Resistance 2 0.26 Ω	Self Resonant Frequency 16 MHz	Type Straight	Design Kit 744870
744874220	22 µH, 22 µH, 2.47 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1260 (rev1).igs \| 1.7 MB STP Download_STP_WE-DD_1260 (rev1).stp \| 1.7 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 22 µH	Inductance 2 22 µH	Rated Current 2.47 A	Rated Current 2 2.47 A	Saturation Current 3.3 A	DC Resistance 1 0.067 Ω	DC Resistance 2 0.067 Ω	DC Resistance 1 0.08 Ω	DC Resistance 2 0.08 Ω	Self Resonant Frequency 15.5 MHz	Type Straight	Design Kit 744870
744871220	22 µH, 22 µH, 1.85 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1260 (rev1).igs \| 1.7 MB STP Download_STP_WE-DD_1260 (rev1).stp \| 1.7 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 22 µH	Inductance 2 22 µH	Rated Current 1.85 A	Rated Current 2 1.85 A	Saturation Current 3 A	DC Resistance 1 0.067 Ω	DC Resistance 2 0.067 Ω	DC Resistance 1 0.09 Ω	DC Resistance 2 0.09 Ω	Self Resonant Frequency 14 MHz	Type Crossed	Design Kit 744870
744873220	22 µH, 22 µH, 2.79 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 22 µH	Inductance 2 22 µH	Rated Current 2.79 A	Rated Current 2 2.79 A	Saturation Current 5 A	DC Resistance 1 0.058 Ω	DC Resistance 2 0.058 Ω	DC Resistance 1 0.07 Ω	DC Resistance 2 0.07 Ω	Self Resonant Frequency 11.5 MHz	Type Straight	Design Kit 744870
744870220	22 µH, 22 µH, 2.45 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 22 µH	Inductance 2 22 µH	Rated Current 2.45 A	Rated Current 2 2.45 A	Saturation Current 5.2 A	DC Resistance 1 0.062 Ω	DC Resistance 2 0.062 Ω	DC Resistance 1 0.08 Ω	DC Resistance 2 0.08 Ω	Self Resonant Frequency 10 MHz	Type Crossed	Design Kit 744870
7448709220	22 µH, 22 µH, 3.5 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_1210_Crossed (rev1).igs \| 3.4 MB STP WE-DD_1210_Crossed (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 22 µH	Inductance 2 22 µH	Rated Current 3.5 A	Rated Current 2 3.5 A	Saturation Current 5 A	DC Resistance 1 0.064 Ω	DC Resistance 2 0.064 Ω	DC Resistance 1 0.08 Ω	DC Resistance 2 0.08 Ω	Self Resonant Frequency 10 MHz	Type Crossed	Design Kit 744870
744877330		Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS 744877xxx (rev1).igs \| 2.5 MB STP 744877xxx (rev1).stp \| 825.5 KB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 33 µH	Inductance 2 33 µH	Rated Current 0.7 A	Rated Current 2 0.7 A	Saturation Current 1.5 A	DC Resistance 1 0.4 Ω	DC Resistance 2 0.4 Ω	DC Resistance 1 0.5 Ω	DC Resistance 2 0.5 Ω	Self Resonant Frequency 8 MHz	Type Straight	Design Kit –
744871330	33 µH, 33 µH, 1.2 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1260 (rev1).igs \| 1.7 MB STP Download_STP_WE-DD_1260 (rev1).stp \| 1.7 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 33 µH	Inductance 2 33 µH	Rated Current 1.2 A	Rated Current 2 1.2 A	Saturation Current 2.8 A	DC Resistance 1 0.125 Ω	DC Resistance 2 0.125 Ω	DC Resistance 1 0.17 Ω	DC Resistance 2 0.17 Ω	Self Resonant Frequency 6 MHz	Type Crossed	Design Kit –
744873330	33 µH, 33 µH, 2.25 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 33 µH	Inductance 2 33 µH	Rated Current 2.25 A	Rated Current 2 2.25 A	Saturation Current 3.9 A	DC Resistance 1 0.087 Ω	DC Resistance 2 0.087 Ω	DC Resistance 1 0.105 Ω	DC Resistance 2 0.105 Ω	Self Resonant Frequency 8.9 MHz	Type Straight	Design Kit –
7448709330	33 µH, 33 µH, 2 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_1210_Crossed (rev1).igs \| 3.4 MB STP WE-DD_1210_Crossed (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 33 µH	Inductance 2 33 µH	Rated Current 2 A	Rated Current 2 2 A	Saturation Current 4.4 A	DC Resistance 1 0.08 Ω	DC Resistance 2 0.08 Ω	DC Resistance 1 0.1 Ω	DC Resistance 2 0.1 Ω	Self Resonant Frequency 6 MHz	Type Crossed	Design Kit 744870
744878470		Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_7332_Straight (rev1).igs \| 2.6 MB STP WE-DD_7332_Straight (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 47 µH	Inductance 2 47 µH	Rated Current 0.9 A	Rated Current 2 0.9 A	Saturation Current 1 A	DC Resistance 1 0.6 Ω	DC Resistance 2 0.6 Ω	DC Resistance 1 0.75 Ω	DC Resistance 2 0.75 Ω	Self Resonant Frequency 8 MHz	Type Straight	Design Kit –
744874470	47 µH, 47 µH, 1.8 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1260 (rev1).igs \| 1.7 MB STP Download_STP_WE-DD_1260 (rev1).stp \| 1.7 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 47 µH	Inductance 2 47 µH	Rated Current 1.8 A	Rated Current 2 1.8 A	Saturation Current 2.75 A	DC Resistance 1 0.13 Ω	DC Resistance 2 0.13 Ω	DC Resistance 1 0.15 Ω	DC Resistance 2 0.15 Ω	Self Resonant Frequency 11 MHz	Type Straight	Design Kit 744870
744871470	47 µH, 47 µH, 1.1 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1260 (rev1).igs \| 1.7 MB STP Download_STP_WE-DD_1260 (rev1).stp \| 1.7 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 47 µH	Inductance 2 47 µH	Rated Current 1.1 A	Rated Current 2 1.1 A	Saturation Current 2.4 A	DC Resistance 1 0.145 Ω	DC Resistance 2 0.145 Ω	DC Resistance 1 0.18 Ω	DC Resistance 2 0.18 Ω	Self Resonant Frequency 5 MHz	Type Crossed	Design Kit 744870
744873470	47 µH, 47 µH, 2.02 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 47 µH	Inductance 2 47 µH	Rated Current 2.02 A	Rated Current 2 2.02 A	Saturation Current 3.1 A	DC Resistance 1 0.11 Ω	DC Resistance 2 0.11 Ω	DC Resistance 1 0.12 Ω	DC Resistance 2 0.12 Ω	Self Resonant Frequency 7.8 MHz	Type Straight	Design Kit 744870
744870470	47 µH, 47 µH, 1.45 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 47 µH	Inductance 2 47 µH	Rated Current 1.45 A	Rated Current 2 1.45 A	Saturation Current 3.1 A	DC Resistance 1 0.125 Ω	DC Resistance 2 0.125 Ω	DC Resistance 1 0.15 Ω	DC Resistance 2 0.15 Ω	Self Resonant Frequency 5 MHz	Type Crossed	Design Kit 744870
7448709470	47 µH, 47 µH, 1.9 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_1210_Crossed (rev1).igs \| 3.4 MB STP WE-DD_1210_Crossed (rev1).stp \| 1.6 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 47 µH	Inductance 2 47 µH	Rated Current 1.9 A	Rated Current 2 1.9 A	Saturation Current 3.6 A	DC Resistance 1 0.106 Ω	DC Resistance 2 0.106 Ω	DC Resistance 1 0.13 Ω	DC Resistance 2 0.13 Ω	Self Resonant Frequency 4 MHz	Type Crossed	Design Kit –
744873680	68 µH, 68 µH, 1.66 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 68 µH	Inductance 2 68 µH	Rated Current 1.66 A	Rated Current 2 1.66 A	Saturation Current 2.8 A	DC Resistance 1 0.163 Ω	DC Resistance 2 0.163 Ω	DC Resistance 1 0.18 Ω	DC Resistance 2 0.18 Ω	Self Resonant Frequency 5.5 MHz	Type Straight	Design Kit –
744870680	68 µH, 68 µH, 1.35 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 68 µH	Inductance 2 68 µH	Rated Current 1.35 A	Rated Current 2 1.35 A	Saturation Current 3 A	DC Resistance 1 0.17 Ω	DC Resistance 2 0.17 Ω	DC Resistance 1 0.215 Ω	DC Resistance 2 0.215 Ω	Self Resonant Frequency 3.7 MHz	Type Crossed	Design Kit –
744878101		Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS WE-DD_7332_Straight (rev1).igs \| 2.6 MB STP WE-DD_7332_Straight (rev1).stp \| 1.1 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 100 µH	Inductance 2 100 µH	Rated Current 0.3 A	Rated Current 2 0.3 A	Saturation Current 0.7 A	DC Resistance 1 1.4 Ω	DC Resistance 2 1.4 Ω	DC Resistance 1 1.73 Ω	DC Resistance 2 1.73 Ω	Self Resonant Frequency 4 MHz	Type Straight	Design Kit –
744877101		Simulation	Downloads 10 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP 3D 744877xxx_3D (rev1).pdf \| 1.9 MB IGS 744877xxx (rev1).igs \| 2.5 MB STP 744877xxx (rev1).stp \| 825.5 KB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 10 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 100 µH	Inductance 2 100 µH	Rated Current 0.65 A	Rated Current 2 0.65 A	Saturation Current 0.9 A	DC Resistance 1 1.029 Ω	DC Resistance 2 1.029 Ω	DC Resistance 1 1.3 Ω	DC Resistance 2 1.3 Ω	Self Resonant Frequency 4 MHz	Type Straight	Design Kit –
744874101	100 µH, 100 µH, 1.2 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1260 (rev1).igs \| 1.7 MB STP Download_STP_WE-DD_1260 (rev1).stp \| 1.7 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 100 µH	Inductance 2 100 µH	Rated Current 1.2 A	Rated Current 2 1.2 A	Saturation Current 1.7 A	DC Resistance 1 0.285 Ω	DC Resistance 2 0.285 Ω	DC Resistance 1 0.32 Ω	DC Resistance 2 0.32 Ω	Self Resonant Frequency 6 MHz	Type Straight	Design Kit 744870
744871101	100 µH, 100 µH, 1.5 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1260 (rev1).igs \| 1.7 MB STP Download_STP_WE-DD_1260 (rev1).stp \| 1.7 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 100 µH	Inductance 2 100 µH	Rated Current 1.5 A	Rated Current 2 1.5 A	Saturation Current 1.8 A	DC Resistance 1 0.293 Ω	DC Resistance 2 0.293 Ω	DC Resistance 1 0.36 Ω	DC Resistance 2 0.36 Ω	Self Resonant Frequency 4 MHz	Type Crossed	Design Kit 744870
744873101	100 µH, 100 µH, 1.38 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 100 µH	Inductance 2 100 µH	Rated Current 1.38 A	Rated Current 2 1.38 A	Saturation Current 2.2 A	DC Resistance 1 0.235 Ω	DC Resistance 2 0.235 Ω	DC Resistance 1 0.255 Ω	DC Resistance 2 0.255 Ω	Self Resonant Frequency 4.4 MHz	Type Straight	Design Kit 744870
744870101	100 µH, 100 µH, 1.4 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 100 µH	Inductance 2 100 µH	Rated Current 1.4 A	Rated Current 2 1.4 A	Saturation Current 2 A	DC Resistance 1 0.23 Ω	DC Resistance 2 0.23 Ω	DC Resistance 1 0.3 Ω	DC Resistance 2 0.3 Ω	Self Resonant Frequency 4 MHz	Type Crossed	Design Kit 744870
744870151	150 µH, 150 µH, 1 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 150 µH	Inductance 2 150 µH	Rated Current 1 A	Rated Current 2 1 A	Saturation Current 1.7 A	DC Resistance 1 0.34 Ω	DC Resistance 2 0.34 Ω	DC Resistance 1 0.4 Ω	DC Resistance 2 0.4 Ω	Self Resonant Frequency 2.3 MHz	Type Crossed	Design Kit –
744873221	220 µH, 220 µH, 0.91 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 220 µH	Inductance 2 220 µH	Rated Current 0.91 A	Rated Current 2 0.91 A	Saturation Current 1.6 A	DC Resistance 1 0.54 Ω	DC Resistance 2 0.54 Ω	DC Resistance 1 0.58 Ω	DC Resistance 2 0.58 Ω	Self Resonant Frequency 2.8 MHz	Type Straight	Design Kit 744870
744870221	220 µH, 220 µH, 0.9 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 220 µH	Inductance 2 220 µH	Rated Current 0.9 A	Rated Current 2 0.9 A	Saturation Current 1.4 A	DC Resistance 1 0.53 Ω	DC Resistance 2 0.53 Ω	DC Resistance 1 0.65 Ω	DC Resistance 2 0.65 Ω	Self Resonant Frequency 2 MHz	Type Crossed	Design Kit 744870
744875221	220 µH, 220 µH, 0.46 A	Simulation –	Downloads 6 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB CAD files ZIP 3D 3D_IndDD_744877xxx (rev1).pdf \| 3.2 MB IGS IGS_IndDD_744877xxx (rev1).igs \| 2.4 MB STP STP_IndDD_744877xxx (rev1).stp \| 991.9 KB Download all 6 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 220 µH	Inductance 2 220 µH	Rated Current 0.46 A	Rated Current 2 0.46 A	Saturation Current 0.58 A	DC Resistance 1 1.94 Ω	DC Resistance 2 1.94 Ω	DC Resistance 1 2.32 Ω	DC Resistance 2 2.32 Ω	Self Resonant Frequency 4.1 MHz	Type Crossed	Design Kit –
744879221	220 µH, 220 µH, 0.44 A	Simulation –	Downloads 3 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB Download all 3 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 220 µH	Inductance 2 220 µH	Rated Current 0.44 A	Rated Current 2 0.44 A	Saturation Current 0.7 A	DC Resistance 1 1.94 Ω	DC Resistance 2 1.94 Ω	DC Resistance 1 2.3 Ω	DC Resistance 2 2.3 Ω	Self Resonant Frequency 3.2 MHz	Type Crossed	Design Kit –
744870471	470 µH, 470 µH, 0.7 A	Simulation	Downloads 9 files EDA models: Components ZIP ALT WE-DD (rev25a).IntLib \| 1.5 MB CDS Cadence_WE-DD (rev25a).zip \| 23.2 MB EAG Eagle_WE-DD (rev19a).lbr \| 95.4 KB KIC KiCad_WE-DD (rev25b).zip \| 8.6 MB ZUK Download_Cadstar_WE-DD (rev19a).zip \| 13.2 KB CAD files ZIP IGS Download_IGS_WE-DD_1280 (rev1).igs \| 1.8 MB STP Download_STP_WE-DD-1280 (rev1).stp \| 1.8 MB Electric models ZIP PSP PSpice_WE-DD (rev22a).zip \| 20.4 KB S S-Parameter_WE-DD (rev21a).zip \| 8.4 MB Download all 9 files as zip archive ZIP	Status Active i \| Production is active. Expected lifetime: >10 years.	Inductance 1 470 µH	Inductance 2 470 µH	Rated Current 0.7 A	Rated Current 2 0.7 A	Saturation Current 0.9 A	DC Resistance 1 1 Ω	DC Resistance 2 1 Ω	DC Resistance 1 1.2 Ω	DC Resistance 2 1.2 Ω	Self Resonant Frequency 0.65 MHz	Type Crossed	Design Kit –
