WE-CNSW HF SMT Common Mode Line Filter

Size Dimen­sionsL
(mm)
W
(mm)
H
(mm)
Mount

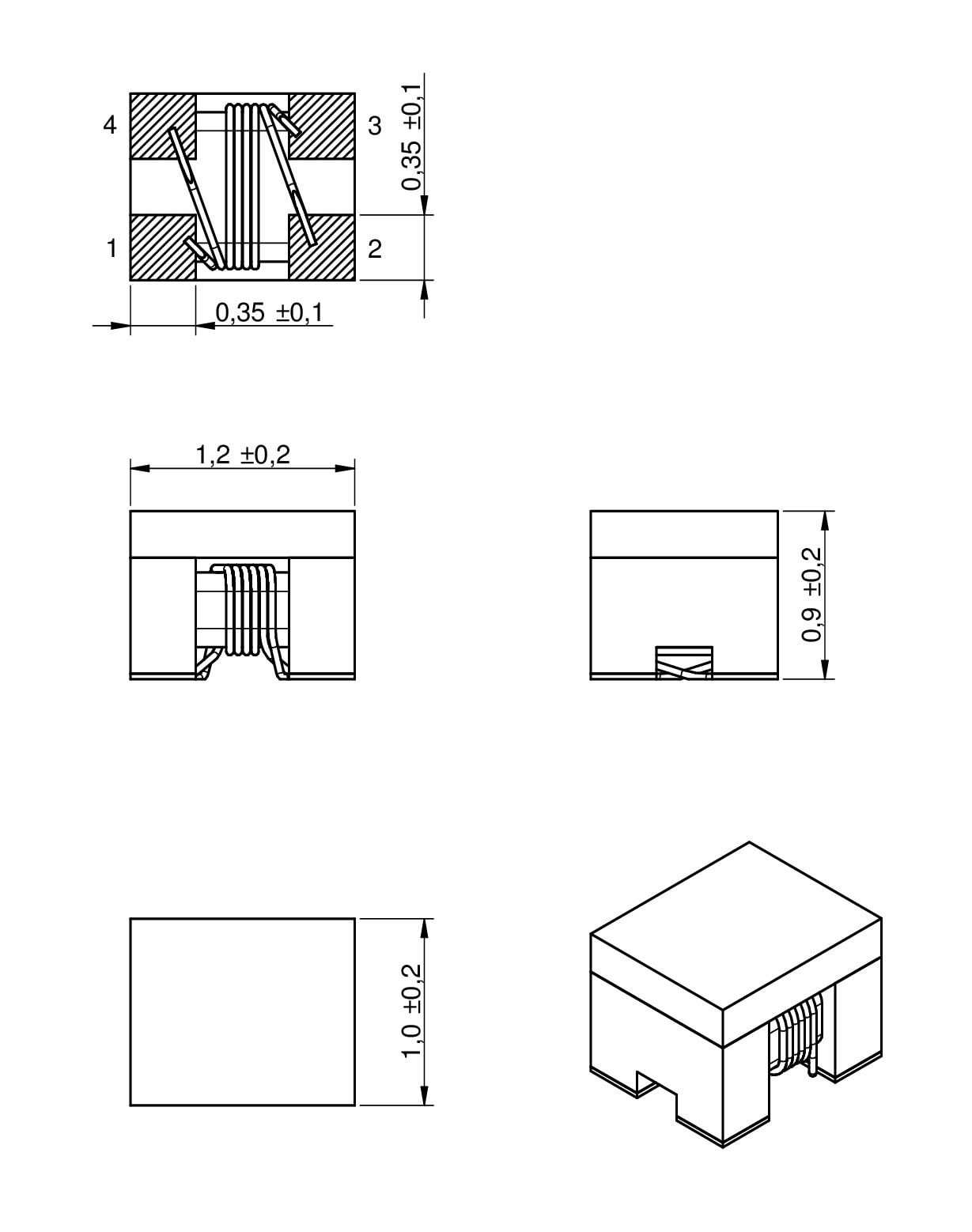

0504 1.2 1 0.9 SMT

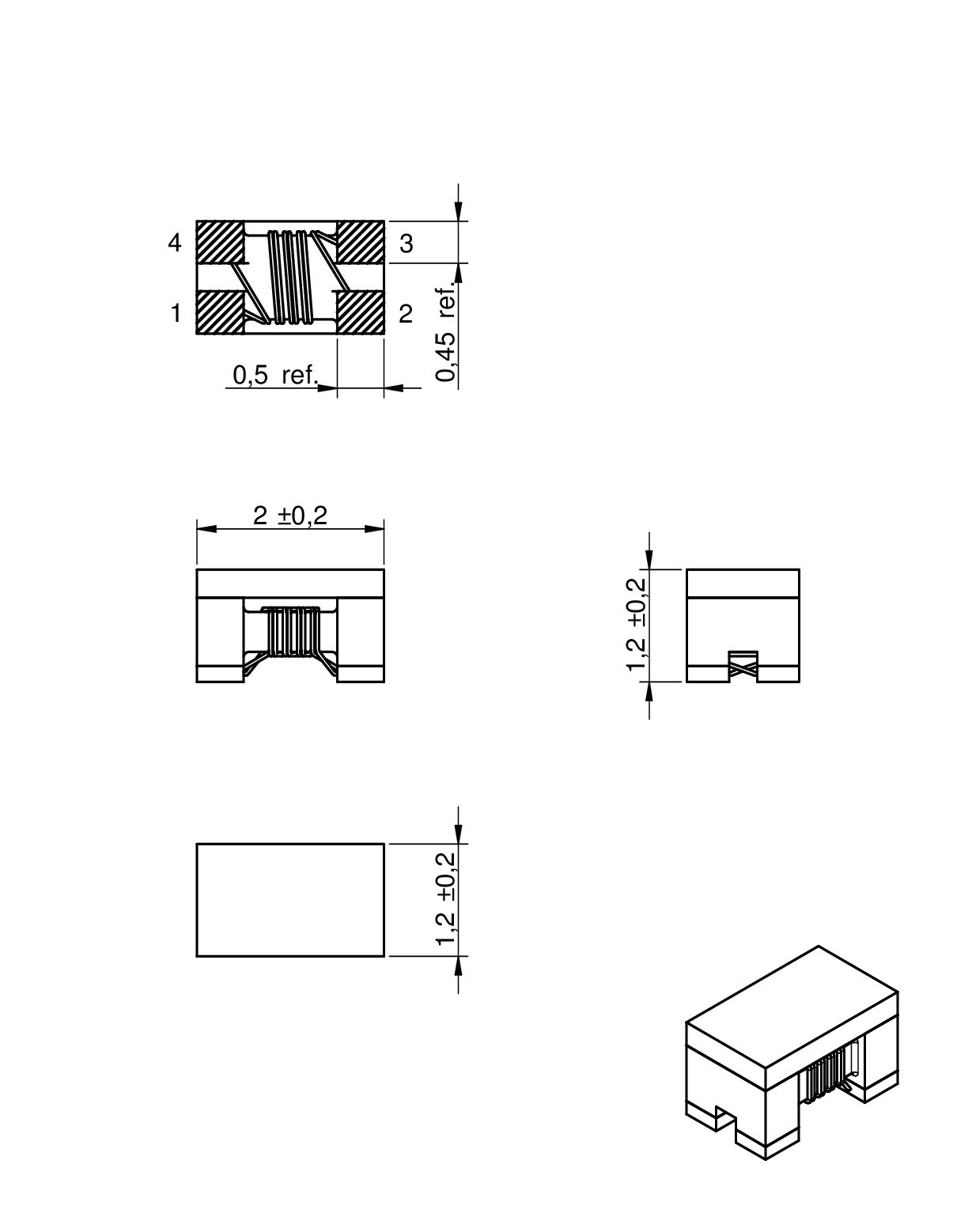

0805 2 1.2 1.2 SMT

Characteristics

  • Current compensated data line filter
  • High common mode noise suppression at high frequencies
  • Small influence on high speed signals through winding symmetry
  • Climatic category 40/105/21 (Size 0504)
  • Climatic category 40/125/21 (Size 0805)
  • Flammability corresponding to UL 94 V-0

Reference Designs

Applications

  • USB 3.0
  • USB 2.0
  • HDMI
  • LVDS
  • High-Speed data lines
  • IEEE 1394 (Firewire)

USB Type-C. 24 reasons to connect with us.

Würth Elektronik offers the complete product range from connectors, components for filtering of EMI noise, ESD surge protection as well as AC/DC to DC/DC power conversion for USB 3.1. All information here.

All Information here

Products

All
0504
0805
Order Code Data­sheet Simu­lation DownloadsWinding StyleL
(nH)
Z @ 100 MHz
(Ω)
IR
(mA)
RDC max.
(mΩ)
VR
(V)
VT
(V (AC))
fc
(GHz)
ApplicationFilter StickFilter BagDesign Kit Samples
7442335600SPEC
9 files bifiliar 100 60 600 220 20 125 10 USB 3.X, HDMI 1.482931060
82931100
82931061
82931101
744230
7442335900SPEC
8 files bifiliar 170 90 500 270 20 125 8 USB 3.X, HDMI 1.4744230
744233670SPEC
8 files bifiliar 92 67 320 240 50 125 6.5 USB 3.0829993BAG
744230
744233900SPEC
8 files bifiliar 131 90 280 300 50 125 4.5 HDMI744230
744233121SPEC
8 files bifiliar 167 120 280 300 50 125 4.5 LVDS/ USB2.0744230
Order Code Data­sheet Simu­lation
7442335600SPEC
7442335900SPEC
744233670SPEC
744233900SPEC
744233121SPEC
Samples
Order Code Data­sheet Simu­lation DownloadsWinding StyleL
(nH)
Z @ 100 MHz
(Ω)
IR
(mA)
RDC max.
(mΩ)
VR
(V)
VT
(V (AC))
fc
(GHz)
ApplicationFilter StickFilter BagDesign Kit Samples
