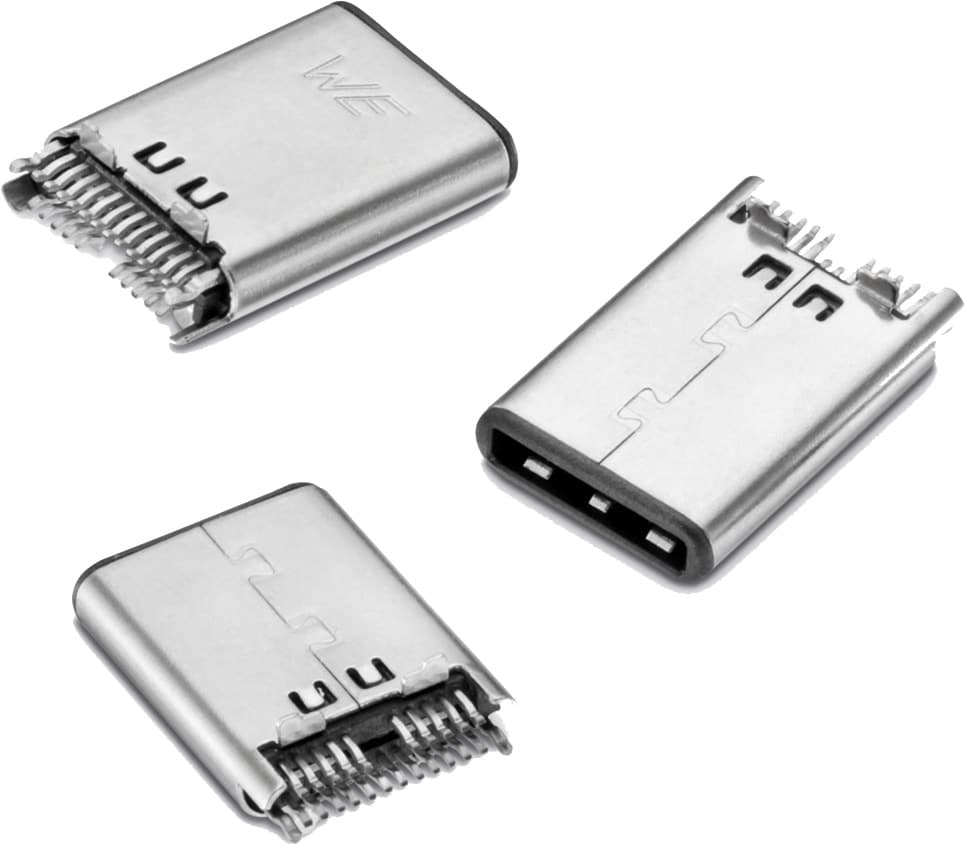

WR-COM USB 3.1 Type C Plug Horizontal SMT 0.8 mm

General Information
Operating Temperature-25 °C up to +105 °C
Durability10 000 Mating cycles
Connector TypeUSB 3.1 Type C
GenderPlug
TypeHorizontal
Material Properties
Insulator MaterialLCP
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Cover MaterialSteel
Cover PlatingNickel (Ni)
Contact MaterialCopper Alloy
Contact Plating2µ” Gold over 30µ” Pd-Ni
Contact TypeStamped
Electrical Properties
Working Voltage20 V (DC)
Withstanding Voltage100 V (AC)
Contact Resistance30 mΩ
