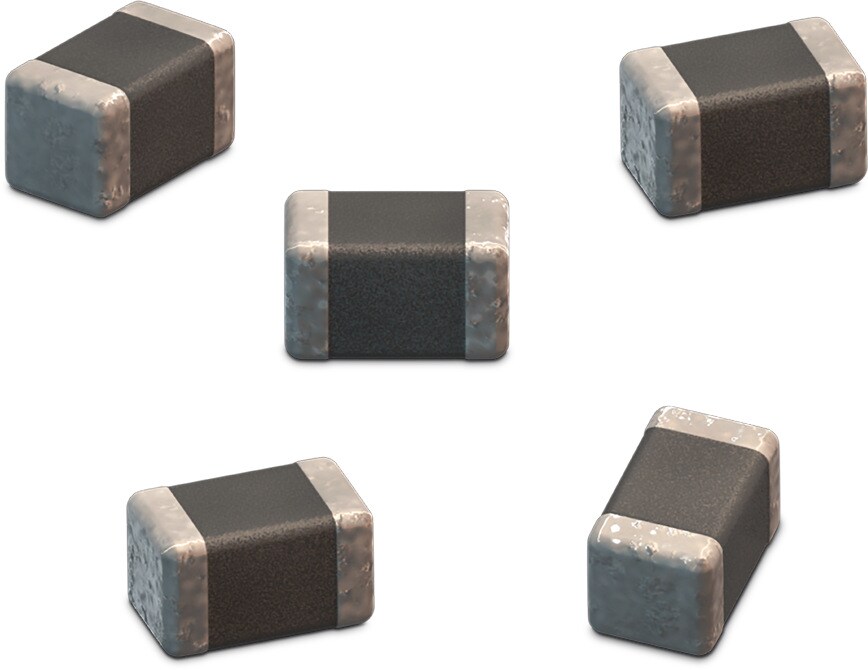

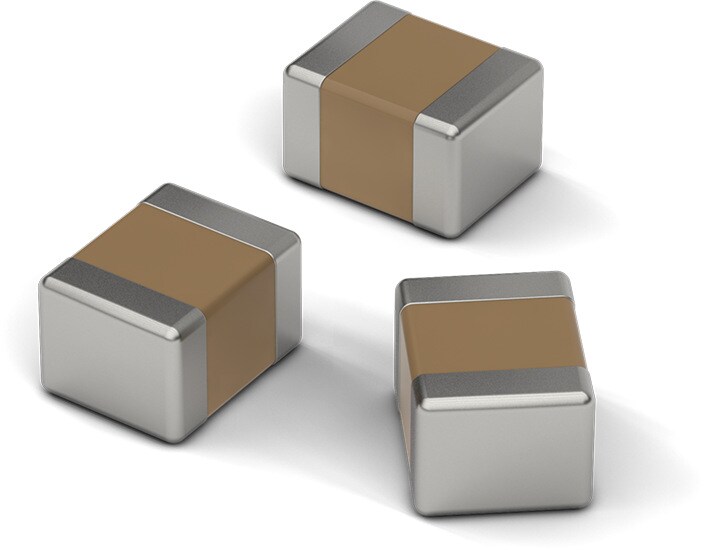

WCAP-CSMH Mid and High Voltage

Mid and High Voltage

WCAP-CSMH Mid and High Voltage

LTSpice files

Characteristics

  • Product series for mid and high voltage up to 3 kV(DC)
  • Mounting style: SMT-Chip
  • Ceramic: NP0 (Class I), X7R (Class II)
  • Temperature Coefficient:
    ±30 ppm/°C; ±0.54 % for NP0
    ±15 % for X7R
  • Termination: Cu/Ni/Sn
  • Recommended soldering: Reflow soldering
  • Wave soldering only valid for 0603, 0805; thickness < 0.85 mm

Reference Designs

  • RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Applications

  • Ports protection against EFT and surge
  • Blocking
  • High voltage coupling
  • Snubber

Application Notes

Products

All
0603
0805
1206
1210
1808
1812
2220
Reset all
Filter article data
Filter by
Delete all
 show  articles in 7 product lines
 articles in 7 product lines
Reset all
Log in now to view availability and request availability forecasts. LOGIN
Order Code
Data­sheet
Simu­lation
Downloads
Status
C
Tol. C
VR(V (DC))
Size
Qmin.
DF(%)
RISO
Ceramic Type
L(mm)
W(mm)
H(mm)
Fl(mm)
Packaging
Design Kit
SamplesAvailability & Sample
Log in now to view availability and request availability forecasts. LOGIN
885342009004
SPEC10 pF, ±5%, 2000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance10 pF
Capacitance±5%
Rated Voltage2000 V (DC)
Size1210
Q-Factor [1]600
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length3.2 mm
Width2.5 mm
Height0.95 mm
Pad Dimension0.75 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342010001
SPEC10 pF, ±5%, 3000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance10 pF
Capacitance±5%
Rated Voltage3000 V (DC)
Size1808
Q-Factor [1]600
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length4.5 mm
Width2.03 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342006001
SPEC10 pF, ±5%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance10 pF
Capacitance±5%
Rated Voltage250 V (DC)
Size0603
Q-Factor [1]600
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length1.6 mm
Width0.8 mm
Height0.8 mm
Pad Dimension0.4 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342007004
SPEC15 pF, ±5%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance15 pF
Capacitance±5%
Rated Voltage250 V (DC)
Size0805
Q-Factor [1]700
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length2 mm
Width1.25 mm
Height0.6 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342009002
SPEC22 pF, ±5%, 1000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance22 pF
Capacitance±5%
Rated Voltage1000 V (DC)
Size1210
Q-Factor [1]840
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length3.2 mm
Width2.5 mm
Height0.95 mm
Pad Dimension0.75 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342008008
SPEC22 pF, ±5%, 1000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance22 pF
Capacitance±5%
Rated Voltage1000 V (DC)
Size1206
Q-Factor [1]840
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length3.2 mm
Width1.6 mm
Height0.8 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342006002
SPEC33 pF, ±5%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance33 pF
Capacitance±5%
Rated Voltage250 V (DC)
Size0603
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length1.6 mm
Width0.8 mm
Height0.8 mm
Pad Dimension0.4 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342007006
SPEC47 pF, ±5%, 500 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance47 pF
Capacitance±5%
Rated Voltage500 V (DC)
Size0805
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length2 mm
Width1.25 mm
Height0.6 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342008001
SPEC47 pF, ±5%, 500 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance47 pF
Capacitance±5%
Rated Voltage500 V (DC)
Size1206
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length3.2 mm
Width1.6 mm
Height0.8 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342010002
SPEC68 pF, ±5%, 3000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance68 pF
Capacitance±5%
Rated Voltage3000 V (DC)
Size1808
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length4.5 mm
Width2.03 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342008010
SPEC68 pF, ±5%, 2000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance68 pF
Capacitance±5%
Rated Voltage2000 V (DC)
Size1206
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342206001
SPEC100 pF, ±10%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 pF
Capacitance±10%
Rated Voltage250 V (DC)
Size0603
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length1.6 mm
Width0.8 mm
Height0.8 mm
Pad Dimension0.4 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342207001
SPEC100 pF, ±10%, 200 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 pF
Capacitance±10%
Rated Voltage200 V (DC)
Size0805
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length2 mm
Width1.25 mm
Height0.8 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342207015
SPEC100 pF, ±10%, 1000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 pF
Capacitance±10%
Rated Voltage1000 V (DC)
Size0805
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length2 mm
Width1.25 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342008004
SPEC100 pF, ±5%, 630 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 pF
Capacitance±5%
Rated Voltage630 V (DC)
Size1206
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length3.2 mm
Width1.6 mm
Height0.8 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342008011
SPEC100 pF, ±5%, 2000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 pF
Capacitance±5%
Rated Voltage2000 V (DC)
Size1206
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342208022
SPEC100 pF, ±10%, 2000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 pF
Capacitance±10%
Rated Voltage2000 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342010003
SPEC100 pF, ±5%, 3000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 pF
Capacitance±5%
Rated Voltage3000 V (DC)
Size1808
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length4.5 mm
Width2.03 mm
Height2 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342006003
SPEC100 pF, ±5%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 pF
Capacitance±5%
Rated Voltage250 V (DC)
Size0603
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length1.6 mm
Width0.8 mm
Height0.8 mm
Pad Dimension0.4 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342008009
SPEC100 pF, ±5%, 1000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 pF
Capacitance±5%
Rated Voltage1000 V (DC)
Size1206
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342011002
SPEC100 pF, ±5%, 1000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 pF
Capacitance±5%
Rated Voltage1000 V (DC)
Size1812
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length4.5 mm
Width3.2 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342014230
SPEC100 pF, ±5%, 2000 V (DC)
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 pF
Capacitance±5%
Rated Voltage2000 V (DC)
Size2220
–
Dissipation Factor1000 %
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length5.7 mm
Width5 mm
Height2 mm
Pad Dimension0.85 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342208016
SPEC150 pF, ±10%, 1000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance150 pF
Capacitance±10%
Rated Voltage1000 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342009005
SPEC220 pF, ±5%, 2000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance220 pF
Capacitance±5%
Rated Voltage2000 V (DC)
Size1210
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length3.2 mm
Width2.5 mm
Height1.6 mm
Pad Dimension0.75 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342209008
SPEC220 pF, ±10%, 2000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance220 pF
Capacitance±10%
Rated Voltage2000 V (DC)
Size1210
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width2.5 mm
Height1.25 mm
Pad Dimension0.75 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342006004
SPEC220 pF, ±5%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance220 pF
Capacitance±5%
Rated Voltage250 V (DC)
Size0603
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length1.6 mm
Width0.8 mm
Height0.8 mm
Pad Dimension0.4 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342007001
SPEC220 pF, ±5%, 200 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance220 pF
Capacitance±5%
Rated Voltage200 V (DC)
Size0805
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length2 mm
Width1.25 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342008002
SPEC220 pF, ±5%, 500 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance220 pF
Capacitance±5%
Rated Voltage500 V (DC)
Size1206
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length3.2 mm
Width1.6 mm
Height0.8 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342007002
SPEC330 pF, ±5%, 200 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance330 pF
Capacitance±5%
Rated Voltage200 V (DC)
Size0805
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length2 mm
Width1.25 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342206002
SPEC330 pF, ±10%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance330 pF
Capacitance±10%
Rated Voltage250 V (DC)
Size0603
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length1.6 mm
Width0.8 mm
Height0.8 mm
Pad Dimension0.4 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342006005
SPEC470 pF, ±5%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance470 pF
Capacitance±5%
Rated Voltage250 V (DC)
Size0603
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length1.6 mm
Width0.8 mm
Height0.8 mm
Pad Dimension0.4 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342207002
SPEC470 pF, ±10%, 200 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance470 pF
Capacitance±10%
Rated Voltage200 V (DC)
Size0805
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length2 mm
Width1.25 mm
Height0.8 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342207007
SPEC470 pF, ±10%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance470 pF
Capacitance±10%
Rated Voltage250 V (DC)
Size0805
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length2 mm
Width1.25 mm
Height0.8 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342207012
SPEC470 pF, ±10%, 500 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance470 pF
Capacitance±10%
Rated Voltage500 V (DC)
Size0805
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length2 mm
Width1.25 mm
Height0.8 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342208017
SPEC470 pF, ±10%, 1000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance470 pF
Capacitance±10%
Rated Voltage1000 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342208023
SPEC470 pF, ±10%, 2000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance470 pF
Capacitance±10%
Rated Voltage2000 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342210003
SPEC470 pF, ±10%, 3000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance470 pF
Capacitance±10%
Rated Voltage3000 V (DC)
Size1808
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length4.5 mm
Width2.03 mm
Height2 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342208005
SPEC470 pF, ±10%, 500 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance470 pF
Capacitance±10%
Rated Voltage500 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342210001
SPEC1 nF, ±10%, 2000 V (DC)
Simu­lation
Availability
–
Downloads9 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±10%
Rated Voltage2000 V (DC)
Size1808
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length4.5 mm
Width2.03 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342206003
SPEC1 nF, ±10%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±10%
Rated Voltage250 V (DC)
Size0603
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length1.6 mm
Width0.8 mm
Height0.8 mm
Pad Dimension0.4 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342007003
SPEC1 nF, ±5%, 200 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±5%
Rated Voltage200 V (DC)
Size0805
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length2 mm
Width1.25 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342207003
SPEC1 nF, ±10%, 200 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±10%
Rated Voltage200 V (DC)
Size0805
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length2 mm
Width1.25 mm
Height0.8 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342207008
SPEC1 nF, ±10%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±10%
Rated Voltage250 V (DC)
Size0805
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length2 mm
Width1.25 mm
Height0.8 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342207013
SPEC1 nF, ±10%, 500 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±10%
Rated Voltage500 V (DC)
Size0805
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length2 mm
Width1.25 mm
Height0.8 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342008003
SPEC1 nF, ±5%, 500 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±5%
Rated Voltage500 V (DC)
Size1206
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length3.2 mm
Width1.6 mm
Height1.6 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342008005
SPEC1 nF, ±5%, 630 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±5%
Rated Voltage630 V (DC)
Size1206
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length3.2 mm
Width1.6 mm
Height1.6 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342208006
SPEC1 nF, ±10%, 500 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±10%
Rated Voltage500 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342208018
SPEC1 nF, ±10%, 1000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±10%
Rated Voltage1000 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342208024
SPEC1 nF, ±10%, 2000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±10%
Rated Voltage2000 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.6 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342009003
SPEC1 nF, ±5%, 1000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±5%
Rated Voltage1000 V (DC)
Size1210
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length3.2 mm
Width2.5 mm
Height1.6 mm
Pad Dimension0.75 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342209006
SPEC1 nF, ±10%, 1000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±10%
Rated Voltage1000 V (DC)
Size1210
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width2.5 mm
Height1.25 mm
Pad Dimension0.75 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342209009
SPEC1 nF, ±10%, 2000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±10%
Rated Voltage2000 V (DC)
Size1210
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width2.5 mm
Height1.25 mm
Pad Dimension0.75 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342210004
SPEC1 nF, ±10%, 3000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±10%
Rated Voltage3000 V (DC)
Size1808
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length4.5 mm
Width2.03 mm
Height2 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342011001
SPEC1 nF, ±5%, 500 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±5%
Rated Voltage500 V (DC)
Size1812
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length4.5 mm
Width3.2 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342211009
SPEC1 nF, ±10%, 3000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±10%
Rated Voltage3000 V (DC)
Size1812
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length4.5 mm
Width3.2 mm
Height2 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342208011
SPEC1 nF, ±10%, 630 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 nF
Capacitance±10%
Rated Voltage630 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342206004
SPEC1.5 nF, ±10%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1.5 nF
Capacitance±10%
Rated Voltage250 V (DC)
Size0603
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length1.6 mm
Width0.8 mm
Height0.8 mm
Pad Dimension0.4 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342008006
SPEC1.5 nF, ±5%, 630 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1.5 nF
Capacitance±5%
Rated Voltage630 V (DC)
Size1206
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length3.2 mm
Width1.6 mm
Height1.6 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342011003
SPEC1.5 nF, ±5%, 1000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1.5 nF
Capacitance±5%
Rated Voltage1000 V (DC)
Size1812
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length4.5 mm
Width3.2 mm
Height2 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342007005
SPEC2.2 nF, ±5%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance2.2 nF
Capacitance±5%
Rated Voltage250 V (DC)
Size0805
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length2 mm
Width1.25 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342008007
SPEC2.2 nF, ±5%, 630 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance2.2 nF
Capacitance±5%
Rated Voltage630 V (DC)
Size1206
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length3.2 mm
Width1.6 mm
Height1.6 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342208019
SPEC2.2 nF, ±10%, 1000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance2.2 nF
Capacitance±10%
Rated Voltage1000 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342210002
SPEC2.2 nF, ±10%, 2000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance2.2 nF
Capacitance±10%
Rated Voltage2000 V (DC)
Size1808
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length4.5 mm
Width2.03 mm
Height2 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342207016
SPEC2.2 nF, ±10%, 1000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance2.2 nF
Capacitance±10%
Rated Voltage1000 V (DC)
Size0805
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length2 mm
Width1.25 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342211007
SPEC2.2 nF, ±10%, 2000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance2.2 nF
Capacitance±10%
Rated Voltage2000 V (DC)
Size1812
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length4.5 mm
Width3.2 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342211010
SPEC2.2 nF, ±10%, 3000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance2.2 nF
Capacitance±10%
Rated Voltage3000 V (DC)
Size1812
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length4.5 mm
Width3.2 mm
Height2.5 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342208007
SPEC2.2 nF, ±10%, 500 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance2.2 nF
Capacitance±10%
Rated Voltage500 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342206005
SPEC3.3 nF, ±10%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance3.3 nF
Capacitance±10%
Rated Voltage250 V (DC)
Size0603
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length1.6 mm
Width0.8 mm
Height0.8 mm
Pad Dimension0.4 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342208020
SPEC4.7 nF, ±10%, 1000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance4.7 nF
Capacitance±10%
Rated Voltage1000 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342207004
SPEC4.7 nF, ±10%, 200 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance4.7 nF
Capacitance±10%
Rated Voltage200 V (DC)
Size0805
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length2 mm
Width1.25 mm
Height0.8 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342207009
SPEC4.7 nF, ±10%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance4.7 nF
Capacitance±10%
Rated Voltage250 V (DC)
Size0805
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length2 mm
Width1.25 mm
Height0.8 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342009001
SPEC4.7 nF, ±5%, 200 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance4.7 nF
Capacitance±5%
Rated Voltage200 V (DC)
Size1210
Q-Factor [1]1000
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length3.2 mm
Width2.5 mm
Height1.6 mm
Pad Dimension0.75 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342211001
SPEC4.7 nF, ±10%, 200 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance4.7 nF
Capacitance±10%
Rated Voltage200 V (DC)
Size1812
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length4.5 mm
Width3.2 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342211008
SPEC4.7 nF, ±10%, 2000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance4.7 nF
Capacitance±10%
Rated Voltage2000 V (DC)
Size1812
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length4.5 mm
Width3.2 mm
Height2 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342208008
SPEC4.7 nF, ±10%, 500 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance4.7 nF
Capacitance±10%
Rated Voltage500 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342009007
SPEC5.6 nF, ±5%, 1000 V (DC)
Simu­lation–
Availability
–
Downloads5 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance5.6 nF
Capacitance±5%
Rated Voltage1000 V (DC)
Size1210
–
–
Insulation Resistance10 GΩ
Ceramic TypeNP0 Class I
Length3.2 mm
Width2.5 mm
Height1.6 mm
Pad Dimension0.75 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342206006
SPEC10 nF, ±10%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance10 nF
Capacitance±10%
Rated Voltage250 V (DC)
Size0603
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length1.6 mm
Width0.8 mm
Height0.8 mm
Pad Dimension0.4 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342207005
SPEC10 nF, ±10%, 200 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance10 nF
Capacitance±10%
Rated Voltage200 V (DC)
Size0805
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length2 mm
Width1.25 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342207010
SPEC10 nF, ±10%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance10 nF
Capacitance±10%
Rated Voltage250 V (DC)
Size0805
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length2 mm
Width1.25 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342207014
SPEC10 nF, ±10%, 500 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance10 nF
Capacitance±10%
Rated Voltage500 V (DC)
Size0805
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length2 mm
Width1.25 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342208021
SPEC10 nF, ±10%, 1000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance10 nF
Capacitance±10%
Rated Voltage1000 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342211004
SPEC10 nF, ±10%, 500 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance10 nF
Capacitance±10%
Rated Voltage500 V (DC)
Size1812
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length4.5 mm
Width3.2 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342208003
SPEC10 nF, ±10%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance10 nF
Capacitance±10%
Rated Voltage250 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342208009
SPEC10 nF, ±10%, 500 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance10 nF
Capacitance±10%
Rated Voltage500 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342208012
SPEC10 nF, ±10%, 630 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance10 nF
Capacitance±10%
Rated Voltage630 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance10 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342209001
SPEC15 nF, ±10%, 200 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance15 nF
Capacitance±10%
Rated Voltage200 V (DC)
Size1210
–
Dissipation Factor2.5 %
Insulation Resistance6.667 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width2.5 mm
Height0.95 mm
Pad Dimension0.75 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342208013
SPEC15 nF, ±10%, 630 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance15 nF
Capacitance±10%
Rated Voltage630 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance6.667 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342207006
SPEC22 nF, ±10%, 200 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance22 nF
Capacitance±10%
Rated Voltage200 V (DC)
Size0805
–
Dissipation Factor2.5 %
Insulation Resistance4.545 GΩ
Ceramic TypeX7R Class II
Length2 mm
Width1.25 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342207011
SPEC22 nF, ±10%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance22 nF
Capacitance±10%
Rated Voltage250 V (DC)
Size0805
–
Dissipation Factor2.5 %
Insulation Resistance4.545 GΩ
Ceramic TypeX7R Class II
Length2 mm
Width1.25 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342209007
SPEC22 nF, ±10%, 1000 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance22 nF
Capacitance±10%
Rated Voltage1000 V (DC)
Size1210
–
Dissipation Factor2.5 %
Insulation Resistance4.55 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width2.5 mm
Height1.6 mm
Pad Dimension0.75 mm
Packaging7" Tape & Reel
Design Kit
885342
–Check availability
885342208014
SPEC22 nF, ±10%, 630 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance22 nF
Capacitance±10%
Rated Voltage630 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance4.545 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.6 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342208001
SPEC22 nF, ±10%, 200 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance22 nF
Capacitance±10%
Rated Voltage200 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance4.545 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.25 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342208010
SPEC22 nF, ±10%, 500 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance22 nF
Capacitance±10%
Rated Voltage500 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance4.545 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.6 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342214216
SPEC22 nF, ±10%, 2000 V (DC)
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance22 nF
Capacitance±10%
Rated Voltage2000 V (DC)
Size2220
–
Dissipation Factor2.5 %
Insulation Resistance5 GΩ
Ceramic TypeX7R Class II
Length5.7 mm
Width5 mm
Height2.8 mm
Pad Dimension0.85 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342209004
SPEC33 nF, ±10%, 630 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance33 nF
Capacitance±10%
Rated Voltage630 V (DC)
Size1210
–
Dissipation Factor2.5 %
Insulation Resistance3.03 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width2.5 mm
Height1.6 mm
Pad Dimension0.75 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342208015
SPEC33 nF, ±10%, 630 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance33 nF
Capacitance±10%
Rated Voltage630 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance3.03 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.6 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342208026
SPEC47 nF, ±10%, 630 V (DC)
Simu­lation–
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance47 nF
Capacitance±10%
Rated Voltage630 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance2.127 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.6 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342209005
SPEC68 nF, ±10%, 630 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance68 nF
Capacitance±10%
Rated Voltage630 V (DC)
Size1210
–
Dissipation Factor2.5 %
Insulation Resistance1.471 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width2.5 mm
Height2 mm
Pad Dimension0.75 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342209002
SPEC100 nF, ±10%, 200 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 nF
Capacitance±10%
Rated Voltage200 V (DC)
Size1210
–
Dissipation Factor2.5 %
Insulation Resistance1 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width2.5 mm
Height1.6 mm
Pad Dimension0.75 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342211002
SPEC100 nF, ±10%, 200 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 nF
Capacitance±10%
Rated Voltage200 V (DC)
Size1812
–
Dissipation Factor2.5 %
Insulation Resistance1 GΩ
Ceramic TypeX7R Class II
Length4.5 mm
Width3.2 mm
Height1.25 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342211005
SPEC100 nF, ±10%, 500 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 nF
Capacitance±10%
Rated Voltage500 V (DC)
Size1812
–
Dissipation Factor2.5 %
Insulation Resistance1 GΩ
Ceramic TypeX7R Class II
Length4.5 mm
Width3.2 mm
Height2 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342211006
SPEC100 nF, ±10%, 630 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 nF
Capacitance±10%
Rated Voltage630 V (DC)
Size1812
–
Dissipation Factor2.5 %
Insulation Resistance1 GΩ
Ceramic TypeX7R Class II
Length4.5 mm
Width3.2 mm
Height2 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342208002
SPEC100 nF, ±10%, 200 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 nF
Capacitance±10%
Rated Voltage200 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance1 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.6 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342208004
SPEC100 nF, ±10%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 nF
Capacitance±10%
Rated Voltage250 V (DC)
Size1206
–
Dissipation Factor2.5 %
Insulation Resistance1 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width1.6 mm
Height1.6 mm
Pad Dimension0.6 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342214173
SPEC100 nF, ±10%, 1000 V (DC)
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance100 nF
Capacitance±10%
Rated Voltage1000 V (DC)
Size2220
–
Dissipation Factor2.5 %
Insulation Resistance1 GΩ
Ceramic TypeX7R Class II
Length5.7 mm
Width5 mm
Height2.5 mm
Pad Dimension0.85 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342209003
SPEC220 nF, ±10%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance220 nF
Capacitance±10%
Rated Voltage250 V (DC)
Size1210
–
Dissipation Factor2.5 %
Insulation Resistance0.455 GΩ
Ceramic TypeX7R Class II
Length3.2 mm
Width2.5 mm
Height2.5 mm
Pad Dimension0.75 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342214142
SPEC220 nF, ±10%, 630 V (DC)
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance220 nF
Capacitance±10%
Rated Voltage630 V (DC)
Size2220
–
Dissipation Factor2.5 %
Insulation Resistance0.5 GΩ
Ceramic TypeX7R Class II
Length5.7 mm
Width5 mm
Height2 mm
Pad Dimension0.85 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342211003
SPEC470 nF, ±10%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

RF & Microwave simulation models

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance470 nF
Capacitance±10%
Rated Voltage250 V (DC)
Size1812
–
Dissipation Factor2.5 %
Insulation Resistance0.213 GΩ
Ceramic TypeX7R Class II
Length4.5 mm
Width3.2 mm
Height2 mm
Pad Dimension0.5 mm
Packaging7" Tape & Reel
Design Kit
885341
–Check availability
885342214002
SPEC1 µF, ±10%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 µF
Capacitance±10%
Rated Voltage250 V (DC)
Size2220
–
Dissipation Factor2.5 %
Insulation Resistance0.1 GΩ
Ceramic TypeX7R Class II
Length5.7 mm
Width5 mm
Height2 mm
Pad Dimension0.85 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342214001
SPEC1 µF, ±10%, 630 V (DC)
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance1 µF
Capacitance±10%
Rated Voltage630 V (DC)
Size2220
–
Dissipation Factor2.5 %
Insulation Resistance0.1 GΩ
Ceramic TypeX7R Class II
Length5.7 mm
Width5 mm
Height2.8 mm
Pad Dimension0.85 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability
885342214003
SPEC2.2 µF, ±10%, 250 V (DC)
Simu­lation
Availability
–
Downloads8 files

Status
ActiveProduction is active. Expected lifetime: >10 years.
iProduction is active. Expected lifetime: >10 years.
Capacitance2.2 µF
Capacitance±10%
Rated Voltage250 V (DC)
Size2220
–
Dissipation Factor2.5 %
Insulation Resistance0.05 GΩ
Ceramic TypeX7R Class II
Length5.7 mm
Width5 mm
Height2.5 mm
Pad Dimension0.85 mm
Packaging7" Tape & Reel
Design Kit –
–Check availability

Suitable for

WE-LAN 10G Transformer 10Gbit Base-T
WE-LAN AQ Transformer
WE-LAN LAN Transformer
WE-STST Super Tiny Signal Transformer

Assortments

Articles from this product series can be found in the following assortments:

Design Kit WCAP-CSMH MLCCs
Design Kit WCAP-CSMH MLCCs

Videos

#askLorandt explains: What miniaturization means for MLCCs and what alternatives are possible

Videos

#askLorandt explains: Influence of DC-Bias on Ceramic Filter Capacitors

Videos

#askLorandt explains: LTspice DC-Bias Simulation for Capacitors

Videos

#askLorandt explains: DC/DC Converter Voltage Ripple vs. ESR of Different Capacitor Technologies

Videos

How to choose the right capacitor type for a circuit?! || Film vs. Ceramic vs. Electrolytic

Videos

Webinar: Introduction to the capacitor technologies and how to use them

Learn more
