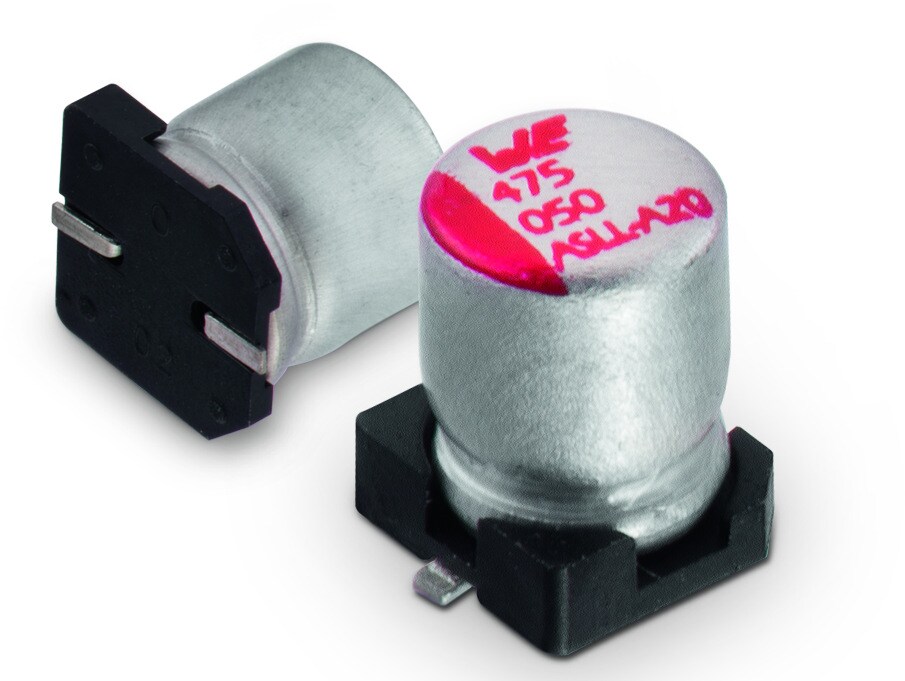

WCAP-ASLL Aluminum Electrolytic Capacitors

Low Impedance & Long Life +105 °C

Characteristics

  • Low impedance and long life product series
  • Mounting style: V-Chip SMT
  • Capacitance range: 1 µF ‒ 6800 µF
  • Capacitance tolerance: ±20 %
  • Voltage range (UR): 6.3 ‒ 450 V(DC)
  • Operating temperature:
    -55 °C up to +105 °C for UR ≤ 100 V(DC)
    -40 °C up to +105 °C for UR > 100 V(DC)
  • Endurance: 2000 ‒ 5000 h @ +105 °C
  • Dimensions (DxL) in mm: 4.0 x 5.5 up to 16.0 x 17.0
  • Recommended soldering: Reflow soldering

Applications

  • Long life application & low impedance
  • Input and output capacitor for switched-mode power supply
  • Filtering
  • Smoothing
  • e.g. DC/DC converter, AC/DC converter, satellite receiver, control panel

Products

Order Code Data­sheet Simu­lation DownloadsCVR
(V (DC))
Endurance
(h)
Operating TemperatureIRIPPLE
(mA)
Z
(Ω)
ILeak
(µA)
DF
(%)
Ø D
(mm)
L
(mm)
Technical ReferenceDesign Kit Samples
865060640001
STE ALT EAG CAD LTS PSP CAD1 µF 50 2000 -55 °C up to +105 °C 60 4.4 3 12 4 5.5 ASEB055010M050DVCTAB000865061
865060640002
STE ALT EAG CAD LTS PSP CAD2.2 µF 50 2000 -55 °C up to +105 °C 60 3.9 3 12 4 5.5 ASEB0552R2M050DVCTAB000865061
865060640003
STE ALT EAG CAD LTS PSP CAD3.3 µF 50 2000 -55 °C up to +105 °C 60 3.9 3 12 4 5.5 ASEB0553R3M050DVCTAB000865061
865061457001
STE ALT EAG CAD LTS PSP CAD3.3 µF 450 5000 -40 °C up to +105 °C 40 114.85 20 10 10.5 ASDF1053R3M450DVCTEE000
865060540001
STE ALT EAG CAD LTS PSP CAD4.7 µF 35 2000 -55 °C up to +105 °C 90 1.9 3 14 4 5.5 ASEB0554R7M035DVCTAB000865061
865060642004
STE ALT EAG CAD LTS PSP CAD4.7 µF 50 2000 -55 °C up to +105 °C 85 1.52 3 12 5 5.5 ASEC0554R7M050DVCTBB000865061
865060742001
STE ALT EAG CAD LTS PSP CAD4.7 µF 63 2000 -55 °C up to +105 °C 50 3 3 10 5 5.5 ASEC0554R7M063DVCTBB000
865061462002
STE ALT EAG CAD LTS PSP CAD4.7 µF 450 5000 -40 °C up to +105 °C 50 121.15 20 12.5 14 ASDH1404R7M450DVCTGE000
865061462003
STE ALT EAG CAD LTS PSP CAD6.8 µF 450 5000 -40 °C up to +105 °C 60 130.6 20 12.5 14 ASDH1406R8M450DVCTGE000
865060340001
STE ALT EAG CAD LTS PSP CAD10 µF 16 2000 -55 °C up to +105 °C 90 1.35 3 16 4 5.5 ASEB055100M016DVCTAB000865060
865060440001
STE ALT EAG CAD LTS PSP CAD10 µF 25 2000 -55 °C up to +105 °C 90 1.35 3 14 4 5.5 ASEB055100M025DVCTAB000865061
865060542002
STE ALT EAG CAD LTS PSP CAD10 µF 35 2000 -55 °C up to +105 °C 150 0.8 3.5 14 5 5.5 ASEC055100M035DVCTBB000865061
865060643005
STE ALT EAG CAD LTS PSP CAD10 µF 50 2000 -55 °C up to +105 °C 165 1.4 5 12 6.3 5.5 ASED055100M050DVCTBB000865061
865060743002
STE ALT EAG CAD LTS PSP CAD10 µF 63 2000 -55 °C up to +105 °C 80 1.5 6.3 10 6.3 5.5 ASED055100M063DVCTBB000
865060845002
STE ALT EAG CAD LTS PSP CAD10 µF 100 2000 -55 °C up to +105 °C 65 3.9 10 8 6.3 7.7 ASED077100M100DVCTCB000
865061462004
STE ALT EAG CAD LTS PSP CAD10 µF 450 5000 -40 °C up to +105 °C 70 145 20 12.5 14 ASDH140100M450DVCTGE000
865061463005
STE ALT EAG CAD LTS PSP CAD15 µF 450 5000 -40 °C up to +105 °C 100 167.5 20 16 17 ASDK170150M450DVCTHE000
865060140001
STE ALT EAG CAD LTS PSP CAD22 µF 6.3 2000 -55 °C up to +105 °C 80 1.5 3 22 4 5.5 ASEB055220M6R3DVCTAB000
865060240001
STE ALT EAG CAD LTS PSP CAD22 µF 10 2000 -55 °C up to +105 °C 90 1.35 3 19 4 5.5 ASEB055220M010DVCTAB000865060
865060342002
STE ALT EAG CAD LTS PSP CAD22 µF 16 2000 -55 °C up to +105 °C 150 0.8 3.52 16 5 5.5 ASEC055220M016DVCTBB000865060
865060442002
STE ALT EAG CAD LTS PSP CAD22 µF 25 2000 -55 °C up to +105 °C 150 0.8 5.5 14 5 5.5 ASEC055220M025DVCTBB000865061
865060643006
STE ALT EAG CAD LTS PSP CAD22 µF 50 2000 -55 °C up to +105 °C 165 1.2 11 12 6.3 5.5 ASED055220M050DVCTBB000865061
865060543003
STE ALT EAG CAD LTS PSP CAD22 µF 35 2000 -55 °C up to +105 °C 230 0.44 7.7 14 6.3 5.5 ASED055220M035DVCTBB000865061
865060745003
STE ALT EAG CAD LTS PSP CAD22 µF 63 2000 -55 °C up to +105 °C 120 1 13.86 10 6.3 7.7 ASED077220M063DVCTCB000
865060853003
STE ALT EAG CAD LTS PSP CAD22 µF 100 5000 -55 °C up to +105 °C 130 1.9 22 8 8 10.5 ASEE105220M100DVCTEE000
865060140002
STE ALT EAG CAD LTS PSP CAD33 µF 6.3 2000 -55 °C up to +105 °C 85 1.35 3 22 4 5.5 ASEB055330M6R3DVCTAB000865060
865060242002
STE ALT EAG CAD LTS PSP CAD33 µF 10 2000 -55 °C up to +105 °C 160 0.8 3.3 19 5 5.5 ASEC055330M010DVCTBB000865060
865060343003
STE ALT EAG CAD LTS PSP CAD33 µF 16 2000 -55 °C up to +105 °C 230 0.44 5.28 16 6.3 5.5 ASED055330M016DVCTBB000865060
865060443003
STE ALT EAG CAD LTS PSP CAD33 µF 25 2000 -55 °C up to +105 °C 230 0.44 8.25 14 6.3 5.5 ASED055330M025DVCTBB000
865060543004
STE ALT EAG CAD LTS PSP CAD33 µF 35 2000 -55 °C up to +105 °C 240 0.44 11.55 14 6.3 5.5 ASED055330M035DVCTBB000865061
865060645007
STE ALT EAG CAD LTS PSP CAD33 µF 50 2000 -55 °C up to +105 °C 185 0.68 16.5 12 6.3 7.7 ASED077330M050DVCTCB000865061
865060753004
STE ALT EAG CAD LTS PSP CAD33 µF 63 5000 -55 °C up to +105 °C 250 0.7 20.79 10 8 10.5 ASEE105330M063DVCTEE000
865060857004
STE ALT EAG CAD LTS PSP CAD33 µF 100 5000 -55 °C up to +105 °C 200 1.25 33 8 10 10.5 ASEF105330M100DVCTEE000
865060142003
STE ALT EAG CAD LTS PSP CAD47 µF 6.3 2000 -55 °C up to +105 °C 160 0.8 3 22 5 5.5 ASEC055470M6R3DVCTBB000865060
865060343004
STE ALT EAG CAD LTS PSP CAD47 µF 16 2000 -55 °C up to +105 °C 230 0.44 7.52 16 6.3 5.5 ASED055470M016DVCTBB000865060
865060443004
STE ALT EAG CAD LTS PSP CAD47 µF 25 2000 -55 °C up to +105 °C 230 0.44 11.75 14 6.3 5.5 ASED055470M025DVCTBB000
865060243003
STE ALT EAG CAD LTS PSP CAD47 µF 10 2000 -55 °C up to +105 °C 230 0.44 4.7 19 6.3 5.5 ASED055470M010DVCTBB000865060
865060543005
STE ALT EAG CAD LTS PSP CAD47 µF 35 2000 -55 °C up to +105 °C 240 0.44 16.45 14 6.3 5.5 ASED055470M035DVCTBB000865061
865060645008
STE ALT EAG CAD LTS PSP CAD47 µF 50 2000 -55 °C up to +105 °C 185 0.68 23.5 12 6.3 7.7 ASED077470M050DVCTCB000865061
865060753005
STE ALT EAG CAD LTS PSP CAD47 µF 63 5000 -55 °C up to +105 °C 280 0.65 29.61 10 8 10.5 ASEE105470M063DVCTEE000
865060857005
STE ALT EAG CAD LTS PSP CAD47 µF 100 5000 -55 °C up to +105 °C 390 0.95 47 8 10 10.5 ASEF105470M100DVCTEE000
865060653009
STE ALT EAG CAD LTS PSP CAD68 µF 50 5000 -55 °C up to +105 °C 300 0.34 34 12 8 10.5 ASEE105680M050DVCTEE000865061
865060757006
STE ALT EAG CAD LTS PSP CAD68 µF 63 5000 -55 °C up to +105 °C 400 0.38 42.84 10 10 10.5 ASEF105680M063DVCTEE000
865060862006
STE ALT EAG CAD LTS PSP CAD68 µF 100 5000 -55 °C up to +105 °C 600 0.7 68 8 12.5 14 ASEH140680M100DVCTGE000
865060343005
STE ALT EAG CAD LTS PSP CAD100 µF 16 2000 -55 °C up to +105 °C 255 0.44 16 16 6.3 5.5 ASED055101M016DVCTBB000865060
865060143004
STE ALT EAG CAD LTS PSP CAD100 µF 6.3 2000 -55 °C up to +105 °C 240 0.44 6.3 22 6.3 5.5 ASED055101M6R3DVCTBB000
865060243004
STE ALT EAG CAD LTS PSP CAD100 µF 10 2000 -55 °C up to +105 °C 240 0.44 10 19 6.3 5.5 ASED055101M010DVCTBB000865060
865060445005
STE ALT EAG CAD LTS PSP CAD100 µF 25 2000 -55 °C up to +105 °C 300 0.36 25 14 6.3 7.7 ASED077101M025DVCTCB000865061
865060653010
STE ALT EAG CAD LTS PSP CAD100 µF 50 5000 -55 °C up to +105 °C 350 0.34 50 12 8 10.5 ASEE105101M050DVCTEE000
865060553006
STE ALT EAG CAD LTS PSP CAD100 µF 35 5000 -55 °C up to +105 °C 450 0.17 35 14 8 10.5 ASEE105101M035DVCTEE000865061
865060757007
STE ALT EAG CAD LTS PSP CAD100 µF 63 5000 -55 °C up to +105 °C 420 0.24 63 10 10 10.5 ASEF105101M063DVCTEE000
865060143005
STE ALT EAG CAD LTS PSP CAD150 µF 6.3 2000 -55 °C up to +105 °C 240 0.44 9.45 22 6.3 5.5 ASED055151M6R3DVCTBB000865060
865060243005
STE ALT EAG CAD LTS PSP CAD150 µF 10 2000 -55 °C up to +105 °C 250 0.44 15 19 6.3 5.5 ASED055151M010DVCTBB000865060
865060345006
STE ALT EAG CAD LTS PSP CAD150 µF 16 2000 -55 °C up to +105 °C 280 0.36 24 16 6.3 7.7 ASED077151M016DVCTCB000865060
865060453006
STE ALT EAG CAD LTS PSP CAD150 µF 25 5000 -55 °C up to +105 °C 500 0.17 37.5 14 8 10.5 ASEE105151M025DVCTEE000865061
865060553007
STE ALT EAG CAD LTS PSP CAD150 µF 35 5000 -55 °C up to +105 °C 550 0.17 52.5 14 8 10.5 ASEE105151M035DVCTEE000865061
865060657011
STE ALT EAG CAD LTS PSP CAD150 µF 50 5000 -55 °C up to +105 °C 555 0.25 75 12 10 10.5 ASEF105151M050DVCTEE000865061
865060762008
STE ALT EAG CAD LTS PSP CAD150 µF 63 5000 -55 °C up to +105 °C 800 0.18 94.5 10 12.5 14 ASEH140151M063DVCTGE000
865060345007
STE ALT EAG CAD LTS PSP CAD220 µF 16 2000 -55 °C up to +105 °C 280 0.36 35.2 16 6.3 7.7 ASED077221M016DVCTCB000865060
865060145006
STE ALT EAG CAD LTS PSP CAD220 µF 6.3 2000 -55 °C up to +105 °C 280 0.36 13.86 22 6.3 7.7 ASED077221M6R3DVCTCB000865060
865060245006
STE ALT EAG CAD LTS PSP CAD220 µF 10 2000 -55 °C up to +105 °C 300 0.36 22 19 6.3 7.7 ASED077221M010DVCTCB000865060
865060453007
STE ALT EAG CAD LTS PSP CAD220 µF 25 5000 -55 °C up to +105 °C 550 0.17 55 14 8 10.5 ASEE105221M025DVCTEE000865061
865060657012
STE ALT EAG CAD LTS PSP CAD220 µF 50 5000 -55 °C up to +105 °C 600 0.23 110 12 10 10.5 ASEF105221M050DVCTEE000865061
865060557008
STE ALT EAG CAD LTS PSP CAD220 µF 35 5000 -55 °C up to +105 °C 670 0.09 77 14 10 10.5 ASEF105221M035DVCTEE000865061
865060762009
STE ALT EAG CAD LTS PSP CAD220 µF 63 5000 -55 °C up to +105 °C 830 0.16 138.6 10 12.5 14 ASEH140221M063DVCTGE000
865060353008
STE ALT EAG CAD LTS PSP CAD330 µF 16 5000 -55 °C up to +105 °C 550 0.17 52.8 16 8 10.5 ASEE105331M016DVCTEE000865060
865060453008
STE ALT EAG CAD LTS PSP CAD330 µF 25 5000 -55 °C up to +105 °C 600 0.17 82.5 14 8 10.5 ASEE105331M025DVCTEE000865061
865060153007
STE ALT EAG CAD LTS PSP CAD330 µF 6.3 5000 -55 °C up to +105 °C 450 0.17 20.79 22 8 10.5 ASEE105331M6R3DVCTEE000865060
865060253007
STE ALT EAG CAD LTS PSP CAD330 µF 10 5000 -55 °C up to +105 °C 500 0.17 33 19 8 10.5 ASEE105331M010DVCTEE000865060
865060353009
STE ALT EAG CAD LTS PSP CAD470 µF 16 5000 -55 °C up to +105 °C 600 0.17 75.2 16 8 10.5 ASEE105471M016DVCTEE000865060
865060153008
STE ALT EAG CAD LTS PSP CAD470 µF 6.3 5000 -55 °C up to +105 °C 500 0.17 29.61 22 8 10.5 ASEE105471M6R3DVCTEE000865060
865060253008
STE ALT EAG CAD LTS PSP CAD470 µF 10 5000 -55 °C up to +105 °C 550 0.17 47 19 8 10.5 ASEE105471M010DVCTEE000865060
865060457009
STE ALT EAG CAD LTS PSP CAD470 µF 25 5000 -55 °C up to +105 °C 670 0.09 117.5 14 10 10.5 ASEF105471M025DVCTEE000865061
865060562009
STE ALT EAG CAD LTS PSP CAD470 µF 35 5000 -55 °C up to +105 °C 1150 0.066 164.5 14 12.5 14 ASEH140471M035DVCTGE000865061
865060663013
STE ALT EAG CAD LTS PSP CAD470 µF 50 5000 -55 °C up to +105 °C 1610 0.073 235 12 16 17 ASEK170471M050DVCTHE000865061
865060763010
STE ALT EAG CAD LTS PSP CAD470 µF 63 5000 -55 °C up to +105 °C 1410 0.082 296.1 10 16 17 ASEK170471M063DVCTHE000
865060153009
STE ALT EAG CAD LTS PSP CAD680 µF 6.3 5000 -55 °C up to +105 °C 550 0.17 42.84 22 8 10.5 ASEE105681M6R3DVCTEE000865060
865060357010
STE ALT EAG CAD LTS PSP CAD680 µF 16 5000 -55 °C up to +105 °C 750 0.09 108.8 16 10 10.5 ASEF105681M016DVCTEE000865060
865060257009
STE ALT EAG CAD LTS PSP CAD680 µF 10 5000 -55 °C up to +105 °C 690 0.09 68 19 10 10.5 ASEF105681M010DVCTEE000865060
865060562010
STE ALT EAG CAD LTS PSP CAD680 µF 35 5000 -55 °C up to +105 °C 1150 0.066 238 14 12.5 14 ASEH140681M035DVCTGE000865061
865060663014
STE ALT EAG CAD LTS PSP CAD680 µF 50 5000 -55 °C up to +105 °C 1610 0.073 340 12 16 17 ASEK170681M050DVCTHE000865061
865060153010
STE ALT EAG CAD LTS PSP CAD1000 µF 6.3 5000 -55 °C up to +105 °C 550 0.17 63 22 8 10.5 ASEE105102M6R3DVCTEE000865060
865060257010
STE ALT EAG CAD LTS PSP CAD1000 µF 10 5000 -55 °C up to +105 °C 690 0.09 100 19 10 10.5 ASEF105102M010DVCTEE000865060
865060462010
STE ALT EAG CAD LTS PSP CAD1000 µF 25 5000 -55 °C up to +105 °C 1150 0.066 250 14 12.5 14 ASEH140102M025DVCTGE000865061
865060663015
STE ALT EAG CAD LTS PSP CAD1000 µF 50 5000 -55 °C up to +105 °C 1610 0.073 500 12 16 17 ASEK170102M050DVCTHE000865061
865060563011
STE ALT EAG CAD LTS PSP CAD1000 µF 35 5000 -55 °C up to +105 °C 1800 0.066 350 14 16 17 ASEK170102M035DVCTHE000865061
865060157011
STE ALT EAG CAD LTS PSP CAD1500 µF 6.3 5000 -55 °C up to +105 °C 690 0.09 94.5 22 10 10.5 ASEF105152M6R3DVCTEE000865060
865060362011
STE ALT EAG CAD LTS PSP CAD1500 µF 16 5000 -55 °C up to +105 °C 1150 0.066 240 16 12.5 14 ASEH140152M016DVCTGE000865060
865060563012
STE ALT EAG CAD LTS PSP CAD1500 µF 35 5000 -55 °C up to +105 °C 1800 0.066 525 14 16 17 ASEK170152M035DVCTHE000865061
865060262011
STE ALT EAG CAD LTS PSP CAD2200 µF 10 5000 -55 °C up to +105 °C 1150 0.066 220 19 12.5 14 ASEH140222M010DVCTGE000865060
865060463011
STE ALT EAG CAD LTS PSP CAD2200 µF 25 5000 -55 °C up to +105 °C 1800 0.035 550 14 16 17 ASEK170222M025DVCTHE000865061
865060162012
STE ALT EAG CAD LTS PSP CAD3300 µF 6.3 5000 -55 °C up to +105 °C 1150 0.066 207.9 22 12.5 14 ASEH140332M6R3DVCTGE000865060
865060363012
STE ALT EAG CAD LTS PSP CAD3300 µF 16 5000 -55 °C up to +105 °C 1800 0.035 528 16 16 17 ASEK170332M016DVCTHE000865060
865060263012
STE ALT EAG CAD LTS PSP CAD4700 µF 10 5000 -55 °C up to +105 °C 1800 0.035 470 19 16 17 ASEK170472M010DVCTHE000865060
865060163013
STE ALT EAG CAD LTS PSP CAD6800 µF 6.3 5000 -55 °C up to +105 °C 1800 0.035 428.4 22 16 17 ASEK170682M6R3DVCTHE000865060
