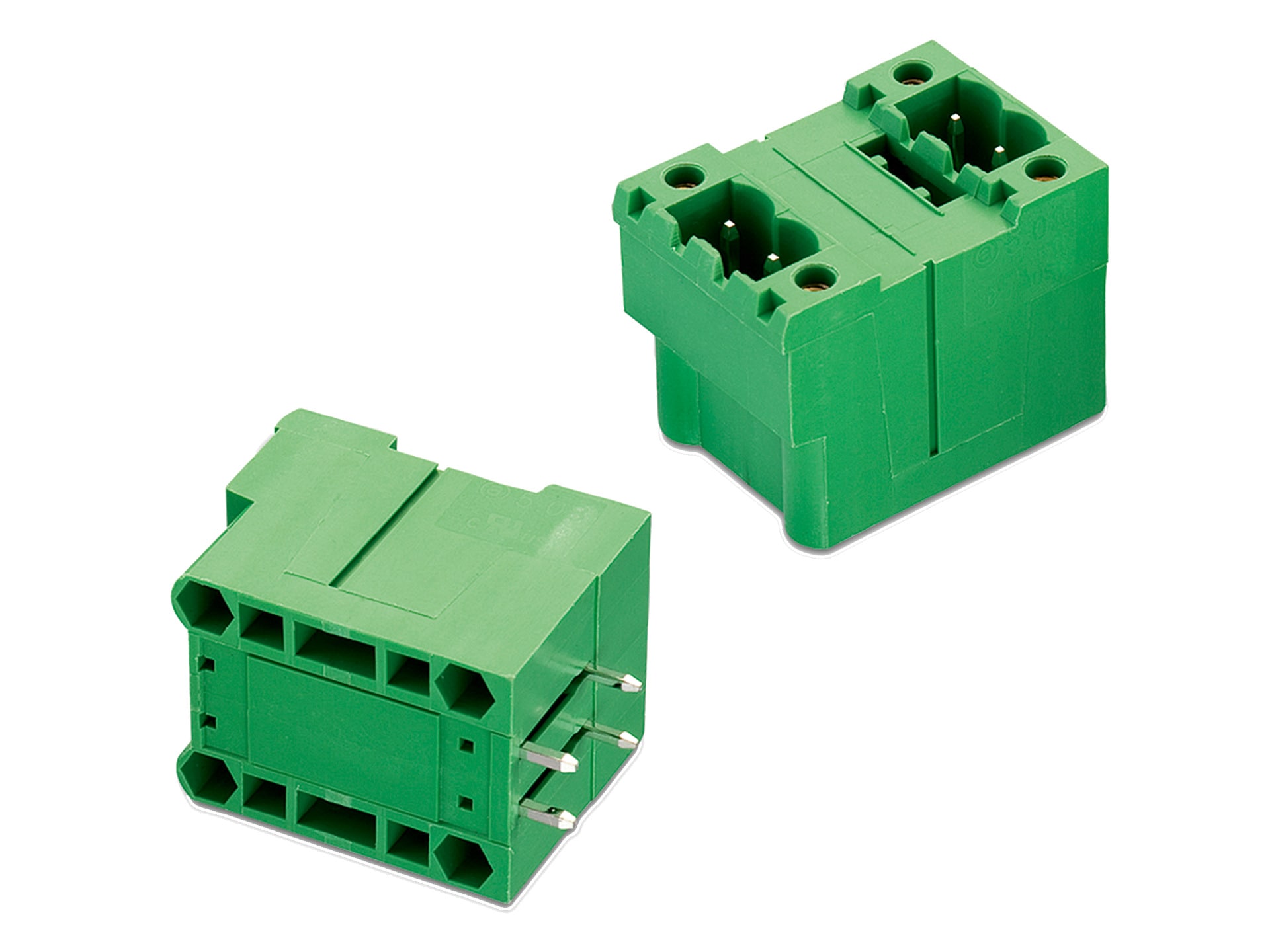

WR-TBL Series 3325 - 5.08 mm Double Level Horizontal Male PCB Header with Flanges & Nut Type

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	20 A
I_R[cULus]	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
R_C	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Samples
691332510004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691332510004_1 (rev1).pdf \| 250.1 KB IGS 691332510004 (rev1).igs \| 2.3 MB STP 691332510004 (rev1).stp \| 910.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	PCB	No	Horizontal
691332510006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691332510006_1 (rev1).pdf \| 312.9 KB IGS 691332510006 (rev1).igs \| 3 MB STP 691332510006 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	PCB	No	Horizontal
691332510008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691332510008_1 (rev1).pdf \| 370.4 KB IGS 691332510008 (rev1).igs \| 3.7 MB STP 691332510008 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	PCB	No	Horizontal
691332510010	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691332510010_1 (rev1).pdf \| 424.9 KB IGS 691332510010 (rev1).igs \| 4.4 MB STP 691332510010 (rev1).stp \| 1.7 MB	Active i\| Production is active. Expected lifetime: >10 years.	10	Pluggable	PCB	No	Horizontal
691332510012	SPEC	8 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691332510012_1 (rev1).pdf \| 485.9 KB IGS 691332510012 (rev1).iges \| 5.1 MB IGS 691332510012 (rev1).igs \| 5.1 MB STP 691332510012 (rev1).stp \| 1.9 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	PCB	No	Horizontal
691332510016	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691332510016_1 (rev1).pdf \| 607 KB IGS 691332510016 (rev1).igs \| 6.5 MB STP 691332510016 (rev1).stp \| 2.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	16	Pluggable	PCB	No	Horizontal

Order Code	Datasheet
691332510004	SPEC
691332510006	SPEC
691332510008	SPEC
691332510010	SPEC
691332510012	SPEC
691332510016	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Samples

WR-TBL Pluggable Types

Würth Elektronik pluggable type terminal blocks are available in different pitches and pincounts and offer large and modular terminal block possibilities in order to fulfil most of the requirements which can be found in the industrial marketplace.

Mates with

WR-TBL Series 351 - 5.08 mm Vertical

WR-TBL Series 3405 - 5.08 mm Vertical with Flanges

WR-TBL Series 3435 - 5.08 mm Horizontal with Flanges and Hook on Wire Side

WR-TBL Series 3455 - 5.08 mm Horizontal with Flanges & Hook on Back Side

WR-TBL 374B - Plug with Excenter Clamp 5.08mm pitch - Vertical cable entry with Flanges - Cable
