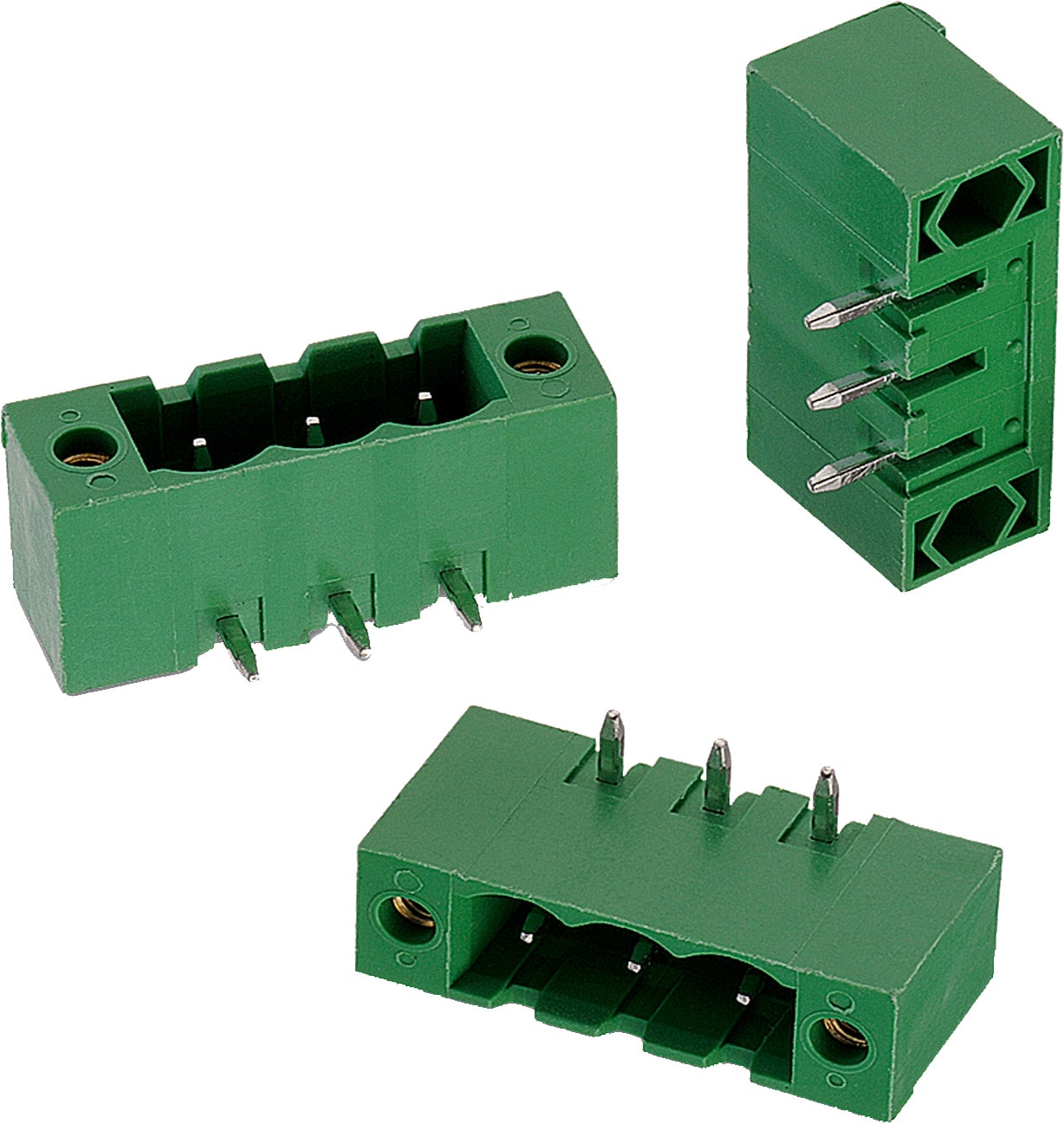

WR-TBL Series 3175 - 5.08 mm Close Horizontal PCB Header with Flanges | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Contact Plating	Tin
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R	15 A
I_R[cULus]	15 A
I_R[VDE]	15 A
Working Voltage	250 V (AC); 300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	250 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
VDE Approval	40023195

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691317510002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691317510002 (rev1).pdf \| 160.3 KB IGS 691317510002 (rev1).iges \| 990.4 KB STP 691317510002 (rev1).stp \| 364.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	PCB Header	PCB	No	Closed Horizontal Plug entry	691002
691317510003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691317510003 (rev1).pdf \| 179.8 KB IGS 691317510003 (rev1).iges \| 1.2 MB STP 691317510003 (rev1).stp \| 442.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	PCB Header	PCB	No	Closed Horizontal Plug entry	–
691317510004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691317510004 (rev1).pdf \| 199.9 KB IGS 691317510004 (rev1).iges \| 1.4 MB STP 691317510004 (rev1).stp \| 520.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	PCB Header	PCB	No	Closed Horizontal Plug entry	–
691317510005	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691317510005 (rev1).pdf \| 226.8 KB IGS 691317510005 (rev1).iges \| 1.6 MB STP 691317510005 (rev1).stp \| 598.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	PCB Header	PCB	No	Closed Horizontal Plug entry	–
691317510006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691317510006 (rev1).pdf \| 244.1 KB IGS 691317510006 (rev1).iges \| 1.8 MB STP 691317510006 (rev1).stp \| 678.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	PCB Header	PCB	No	Closed Horizontal Plug entry	–
691317510007	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691317510007 (rev1).pdf \| 258.7 KB IGS Download_IGES_691317510007 (rev1).iges \| 2 MB STP Download_STP_691317510007 (rev1).stp \| 759.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	PCB Header	PCB	No	Closed Horizontal Plug entry	–
691317510008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691317510008 (rev1).pdf \| 279.3 KB IGS 691317510008 (rev1).iges \| 2.2 MB STP 691317510008 (rev1).stp \| 839.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	PCB Header	PCB	No	Closed Horizontal Plug entry	–
691317510012	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691317510012 (rev1).pdf \| 381.9 KB IGS Download_IGES_691317510012 (rev1).iges \| 3.1 MB STP Download_STP_691317510012 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	PCB Header	PCB	No	Closed Horizontal Plug entry	–

Order Code	Datasheet
691317510002	SPEC
691317510003	SPEC
691317510004	SPEC
691317510005	SPEC
691317510006	SPEC
691317510007	SPEC
691317510008	SPEC
691317510012	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit	Samples
