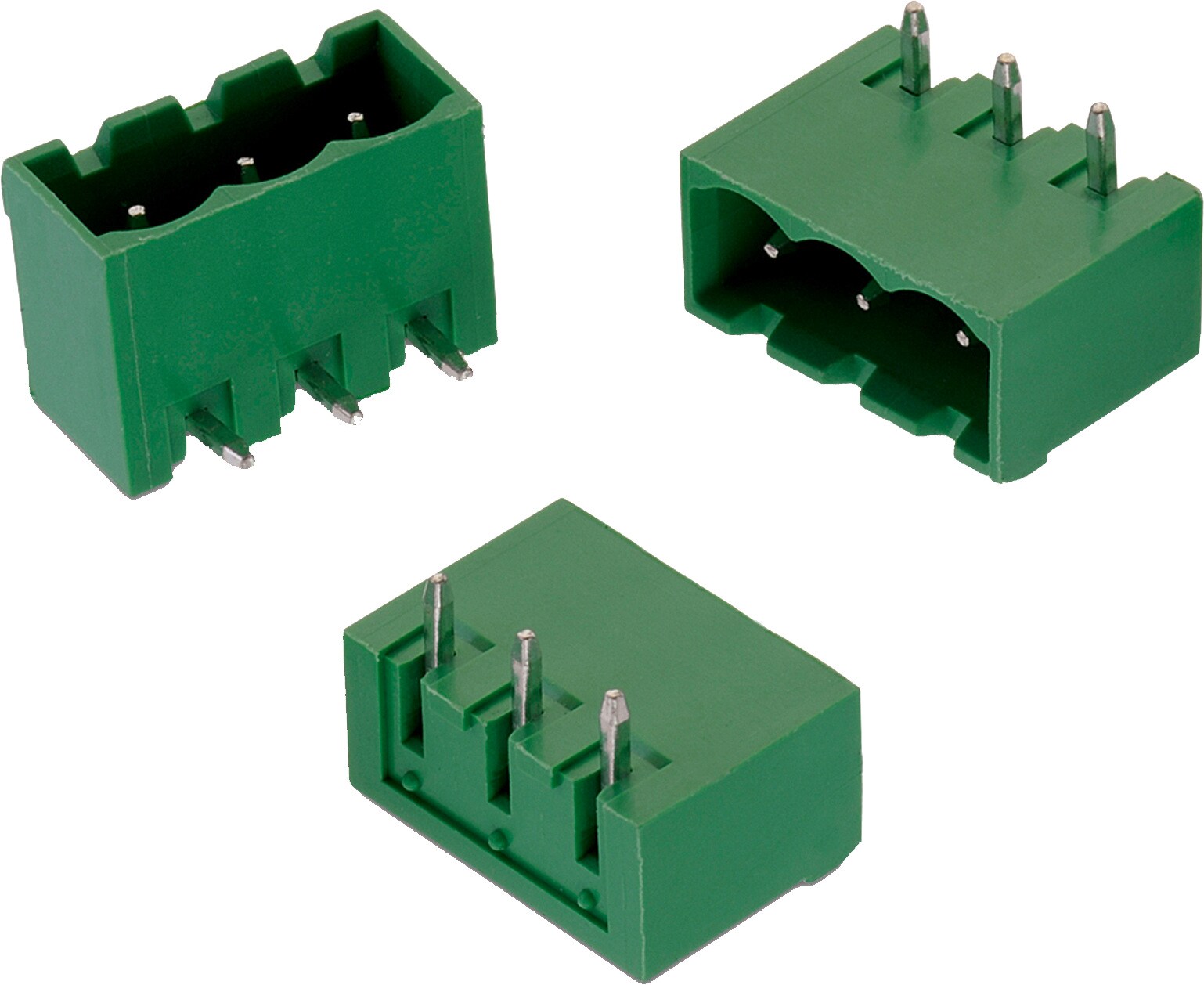

WR-TBL Series 313 - 5.08 mm Close Horizontal PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5.08 mm

Material Properties
Insulator Material	PA66; PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Contact Plating	Tin
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R	20 A
I_R[cULus]	20 A
I_R[VDE]	20 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Working Voltage [VDE]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2500 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
VDE Approval	40023195 [Model number 313]

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type	Design Kit
691313510002	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510002_1 (rev1).pdf \| 72.4 KB IGS 691313510002 (rev1).igs \| 594.8 KB STP 691313510002 (rev1).stp \| 230.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	PCB	No	Horizontal	691002
691313510003	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510003_1 (rev1).pdf \| 91.5 KB IGS 691313510003 (rev1).igs \| 808.7 KB STP 691313510003 (rev1).stp \| 308.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	PCB	No	Horizontal	–
691313510004	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691313510004 (rev1).pdf \| 112.1 KB IGS Download_IGES_691313510004 (rev1).iges \| 1021.4 KB STP Download_STP_691313510004 (rev1).stp \| 386.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	PCB	No	Horizontal	–
691313510005	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510005_1 (rev1).pdf \| 132.2 KB IGS 691313510005 (rev1).igs \| 1.2 MB STP 691313510005 (rev1).stp \| 464.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	PCB	No	Horizontal	–
691313510006	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691313510006 (rev1).pdf \| 156.6 KB IGS Download_IGES_691313510006 (rev1).iges \| 1.4 MB STP Download_STP_691313510006 (rev1).stp \| 542.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	PCB	No	Horizontal	–
691313510007	SPEC	8 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510007_1 (rev1).pdf \| 178.9 KB IGS 691313510007 (rev1).iges \| 1.6 MB IGS 691313510007 (rev1).igs \| 1.6 MB STP 691313510007 (rev1).stp \| 622 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	PCB	No	Horizontal	–
691313510008	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510008_1 (rev1).pdf \| 194.3 KB IGS 691313510008 (rev1).igs \| 1.8 MB STP 691313510008 (rev1).stp \| 702.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	PCB	No	Horizontal	–
691313510009	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510009_1 (rev1).pdf \| 209.1 KB IGS 691313510009 (rev1).igs \| 2.1 MB STP 691313510009 (rev1).stp \| 782.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	9	Pluggable	PCB	No	Horizontal	–
691313510010	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510010_1 (rev1).pdf \| 230.8 KB IGS 691313510010 (rev1).igs \| 2.3 MB STP 691313510010 (rev1).stp \| 863.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Pluggable	PCB	No	Horizontal	–
691313510011	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510011_1 (rev1).pdf \| 252.8 KB IGS 691313510011 (rev1).igs \| 2.5 MB STP 691313510011 (rev1).stp \| 944.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	11	Pluggable	PCB	No	Horizontal	–
691313510012	SPEC	8 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510012_1 (rev1).pdf \| 300.7 KB IGS 691313510012 (rev1).iges \| 2.7 MB IGS 691313510012 (rev1).igs \| 2.7 MB STP 691313510012 (rev1).stp \| 1 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	PCB	No	Horizontal	–
691313510013	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510013_1 (rev1).pdf \| 322.1 KB IGS 691313510013 (rev1).igs \| 2.9 MB STP 691313510013 (rev1).stp \| 1.1 MB	Active i\| Production is active. Expected lifetime: >10 years.	13	Pluggable	PCB	No	Horizontal	–
691313510014	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510014_1 (rev1).pdf \| 334 KB IGS 691313510014 (rev1).igs \| 3.1 MB STP 691313510014 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	14	Pluggable	PCB	No	Horizontal	–
691313510015	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510015_1 (rev1).pdf \| 357.2 KB IGS 691313510015 (rev1).igs \| 3.4 MB STP 691313510015 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	15	Pluggable	PCB	No	Horizontal	–
691313510016	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510016_1 (rev1).pdf \| 363.1 KB IGS 691313510016 (rev1).igs \| 3.6 MB STP 691313510016 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	16	Pluggable	PCB	No	Horizontal	–
691313510017	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510017_1 (rev1).pdf \| 385.4 KB IGS 691313510017 (rev1).igs \| 3.8 MB STP 691313510017 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	17	Pluggable	PCB	No	Horizontal	–
691313510018	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510018_1 (rev1).pdf \| 407.6 KB IGS 691313510018 (rev1).igs \| 4 MB STP 691313510018 (rev1).stp \| 1.5 MB	Active i\| Production is active. Expected lifetime: >10 years.	18	Pluggable	PCB	No	Horizontal	–
691313510019	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510019_1 (rev1).pdf \| 427.7 KB IGS 691313510019 (rev1).igs \| 4.2 MB STP 691313510019 (rev1).stp \| 1.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	19	Pluggable	PCB	No	Horizontal	–
691313510020	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510020_1 (rev1).pdf \| 451.7 KB IGS 691313510020 (rev1).igs \| 4.4 MB STP 691313510020 (rev1).stp \| 1.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	20	Pluggable	PCB	No	Horizontal	–
691313510021	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510021_1 (rev1).pdf \| 467.3 KB IGS 691313510021 (rev1).igs \| 4.7 MB STP 691313510021 (rev1).stp \| 1.7 MB	Active i\| Production is active. Expected lifetime: >10 years.	21	Pluggable	PCB	No	Horizontal	–
691313510022	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510022_1 (rev1).pdf \| 491.4 KB IGS 691313510022 (rev1).igs \| 4.9 MB STP 691313510022 (rev1).stp \| 1.8 MB	Active i\| Production is active. Expected lifetime: >10 years.	22	Pluggable	PCB	No	Horizontal	–
691313510023	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510023_1 (rev1).pdf \| 511.2 KB IGS 691313510023 (rev1).igs \| 5.1 MB STP 691313510023 (rev1).stp \| 1.9 MB	Active i\| Production is active. Expected lifetime: >10 years.	23	Pluggable	PCB	No	Horizontal	–
691313510024	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25c).IntLib \| 108.4 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691313510024_1 (rev1).pdf \| 535.9 KB IGS 691313510024 (rev1).igs \| 5.3 MB STP 691313510024 (rev1).stp \| 1.9 MB	Active i\| Production is active. Expected lifetime: >10 years.	24	Pluggable	PCB	No	Horizontal	–

Order Code	Datasheet
691313510002	SPEC
691313510003	SPEC
691313510004	SPEC
691313510005	SPEC
691313510006	SPEC
691313510007	SPEC
691313510008	SPEC
691313510009	SPEC
691313510010	SPEC
691313510011	SPEC
691313510012	SPEC
691313510013	SPEC
691313510014	SPEC
691313510015	SPEC
691313510016	SPEC
691313510017	SPEC
691313510018	SPEC
691313510019	SPEC
691313510020	SPEC
691313510021	SPEC
691313510022	SPEC
691313510023	SPEC
691313510024	SPEC
