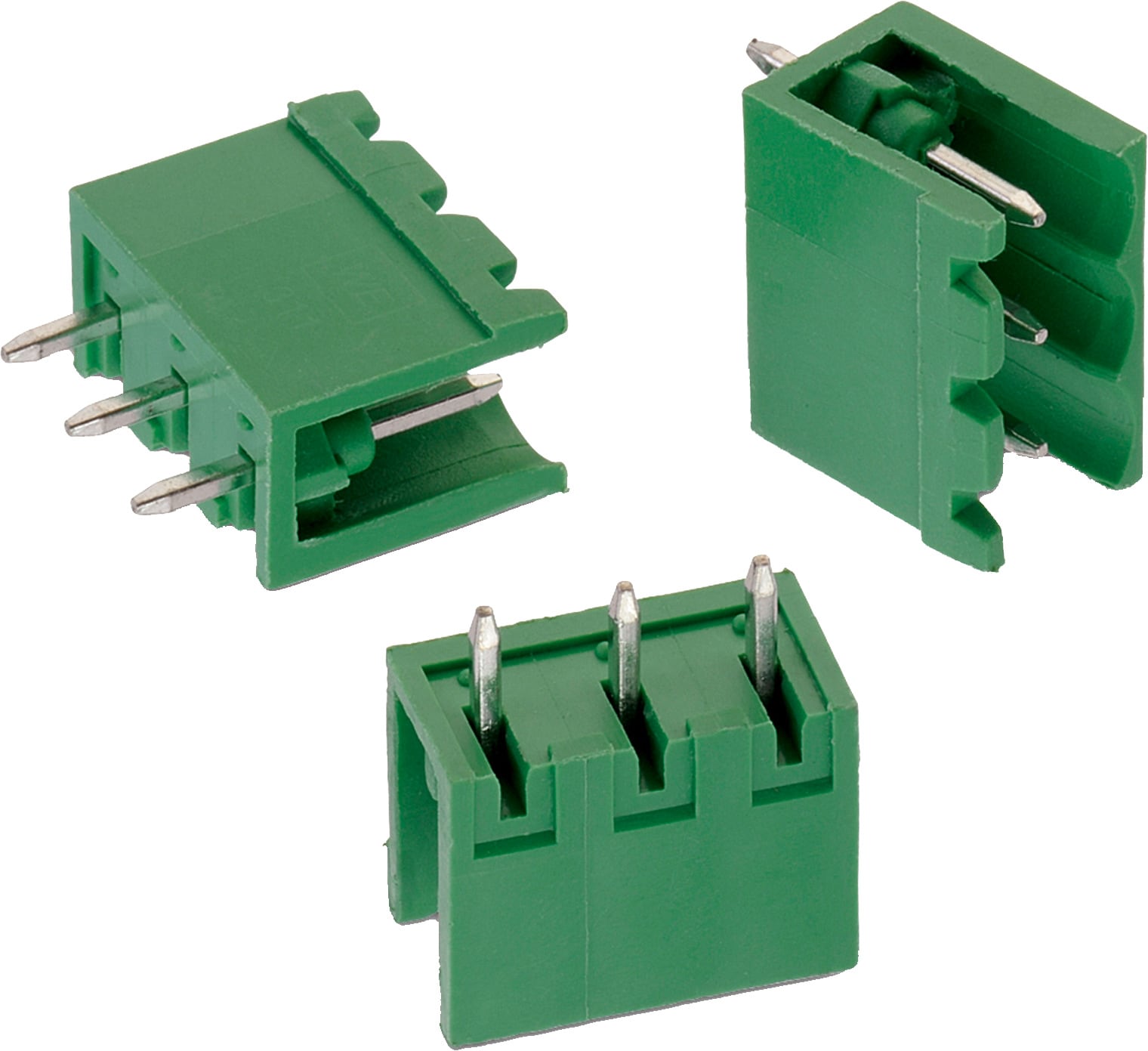

WR-TBL Series 311 - 5.08 mm Open Vertical PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Brass
Contact Plating	Tin
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_R	15 A
I_R[cULus]	15 A
I_R[VDE]	15 A
Working Voltage	300 V; 320 V
Working Voltage [cULus]	300 V
Working Voltage [VDE]	320 V
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	2200 V (AC)
R_C	20 mΩ
R_C	20 mΩ

Certification
cULus Approval	E315414
VDE Approval	40061301

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Design Kit	SamplesAvailability & Sample
691311500002	SPEC2, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500002_1 (rev1).pdf \| 71.1 KB IGS 691311500002 (rev1).igs \| 569.4 KB STP 691311500002 (rev1).stp \| 218.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500003	SPEC3, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500003_1 (rev1).pdf \| 91 KB IGS 691311500003 (rev1).igs \| 778.1 KB STP 691311500003 (rev1).stp \| 296.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit 691002	–Check availability
691311500004	SPEC4, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500004_1 (rev1).pdf \| 112.7 KB IGS 691311500004 (rev1).igs \| 990.1 KB STP 691311500004 (rev1).stp \| 374.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500005	SPEC5, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500005_1 (rev1).pdf \| 130.1 KB IGS 691311500005 (rev1).igs \| 1.2 MB STP 691311500005 (rev1).stp \| 452.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500006	SPEC6, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500006_1 (rev1).pdf \| 149.7 KB IGS 691311500006 (rev1).igs \| 1.4 MB STP 691311500006 (rev1).stp \| 530.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500007	SPEC7, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500007_1 (rev1).pdf \| 178.3 KB IGS 691311500007 (rev1).igs \| 1.6 MB STP 691311500007 (rev1).stp \| 609.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500008	SPEC8, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500008_1 (rev1).pdf \| 192.2 KB IGS 691311500008 (rev1).igs \| 1.8 MB STP 691311500008 (rev1).stp \| 689.9 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500009	SPEC9, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500009_1 (rev1).pdf \| 207 KB IGS 691311500009 (rev1).igs \| 2 MB STP 691311500009 (rev1).stp \| 770.3 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500010	SPEC10, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500010_1 (rev1).pdf \| 228.7 KB IGS 691311500010 (rev1).igs \| 2.2 MB STP 691311500010 (rev1).stp \| 851.1 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500011	SPEC11, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500011_1 (rev1).pdf \| 250.7 KB IGS 691311500011 (rev1).igs \| 2.4 MB STP 691311500011 (rev1).stp \| 932.2 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins11	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500012	SPEC12, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500012_1 (rev1).pdf \| 298.6 KB IGS 691311500012 (rev1).igs \| 2.7 MB STP 691311500012 (rev1).stp \| 1013.7 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins12	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500013	SPEC13, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500013_1 (rev1).pdf \| 320 KB IGS 691311500013 (rev1).igs \| 2.9 MB STP 691311500013 (rev1).stp \| 1.1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins13	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500014	SPEC14, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500014_1 (rev1).pdf \| 331.9 KB IGS 691311500014 (rev1).igs \| 3.1 MB STP 691311500014 (rev1).stp \| 1.1 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins14	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500015	SPEC15, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500015_1 (rev1).pdf \| 355.1 KB IGS 691311500015 (rev1).igs \| 3.3 MB STP 691311500015 (rev1).stp \| 1.2 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins15	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500016	SPEC16, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500016_1 (rev1).pdf \| 378.5 KB IGS 691311500016 (rev1).igs \| 3.5 MB STP 691311500016 (rev1).stp \| 1.3 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins16	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500017	SPEC17, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500017_1 (rev1).pdf \| 383.2 KB IGS 691311500017 (rev1).igs \| 3.7 MB STP 691311500017 (rev1).stp \| 1.4 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins17	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500018	SPEC18, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500018_1 (rev1).pdf \| 405.5 KB IGS 691311500018 (rev1).igs \| 4 MB STP 691311500018 (rev1).stp \| 1.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins18	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500019	SPEC19, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500019_1 (rev1).pdf \| 425.6 KB IGS 691311500019 (rev1).igs \| 4.2 MB STP 691311500019 (rev1).stp \| 1.5 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins19	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500020	SPEC20, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500020_1 (rev1).pdf \| 449.6 KB IGS 691311500020 (rev1).igs \| 4.4 MB STP 691311500020 (rev1).stp \| 1.6 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins20	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500021	SPEC21, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500021_1 (rev1).pdf \| 469.8 KB IGS 691311500021 (rev1).igs \| 4.6 MB STP 691311500021 (rev1).stp \| 1.7 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins21	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500022	SPEC22, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500022_1 (rev1).pdf \| 489.3 KB IGS 691311500022 (rev1).igs \| 4.8 MB STP 691311500022 (rev1).stp \| 1.8 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins22	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500023	SPEC23, PCB Header, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500023_1 (rev1).pdf \| 509.1 KB IGS 691311500023 (rev1).igs \| 5 MB STP 691311500023 (rev1).stp \| 1.9 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins23	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
691311500024	SPEC24, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 691311500024_1 (rev1).pdf \| 533.7 KB IGS 691311500024 (rev1).igs \| 5.3 MB STP 691311500024 (rev1).stp \| 1.9 MB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins24	PCB/Cable/PanelPCB	ModularityNo	TypeOpen Vertical Plug entry	Design Kit –	–Check availability
