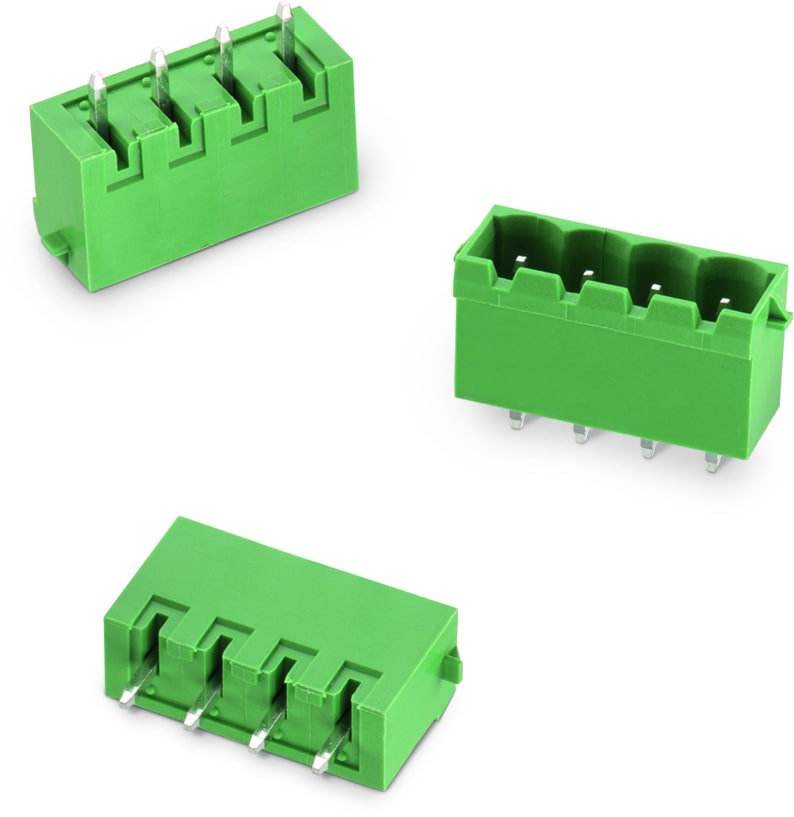

WR-TBL Series 3055 - 5,08 mm - PCB Header Vertical Entry with Plastic Latches | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Terminal Material	Copper Alloy
Terminal Plating	Tin-plated surface

Electrical Properties
I_R	16 A
I_R[cULus]	16 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	2500 V (AC)
R_C	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Design Kit	SamplesAvailability & Sample
691305530002	SPEC2, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691305530002 (rev1).pdf \| 71.5 KB IGS Download_IGES_691305530002 (rev1).iges \| 658.3 KB STP Download_STEP_ 691305530002 (rev1).stp \| 144.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Design Kit –	–Check availability
691305530003	SPEC3, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691305530003 (rev1).pdf \| 93.7 KB IGS Download_IGES_691305530003 (rev1).iges \| 877.6 KB STP Download_STEP_691305530003 (rev1).stp \| 194.6 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Design Kit 691002	–Check availability
691305530004	SPEC4, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691305530004 (rev1).pdf \| 112.5 KB IGS Download_IGES_691305530004 (rev1).iges \| 1.1 MB STP Download_STEP_691305530004 (rev1).stp \| 239.9 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Design Kit –	–Check availability
691305530005	SPEC5, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691305530005 (rev1).pdf \| 132.7 KB IGS Download_IGES_691305530005 (rev1).iges \| 1.3 MB STP Download_STEP_691305530005 (rev1).stp \| 279.5 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Design Kit –	–Check availability
691305530006	SPEC6, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_69130550006 (rev1).pdf \| 147.3 KB IGS Download_IGES_691305530006 (rev1).iges \| 1.5 MB STP Download_STEP_691305530006 (rev1).stp \| 324.9 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Design Kit –	–Check availability
691305530007	SPEC7, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691305530007 (rev1).pdf \| 162.6 KB IGS Download_IGES_691305530007 (rev1).iges \| 1.7 MB STP Download_STEP_691305530007 (rev1).stp \| 370 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Design Kit –	–Check availability
691305530008	SPEC8, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691305530008 (rev1).pdf \| 183.9 KB IGS Download_IGES_691305530008 (rev1).iges \| 1.9 MB STP Download_STEP_691305530008 (rev1).stp \| 413.4 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Design Kit –	–Check availability
691305530009	SPEC9, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691305530009 (rev1).pdf \| 196.1 KB IGS Download_IGES_619305530009 (rev1).iges \| 2.1 MB STP Download_STEP_691305530009 (rev1).stp \| 460.1 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Design Kit –	–Check availability
691305530010	SPEC10, Pluggable, PCB	Availability –	Downloads6 files EDA models: Components ZIP ALT Altium_WR-TBL_Pluggable Connector (rev25d).IntLib \| 121.1 MB CDS Cadence_WR-TBL (rev25b).zip \| 422.6 MB EAG Eagle_WR-TBL-Pluggable-Connector (rev25b).lbr \| 4.8 MB CAD files ZIP 3D 3D_691305530010 (rev1).pdf \| 216.2 KB IGS Download_IGES_691305530010 (rev1).iges \| 2.3 MB STP Download_STEP_6913055300010 (rev1).stp \| 505.1 KB	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	PCB/Cable/PanelPCB	ModularityNo	TypeVertical	Design Kit –	–Check availability

Expected Availability	Opening inventory	Quantity
Current Availability	–	–

Tailored to your needs

Custom & Standard Terminal Blocks

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
