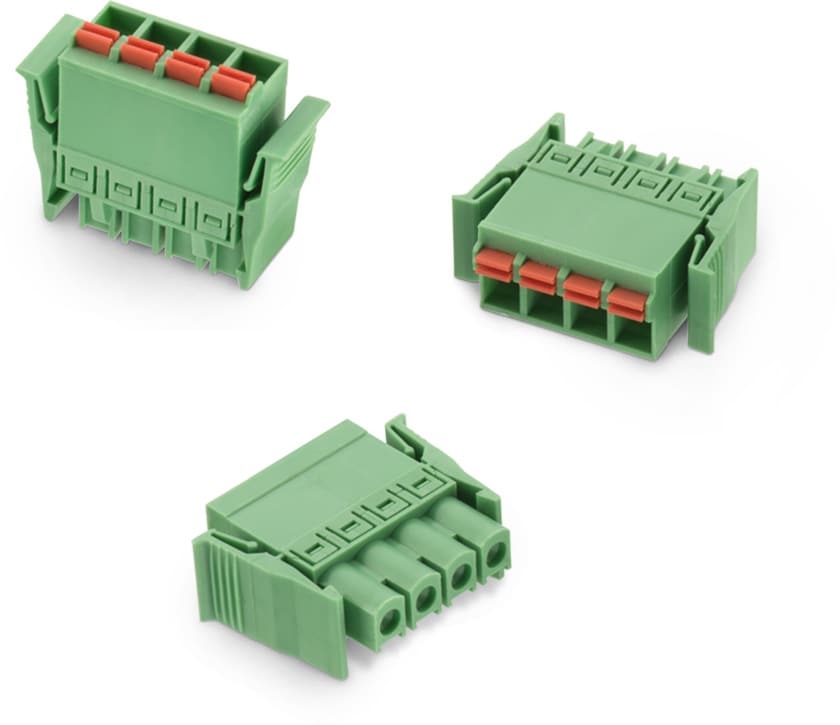

WR-TBL Series 3045 - 5.08 mm - Screwless Plug Vertical Entry with Plastic Latches | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	5.08 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Insulator Color	Green
Contact Material	Copper Alloy
Contact Plating	Tin over Nickel
Spring Material	Stainless Steel

Electrical Properties
I_R	12 A
Working Voltage	300 V
Withstanding Voltage	1600 V
Contact Resistance	20 mΩ

Mechanical Properties
Wire Strip Length	11 up to 12 (mm)

Wire Properties
Solid Wire Section (AWG)	26 to 14 (AWG)
Solid Wire Section (Metric)	0.2 to 1.5 (mm²)
Stranded Wire Section (AWG)	26 to 14 (AWG)
Stranded Wire Section (Metric)	0.2 to 1.5 (mm²)

Certification
cULus Approval	E315414

Application Notes

Products

Filter article data

show article in 0 product lines

article in 0 product lines

Reset all

Order Code	Datasheet	Downloads	Status	Pins	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691304530002	2, Plug Screwless Push In, Cable	Downloads3 files CAD files ZIP 3D 3D_691304530002 (rev1).pdf \| 294.4 KB IGS Download_IGES_691304530002 (rev1).iges \| 4.4 MB STP Download_STEP_691304530002 (rev1).stp \| 968.5 KB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins2	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 26 to 14 (AWG) 0.2 to 1.5 (mm²)	Design Kit –
691304530003	3, Plug Screwless Push In, Cable	Downloads3 files CAD files ZIP 3D 3D_691304530003 (rev1).pdf \| 359.2 KB IGS Download_IGES_691304530003 (rev1).iges \| 5.4 MB STP Download_STEP_691304530003 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins3	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 26 to 14 (AWG) 0.2 to 1.5 (mm²)	Design Kit 691002
691304530004	4, Plug Screwless Push In, Cable	Downloads3 files CAD files ZIP 3D 3D_691304530004 (rev1).pdf \| 417.1 KB IGS Download_IGES_691304530004 (rev1).iges \| 6.4 MB STP Download_STEP_691304530004 (rev1).stp \| 1.4 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins4	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 26 to 14 (AWG) 0.2 to 1.5 (mm²)	Design Kit –
691304530005	5, Plug Screwless Push In, Cable	Downloads3 files CAD files ZIP 3D 3D_691304530005 (rev1).pdf \| 476 KB IGS Download_IGES_691304530005 (rev1).iges \| 7.4 MB STP Download_STEP_691304530005 (rev1).stp \| 1.7 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins5	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 26 to 14 (AWG) 0.2 to 1.5 (mm²)	Design Kit –
691304530006	6, Plug Screwless Push In, Cable	Downloads3 files CAD files ZIP 3D 3D_691304530006 (rev1).pdf \| 539.9 KB IGS Download_IGES_691304530006 (rev1).iges \| 8.3 MB STP Download_STEP_691304530006 (rev1).stp \| 1.9 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins6	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 26 to 14 (AWG) 0.2 to 1.5 (mm²)	Design Kit –
691304530007	7, Plug Screwless Push In, Cable	Downloads3 files CAD files ZIP 3D 3D_691304530007 (rev1).pdf \| 599.2 KB IGS Download_IGES_691304530007 (rev1).iges \| 9.3 MB STP Download_STEP_691304530007 (rev1).stp \| 2.1 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins7	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 26 to 14 (AWG) 0.2 to 1.5 (mm²)	Design Kit –
691304530008	8, Plug Screwless Push In, Cable	Downloads3 files CAD files ZIP 3D 3D_691304530008 (rev1).pdf \| 660.5 KB IGS Download_IGES_691304530008 (rev1).iges \| 10.3 MB STP Download_STEP_691304530008 (rev1).stp \| 2.3 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins8	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 26 to 14 (AWG) 0.2 to 1.5 (mm²)	Design Kit –
691304530009	9, Plug Screwless Push In, Cable	Downloads3 files CAD files ZIP 3D 3D_691304530009 (rev1).pdf \| 718.7 KB IGS Download_IGES_691304530009 (rev1).iges \| 11.2 MB STP Download_STEP_691304530009 (rev1).stp \| 2.6 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins9	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 26 to 14 (AWG) 0.2 to 1.5 (mm²)	Design Kit –
691304530010	10, Plug Screwless Push In, Cable	Downloads3 files CAD files ZIP 3D 3D_691304530010 (rev1).pdf \| 763.6 KB IGS Download_IGES_691304530010 (rev1).iges \| 12.2 MB STP Download_STEP_691304530010 (rev1).stp \| 2.8 MB Download all 3 files as zip archive ZIP	Status Activei\| Production is active. Expected lifetime: >10 years.	Pins10	PCB/Cable/PanelCable	ModularityNo	TypeVertical	Wire Section 26 to 14 (AWG) 0.2 to 1.5 (mm²)	Design Kit –

Tailored to your needs

Custom & Standard Terminal Blocks

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
