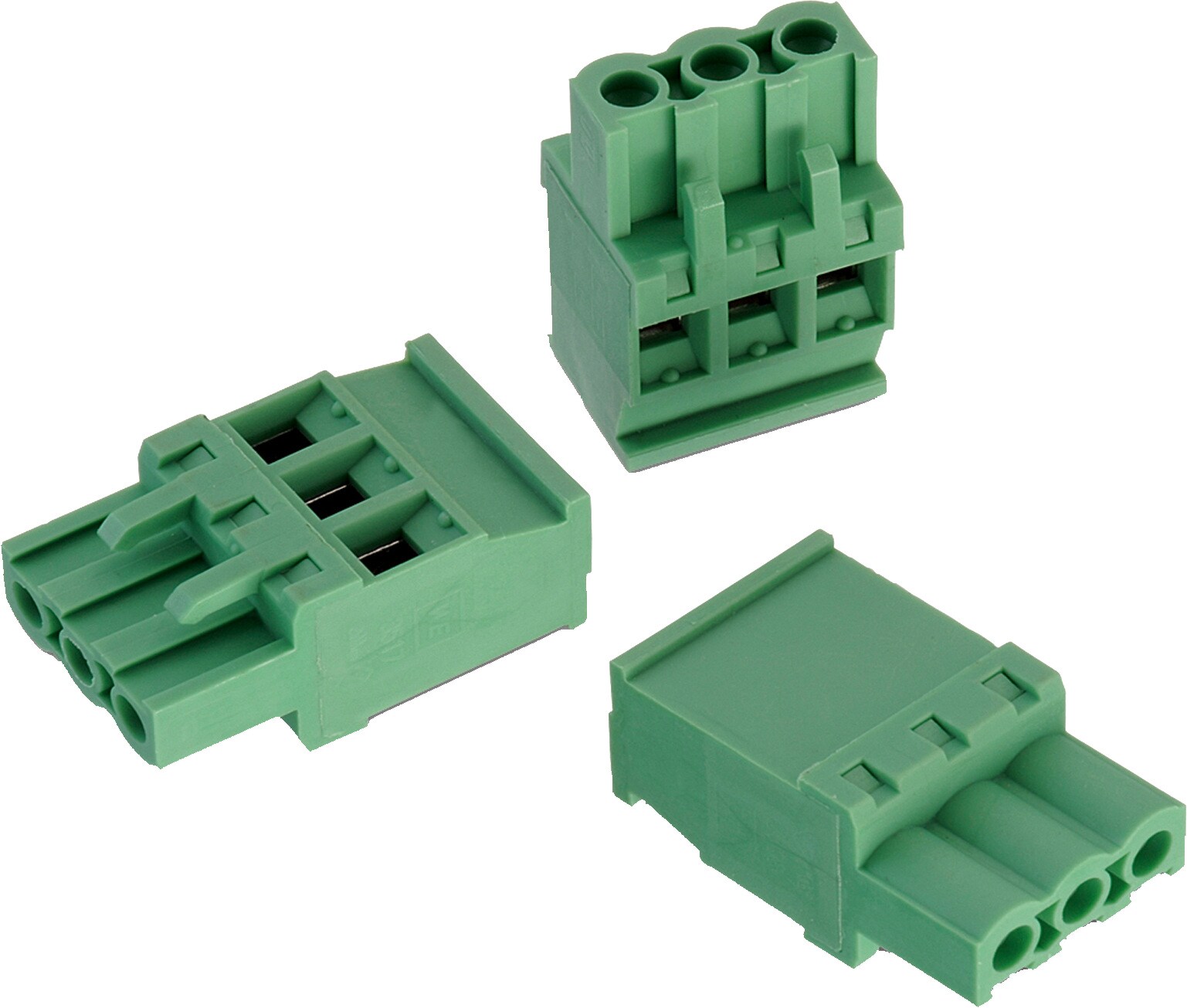

WR-TBL Series 3517 - 5.00 mm Horizontal with hook on wire Side

Kind Properties
Pitch5 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialPhosphor Bronze
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Electrical Properties
IR cULus15 A
IR VDE17 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Working Voltage [VDE]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Withstanding Voltage [VDE]2500 V (AC)
Contact Resistance [cULus]20 mΩ
Contact Resistance [VDE]20 mΩ
Mechanical Properties
Wire Strip Length6 up to 7 (mm)
ScrewM3
Wire Properties
Solid Wire Section (AWG)12 to 24 (AWG)
Solid Wire Section (Metric)3.31 to 0.205 (mm²)
Stranded Wire Section (AWG)12 to 24 (AWG)
Stranded Wire Section (Metric)3.31 to 0.205 (mm²)
Certification
cULus ApprovalE315414
VDE Approval40023402

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire SectionIR
(A)
Samples
691351700002
STE 3D IGS 2 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 17
691351700003
STE 3D IGS 3 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 17
691351700004
STE 3D IGS 4 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 17
691351700005
STE 3D IGS 5 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 17
691351700006
STE 3D IGS 6 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 17
691351700007
IGE STE 3D 7 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 17
691351700008
STE 3D IGS 8 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 17
691351700012
IGE STE 3D 12 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²) 17
Order Code Data­sheet
691351700002
691351700003
691351700004
691351700005
691351700006
691351700007
691351700008
691351700012
