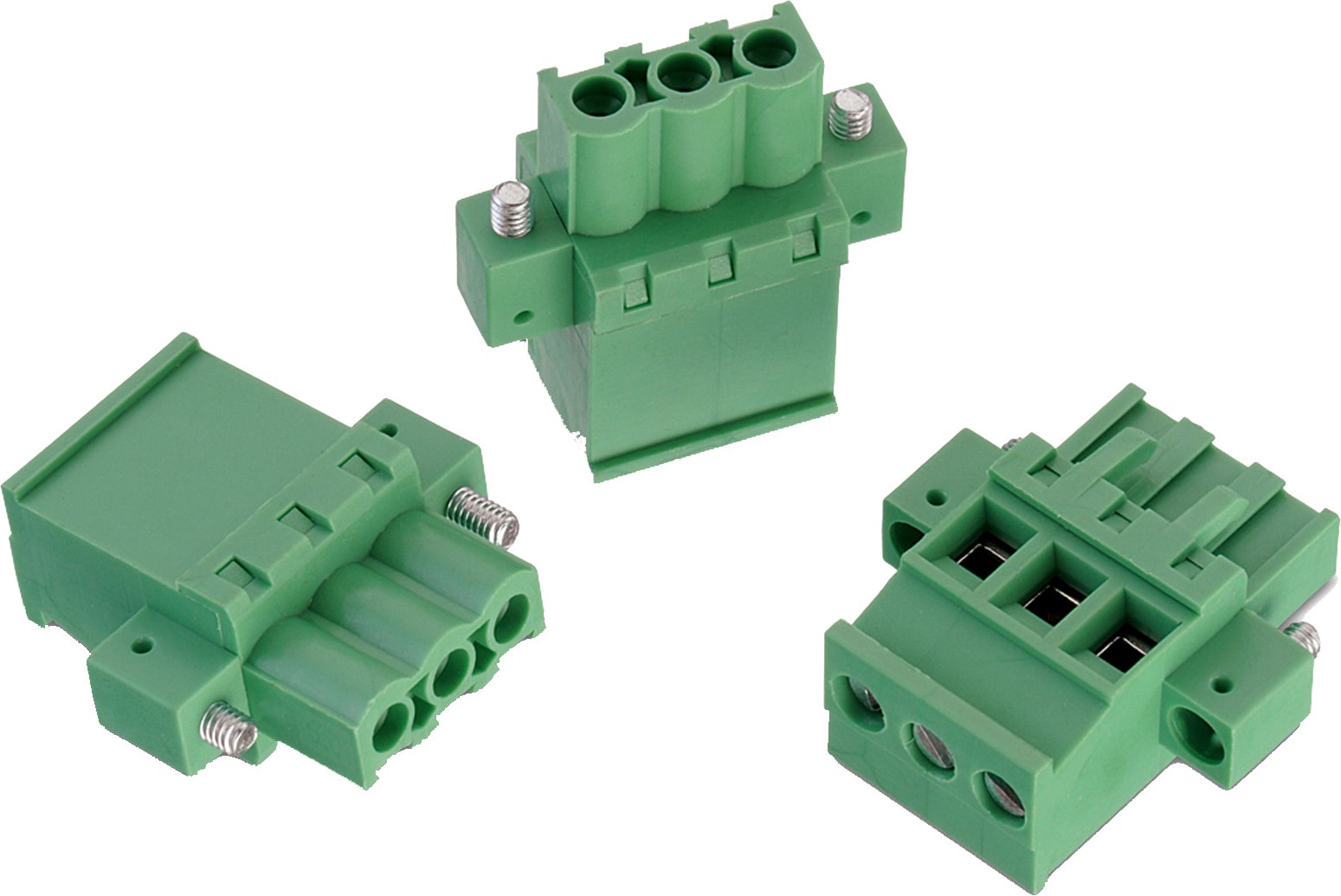

WR-TBL Series 3407 - 5.00 mm Horizontal with Flanges and hook on wire Side

General Information
Operating Temperature-40 °C up to +105 °C
ComplianceRoHS
Pitch5 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialBrass
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialPhosphor Bronze
Electrical Properties
IR15 A; 17 A
IR cULus15 A
IR VDE17 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Working Voltage [VDE]300 V (AC)
Withstanding Voltage [cULus]1600 V (AC)
Withstanding Voltage [VDE]2500 V (AC)
Contact Resistance [cULus]20 mΩ
Contact Resistance [VDE]20 mΩ
Mechanical Properties
ScrewM3
Wire Properties
Solid Wire Section (AWG)12 to 24 (AWG)
Solid Wire Section (Metric)3.31 to 0.205 (mm²)
Stranded Wire Section (AWG)12 to 24 (AWG)
Stranded Wire Section (Metric)3.31 to 0.205 (mm²)
Certification
cULus ApprovalE315414
VDE Approval40023402

Products

Order Code Data­sheet DownloadsPinsApplicationPCB/Cable/PanelModularityTypeWire Section Samples
691340700002SPEC
3 files 2 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340700003SPEC
3 files 3 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340700004SPEC
3 files 4 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340700005SPEC
3 files 5 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340700006SPEC
3 files 6 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340700007SPEC
3 files 7 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340700008SPEC
3 files 8 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²)
691340700012SPEC
3 files 12 Pluggable Cable No Horizontal 12 to 24 (AWG) 3.31 to 0.205 (mm²)
Order Code Data­sheet
691340700002SPEC
691340700003SPEC
691340700004SPEC
691340700005SPEC
691340700006SPEC
691340700007SPEC
691340700008SPEC
691340700012SPEC
