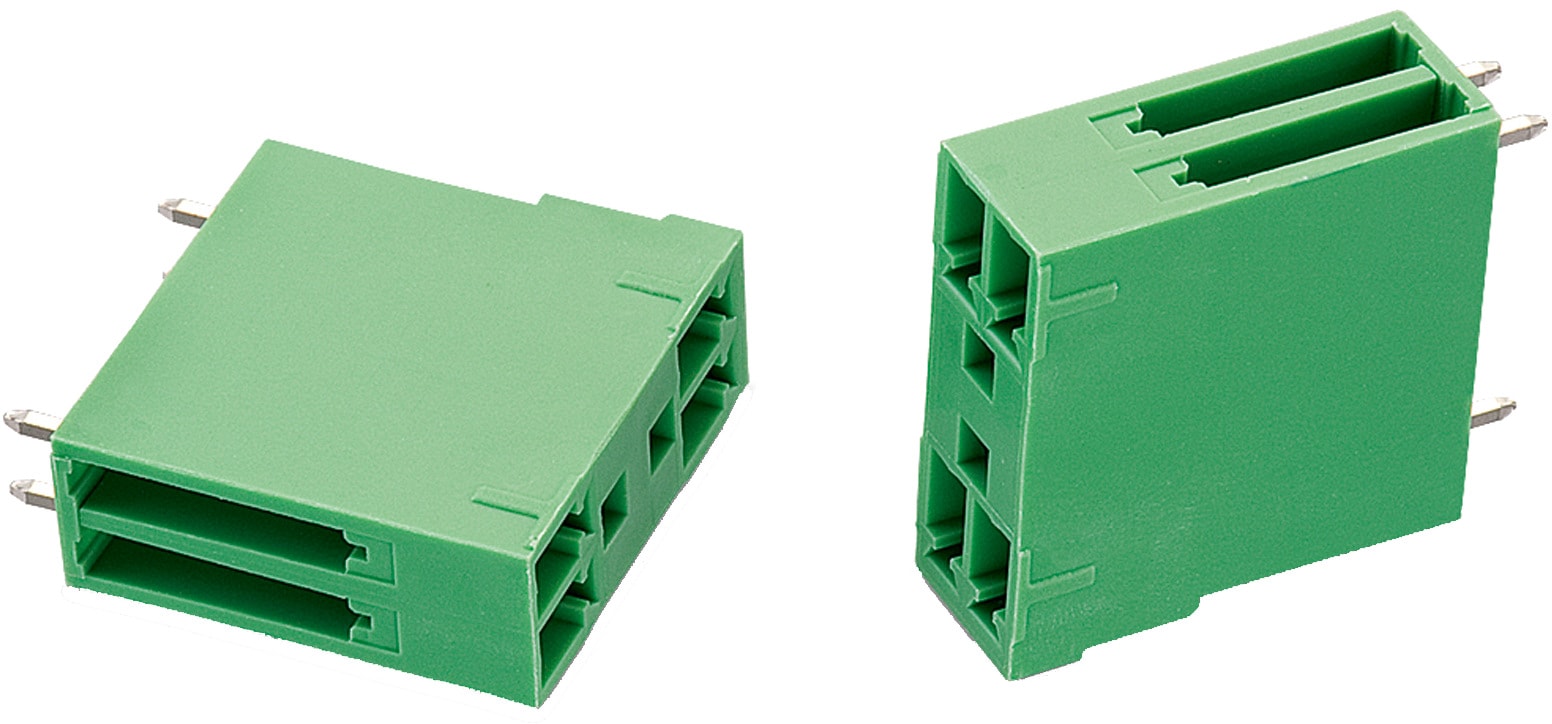

WR-TBL Series 3293 - 3.81 mm Double Level Vertical Male PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	3.81 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	10 A
I_{R cULus}	10 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	1600 V (AC)
Contact Resistance [cULus]	20 mΩ

Certification
cULus Approval	E315414

Application Notes

Products

Order Code	Datasheet	Downloads	Pins	Application	PCB/Cable/Panel	Modularity	Type
691329300004	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691329300004_1 (rev1).pdf \| 143.4 KB IGS 691329300004 (rev1).igs \| 1.9 MB STP 691329300004 (rev1).stp \| 441.9 KB	4	Pluggable	PCB	No	Vertical
691329300006	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691329300006_1 (rev1).pdf \| 198.3 KB IGS 691329300006 (rev1).igs \| 2.7 MB STP 691329300006 (rev1).stp \| 606.8 KB	6	Pluggable	PCB	No	Vertical
691329300008	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691329300008_1 (rev1).pdf \| 261.6 KB IGS 691329300008 (rev1).igs \| 3.5 MB STP 691329300008 (rev1).stp \| 811 KB	8	Pluggable	PCB	No	Double Level Vertical
691329300010	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691329300010_1 (rev1).pdf \| 317.5 KB IGS 691329300010 (rev1).igs \| 4.3 MB STP 691329300010 (rev1).stp \| 975.3 KB	10	Pluggable	PCB	No	Double Level Vertical
691329300012	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D Downloads_3D_ConTBL3_691329300012 (rev1).pdf \| 373 KB IGS 691329300012 (rev1).igs \| 5 MB STP Downloads_STP_ConTBL3_691329300012 (rev1).stp \| 1.1 MB	12	Pluggable	PCB	No	Double Level Vertical
691329300016	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Pluggable Connector (rev23b).lbr \| 3.8 MB CAD files ZIP 3D 691329300016_1 (rev1).pdf \| 493.2 KB IGS 691329300016 (rev1).igs \| 6.6 MB STP 691329300016 (rev1).stp \| 1.5 MB	16	Pluggable	PCB	No	Double Level Vertical

Order Code	Datasheet
691329300004	SPEC
691329300006	SPEC
691329300008	SPEC
691329300010	SPEC
691329300012	SPEC
691329300016	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Application	PCB/Cable/Panel	Modularity	Type	Samples

Terminal Blocks - Standard, Personalized & Highly Customized

Tailored to your needs

Custom & Standard Terminal Blocks

In addition to a portfolio of more than 2000 standard articles, Würth Elektronik offers various possibilities to tailor the products to your specific requirements. Personalized modifications of standard terminal blocks are available for small to medium quantities within a few days as a special service. Fully customized products in high quantities are possible within a few weeks.In house design, tooling and prototyping ensures all customer specific requirements are met.
