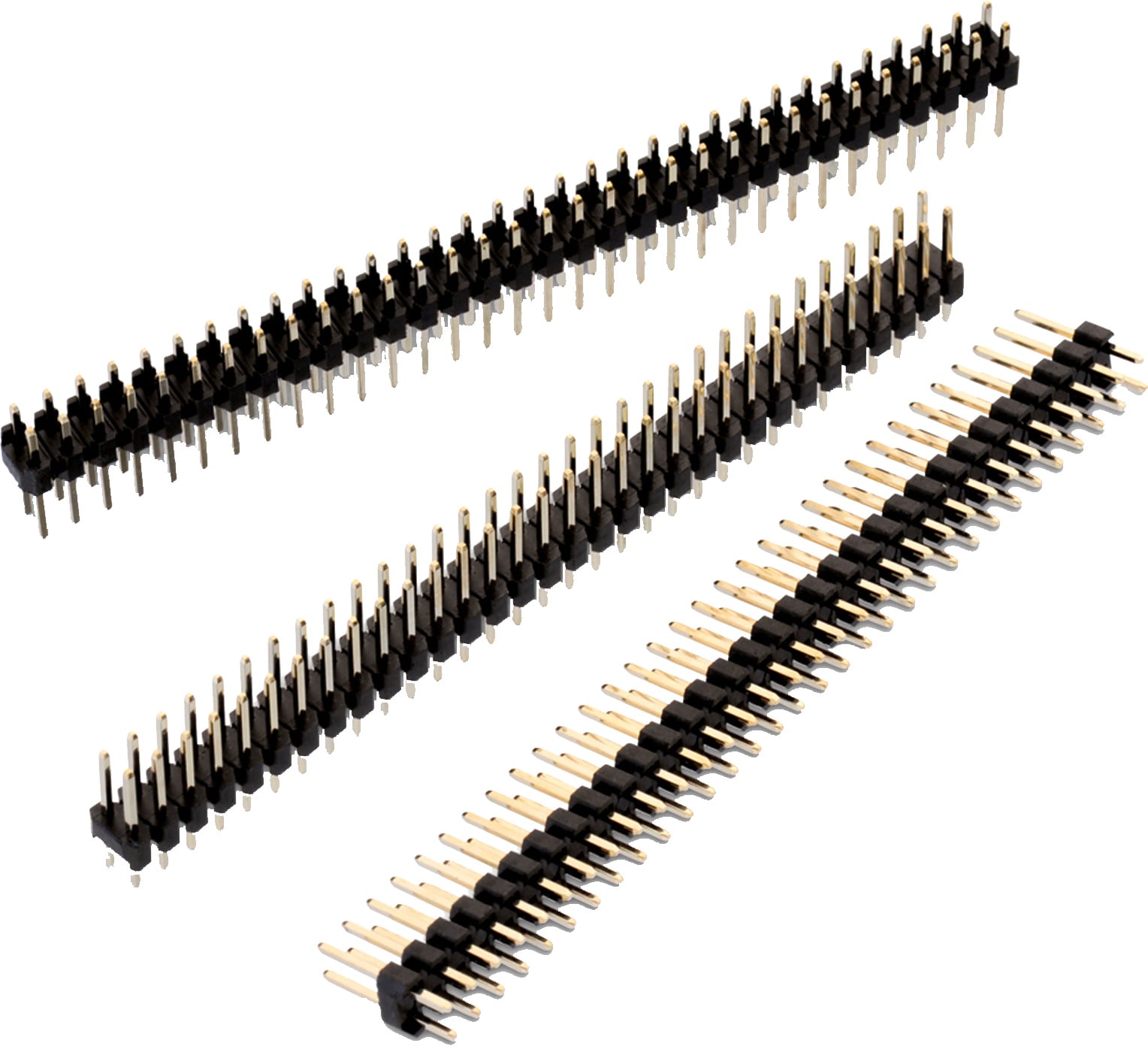

WR-PHD 2.54 mm THT Dual Pin Header

Article Properties
Pins4; 6; 8; 10; 12; 14; 16; 18; 20; 22; 24; 26; 28; 30; 32; 34; 36; 40; 44; 64; 72; 80
Kind Properties
Pitch2.54 mm
Quality Class3 as per CECC 75 301-802
RowsDual
GenderPin Header
TypeBoard Stacker
Material Properties
Insulator MaterialPA6T; PBT
Insulator Flammability RatingUL94 V-0
Contact MaterialCopper Alloy
Contact PlatingGold
Contact TypeStamped
General Information
Operating Temperature-40 up to +105 °C
ComplianceLead free / RoHS
Electrical Properties
IR3 A
Withstanding Voltage500 V (AC)
Contact Resistance20 mΩ
RISO1000 MΩ
Certification
UL ApprovalE323964
Packaging Properties
PackagingBag

Products

Order Code Data­sheet DownloadsPinsRowsGenderTypeIR
(A)
PackagingDesign Kit Samples
61300421121SPEC
6 files 4 Dual Pin Header Board Stacker 3 Bag
61300621121SPEC
6 files 6 Dual Pin Header Board Stacker 3 Bag
61300821121SPEC
6 files 8 Dual Pin Header Board Stacker 3 Bag613001
61301021121SPEC
6 files 10 Dual Pin Header Board Stacker 3 Bag613001
61301221121SPEC
6 files 12 Dual Pin Header Board Stacker 3 Bag
61301421121SPEC
6 files 14 Dual Pin Header Board Stacker 3 Bag
61301621121SPEC
6 files 16 Dual Pin Header Board Stacker 3 Bag
61301821121SPEC
6 files 18 Dual Pin Header Board Stacker 3 Bag
61302021121SPEC
6 files 20 Dual Pin Header Board Stacker 3 Bag613001
61302221121SPEC
6 files 22 Dual Pin Header Board Stacker 3 Bag
61302421121SPEC
6 files 24 Dual Pin Header Board Stacker 3 Bag
61302621121SPEC
6 files 26 Dual Pin Header Board Stacker 3 Bag
61302821121SPEC
6 files 28 Dual Pin Header Board Stacker 3 Bag
61303021121SPEC
6 files 30 Dual Pin Header Board Stacker 3 Bag
61303221121SPEC
6 files 32 Dual Pin Header Board Stacker 3 Bag612690
61303421121SPEC
6 files 34 Dual Pin Header Board Stacker 3 Bag
61303621121SPEC
6 files 36 Dual Pin Header Board Stacker 3 Bag
61304021121SPEC
6 files 40 Dual Pin Header Board Stacker 3 Bag
61304421121SPEC
6 files 44 Dual Pin Header Board Stacker 3 Bag
61306421121SPEC
6 files 64 Dual Pin Header Board Stacker 3 Bag
61307221121SPEC
6 files 72 Dual Pin Header Board Stacker 3 Bag
61308021121SPEC
6 files 80 Dual Pin Header Board Stacker 3 Bag
Order Code Data­sheet
61300421121SPEC
61300621121SPEC
61300821121SPEC
61301021121SPEC
61301221121SPEC
61301421121SPEC
61301621121SPEC
61301821121SPEC
61302021121SPEC
61302221121SPEC
61302421121SPEC
61302621121SPEC
61302821121SPEC
61303021121SPEC
61303221121SPEC
61303421121SPEC
61303621121SPEC
61304021121SPEC
61304421121SPEC
61306421121SPEC
61307221121SPEC
61308021121SPEC
Samples
Order Code Data­sheet DownloadsPinsRowsGenderTypeIR
(A)
PackagingDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
