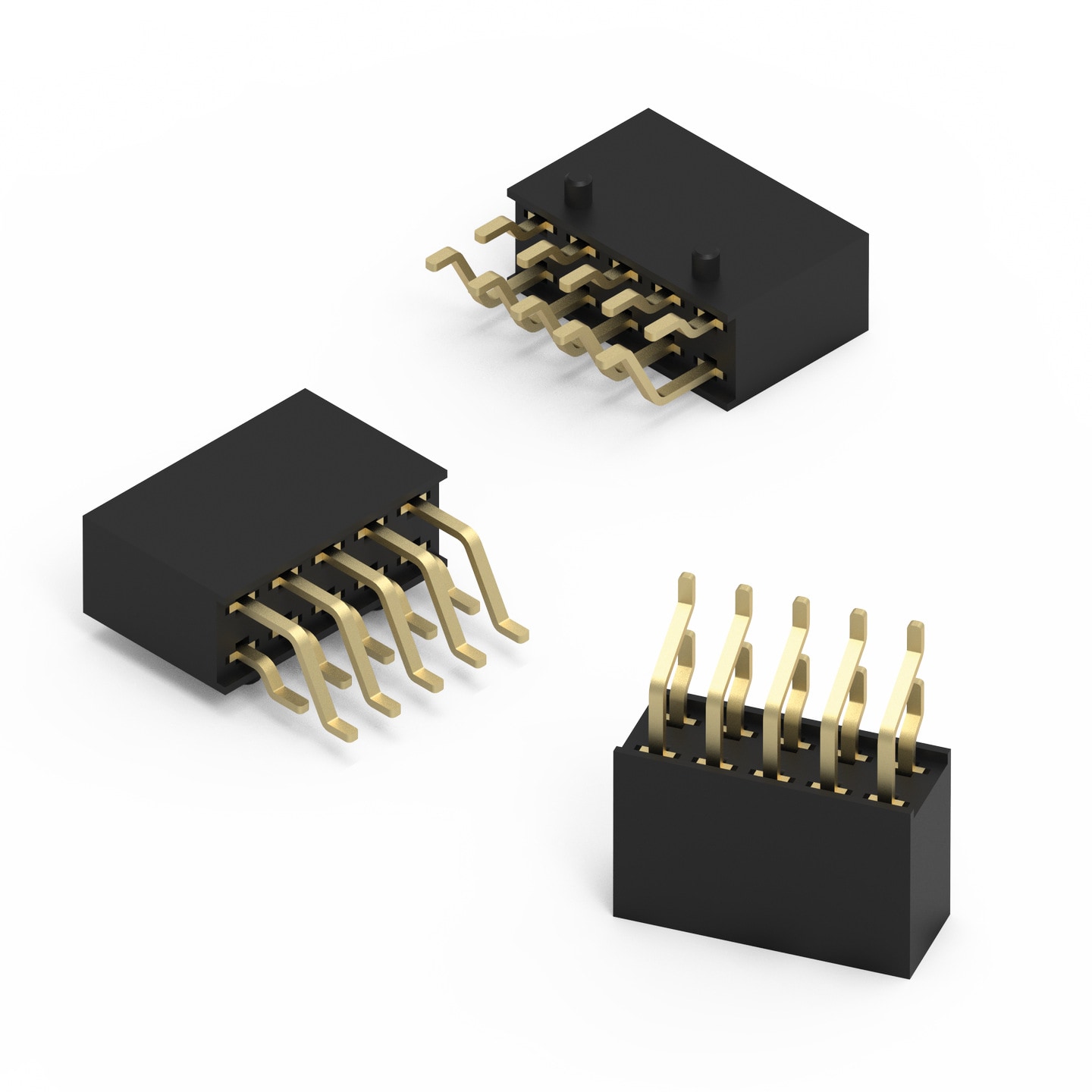

WR-PHD 2.54 mm PCB Socket Header - SMT Type - Double Row - Right Angle

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	6 pcs; 8 pcs; 10 pcs; 12 pcs; 14 pcs; 16 pcs; 20 pcs; 22 pcs; 24 pcs; 26 pcs

Material Properties
Insulator Material	PA6T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Selective Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Durability	25 Mating cycles
Rows	Dual
Gender	Socket Header
Type	Angled

Electrical Properties
Withstanding Voltage	600 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel

Products

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
	610106249221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB CAD files ZIP 3D 610106249221_1 (rev1).pdf \| 93.5 KB IGS Download_IGES_610106249221 (rev1).iges \| 1.3 MB STP 610106249221 (rev1).stp \| 328.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Dual	Socket Header	Angled	3	Tape and Reel	613001
	610108249221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB CAD files ZIP 3D 610108249221_1 (rev1).pdf \| 105.8 KB IGS Download_IGES_610108249221 (rev1).iges \| 1.6 MB STP 610108249221 (rev1).stp \| 391.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Dual	Socket Header	Angled	3	Tape and Reel	–
	610110249221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB CAD files ZIP 3D 610110249221_1 (rev1).pdf \| 119.7 KB IGS Download_IGES_610110249221 (rev1).iges \| 1.9 MB STP 610110249221 (rev1).stp \| 461.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Dual	Socket Header	Angled	3	Tape and Reel	612690 613001
	610112249221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB CAD files ZIP 3D 610112249221_1 (rev1).pdf \| 134.1 KB IGS Download_IGES_610112249221 (rev1).iges \| 2.1 MB STP 610112249221 (rev1).stp \| 533.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	Dual	Socket Header	Angled	3	Tape and Reel	–
	610114249221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB CAD files ZIP 3D 610114249221_1 (rev1).pdf \| 148.1 KB IGS Download_IGES_610114249221 (rev1).iges \| 2.4 MB STP 610114249221 (rev1).stp \| 599.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	14	Dual	Socket Header	Angled	3	Tape and Reel	–
	610116249221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB CAD files ZIP 3D 610116249221_1 (rev1).pdf \| 163 KB IGS Download_IGES_610116249221 (rev1).iges \| 2.7 MB STP 610116249221 (rev1).stp \| 671.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Dual	Socket Header	Angled	3	Tape and Reel	613001
	610120249221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB CAD files ZIP 3D 610120249221_1 (rev1).pdf \| 192.2 KB IGS Download_IGES_610120249221 (rev1).iges \| 3.3 MB STP 610120249221 (rev1).stp \| 821.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Dual	Socket Header	Angled	3	Tape and Reel	–
	610122249221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB CAD files ZIP 3D 610122249221_1 (rev1).pdf \| 207.1 KB IGS Download_IGES_610122249221 (rev1).iges \| 3.6 MB STP 610122249221 (rev1).stp \| 882.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	22	Dual	Socket Header	Angled	3	Tape and Reel	–
	610124249221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB CAD files ZIP 3D 610124249221_1 (rev1).pdf \| 222.2 KB IGS Download_IGES_610124249221 (rev1).iges \| 3.8 MB STP 610124249221 (rev1).stp \| 955.1 KB	Active i\| Production is active. Expected lifetime: >10 years.	24	Dual	Socket Header	Angled	3	Tape and Reel	–
	610126249221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB CAD files ZIP 3D 610126249221_1 (rev1).pdf \| 237.2 KB IGS Download_IGES_610126249221 (rev1).iges \| 4.1 MB STP 610126249221 (rev1).stp \| 1 MB	Active i\| Production is active. Expected lifetime: >10 years.	26	Dual	Socket Header	Angled	3	Tape and Reel	–

	Order Code	Datasheet
	610106249221	SPEC
	610108249221	SPEC
	610110249221	SPEC
	610112249221	SPEC
	610114249221	SPEC
	610116249221	SPEC
	610120249221	SPEC
	610122249221	SPEC
	610124249221	SPEC
	610126249221	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.54 mm SMT Dual Pin Header

WR-PHD 2.54 mm THT Dual Board Stacker

WR-PHD 2.54 mm THT Angled Dual Pin Header

WR-PHD 2.54 mm SMT Pin Header Double Row Right Angled

WR-PHD 2.54 mm THT Dual Pin Header

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-PHD Pin & Socket Header
