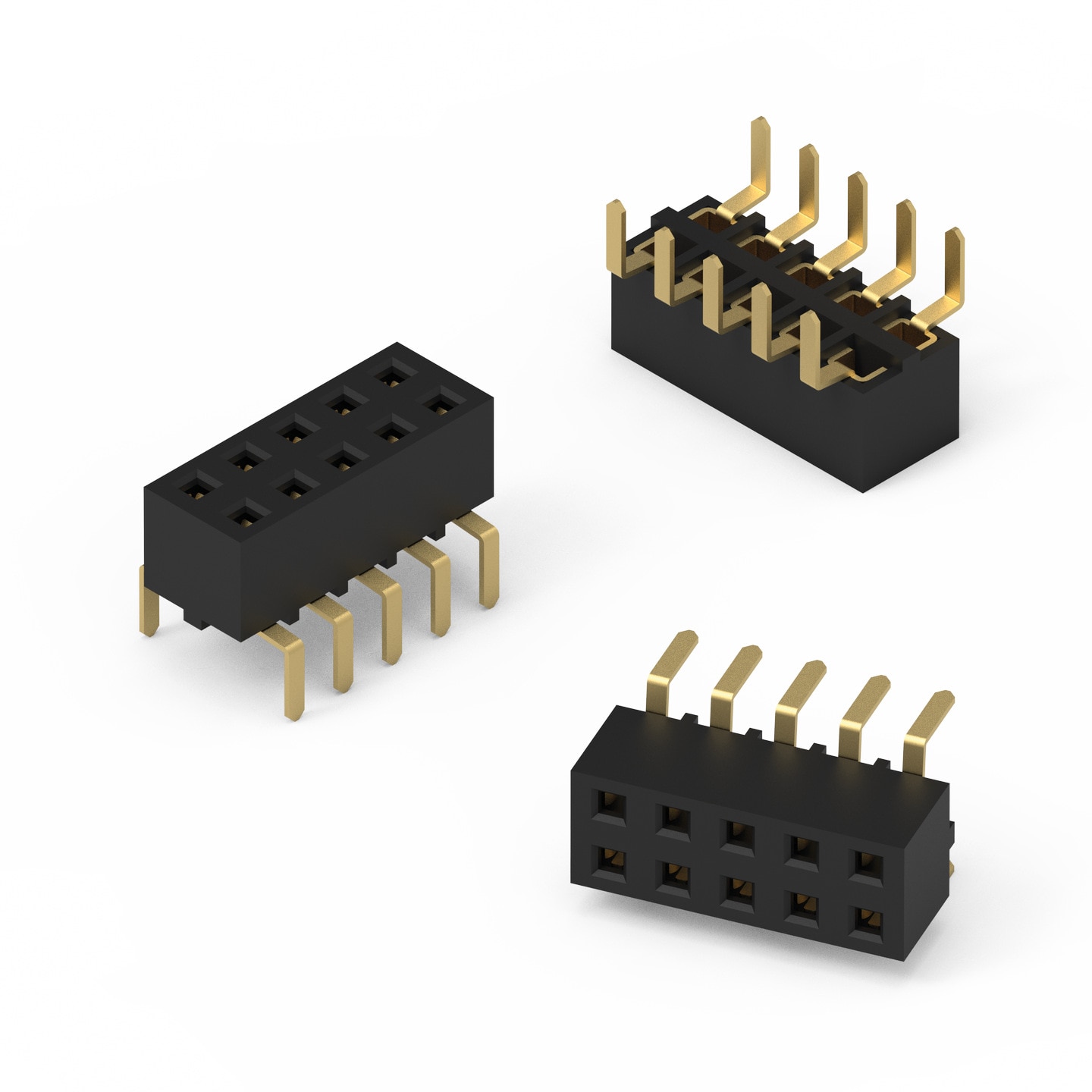

WR-PHD 2.54 mm Dual Socket Header Bottom Entry Large

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	4 pcs; 6 pcs; 8 pcs; 10 pcs; 12 pcs; 16 pcs; 18 pcs; 20 pcs; 22 pcs; 24 pcs; 26 pcs; 32 pcs; 34 pcs; 40 pcs

Material Properties
Insulator Material	Nylon 9T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Durability	25 Mating cycles
Rows	Dual
Gender	Socket Header
Type	Bottom Entry Large

Electrical Properties
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tube

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	Gender	Type	I_R (A)	Packaging	Design Kit
613004216921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 613004216921 (rev1).pdf \| 61.5 KB IGS 613004216921 (rev1).igs \| 854.8 KB STP 613004216921 (rev1).stp \| 315.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Dual	Socket Header	Bottom Entry Large	3	Tube	–
613006216921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 613006216921 (rev1).pdf \| 71.3 KB IGS 613006216921 (rev1).igs \| 1012.3 KB STP 613006216921 (rev1).stp \| 378.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Dual	Socket Header	Bottom Entry Large	3	Tube	–
613008216921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 613008216921 (rev1).pdf \| 78.2 KB IGS 613008216921 (rev1).igs \| 1.1 MB STP 613008216921 (rev1).stp \| 441.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Dual	Socket Header	Bottom Entry Large	3	Tube	613001
613010216921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 613010216921 (rev1).pdf \| 86.1 KB IGS 613010216921 (rev1).igs \| 1.3 MB STP 613010216921 (rev1).stp \| 505 KB	Active i\| Production is active. Expected lifetime: >10 years.	10	Dual	Socket Header	Bottom Entry Large	3	Tube	613001
613012216921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 613012216921 (rev1).pdf \| 94 KB IGS 613012216921 (rev1).igs \| 1.5 MB STP 613012216921 (rev1).stp \| 568.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	12	Dual	Socket Header	Bottom Entry Large	3	Tube	–
613016216921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 613016216921 (rev1).pdf \| 110 KB IGS 613016216921 (rev1).igs \| 1.8 MB STP 613016216921 (rev1).stp \| 698.5 KB	Active i\| Production is active. Expected lifetime: >10 years.	16	Dual	Socket Header	Bottom Entry Large	3	Tube	–
613018216921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 613018216921 (rev1).pdf \| 117.5 KB IGS 613018216921 (rev1).igs \| 1.9 MB STP 613018216921 (rev1).stp \| 763.9 KB	Active i\| Production is active. Expected lifetime: >10 years.	18	Dual	Socket Header	Bottom Entry Large	3	Tube	–
613020216921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 613020216921 (rev1).pdf \| 125.8 KB IGS 613020216921 (rev1).igs \| 2.1 MB STP 613020216921 (rev1).stp \| 829.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	20	Dual	Socket Header	Bottom Entry Large	3	Tube	613001
613022216921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 613022216921 (rev1).pdf \| 133.3 KB IGS 613022216921 (rev1).igs \| 2.2 MB STP 613022216921 (rev1).stp \| 895.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	22	Dual	Socket Header	Bottom Entry Large	3	Tube	–
613024216921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 613024216921 (rev1).pdf \| 141.3 KB IGS 613024216921 (rev1).igs \| 2.4 MB STP 613024216921 (rev1).stp \| 961.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	24	Dual	Socket Header	Bottom Entry Large	3	Tube	–
613026216921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 613026216921 (rev1).pdf \| 149.4 KB IGS 613026216921 (rev1).igs \| 2.5 MB STP 613026216921 (rev1).stp \| 1 MB	Active i\| Production is active. Expected lifetime: >10 years.	26	Dual	Socket Header	Bottom Entry Large	3	Tube	–
613032216921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 613032216921 (rev1).pdf \| 173.8 KB IGS 613032216921 (rev1).igs \| 3 MB STP 613032216921 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	32	Dual	Socket Header	Bottom Entry Large	3	Tube	–
613034216921	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 613034216921 (rev1).pdf \| 181.6 KB IGS 613034216921 (rev1).igs \| 3.2 MB STP 613034216921 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	34	Dual	Socket Header	Bottom Entry Large	3	Tube	–
613040216921	SPEC	4 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	40	–	–	–	3	Tube	–
