OverviewAll product unitsProduct unitElectromechanical ComponentsProduct groupConnectorsProduct familyBoard-to-Board ConnectorsProduct sub-familyWR-PHD Pin Header & Socket HeaderPitch2.54 mmTypeSocket HeaderProduct seriesWR-PHD 2.54 mm SMT Dual Socket Header

WR-PHD 2.54 mm SMT Dual Socket Header

Characteristics

Reference Designs

Article Properties
Pins4; 6; 8; 10; 12; 14; 16; 18; 20; 22; 24; 26; 28; 30; 32; 34; 36; 40
Material Properties
Insulator MaterialNylon 9T; PA46; PA9T
Insulator Flammability RatingUL94 V-0
Contact MaterialCopper Alloy
Contact PlatingGold
Contact TypeStamped
General Information
Operating Temperature-40 °C up to +105 °C
ComplianceLead free / RoHS
Pitch2.54 mm
Durability25 Mating cycles
RowsDual
GenderSocket Header
TypeStraight; Straight Type 2
Electrical Properties
IR3 A
Withstanding Voltage600 V (AC)
Contact Resistance20 mΩ
RISO1000 MΩ
Certification
UL ApprovalE323964
Packaging Properties
PackagingTape and Reel with Cap; Tube

Products

Order Code Data­sheet DownloadsPinsRowsGenderTypeIR
(A)
PackagingDesign Kit Samples
61000421821SPEC
6 files 4 Dual Socket Header Straight 3 Tube
61030421821SPEC

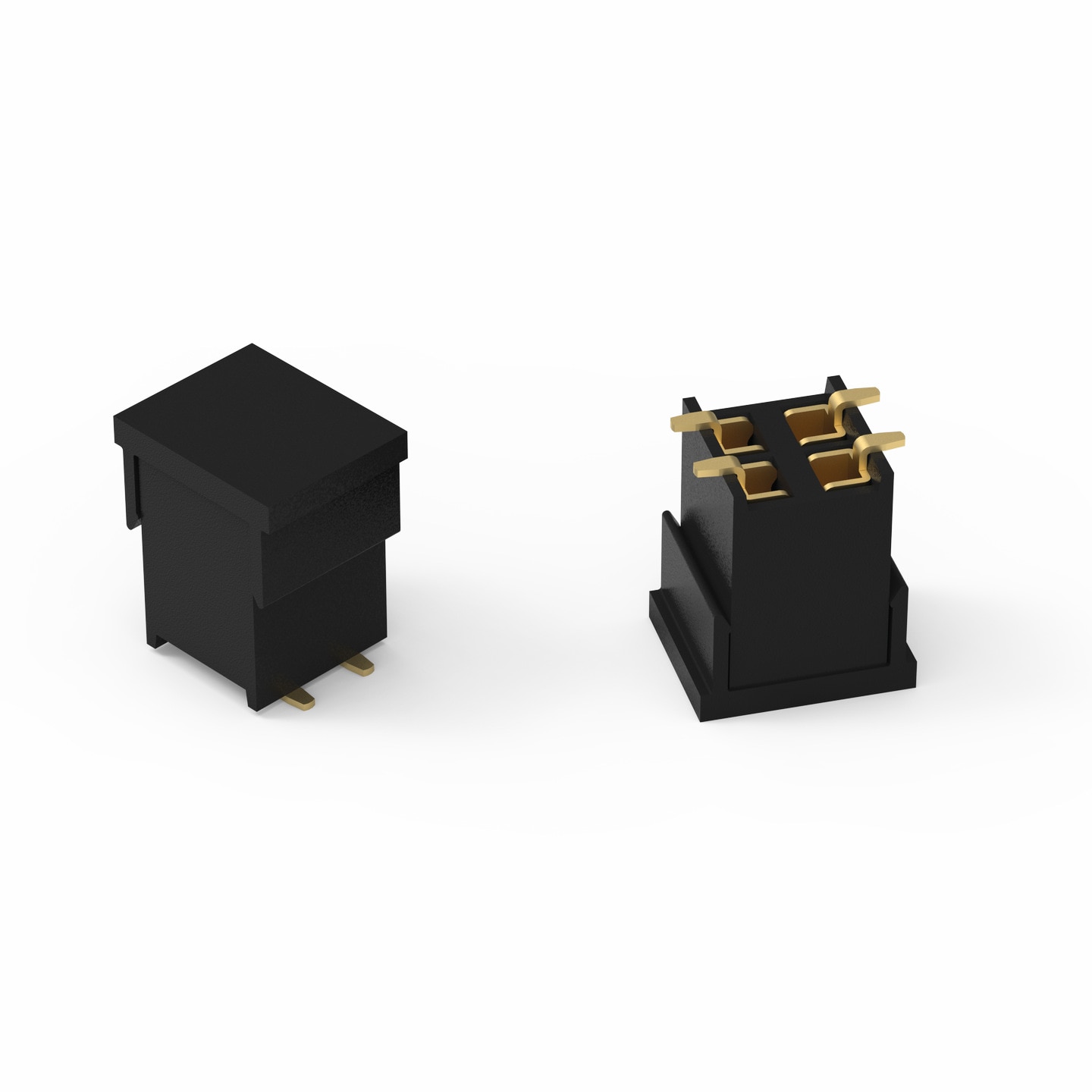

6 files 4 Dual Socket Header Straight Type 2 3 Tape and Reel with Cap
61000621821SPEC
6 files 6 Dual Socket Header Straight 3 Tube
61030621821SPEC
6 files 6 Dual Socket Header Straight Type 2 3 Tape and Reel with Cap
61000821821SPEC
6 files 8 Dual Socket Header Straight 3 Tube
61030821821SPEC
6 files 8 Dual Socket Header Straight Type 2 3 Tape and Reel with Cap613001
61001021821SPEC
6 files 10 Dual Socket Header Straight 3 Tube
61031021821SPEC
6 files 10 Dual Socket Header Straight Type 2 3 Tape and Reel with Cap613001
61001221821SPEC
6 files 12 Dual Socket Header Straight 3 Tube
61031221821SPEC
6 files 12 Dual Socket Header Straight Type 2 3 Tape and Reel with Cap
61001421821SPEC
6 files 14 Dual Socket Header Straight 3 Tube
61031421821SPEC
6 files 14 Dual Socket Header Straight Type 2 3 Tape and Reel with Cap
61001621821SPEC
6 files 16 Dual Socket Header Straight 3 Tube
61031621821SPEC
6 files 16 Dual Socket Header Straight Type 2 3 Tape and Reel with Cap
61001821821SPEC
6 files 18 Dual Socket Header Straight 3 Tube
61031821821SPEC
6 files 18 Dual Socket Header Straight Type 2 3 Tape and Reel with Cap
61002021821SPEC
6 files 20 Dual Socket Header Straight 3 Tube
61032021821SPEC
6 files 20 Dual Socket Header Straight Type 2 3 Tape and Reel with Cap613001
61002221821SPEC
6 files 22 Dual Socket Header Straight 3 Tube
61032221821SPEC
5 files 22 Dual Socket Header Straight Type 2 3 Tape and Reel with Cap
61002421821SPEC
6 files 24 Dual Socket Header Straight 3 Tube
61032421821SPEC
5 files 24 Dual Socket Header Straight Type 2 3 Tape and Reel with Cap
61002621821SPEC
6 files 26 Dual Socket Header Straight 3 Tube
61032621821SPEC
5 files 26 Dual Socket Header Straight Type 2 3 Tape and Reel with Cap
61002821821SPEC
6 files 28 Dual Socket Header Straight 3 Tube
61003021821SPEC
6 files 30 Dual Socket Header Straight 3 Tube
61003221821SPEC
6 files 32 Dual Socket Header Straight 3 Tube
61003421821SPEC
6 files 34 Dual Socket Header Straight 3 Tube
61003621821SPEC
6 files 36 Dual Socket Header Straight 3 Tube
61004021821SPEC
6 files 40 Dual Socket Header Straight 3 Tube
Order Code Data­sheet
61000421821SPEC
61030421821SPEC
61000621821SPEC
61030621821SPEC
61000821821SPEC
61030821821SPEC
61001021821SPEC
61031021821SPEC
61001221821SPEC
61031221821SPEC
61001421821SPEC
61031421821SPEC
61001621821SPEC
61031621821SPEC
61001821821SPEC
61031821821SPEC
61002021821SPEC
61032021821SPEC
61002221821SPEC
61032221821SPEC
61002421821SPEC
61032421821SPEC
61002621821SPEC
61032621821SPEC
61002821821SPEC
61003021821SPEC
61003221821SPEC
61003421821SPEC
61003621821SPEC
61004021821SPEC
Samples
Order Code Data­sheet DownloadsPinsRowsGenderTypeIR
(A)
PackagingDesign Kit Samples

Assortments

Articles from this product series can be found in the following assortments:
