| Article Properties | |
|---|---|
| Pins | 1 pcs |
| Material Properties | |
|---|---|
| Insulator Material | PA66 |
| Insulator Flammability Rating | UL94 V-0 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Type | Stamped |
| General Information | |
|---|---|
| Operating Temperature | -40 °C up to +125 °C |
| Pitch | 2.54 mm |
| Durability | 25 Mating cycles |
| Gender | Jumper |
| Electrical Properties | |
|---|---|
| Withstanding Voltage | 500 V (AC) |
| Contact Resistance | 20 mΩ |
| RISO | 1000 MΩ |
| Packaging Properties | |
|---|---|
| Packaging | Bag |
Products
| Order Code | Datasheet | Downloads | Status | Pins (pcs) | Color | Gender | IR (A) | Packaging | Design Kit | Samples | |
|---|---|---|---|---|---|---|---|---|---|---|---|

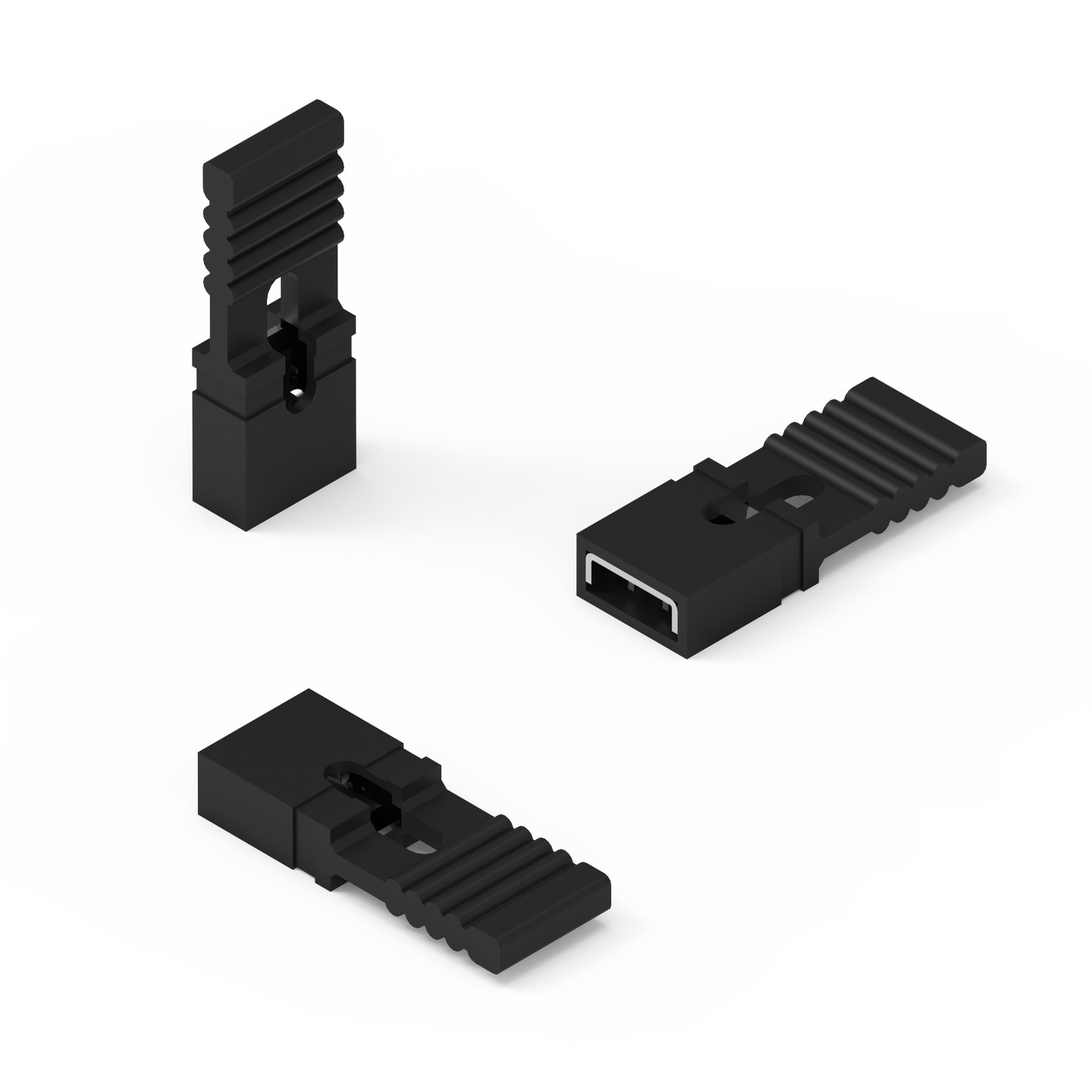

 | 609002115121 | SPEC | 4 files | Active i| Production is active. Expected lifetime: >10 years. | 1 | Black | Jumper | 3 | Bag | 612690 613001 |
| Order Code | Datasheet | |
|---|---|---|
| 609002115121 | SPEC |
| Samples |
|---|
| Order Code | Datasheet | Downloads | Status | Pins (pcs) | Color | Gender | IR (A) | Packaging | Design Kit | Samples |
|---|
Mates with
WR-PHD 2.54 mm THT Board Stacker
WR-PHD 2.54 mm SMT Dual Pin Header
WR-PHD 2.54 mm THT Angled Pin Header
WR-PHD 2.54 mm THT Dual Board Stacker
WR-PHD 2.54 mm THT Pin Header
WR-PHD 2.54 mm THT Angled Dual Pin Header
WR-PHD 2.54 mm SMT Pin Header Double Row Right Angled
WR-PHD 2.54 mm THT Dual Pin Header
WR-PHD 2.54 mm SMT Pin Header
