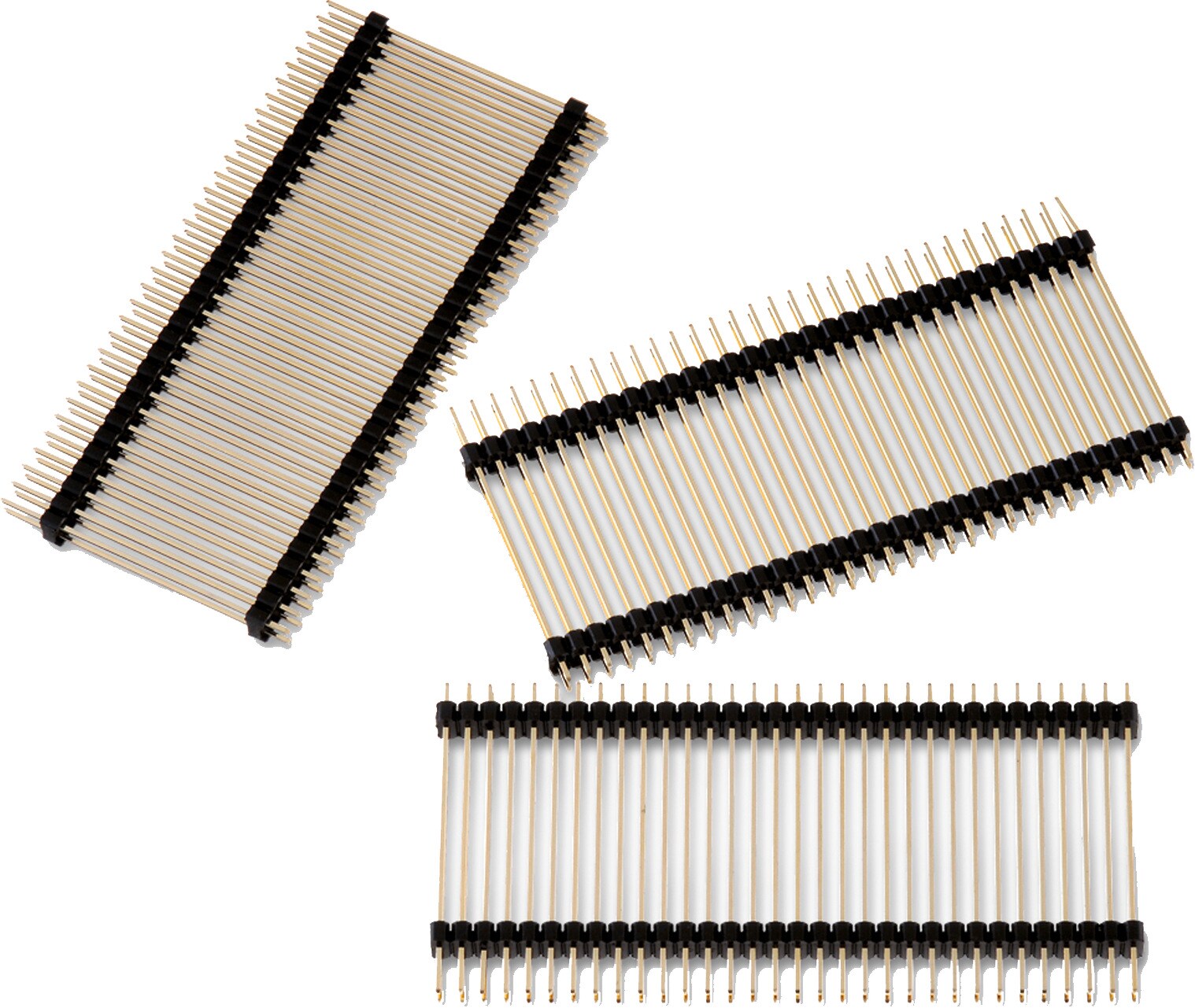

WR-PHD 2.54 mm THT Dual Board Stacker

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	64 pcs

Material Properties
Insulator Material	PA6T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Durability	25 Mating cycles
Rows	Dual
Gender	Pin Header
Type	Board Stacker

Electrical Properties
Withstanding Voltage	500 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Bag

Products

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	H (mm)	G (mm)	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
	61306421221	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61306421221_1 (rev1).pdf \| 210.2 KB IGS 61306421221 (rev1).igs \| 3.8 MB STP 61306421221 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	64	Dual	15.24	3	Pin Header	Board Stacker	3	Bag	612690 613001
	61306421321	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61306421321_1 (rev1).pdf \| 210.2 KB IGS 61306421321 (rev1).igs \| 3.8 MB STP 61306421321 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	64	Dual	30.48	3	Pin Header	Board Stacker	3	Bag	–
	61306428421	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61306428421_1 (rev1).pdf \| 210.2 KB IGS 61306428421 (rev1).igs \| 3.8 MB STP 61306428421 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	64	Dual	15.24	6	Pin Header	Board Stacker	3	Bag	–
	61306428521	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev25a).zip \| 65.8 MB EAG Eagle_WR-PHD (rev25a).lbr \| 5.2 MB KIC KiCad_WR-PHD (rev25a).zip \| 311.3 MB CAD files ZIP 3D 61306428521_1 (rev1).pdf \| 210.2 KB IGS 61306428521 (rev1).igs \| 3.8 MB STP 61306428521 (rev1).stp \| 1.4 MB	Active i\| Production is active. Expected lifetime: >10 years.	64	Dual	30.48	6	Pin Header	Board Stacker	3	Bag	613001

	Order Code	Datasheet
	61306421221	SPEC
	61306421321	SPEC
	61306428421	SPEC
	61306428521	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pins (pcs)	Rows	H (mm)	G (mm)	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.54 mm Dual Socket Header

WR-PHD 2.54 mm Angled Dual Socket Header

WR-PHD 2.54 mm Dual Socket Header Bottom Entry

WR-PHD 2.54 mm Dual Socket Header Bottom Entry Large

WR-PHD 2.54 mm SMT Dual Socket Header Bottom Entry

WR-PHD 2.54 mm SMT Dual Socket Header

WR-PHD 2.54 mm PCB Socket Header - SMT Type - Double Row - Right Angle

WR-PHD 2.54 mm Multi-Jumper Jumper with Test Point

WR-PHD 2.54 mm Jumper with Test Point & Pullback
