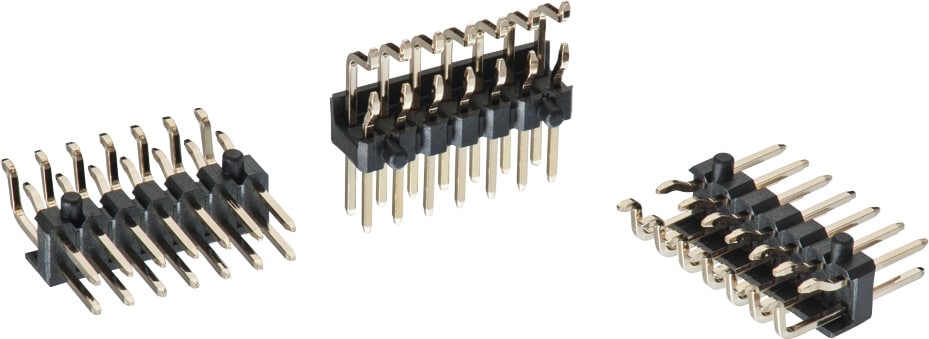

WR-PHD 2.54 mm SMT Pin Header Double Row Right Angled

Characteristics

Reference Designs

RD006 3 W Dual-output isolated auxiliary supply for communication interfaces and measurement systems

Article Properties
Pins	6; 8; 10; 12; 14; 16; 20; 22; 24; 26

Material Properties
Insulator Material	PA9T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped

General Information
Operating Temperature	-40 °C up to +105 °C
Pitch	2.54 mm
Durability	25 Mating cycles
Rows	Dual
Gender	Pin Header
Type	Angled

Electrical Properties
Withstanding Voltage	600 V (AC)
Contact Resistance	20 mΩ
R_ISO	1000 MΩ

Certification
UL Approval	E323964

Packaging Properties
Packaging	Tape and Reel

Products

Order Code	Datasheet	Downloads	Pins	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
610106249121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_610106249121 (rev1).pdf \| 68.9 KB IGS Download_IGES_610106249121 (rev1).iges \| 952.9 KB STP 610106249121 (rev1).stp \| 361.2 KB	6	Dual	Pin Header	Angled	3	Tape and Reel	613001
610108249121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_610108249121 (rev1).pdf \| 75.5 KB IGS Download_IGES_610108249121 (rev1).iges \| 1.1 MB STP 610108249121 (rev1).stp \| 435.3 KB	8	Dual	Pin Header	Angled	3	Tape and Reel	–
610110249121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_610110249121 (rev1).pdf \| 85.4 KB IGS Download_IGES_610110249121 (rev1).iges \| 1.3 MB STP 610110249121 (rev1).stp \| 509.3 KB	10	Dual	Pin Header	Angled	3	Tape and Reel	612690 613001
610112249121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_610112249121 (rev1).pdf \| 89.8 KB IGS Download_IGES_610112249121 (rev1).iges \| 1.5 MB STP 610112249121 (rev1).stp \| 583.6 KB	12	Dual	Pin Header	Angled	3	Tape and Reel	–
610114249121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_610114249121 (rev1).pdf \| 102.2 KB IGS Download_IGES_610114249121 (rev1).iges \| 1.7 MB STP 610114249121 (rev1).stp \| 660.2 KB	14	Dual	Pin Header	Angled	3	Tape and Reel	–
610116249121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_610116249121 (rev1).pdf \| 107.6 KB IGS Download_IGES_610116249121 (rev1).iges \| 1.9 MB STP 610116249121 (rev1).stp \| 736.8 KB	16	Dual	Pin Header	Angled	3	Tape and Reel	613001
610120249121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_610120249121 (rev1).pdf \| 126.7 KB IGS Download_IGES_610120249121 (rev1).iges \| 2.2 MB STP 610120249121 (rev1).stp \| 890.7 KB	20	Dual	Pin Header	Angled	3	Tape and Reel	–
610122249121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_610122249121 (rev1).pdf \| 131.7 KB IGS Download_IGES_610122249121 (rev1).iges \| 2.4 MB STP 610122249121 (rev1).stp \| 968.1 KB	22	Dual	Pin Header	Angled	3	Tape and Reel	–
610124249121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_610124249121 (rev1).pdf \| 140.8 KB IGS Download_IGES_610124249121 (rev1).iges \| 2.6 MB STP 610124249121 (rev1).stp \| 1 MB	24	Dual	Pin Header	Angled	3	Tape and Reel	–
610126249121	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-PHD (rev24a).IntLib \| 34.1 MB CDS Cadence_WR-PHD (rev24c).zip \| 63.9 MB EAG Eagle_WR-PHD (rev24b).lbr \| 5.2 MB CAD files ZIP 3D 3D_610126249121 (rev1).pdf \| 155.7 KB IGS Download_IGES_610126249121 (rev1).iges \| 2.8 MB STP 610126249121 (rev1).stp \| 1.1 MB	26	Dual	Pin Header	Angled	3	Tape and Reel	–

Order Code	Datasheet
610106249121	SPEC
610108249121	SPEC
610110249121	SPEC
610112249121	SPEC
610114249121	SPEC
610116249121	SPEC
610120249121	SPEC
610122249121	SPEC
610124249121	SPEC
610126249121	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Rows	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

Mates with

WR-PHD 2.54 mm Dual Socket Header

WR-PHD 2.54 mm Angled Dual Socket Header

WR-PHD 2.54 mm Dual Socket Header Bottom Entry

WR-PHD 2.54 mm Dual Socket Header Bottom Entry Large

WR-PHD 2.54 mm SMT Dual Socket Header Bottom Entry

WR-PHD 2.54 mm SMT Socket Header

WR-PHD 2.54 mm PCB Socket Header - SMT Type - Double Row - Right Angle

WR-PHD 2.54 mm Multi-Jumper Jumper with Test Point

WR-PHD 2.54 mm Jumper with Test Point & Pullback
