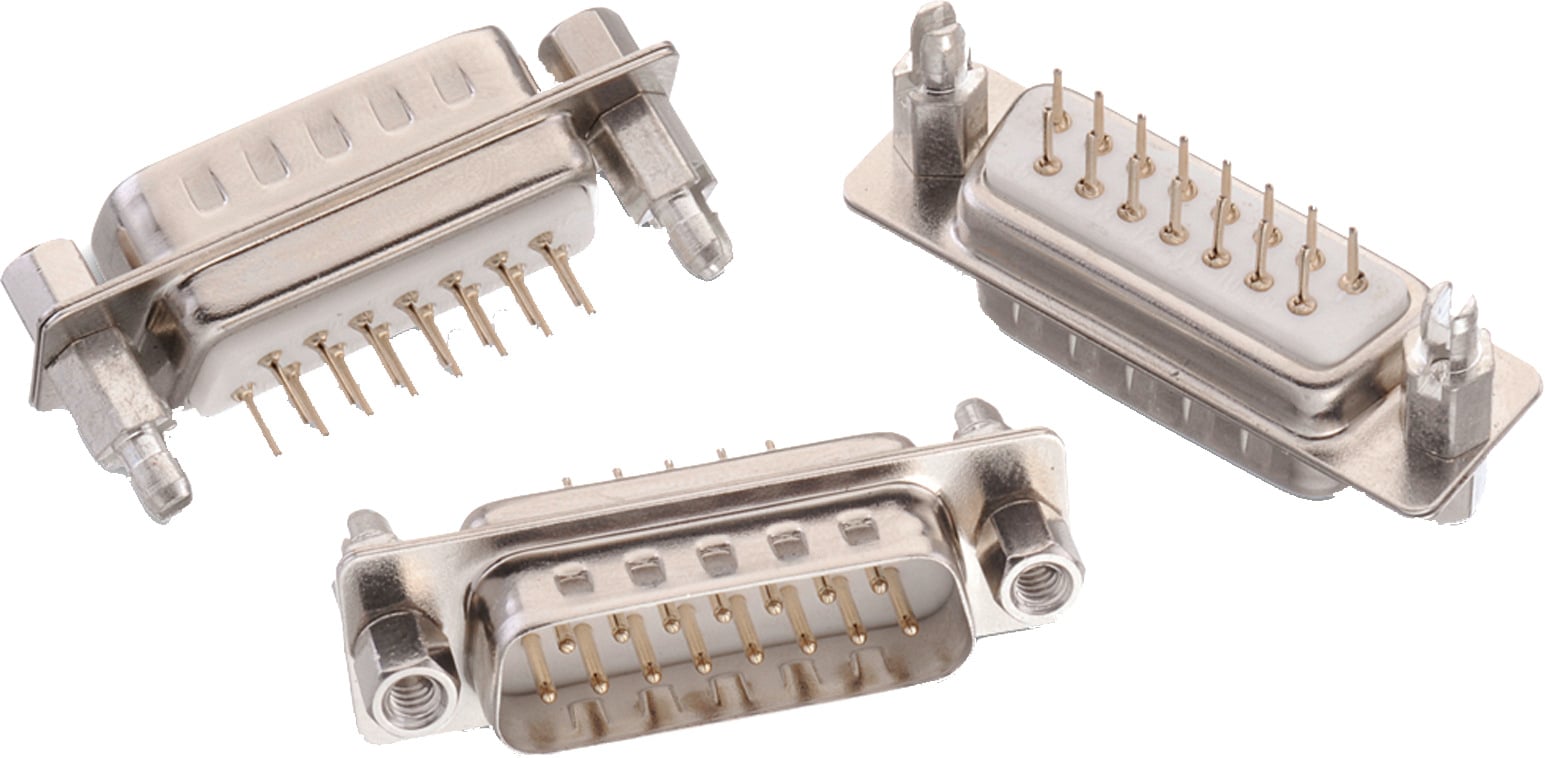

WR-DSUB Male PCB Connector with Hex Screw

General Information
Operating Temperature	-55 °C up to +105 °C
Gender	Male
Type	Straight
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Insulator Color	White
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped
Shielding Material	Steel
Shielding Plating	Tin

Electrical Properties
Working Voltage	250 V (AC)
Withstanding Voltage	1000 V (AC)
Contact Resistance	30 mΩ

Application Notes

ANP083 Adapter PCB for filtering electromagnetic interference on an RS-485 interface
PDF

Wave Soldering is the process of soldering through hole components onto a PCB by passing the exposed contacts of the components placed on a board over a wave of tin molten solder. The solder wave flows under the PCB board and applies by capillarity solder to the contacts of components placed on the PCB board. It is primarily used to solder through hole connectors on printed circuit boards.

These two recommended wave soldering profiles are available for information purposes only. Please consider plastic material, circuit board features, connectors ranges and other technical properties when choosing your soldering parameters / a suitable soldering profile.

Learn more now

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Gender	Type	Operating Temperature	Working Voltage (V (AC))	Design Kit
61800929221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 3D_61800929221 (rev1).pdf \| 602 KB IGS Download_IGES_61800929221 (rev1).iges \| 3.4 MB STP Download_STP_61800929221 (rev1).stp \| 1.2 MB	Active i\| Production is active. Expected lifetime: >10 years.	9	Male	Straight	-55 °C up to +105 °C	250	612690
61801529221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 61801529221 (rev1).pdf \| 658.9 KB IGS 61801529221 (rev1).iges \| 4.2 MB STP 61801529221 (rev1).stp \| 1.3 MB	Active i\| Production is active. Expected lifetime: >10 years.	15	Male	Straight	-55 °C up to +105 °C	250	–
61802529221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 61802529221 (rev1).pdf \| 762.2 KB IGS 61802529221 (rev1).iges \| 5.5 MB STP 61802529221 (rev1).stp \| 1.6 MB	Active i\| Production is active. Expected lifetime: >10 years.	25	Male	Straight	-55 °C up to +105 °C	250	–
61803729221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 61803729221 (rev1).pdf \| 969 KB IGS 61803729221 (rev1).iges \| 7.2 MB STP 61803729221 (rev1).stp \| 1.8 MB	Active i\| Production is active. Expected lifetime: >10 years.	37	Male	Straight	-55 °C up to +105 °C	250	–

Order Code	Datasheet
61800929221	SPEC
61801529221	SPEC
61802529221	SPEC
61803729221	SPEC

Samples

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Gender	Type	Operating Temperature	Working Voltage (V (AC))	Design Kit	Samples

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions
