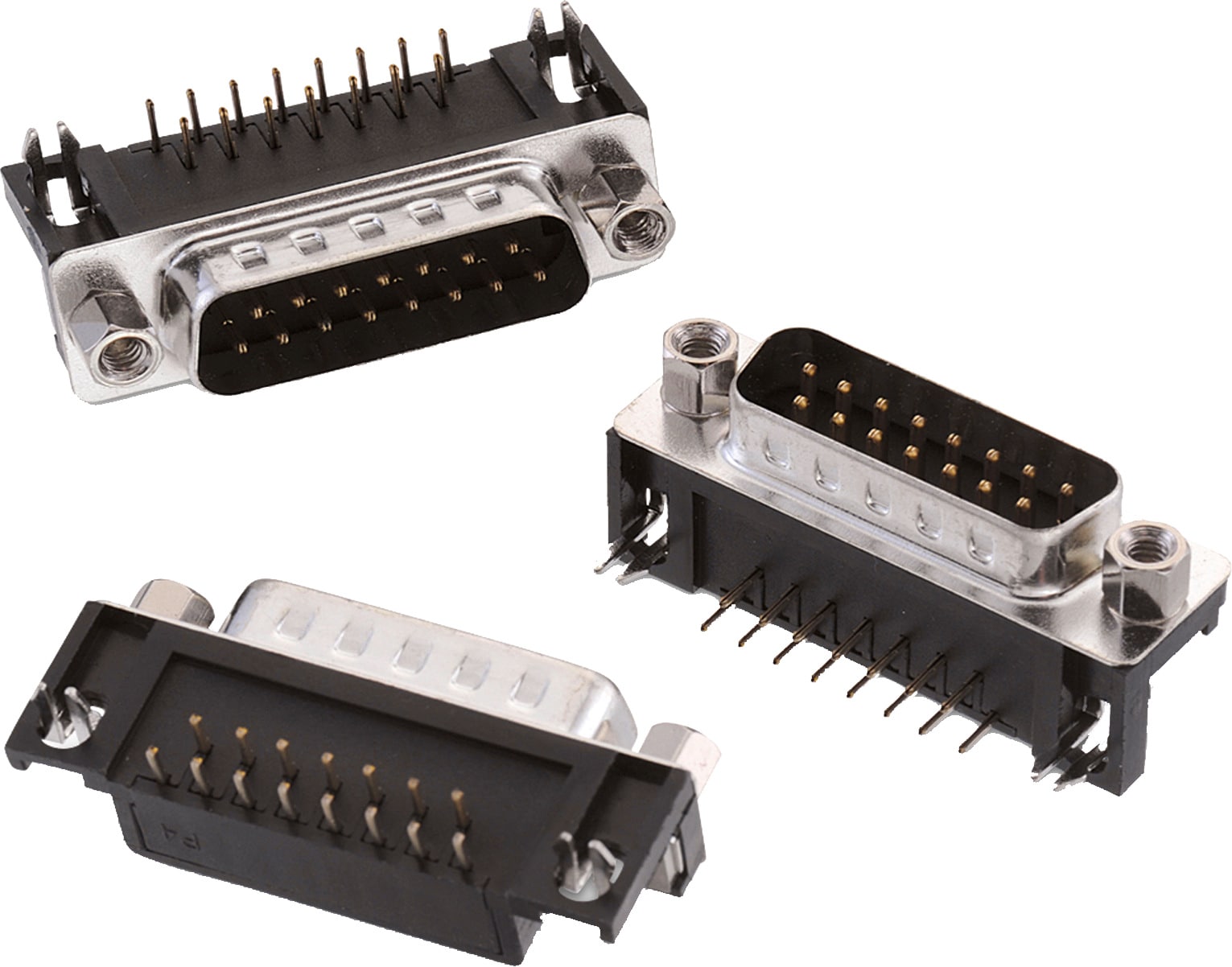

WR-DSUB 8.08 mm Male Angled PCB Connector w. Hex Screw | Electromechanical Components | Würth Elektronik Product Catalog

: Products Reference Designs Applications & Industries

OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyInput/Output Connectors Product sub-familyWR-DSUB Connectors OrientationPCB GenderMale Product seriesWR-DSUB 8.08 mm Male Angled PCB Connector w. Hex Screw

General Information
Operating Temperature	-55 °C up to +105 °C
Compliance	RoHS
Quality Class	3 as per IEC 60 603-13
Gender	Male
Type	Angled
Insulator Material	PBT
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact Plating	Gold
Contact Type	Stamped
Shielding Material	Steel
Shielding Plating	Nickel (Ni)

Electrical Properties
I_R	3 A
Working Voltage	125 V (AC)
Withstanding Voltage	100 V (AC)
Contact Resistance	30 mΩ

Application Notes

ANP083 Adapter PCB for filtering electromagnetic interference on an RS-485 interface
PDF

Products

Order Code	Datasheet	Downloads	Pins	Gender	Type	Operating Temperature	Working Voltage (V (AC))	Filter Stick	Filter Bag	Samples
618009231221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 3D_618009231221 (rev1).pdf \| 829.5 KB IGS IGES_618009231221 (rev1).iges \| 3.2 MB STP STP_618009231221 (rev1).stp \| 930.3 KB	9	Male	Angled	-55 °C up to +105 °C	125	8294851	829485
618015231221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618015231221 (rev1).pdf \| 892.4 KB IGS 618015231221 (rev1).iges \| 4 MB STP 618015231221 (rev1).stp \| 1.1 MB	15	Male	Angled	-55 °C up to +105 °C	125	–	–
618025231221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618025231221 (rev1).pdf \| 990.6 KB IGS 618025231221 (rev1).iges \| 5.4 MB STP 618025231221 (rev1).stp \| 1.3 MB	25	Male	Angled	-55 °C up to +105 °C	125	–	–
618037231221	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-DSUB (rev23a).IntLib \| 19.7 MB CDS Cadence_WR-DSUB (rev23a).zip \| 78.6 MB EAG Eagle_WR-DSUB (rev23a).lbr \| 583 KB CAD files ZIP 3D 618037231221 (rev1).pdf \| 1.1 MB IGS 618037231221 (rev1).iges \| 7 MB STP 618037231221 (rev1).stp \| 1.7 MB	37	Male	Angled	-55 °C up to +105 °C	125	–	–

Order Code	Datasheet
618009231221	SPEC
618015231221	SPEC
618025231221	SPEC
618037231221	SPEC

Samples

Order Code	Datasheet	Downloads	Pins	Gender	Type	Operating Temperature	Working Voltage (V (AC))	Filter Stick	Filter Bag	Samples

Mates with

WR-DSUB 10.30 mm Female Angled PCB Connector w/o Hex Screw

WR-DSUB Female Solder Bucket

WR-DSUB Female PCB Connector

WR-DSUB Female IDC

WR-DSUB Female IDC w. UNC 4-40 Nut

WR-DSUB 8.08 mm Female Angled PCB Connector w. Hex Screw

WR-DSUB 10.30 mm Female Angled PCB Connector w. Hex Screw

WR-DSUB 8.08 mm Female Angled PCB Connector w/o Hex Screw

Use with

WA-PCCA Plastic Caps for D-SUB

WA-HEX Hexagonal Lock Screws for D-Sub

Assortments

Articles from this product series can be found in the following assortments:

Filter Stick RS-485 Profibus EMC

Filter Bag RS-485 Profibus EMC
