| Bauform | L (mm) | W (mm) | H (mm) | Montageart | ||
|---|---|---|---|---|---|---|

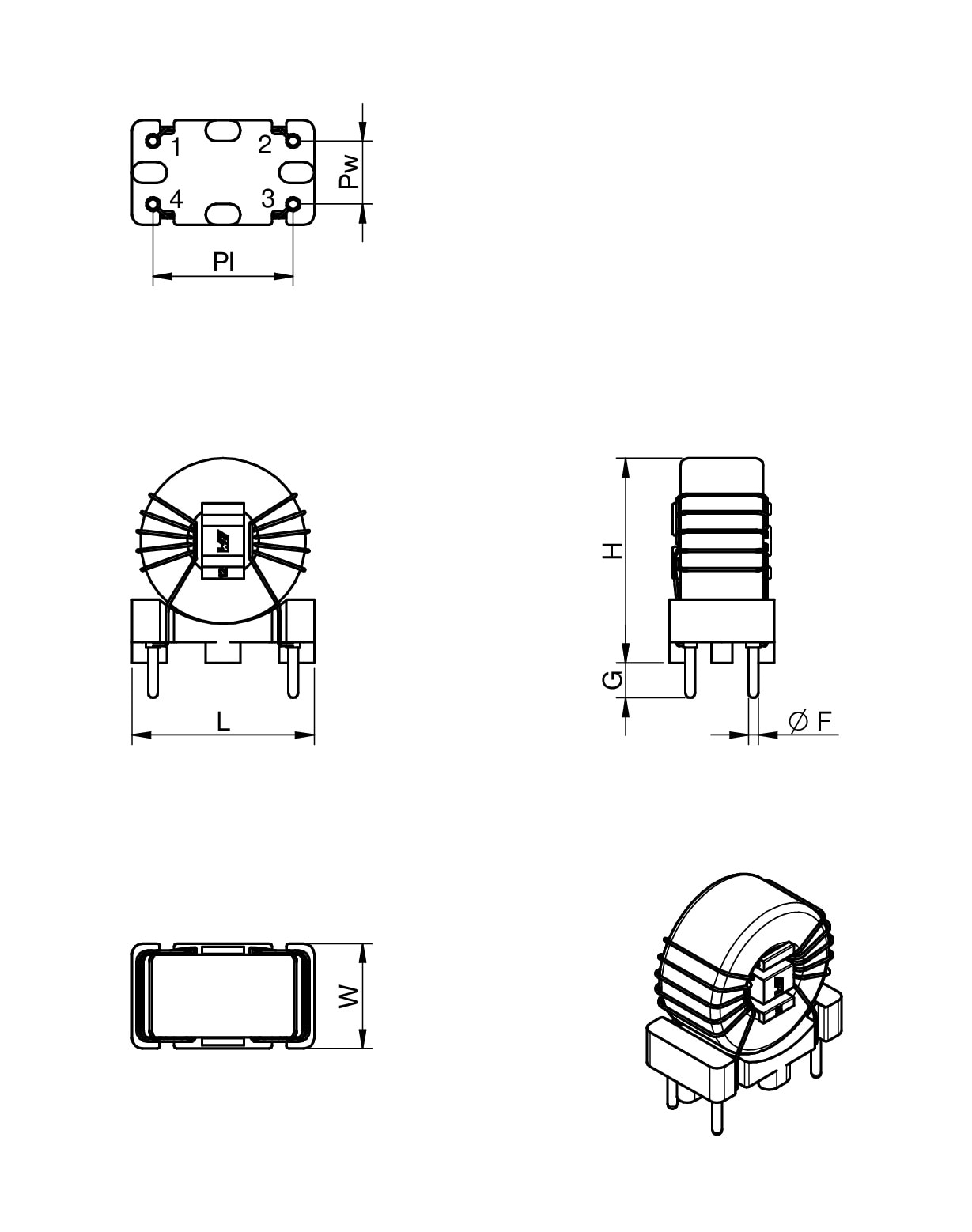

| Type XS | - | 7.5 | 16 | THT | | |

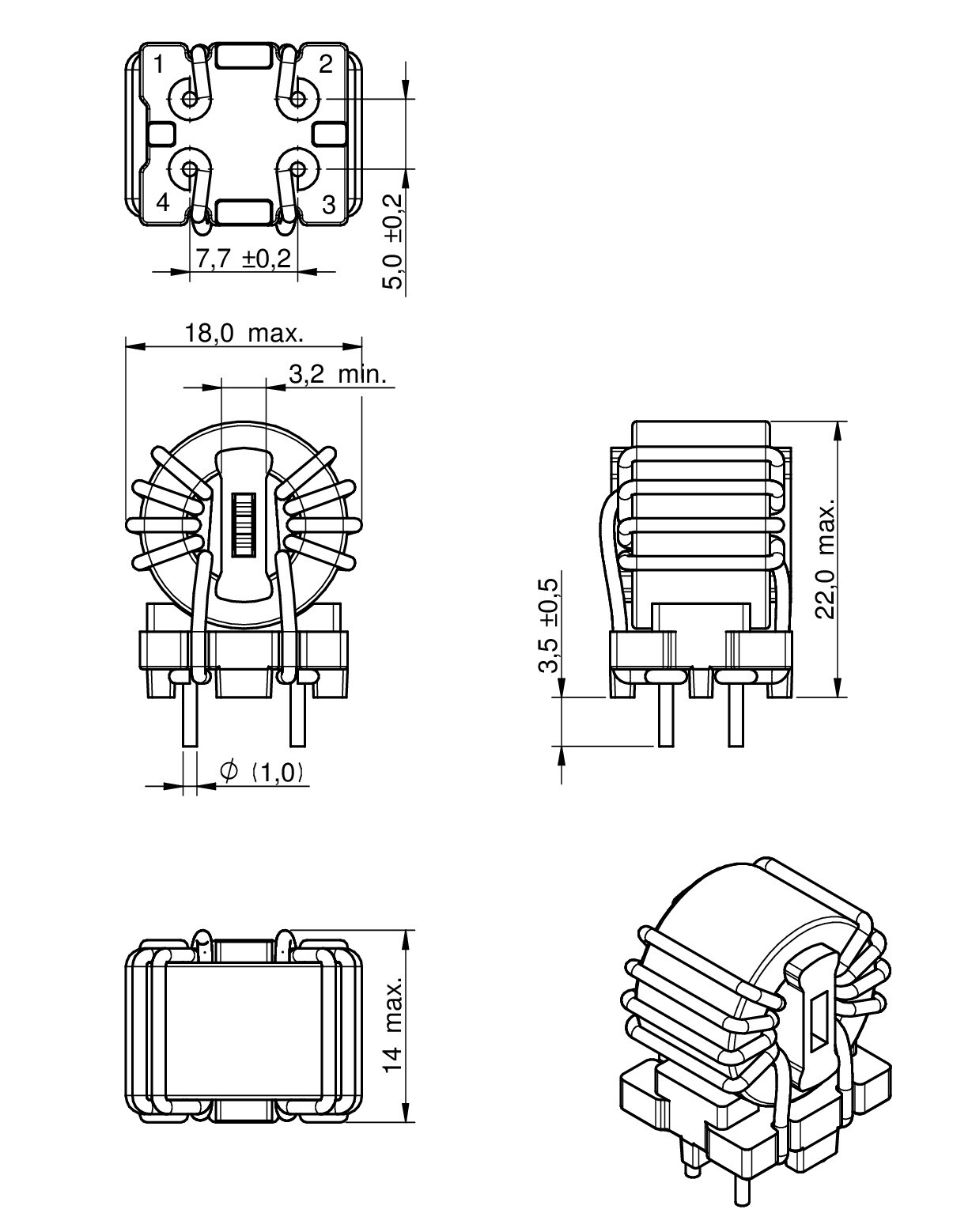

| Type S | 18 | 14 | 22 | THT | | |

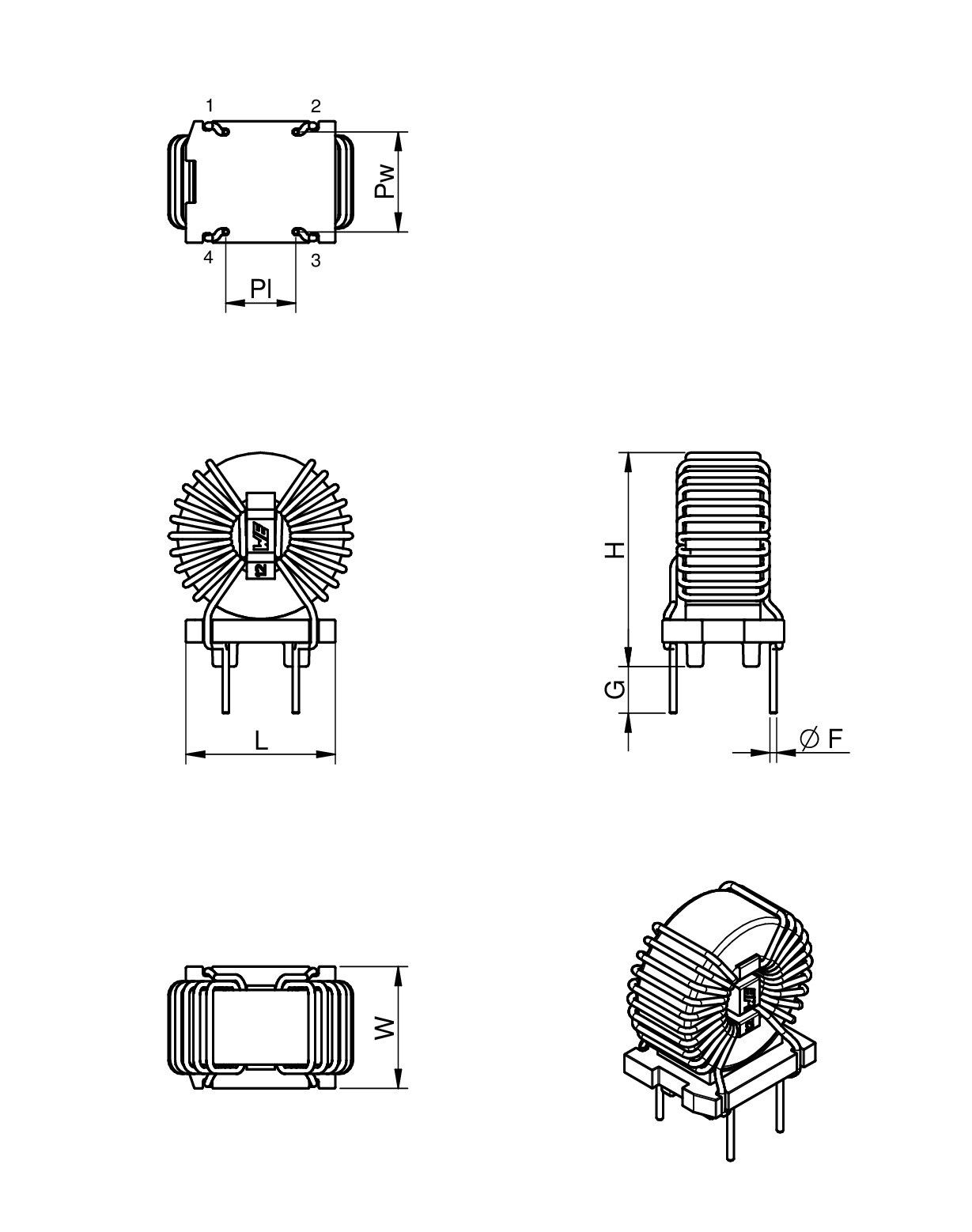

| Type M | - | - | 25 | THT | | |

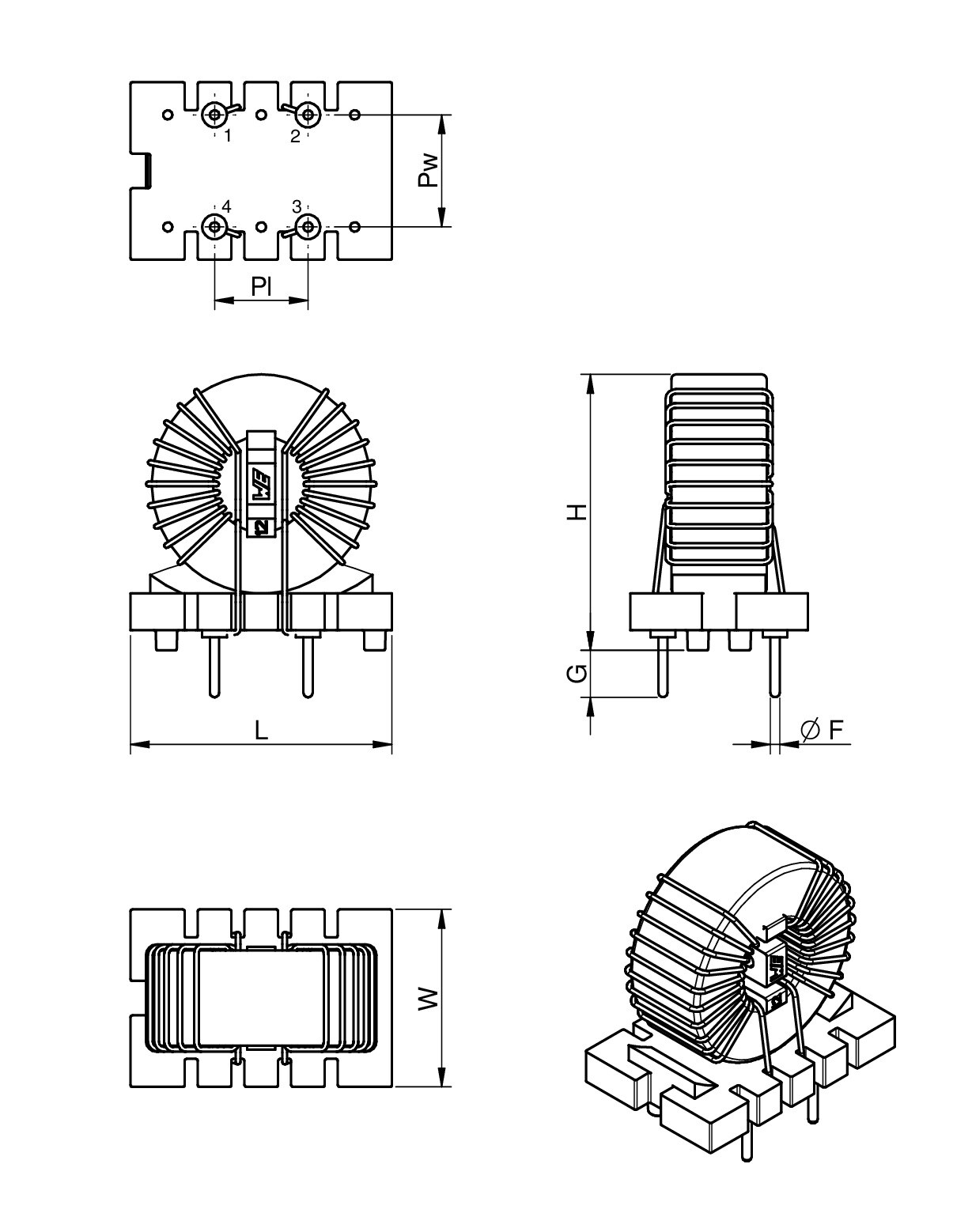

| Type L | - | - | 32 | THT | | |
| Type XL | - | - | - | THT | | |

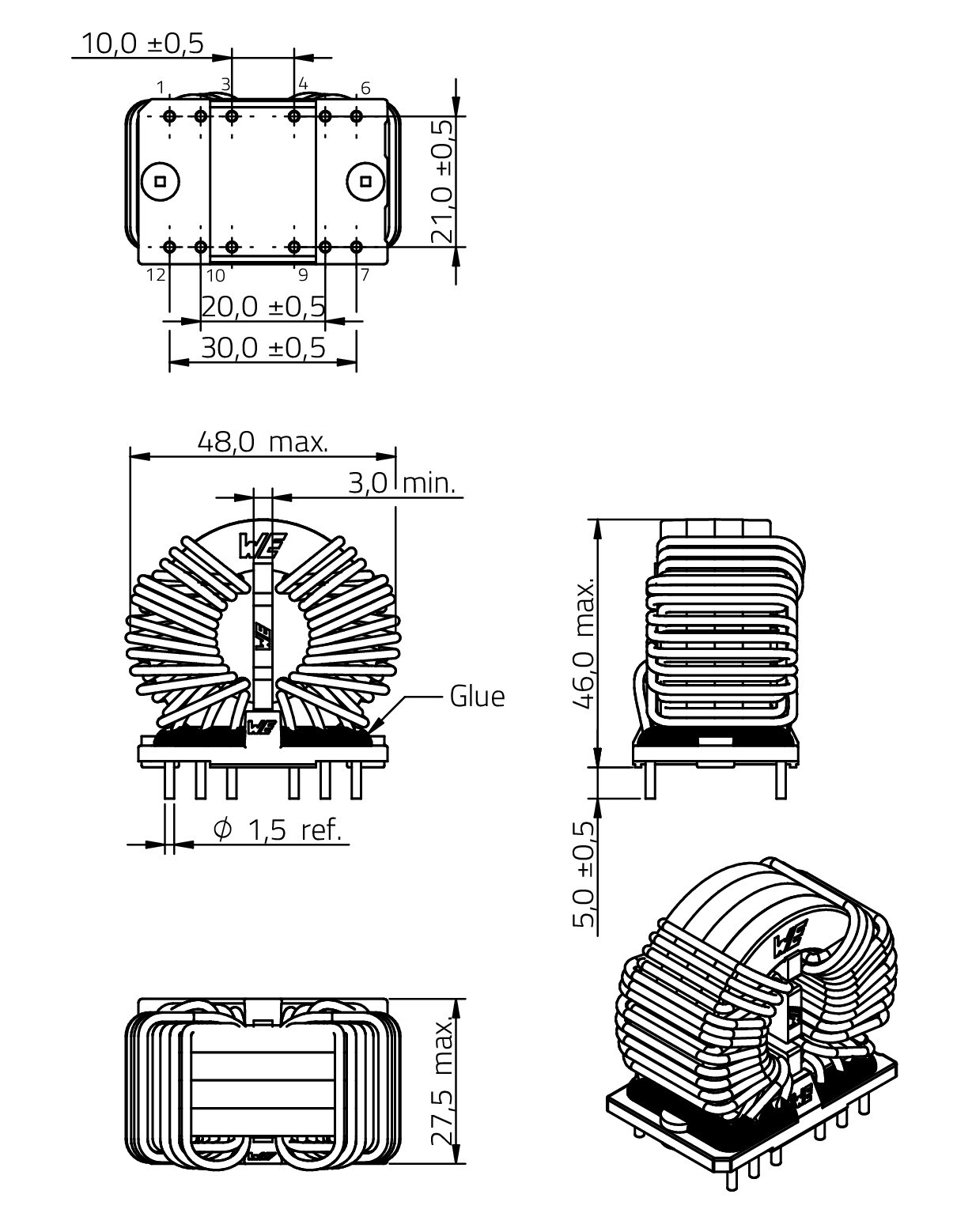

| Type XXL | - | 27 | 46 | THT | |
Merkmale
- Einsatz von hochpermeablem nanokristallinem Kernmaterial
- Erweiterte Isolation durch Verwendung von Kunststoffgehäuse und Trennsteg
- Hohe und stabile Induktivitäten bis 150 °C
- Hohe Nennströme
- Breitbandige Entstörung
- Kleines Bauvolumen
- Frequenzbereich: 1 kHz-300 MHz
- Betriebstemperatur: –40 ºC bis +125 ºC
- Brennbarkeit gemäß UL 94 V-0
- Klimakategorie: 40/125/21
Anwendung
- Leistungselektronik
- Ein- und Ausgangsfilter bei Netzanwendungen
- Motorentstörung
- Gleichtaktstörunterdrückung
Artikeldaten
Alle
Type XS
Type S
Type M
Type L
Type XL
Type XXL
| Artikel Nr. | Datenblatt | Simulation | Downloads | IR (A) | L (mH) | RDC max. (mΩ) | VR (V (AC)) | VT (V (AC)) | Design Kit | Muster |
|---|---|---|---|---|---|---|---|---|---|---|
| 7448010911 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 0.9 | 11 | 430 | 250 | 1500 | 744800 | ||
| 7448011008 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 1 | 8 | 330 | 250 | 1500 | – | ||
| 7448011305 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 1.3 | 5 | 200 | 250 | 1500 | 744800 | ||
| 7448012002 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 2 | 1.6 | 90 | 250 | 1500 | – | ||
| 7448012501 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 2.5 | 1 | 55 | 250 | 1500 | – | ||
| 7448013501 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 3.5 | 0.5 | 33 | 250 | 1500 | – | ||
| 7448014501 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 4.5 | 0.4 | 22 | 250 | 1500 | 744800 | ||
| 7448020680 | | STE ALT EAG CAD LTS PSP CAD IGS SPA | 0.6 | 80 | 1000 | 250 | 1500 | – | ||
| 7448021230 | | STE ALT EAG CAD LTS PSP CAD IGS SPA | 1.2 | 30 | 280 | 250 | 1500 | – | ||
| 7448022010 | | STE ALT EAG CAD LTS PSP CAD IGS SPA | 2 | 10 | 85 | 250 | 1500 | – | ||
| 7448023005 | | STE ALT EAG CAD LTS PSP CAD IGS SPA | 3 | 5 | 40 | 250 | 1500 | – | ||
| 7448024503 | | STE ALT EAG CAD LTS PSP CAD IGS SPA | 4.5 | 3 | 22 | 250 | 1500 | – | ||
| 7448025003 | | STE ALT EAG CAD LTS PSP CAD IGS SPA | 5 | 2.5 | 15 | 250 | 1500 | – | ||
| 7448026002 | | STE ALT EAG CAD LTS PSP CAD IGS SPA | 6 | 1.5 | 8 | 250 | 1500 | – | ||
| 7448027001 | | STE ALT EAG CAD LTS PSP CAD IGS SPA | 7 | 1 | 6 | 250 | 1500 | – | ||
| 7448030333 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 2.5 | 33 | 90 | 250 | 1500 | 744800 | ||
| 7448030417 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 4 | 17 | 50 | 250 | 1500 | – | ||
| 7448030509 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 5 | 9 | 28 | 250 | 1500 | 744800 744998 | ||
| 7448031002 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 10 | 2 | 6 | 250 | 1500 | – | ||
| 7448031501 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 15 | 1 | 3.3 | 250 | 1500 | 744800 | ||
| 7448040382 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 2.5 | 82 | 170 | 250 | 1500 | 744800 | ||
| 7448040435 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 3.5 | 35 | 80 | 250 | 1500 | 744824 | ||
| 7448040515 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 5 | 15 | 38 | 250 | 1500 | 744824 | ||
| 7448040707 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 7 | 7 | 20 | 250 | 1500 | 744800 744824 744998 | ||
| 7448041104 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 11 | 4 | 8.5 | 250 | 1500 | 744824 | ||
| 7448041502 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 15 | 2 | 5 | 250 | 1500 | 744824 | ||
| 7448041801 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 18 | 1.5 | 3.2 | 250 | 1500 | – | ||
| 7448042001 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 20 | 1 | 2.4 | 250 | 1500 | 744800 | ||
| 7448050219 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 2 | 190 | 310 | 250 | 1500 | 744800 | ||
| 7448050490 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 3.5 | 90 | 110 | 250 | 1500 | – | ||
| 7448050530 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 5 | 30 | 46 | 250 | 1500 | – | ||
| 7448051012 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 10 | 12 | 15 | 250 | 1500 | 744800 | ||
| 7448051307 | | ALT EAG CAD LTS PSP CAD SPA | 13 | 7 | 8 | 250 | 1500 | – | ||
| 7448051804 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 18 | 4.5 | 4.2 | 250 | 1500 | – | ||
| 7448052303 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 23 | 3 | – | 250 | 1500 | – | ||
| 7448052502 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 25 | 2.5 | 2.2 | 250 | 1500 | – | ||

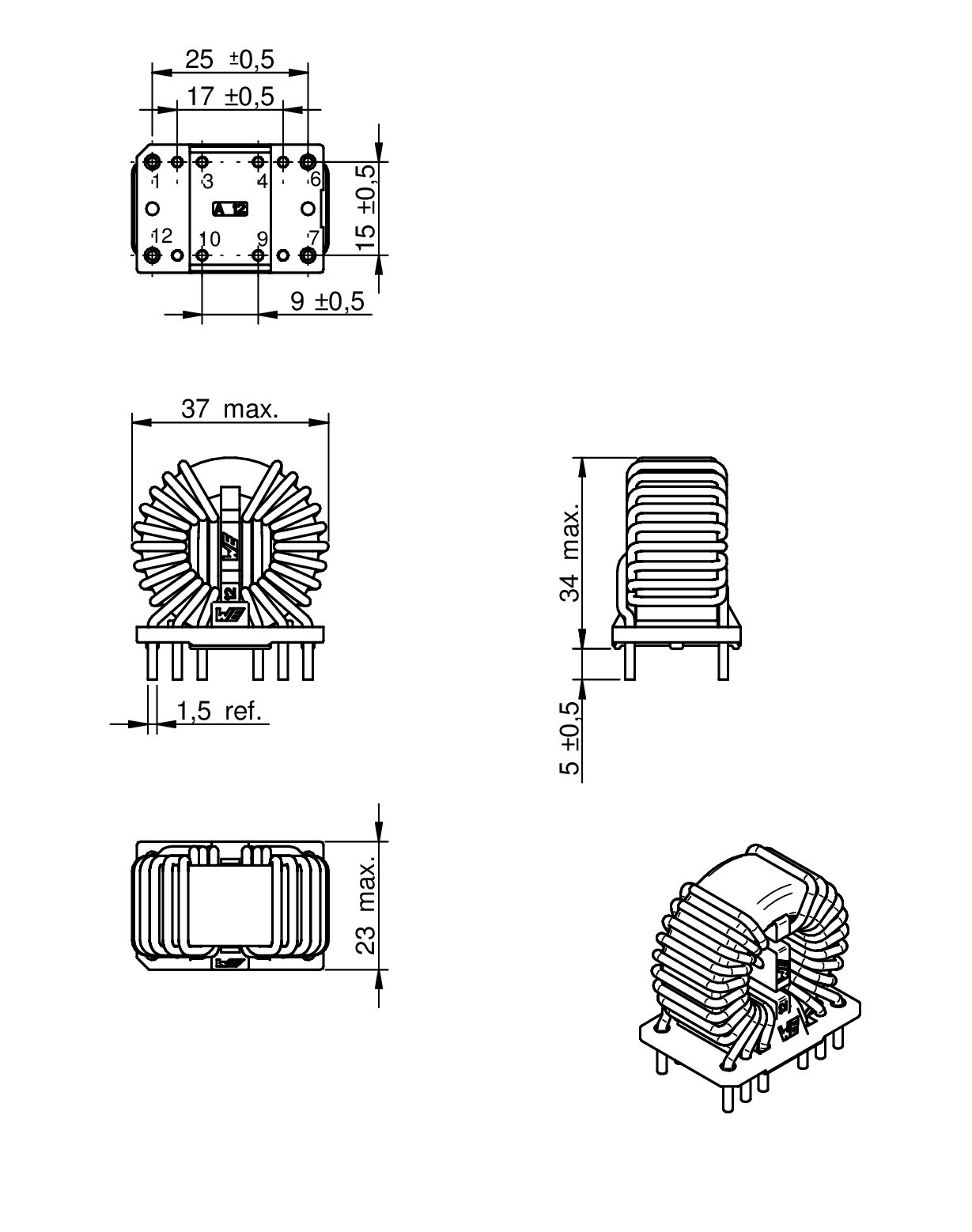

| 7448053201 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 32 | 0.9 | 1.1 | 250 | 1500 | 744800 | ||
| 7448060535 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 5 | 35 | 90 | 250 | 1500 | 744800 | ||
| 7448060620 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 6 | 20 | 45 | 250 | 1500 | – | ||
| 7448060814 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 8 | 14 | 27 | 250 | 1500 | – | ||
| 7448061309 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 13 | 9 | 15 | 250 | 1500 | 744800 | ||
| 7448061507 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 15 | 7 | 9.5 | 250 | 1500 | – | ||
| 7448062105 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 21 | 5 | 6.5 | 250 | 1500 | – | ||
| 7448062603 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 26 | 3 | 4.5 | 250 | 1500 | – | ||
| 7448063801 | | STE ALT EAG CAD LTS PSP IGS CAD SPA | 38 | 1.5 | 2.3 | 250 | 1500 | 744800 |
| Muster |
|---|
| Artikel Nr. | Datenblatt | Simulation | Downloads | IR (A) | L (mH) | RDC max. (mΩ) | VR (V (AC)) | VT (V (AC)) | Design Kit | Muster |
|---|
