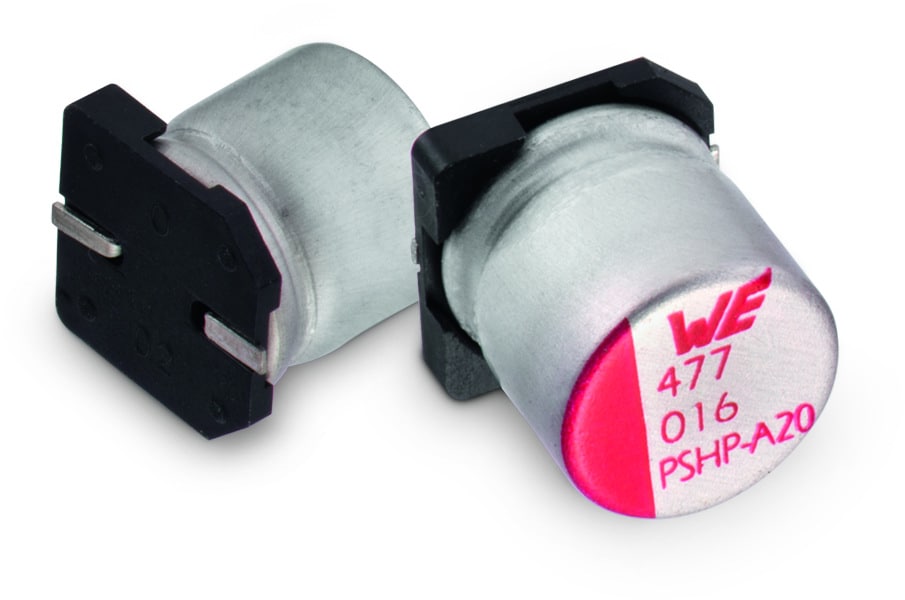

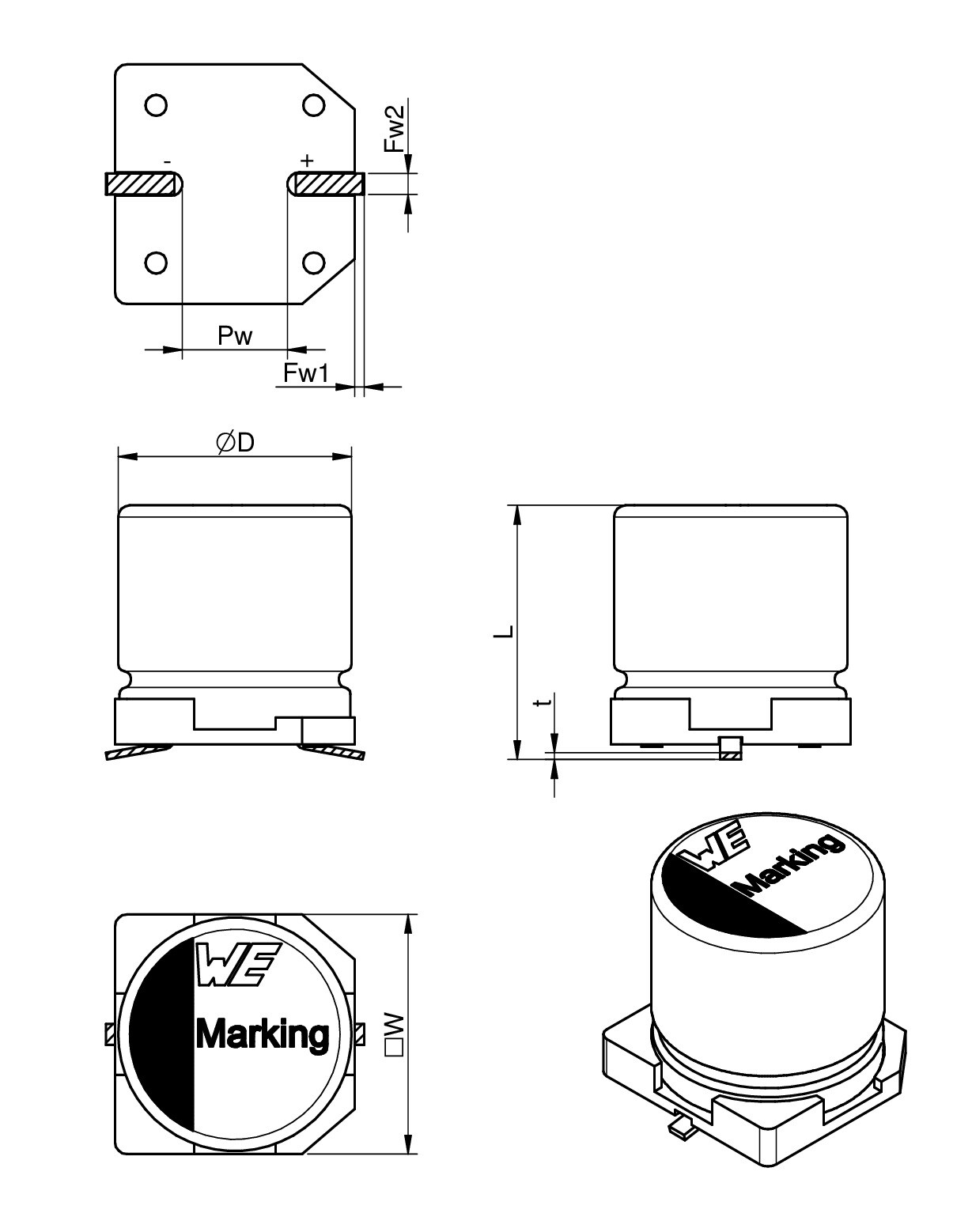

WCAP-PSHP Aluminium-Polymer-Kondensatoren

High Ripple Current

Merkmale

  • Produktserie mit hohem zulässigem Rippelstrom
  • Niedriger ESR bei hohem Frequenzbereich
  • Montagetyp: V-Chip SMT
  • Kapazitätsbereich: 6.8 µF ‒ 1200 µF
  • Kapazitätstoleranz: ±20 %
  • Spannungsbereich (UR): 6.3 ‒ 100 V(DC)
  • Betriebstemperatur: -55 °C bis +105 °C
  • Lebensdauer: 2000 ‒ 5000 h @ +105 °C
  • Abmessungen (DxL) in mm: 6.3 x 5.8 bis 10.0 x 10.5
  • Empfohlenes Lötverfahren: Reflow-Löten

Anwendung

  • Geringe Ripple-Spannung beim Schaltwandler
  • Befilterung
  • Glättung
  • Kopplung
  • z.B. High-End-Netzteil, Industriecomputer, Grafikkarte, Ladegerät, digitale Set-Top-Box

Artikeldaten

Artikel Nr. SPEC Simu­lation Downloads C VR
(V (DC))
ILeak
(µA)
DF
(%)
IRIPPLE
(mA)
RESR
(mΩ)
Betriebstemperatur Ø D
(mm)
L
(mm)
Technische Artikelnummer Design Kit Muster
875115952001
ALT EAG CAD LTS PSP CAD CAD 6.8  µF 100 136 12 1500 48 -55 °C up to +105 °C 8 8.7 PSEE0876R8M100DVCTEB000
875115644009
ALT EAG CAD LTS PSP CAD CAD 10  µF 35 600 12 980 75 -55 °C up to +105 °C 6.3 5.8 PSED058100M035DVCTBE000
875116152001
ALT EAG CAD LTS PSP CAD CAD 10  µF 80 160 12 1600 45 -55 °C up to +105 °C 8 8.7 PSEE087100M080DVCTEB000
875115752001
ALT EAG CAD LTS PSP CAD CAD 10  µF 50 100 12 1500 45 -55 °C up to +105 °C 8 8.7 PSEE087100M050DVCTEB000
875115852001
ALT EAG CAD LTS PSP CAD CAD 10  µF 63 126 12 1500 45 -55 °C up to +105 °C 8 8.7 PSEE087100M063DVCTEB000
875115957002
ALT EAG CAD LTS PSP CAD CAD 12  µF 100 240 12 1900 45 -55 °C up to +105 °C 10 10.5 PSEF105120M100DVCTEB000
875116157002
ALT EAG CAD LTS PSP CAD CAD 15  µF 80 240 12 1900 40 -55 °C up to +105 °C 10 10.5 PSEF105150M080DVCTEB000
875115645010
ALT EAG CAD LTS PSP CAD CAD 18  µF 35 600 12 1400 60 -55 °C up to +105 °C 6.3 7.7 PSED077180M035DVCTCE000
875115655011
ALT EAG CAD LTS PSP CAD CAD 22  µF 35 600 12 2300 35 -55 °C up to +105 °C 8 11.7 PSEE117220M035DVCTFE000
875115645012
ALT EAG CAD LTS PSP CAD CAD 27  µF 35 600 12 1400 60 -55 °C up to +105 °C 6.3 7.7 PSED077270M035DVCTCE000
875115655013
ALT EAG CAD LTS PSP CAD CAD 33  µF 35 600 12 2300 35 -55 °C up to +105 °C 8 11.7 PSEE117330M035DVCTFE000
875115652014
ALT EAG CAD LTS PSP CAD CAD 39  µF 35 600 12 1800 40 -55 °C up to +105 °C 8 8.7 PSEE087390M035DVCTEE000
875115650005
ALT EAG CAD LTS PSP CAD CAD 56  µF 35 392 12 2200 40 -55 °C up to +105 °C 8 7.7 PSEE077560M035DVCTDB000
875115655015
ALT EAG CAD LTS PSP CAD CAD 56  µF 35 600 12 2300 35 -55 °C up to +105 °C 8 11.7 PSEE117560M035DVCTFE000
875115452001
ALT EAG CAD LTS PSP CAD CAD 68  µF 20 272 8 3500 20 -55 °C up to +105 °C 8 8.7 PSEE087680M020DVCTEB000 875115
875115552001
ALT EAG CAD LTS PSP CAD CAD 68  µF 25 340 8 3500 20 -55 °C up to +105 °C 8 8.7 PSEE087680M025DVCTEB000 875115
875115657016
ALT EAG CAD LTS PSP CAD CAD 68  µF 35 600 12 2500 32 -55 °C up to +105 °C 10 10.5 PSEF105680M035DVCTEE000
875115452002
ALT EAG CAD LTS PSP CAD CAD 82  µF 20 328 8 3500 20 -55 °C up to +105 °C 8 8.7 PSEE087820M020DVCTEB000 875115
875115552002
ALT EAG CAD LTS PSP CAD CAD 82  µF 25 410 10 3500 20 -55 °C up to +105 °C 8 8.7 PSEE087820M025DVCTEB000 875115
875115560003
ALT EAG CAD LTS PSP CAD CAD 82  µF 25 410 10 3100 25 -55 °C up to +105 °C 10 8.7 PSEF087820M025DVCTEB000 875115
875115652006
ALT EAG CAD LTS PSP CAD CAD 82  µF 35 574 12 2600 35 -55 °C up to +105 °C 8 8.7 PSEE087820M035DVCTEB000
875115452003
ALT EAG CAD LTS PSP CAD CAD 100  µF 20 400 8 3500 20 -55 °C up to +105 °C 8 8.7 PSEE087101M020DVCTEB000 875115
875115560004
ALT EAG CAD LTS PSP CAD CAD 100  µF 25 500 10 3100 25 -55 °C up to +105 °C 10 8.7 PSEF087101M025DVCTEB000 875115
875115652007
ALT EAG CAD LTS PSP CAD CAD 100  µF 35 700 12 3000 30 -55 °C up to +105 °C 8 8.7 PSEE087101M035DVCTEB000
875115655003
ALT EAG CAD LTS PSP CAD CAD 100  µF 35 700 12 2800 30 -55 °C up to +105 °C 8 11.7 PSEE117101M035DVCTFE000
875115657008
ALT EAG CAD LTS PSP CAD CAD 120  µF 35 840 12 3200 30 -55 °C up to +105 °C 10 10.5 PSEF105121M035DVCTEB000
875115452004
ALT EAG CAD LTS PSP CAD CAD 150  µF 20 600 10 3500 20 -55 °C up to +105 °C 8 8.7 PSEE087151M020DVCTEB000 875115
875115460005
ALT EAG CAD LTS PSP CAD CAD 150  µF 20 600 10 3100 25 -55 °C up to +105 °C 10 8.7 PSEF087151M020DVCTEB000 875115
875115557005
ALT EAG CAD LTS PSP CAD CAD 150  µF 25 750 10 3700 20 -55 °C up to +105 °C 10 10.5 PSEF105151M025DVCTEB000 875115
875115350001
ALT EAG CAD LTS PSP CAD CAD 180  µF 16 288 8 3500 20 -55 °C up to +105 °C 8 7.7 PSEE077181M016DVCTDB000 875115
875115460006
ALT EAG CAD LTS PSP CAD CAD 180  µF 20 720 10 3100 25 -55 °C up to +105 °C 10 8.7 PSEF087181M020DVCTEB000 875115
875115150001
ALT EAG CAD LTS PSP CAD CAD 220  µF 6.3 277.2 8 3500 20 -55 °C up to +105 °C 8 7.7 PSEE077221M6R3DVCTDB000 875115
875115350002
ALT EAG CAD LTS PSP CAD CAD 220  µF 16 352 8 3500 20 -55 °C up to +105 °C 8 7.7 PSEE077221M016DVCTDB000 875115
875115460007
ALT EAG CAD LTS PSP CAD CAD 220  µF 20 880 10 3100 25 -55 °C up to +105 °C 10 8.7 PSEF087221M020DVCTEB000 875115
875115150002
ALT EAG CAD LTS PSP CAD CAD 270  µF 6.3 340.2 8 3500 20 -55 °C up to +105 °C 8 7.7 PSEE077271M6R3DVCTDB000 875115
875115352003
ALT EAG CAD LTS PSP CAD CAD 270  µF 16 432 10 4800 11 -55 °C up to +105 °C 8 8.7 PSEE087271M016DVCTEB000
875115457008
ALT EAG CAD LTS PSP CAD CAD 270  µF 20 1080 10 3700 20 -55 °C up to +105 °C 10 10.5 PSEF105271M020DVCTEB000 875115
875115150003
ALT EAG CAD LTS PSP CAD CAD 330  µF 6.3 415.8 8 3500 20 -55 °C up to +105 °C 8 7.7 PSEE077331M6R3DVCTDB000 875115
875115250001
ALT EAG CAD LTS PSP CAD CAD 330  µF 10 660 8 3500 20 -55 °C up to +105 °C 8 7.7 PSEE077331M010DVCTDB000 875115
875115360004
ALT EAG CAD LTS PSP CAD CAD 330  µF 16 528 10 3700 20 -55 °C up to +105 °C 10 8.7 PSEF087331M016DVCTEB000 875115
875115150004
ALT EAG CAD LTS PSP CAD CAD 390  µF 6.3 491 8 3500 20 -55 °C up to +105 °C 8 7.7 PSEE077391M6R3DVCTDB000 875115
875115250002
ALT EAG CAD LTS PSP CAD CAD 390  µF 10 780 8 3500 20 -55 °C up to +105 °C 8 7.7 PSEE077391M010DVCTDB000 875115
875115360005
ALT EAG CAD LTS PSP CAD CAD 390  µF 16 624 10 3700 20 -55 °C up to +105 °C 10 8.7 PSEF087391M016DVCTEB000 875115
875115150005
ALT EAG CAD LTS PSP CAD CAD 470  µF 6.3 592 8 3500 20 -55 °C up to +105 °C 8 7.7 PSEE077471M6R3DVCTDB000 875115
875115252003
ALT EAG CAD LTS PSP CAD CAD 470  µF 10 940 8 4800 11 -55 °C up to +105 °C 8 8.7 PSEE087471M010DVCTEB000 875115
875115260004
ALT EAG CAD LTS PSP CAD CAD 470  µF 10 940 8 3700 20 -55 °C up to +105 °C 10 8.7 PSEF087471M010DVCTEB000 875115
875115357006
ALT EAG CAD LTS PSP CAD CAD 470  µF 16 752 10 5100 11 -55 °C up to +105 °C 10 10.5 PSEF105471M016DVCTEB000 875115
875115152006
ALT EAG CAD LTS PSP CAD CAD 560  µF 6.3 705.6 8 4800 11 -55 °C up to +105 °C 8 8.7 PSEE087561M6R3DVCTEB000 875115
875115260005
ALT EAG CAD LTS PSP CAD CAD 560  µF 10 1120 8 3700 20 -55 °C up to +105 °C 10 8.7 PSEF087561M010DVCTEB000 875115
875115152007
ALT EAG CAD LTS PSP CAD CAD 680  µF 6.3 856 10 4800 11 -55 °C up to +105 °C 8 8.7 PSEE087681M6R3DVCTEB000 875115
875115260006
ALT EAG CAD LTS PSP CAD CAD 680  µF 10 1360 10 3700 20 -55 °C up to +105 °C 10 8.7 PSEF087681M010DVCTEB000 875115
875115160008
ALT EAG CAD LTS PSP CAD CAD 820  µF 6.3 1033.2 10 3700 20 -55 °C up to +105 °C 10 8.7 PSEF087821M6R3DVCTEB000 875115
875115257007
ALT EAG CAD LTS PSP CAD CAD 820  µF 10 1640 10 5100 11 -55 °C up to +105 °C 10 10.5 PSEF105821M010DVCTEB000 875115
875115160009
ALT EAG CAD LTS PSP CAD CAD 1000  µF 6.3 1260 10 3700 20 -55 °C up to +105 °C 10 8.7 PSEF087102M6R3DVCTEB000 875115
875115157010
ALT EAG CAD LTS PSP CAD CAD 1200  µF 6.3 1260 10 5100 11 -55 °C up to +105 °C 10 10.5 PSEF105122M6R3DVCTEB000 875115
