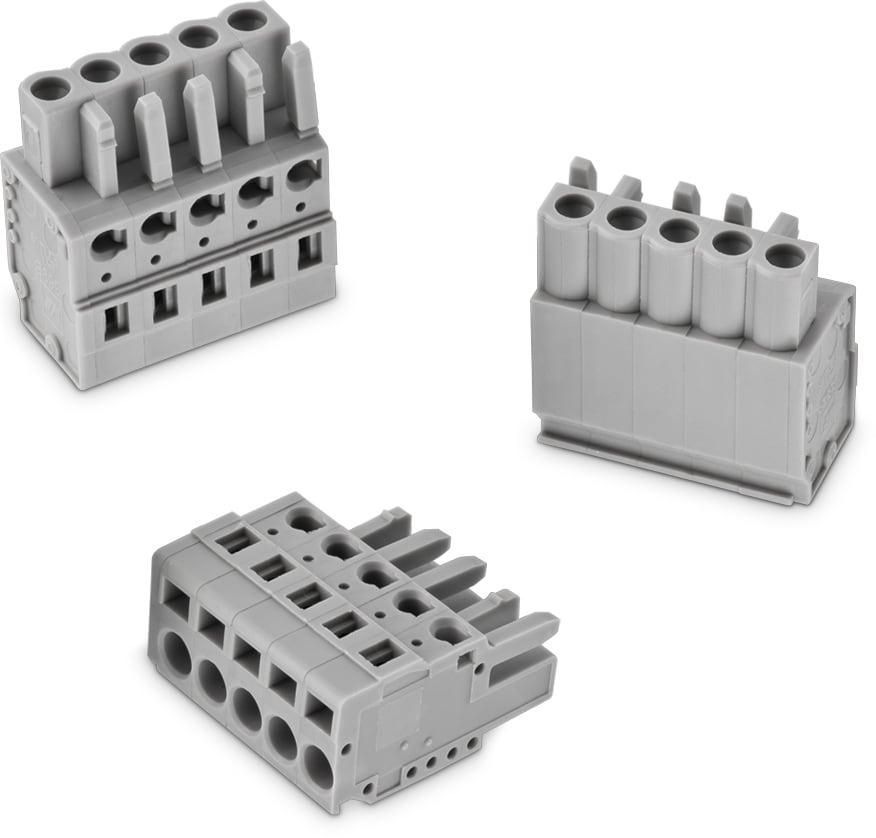

WR-TBL Series 369B - 5.00 mm Screwless-Strong Housing Retention Force

Kind Properties
Pitch5 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Contact MaterialPhosphor Bronze
Contact PlatingTin
Terminal Screw MaterialSteel
Terminal Screw PlatingZinc
Wire Guard MaterialStainless Steel
General Information
Operating Temperature-40 up to +105 °C
ComplianceRoHS
Electrical Properties
IR cULus16 A
Working Voltage300 V (AC)
Working Voltage [cULus]300 V (AC)
Withstanding Voltage [cULus]2000 V (AC)
Contact Resistance [cULus]20 mΩ
Mechanical Properties
Wire Strip Length8 up to 9 (mm)
Wire Properties
Solid Wire Section (AWG)12 to 28 (AWG)
Solid Wire Section (Metric)3.31 to 0.0810 (mm²)
Stranded Wire Section (AWG)12 to 28 (AWG)
Stranded Wire Section (Metric)3.31 to 0.0810 (mm²)
Certification
cULus ApprovalE315414

Products

Order Code Data­sheet DownloadsPins
(mm)
ApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples
691369700002BSPEC
1 files 2 Pluggable Cable No Vertical 12 to 28 (AWG) 3.31 to 0.0810 (mm²)612690
691001
691369700003BSPEC
3 files 3 Pluggable Cable No Vertical 12 to 28 (AWG) 3.31 to 0.0810 (mm²)
691369700004BSPEC
3 files 4 Pluggable Cable No Vertical 12 to 28 (AWG) 3.31 to 0.0810 (mm²)
691369700005BSPEC
3 files 5 Pluggable Cable No Vertical 12 to 28 (AWG) 3.31 to 0.0810 (mm²)
691369700006BSPEC
3 files 6 Pluggable Cable No Vertical 12 to 28 (AWG) 3.31 to 0.0810 (mm²)
691369700007BSPEC
3 files 7 Pluggable Cable No Vertical 12 to 28 (AWG) 3.31 to 0.0810 (mm²)
691369700008BSPEC
3 files 8 Pluggable Cable No Vertical 12 to 28 (AWG) 3.31 to 0.0810 (mm²)
691369700012BSPEC
3 files 12 Pluggable Cable No Vertical 12 to 28 (AWG) 3.31 to 0.0810 (mm²)
Order Code Data­sheet
691369700002BSPEC
691369700003BSPEC
691369700004BSPEC
691369700005BSPEC
691369700006BSPEC
691369700007BSPEC
691369700008BSPEC
691369700012BSPEC
