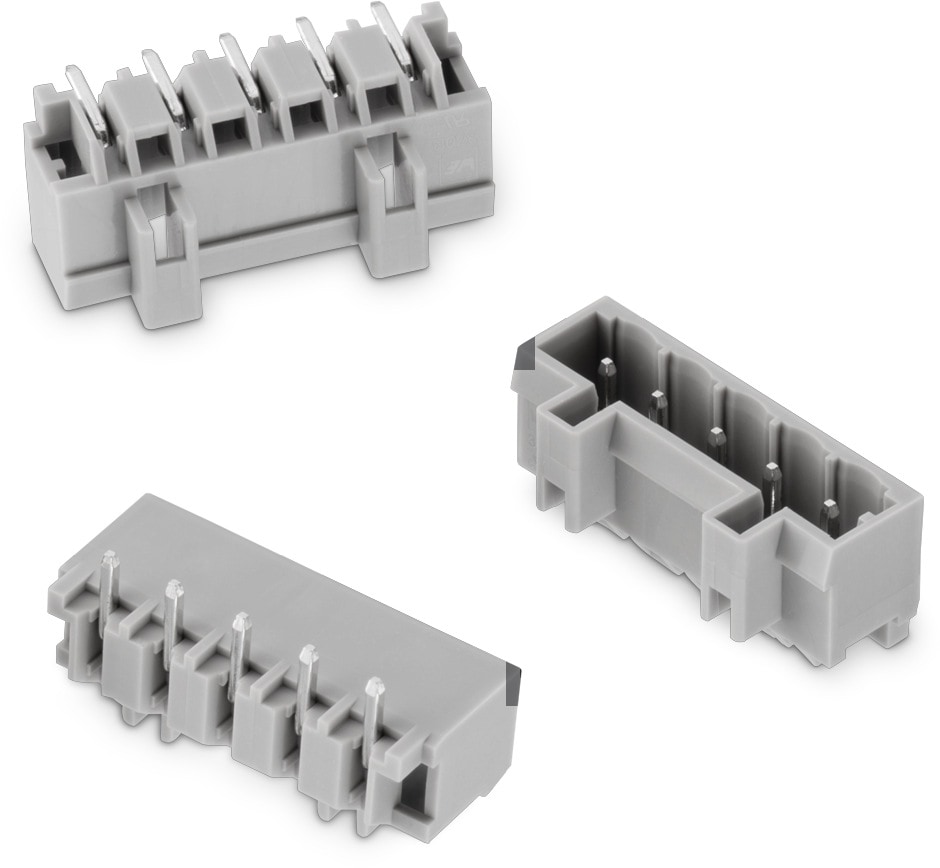

WR-TBL Series 370B - 5.00 mm Horizontal Male PCB Header | Electromechanical Components

General Information
Operating Temperature	-40 °C up to +105 °C
Compliance	RoHS
Pitch	5 mm

Material Properties
Insulator Material	PA66
Insulator Flammability Rating	UL94 V-0
Contact Material	Brass
Contact Plating	Tin

Electrical Properties
I_R	16 A
I_R[cULus]	16 A
Working Voltage	300 V (AC)
Working Voltage [cULus]	300 V (AC)
Withstanding Voltage [cULus]	2000 V (AC)
R_C	20 mΩ

Application Notes

Products

Order Code	Datasheet	Downloads	Status	Pins (pcs)	Application	PCB/Cable/Panel	Modularity	Type
691370710002B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691370710002B (rev1).pdf \| 77.8 KB IGS 691370710002B (rev1).iges \| 788 KB STP 691370710002B (rev1).stp \| 301.3 KB	Active i\| Production is active. Expected lifetime: >10 years.	2	Pluggable	PCB	No	Horizontal
691370710003B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691370710003B (rev1).pdf \| 98.7 KB IGS 691370710003B (rev1).iges \| 994.2 KB STP 691370710003B (rev1).stp \| 372.8 KB	Active i\| Production is active. Expected lifetime: >10 years.	3	Pluggable	PCB	No	Horizontal
691370710004B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691370710004B (rev1).pdf \| 119.1 KB IGS 691370710004B (rev1).iges \| 1.2 MB STP 691370710004B (rev1).stp \| 476 KB	Active i\| Production is active. Expected lifetime: >10 years.	4	Pluggable	PCB	No	Horizontal
691370710005B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691370710005B (rev1).pdf \| 138.2 KB IGS 691370710005B (rev1).iges \| 1.5 MB STP 691370710005B (rev1).stp \| 547.4 KB	Active i\| Production is active. Expected lifetime: >10 years.	5	Pluggable	PCB	No	Horizontal
691370710006B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691370710006B (rev1).pdf \| 153.6 KB IGS 691370710006B (rev1).iges \| 1.7 MB STP 691370710006B (rev1).stp \| 619.6 KB	Active i\| Production is active. Expected lifetime: >10 years.	6	Pluggable	PCB	No	Horizontal
691370710007B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691370710007B (rev1).pdf \| 168.6 KB IGS Download_IGES_691370710007B (rev1).iges \| 1.9 MB STP Download_STP_691370710007B (rev1).stp \| 693.7 KB	Active i\| Production is active. Expected lifetime: >10 years.	7	Pluggable	PCB	No	Horizontal
691370710008B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 691370710008B (rev1).pdf \| 192.6 KB IGS 691370710008B (rev1).iges \| 2.1 MB STP 691370710008B (rev1).stp \| 767.2 KB	Active i\| Production is active. Expected lifetime: >10 years.	8	Pluggable	PCB	No	Horizontal
691370710012B	SPEC	7 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB ALT Altium_WR-TBL_Pluggable Connector (rev25b).IntLib \| 108.3 MB CDS Cadence_WR-TBL (rev25a).zip \| 360.6 MB EAG Eagle_WR-TBL Pluggable Connector (rev25a).lbr \| 4.2 MB CAD files ZIP 3D 3D_691370710012B (rev1).pdf \| 278.1 KB IGS Download_IGES_691370710012B (rev1).iges \| 2.9 MB STP Download_STP_691370710012B (rev1).stp \| 1 MB	Active i\| Production is active. Expected lifetime: >10 years.	12	Pluggable	PCB	No	Horizontal
