REDline Power Box M Plus

Optimal for positioning the power distribution between the engine’s and driver’s compartment

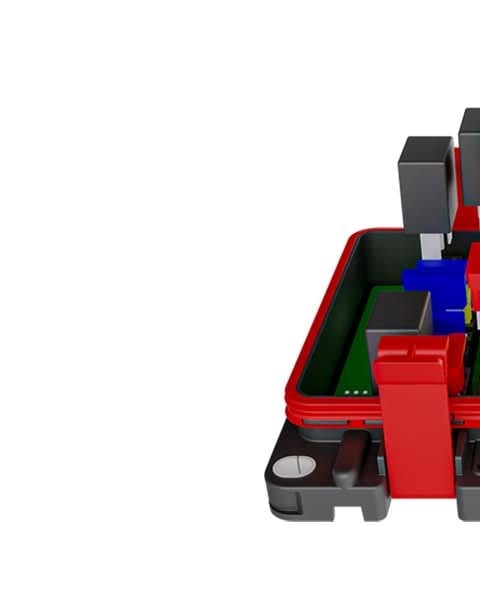

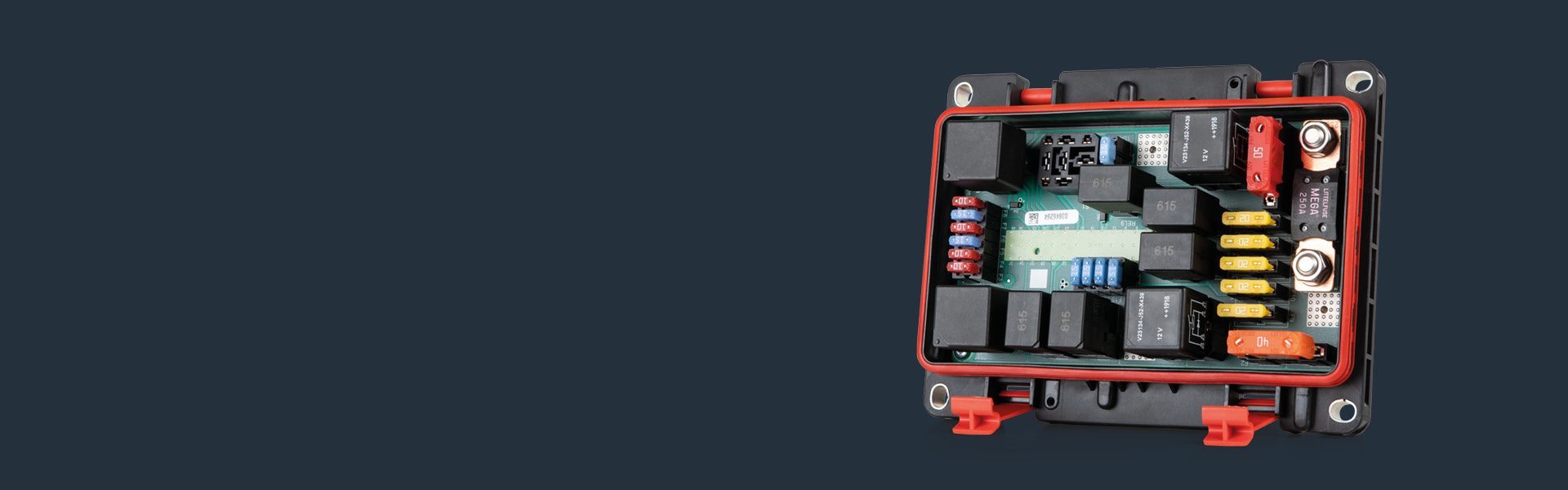

The REDline Power Box M Plus is the ideal solution when the power distribution has to be positioned between the engine’s and driver’s compartment. The integration of a MEGA fuse on the outside of the box allows the protection of the components and creates a secured power line.

It is equipped with:

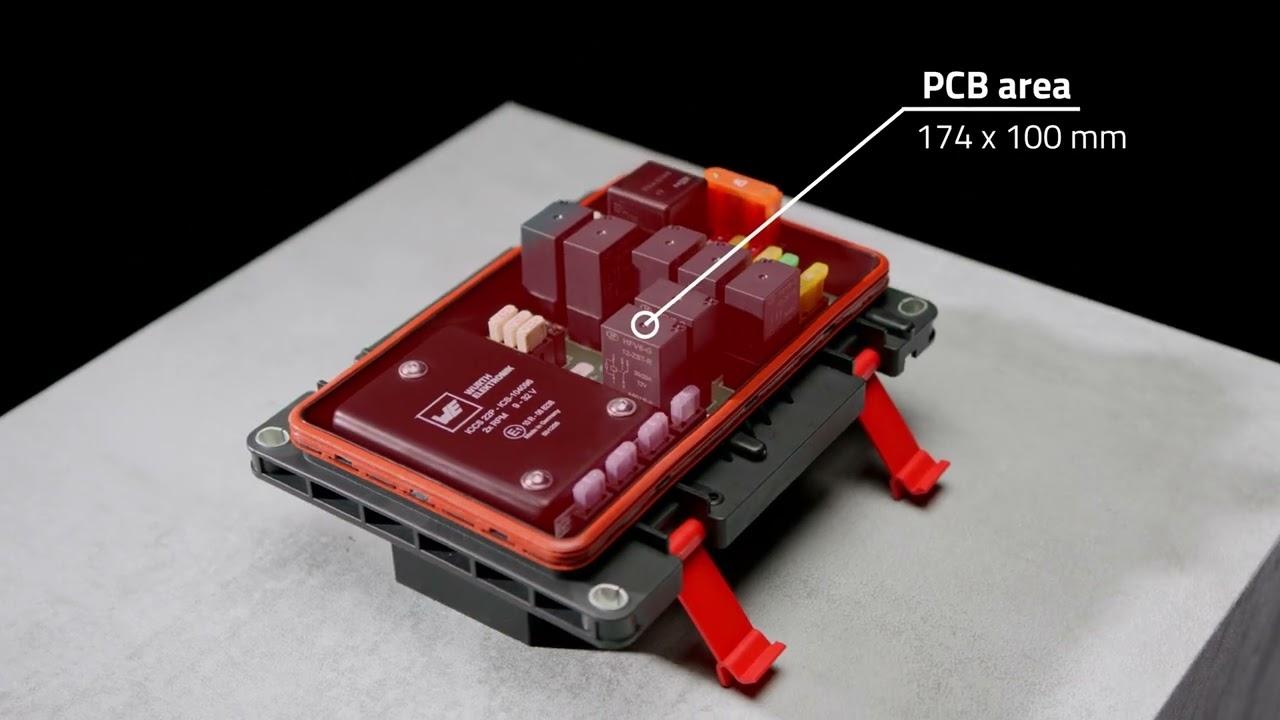

A 174 x 100 mm PCB area
Up to four Powerelements
A 31-pin, 39- or 62-pin LeavySeal connector

Open Data Sheet

Data and facts about the REDline Power Box M Plus

Mechanical Data
Operating Temperature	-40 °C to +85°C
IP Protection Class	IP66 / IP69K (dust proof / protected against powerful water jets under pressure)
Dimensions	Box: 193 x 148,8 x 97,3 mm PCB: 174 x 100 mm
Specifics	Integrated compression limiter MEGA fuse on the outside of the box Possible MEGA fuse integration on the outside of the box

Electrical data
Power Input	M5 Powerelement, Radlok™ or SurLok Plus™ 3.6 M6 Powerelement, Radlok™ or SurLok Plus™ 5.7 M8 Powerelement, Radlok™ or SurLok Plus™ 8 LED indicator Closed Input
Connectors	One LeavySeal connector, available as: 31-pin: mate with TE 1-1564297-6 39-pin: mate with TE 5-1718321-3 or 6-1718321-3 62-pin: mate with 1-1418883-1 or 2-1418883-1

Options:

Cover leash
Fuse tester
Fuse puller
Customer logo on lid
Components sticker
Optional pass-through seal for installation

REDline Power Box M Plus Standard
Variants	Order number WE ICS
Unequipped (without relays)	ICS-103263
Equipped with 12 V fuses and relays	ICS-103263-12V
Equipped with 24 V fuses and relays	ICS-103263-24V

Things to know about our REDline Power Boxes

Compact electrics for telehandlers

When the Bobcat telehandlers were completely revised in recent years, the electrical system of the vehicles was also taken into consideration. Würth Elektronik ICS is one of the development partners that supported that improvements. The result is a set of compact fuse and relay boxes that minimize the amount of wiring required.

To the reference report
Smart box for a leaner wiring harness

Dieci uses the REDline Power Box Hybrid from Würth Elektronik ICS in different versions. Our reference project shows how we individually developed the REDline Power Box Hybrid in three different ways.

To the reference report
Two development approaches - two success stories

The agricultural machinery manufacturer Krone wanted to redesign the driver's cabs of two self-propelled vehicles. To this end, Würth Elektronik ICS developed a concept for a compact power supply unit with electronic control functions that replaced two central electrical units and reduced the high amount of cabling required.

To the reference report

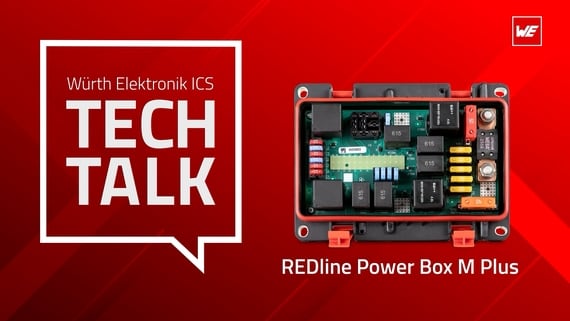

Würth Elektronik ICS Tech Talk

In our Tech Talk video, our product manager tells you all about the functions and features of our REDline Power Box M Plus.

Watch on YouTube
