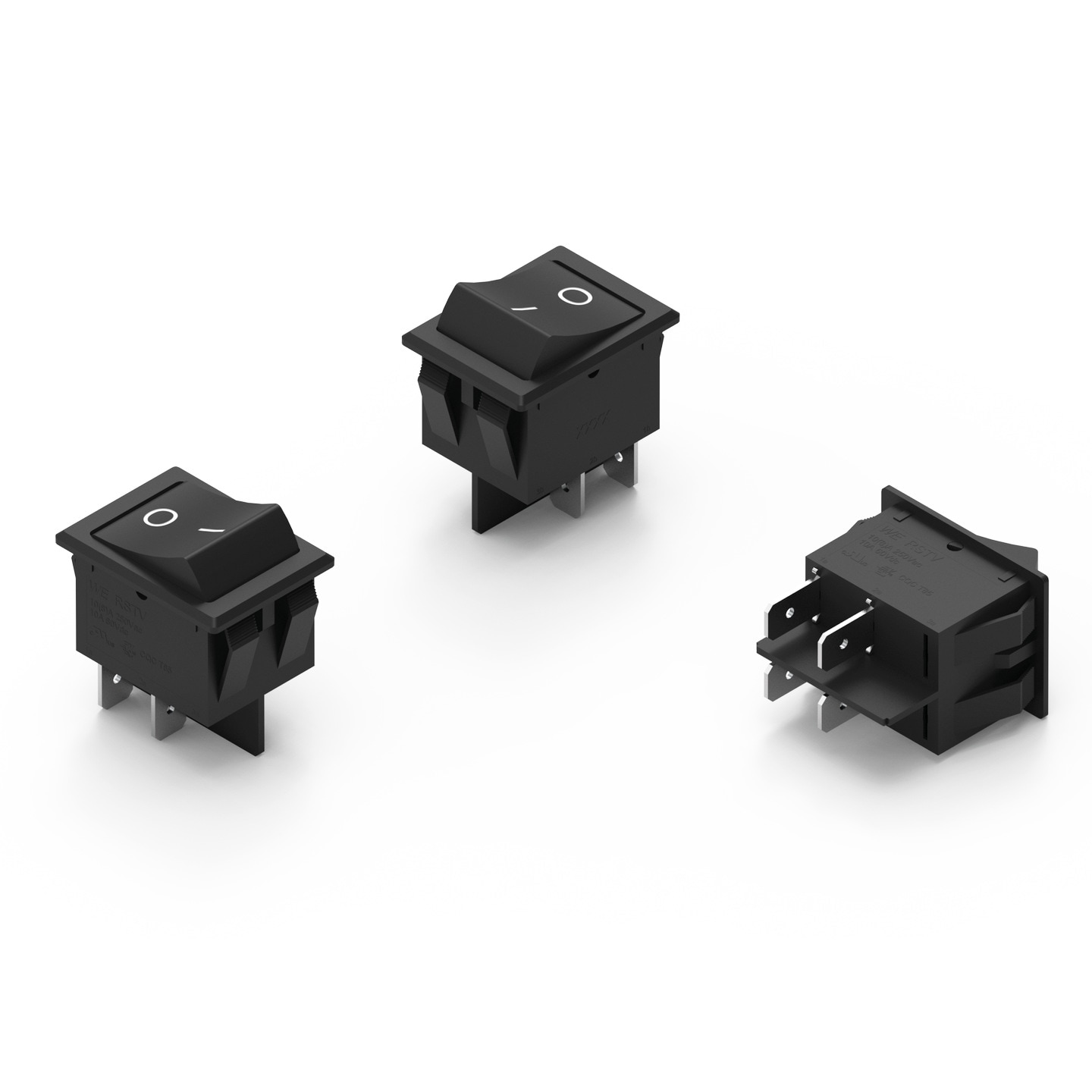

WS-RSTV 30.2 x 22.2 mm panel cut-out with 0.25" quick connect terminal

WS-RSTV 30.2 x 22.2 mm panel cut-out with 0.25" quick connect terminal
Material Properties
Actuator MaterialPA66
Actuator Flammability RatingUL94 V-2
Frame MaterialPA66
Frame Flammability RatingUL94 V-2
Moveable Contact MaterialCopper Alloy
Moveable Contact PlatingSilver
Stationary Contact MaterialCopper Alloy
Terminal MaterialCopper Alloy
Terminal PlatingSilver
Mechanical Properties
Electrical Life50000 Cycles
SchematicDPST
General Information
Operating Temperature0 °C up to +85 °C
Packaging Properties
PackagingTray
Certification
UL ApprovalE483308
ENEC 15 ApprovalENEC-04161
CQC ApprovalCQC22002369026
Glow Wire ApprovalGWEPT: 750

Products

Order Code Data­sheet DownloadsDescriptionActuator ColorSchematic Samples
471018264152SPEC
6 files

EDA models: Components
ZIP

CAD files
ZIP

Download all 6 files as zip archive
ZIP

 Marking: 0 - Black DPST
471018264153SPEC
6 files

EDA models: Components
ZIP

CAD files
ZIP

Download all 6 files as zip archive
ZIP

 Marking: 0 I Black DPST
Order Code Data­sheet
471018264152SPEC
471018264153SPEC
Samples
Order Code Data­sheet DownloadsDescriptionActuator ColorSchematic Samples

Let's meet our WS-RSTV Rocker Switches series

WS-RSTV Rocker Switches

Introducing the Würth Elektronik Rocker Switch Series WS-RSTV - the ultimate solution for your switching needs. With UL/IEC/CQC 61058 certification and CE UKCA compliance, you can be assured of its quality and safety. Available in current ratings of 12, 28 and 60 VDC, these switches are built to last. And with a UV test certification of 60068-2-5, you can be confident that they can withstand even the harshest conditions. Try the WS-RSTV today and experience the difference.
