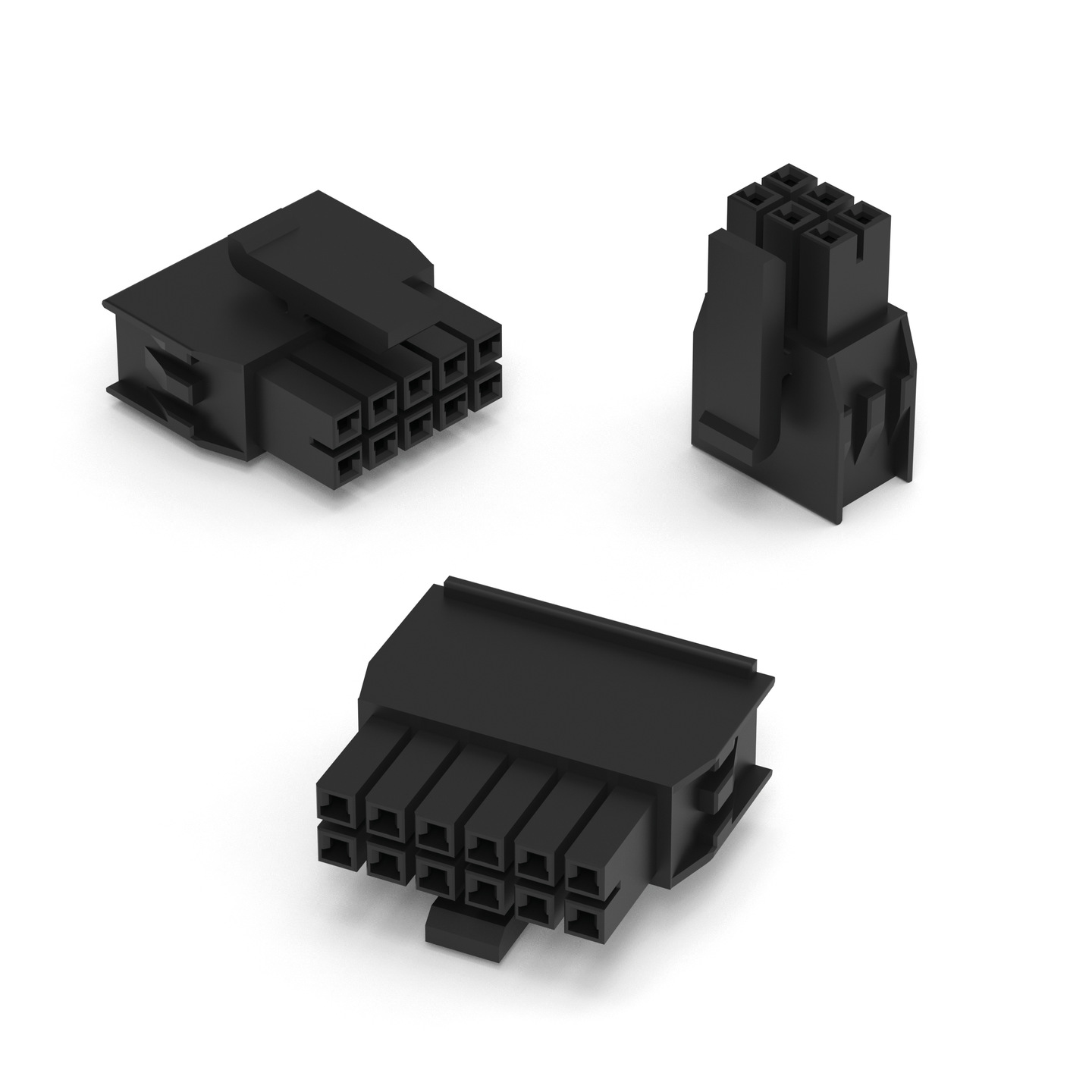

WR-NPC2 Female Receptacle Housing Dual Row

Characteristics

Properties
Rated Current: 6.5 A
Working Voltage: 250 V
Durability: 25 Mating cycles
UL Approval: E323964
UL 94-V0
Operating Temperature: -40 °C up to +105 °C
Features
Fully isolated & protected contacts
Crimping technology
Coding against mismating
Glow-Wire compliancy
Conform to IEC 60335-1
Tested at 750 °C and 850 °C
Perform by third party laboratory
Suitable for non-attended appliances and many other applications

Applications

Industrial
Home Appliances
Telecommunication

Products

Dual Row

Filter article data

show article in 1 product lines

article in 1 product lines

	Order Code	Datasheet	Downloads	Status	Polarity	Type	Packaging	Mates with	Samples
	626004230808	4, Receptacle Housing, Bag	Downloads3 files CAD files ZIP 3D 3D_ConNPC2_626004230808 (rev1).pdf \| 110.5 KB IGS IGS_ConNPC2_626004230808 (rev1).igs \| 1.8 MB STP STP_ConNPC2_626004230808 (rev1).stp \| 428.2 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Polarity4	TypeReceptacle Housing	PackagingBag	Mates with 626004220101 626004210201
	626006230808	6, Receptacle Housing, Bag	Downloads3 files CAD files ZIP 3D 3D_ConNPC2_626006230808 (rev1).pdf \| 142 KB IGS IGS_ConNPC2_626006230808 (rev1).igs \| 2.4 MB STP STP_ConNPC2_626006230808 (rev1).stp \| 566.7 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Polarity6	TypeReceptacle Housing	PackagingBag	Mates with 626006220101 626006210201
	626008230808	8, Receptacle Housing, Bag	Downloads3 files CAD files ZIP 3D 3D_ConNPC2_626008230808 (rev1).pdf \| 169.8 KB IGS IGS_ConNPC2_626008230808 (rev1).igs \| 3 MB STP STP_ConNPC2_626008230808 (rev1).stp \| 707.1 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Polarity8	TypeReceptacle Housing	PackagingBag	Mates with 626008220101 626008210201
	626010230808	10, Receptacle Housing, Bag	Downloads3 files CAD files ZIP 3D 3D_ConNPC2_626010230808 (rev1).pdf \| 196.7 KB IGS IGS_ConNPC2_626010230808 (rev1).igs \| 3.5 MB STP STP_ConNPC2_626010230808 (rev1).stp \| 844.1 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Polarity10	TypeReceptacle Housing	PackagingBag	Mates with 626010220101 626010210201
	626012230808	12, Receptacle Housing, Bag	Downloads3 files CAD files ZIP 3D 3D_ConNPC2_626012230808 (rev1).pdf \| 224.6 KB IGS IGS_ConNPC2_626012230808 (rev1).igs \| 4.1 MB STP STP_ConNPC2_626012230808 (rev1).stp \| 980.9 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Polarity12	TypeReceptacle Housing	PackagingBag	Mates with 626012220101 626012210201
	626014230808	14, Receptacle Housing, Bag	Downloads3 files CAD files ZIP 3D 3D_ConNPC2_626014230808 (rev1).pdf \| 252.7 KB IGS IGS_ConNPC2_626014230808 (rev1).igs \| 4.7 MB STP STP_ConNPC2_626014230808 (rev1).stp \| 1.1 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Polarity14	TypeReceptacle Housing	PackagingBag	Mates with 626014220101 626014210201
	626016230808	16, Receptacle Housing, Bag	Downloads3 files CAD files ZIP 3D 3D_ConNPC2_626016230808 (rev1).pdf \| 281.4 KB IGS IGS_ConNPC2_626016230808 (rev1).igs \| 5.3 MB STP STP_ConNPC2_626016230808 (rev1).stp \| 1.2 MB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	Polarity16	TypeReceptacle Housing	PackagingBag	Mates with 626016220101 626016210201

Use with

WR-NPC2 Female Pre-crimped Wire

WR-NPC2 Female Crimp Contact
