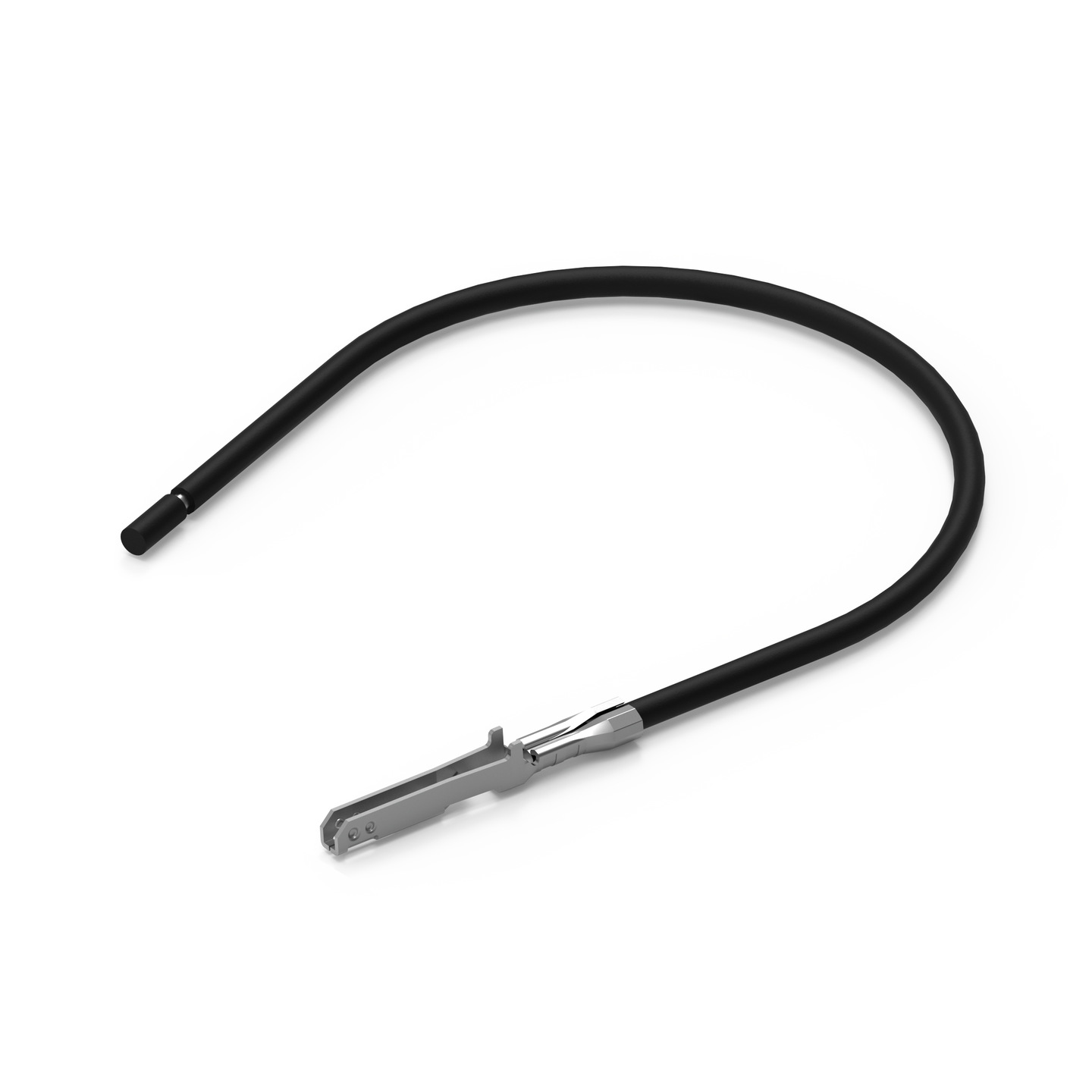

WR-NPC2 Female Pre-crimped Wire

Characteristics

Properties
Classic or Low force version
UL 1061 Wire
Stranded wire section: AWG 20
150 mm crimped on one side or 300 mm with both side crimped
Operating Temperature: -40 °C up to +80 °C

Applications

Industrial
Home Appliances
Telecommunication

Products

All

Classic

Low Force

Filter article data

show article in 2 product lines

article in 2 product lines

	Order Code	Datasheet	Downloads	Status	Type	Nominal Cable Length(mm)	Stranded Wire Section (AWG)	Packaging	SamplesAvailability & Sample
	626200020015	SPECLow Force Pre-Crimped Cable, 150 mm, 20 (AWG)	Availability –	Downloads3 files CAD files ZIP 3D 3D_ConNPC2_626200020015 (rev1).pdf \| 300.6 KB IGS IGES_ConNPC2_626200020015 (rev1).iges \| 1.9 MB STP STP_ConNPC2_626200020015 (rev1).stp \| 374.7 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	TypeLow Force Pre-Crimped Cable	Nominal Cable Length150 mm	Stranded Wire Section (AWG)20 (AWG)	PackagingBag	–Check availability
	626226220030	SPECLow Force Pre-Crimped Cable, 300 mm, 20 (AWG)	Availability –	Downloads3 files CAD files ZIP 3D 3D_ConNPC2_626226220030 (rev1).pdf \| 567.9 KB IGS IGES_ConNPC2_626226220030 (rev1).iges \| 3.7 MB STP STP_ConNPC2_626226220030 (rev1).stp \| 748.5 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	TypeLow Force Pre-Crimped Cable	Nominal Cable Length300 mm	Stranded Wire Section (AWG)20 (AWG)	PackagingBag	–Check availability
	626626620030	SPECPre-crimped Cable, 300 mm, 20 (AWG)	Availability –	Downloads3 files CAD files ZIP 3D 3D_ConNPC2_626626620030 (rev1).pdf \| 587.8 KB IGS IGS_ConNPC2_626626620030 (rev1).iges \| 3.7 MB STP STP_ConNPC2_626626620030 (rev1).stp \| 752 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	TypePre-crimped Cable	Nominal Cable Length300 mm	Stranded Wire Section (AWG)20 (AWG)	PackagingBag	–Check availability
	626600020015	SPECPre-crimped Cable, 150 mm, 20 (AWG)	Availability –	Downloads3 files CAD files ZIP 3D 3D_ConNPC2_626600020015 (rev1).pdf \| 310.8 KB IGS IGES_ConNPC2_626600020015 (rev1).iges \| 1.9 MB STP STP_ConNPC2_626600020015 (rev1).stp \| 376.3 KB Download all 3 files as zip archive ZIP	Status Newi\| Product is new in our portfolio and production is active. Expected lifetime: >10 years.	TypePre-crimped Cable	Nominal Cable Length150 mm	Stranded Wire Section (AWG)20 (AWG)	PackagingBag	–Check availability

Use with

WR-NPC2 Female Receptacle Housing Dual Row
