OverviewAll product units Product unitElectromechanical Components Product groupConnectors Product familyBoard-to-Board Connectors Product sub-familyWR-BTB Board to Board

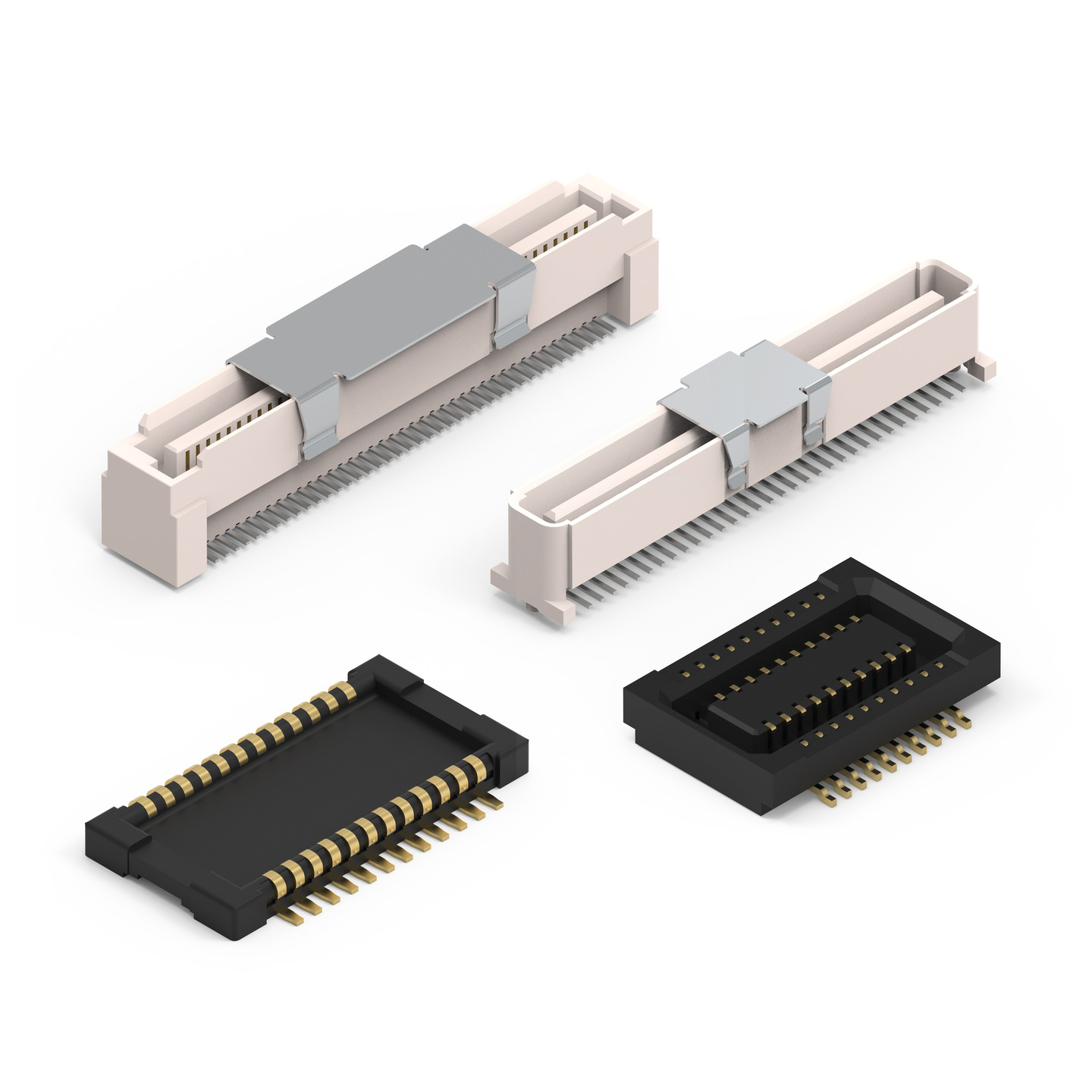

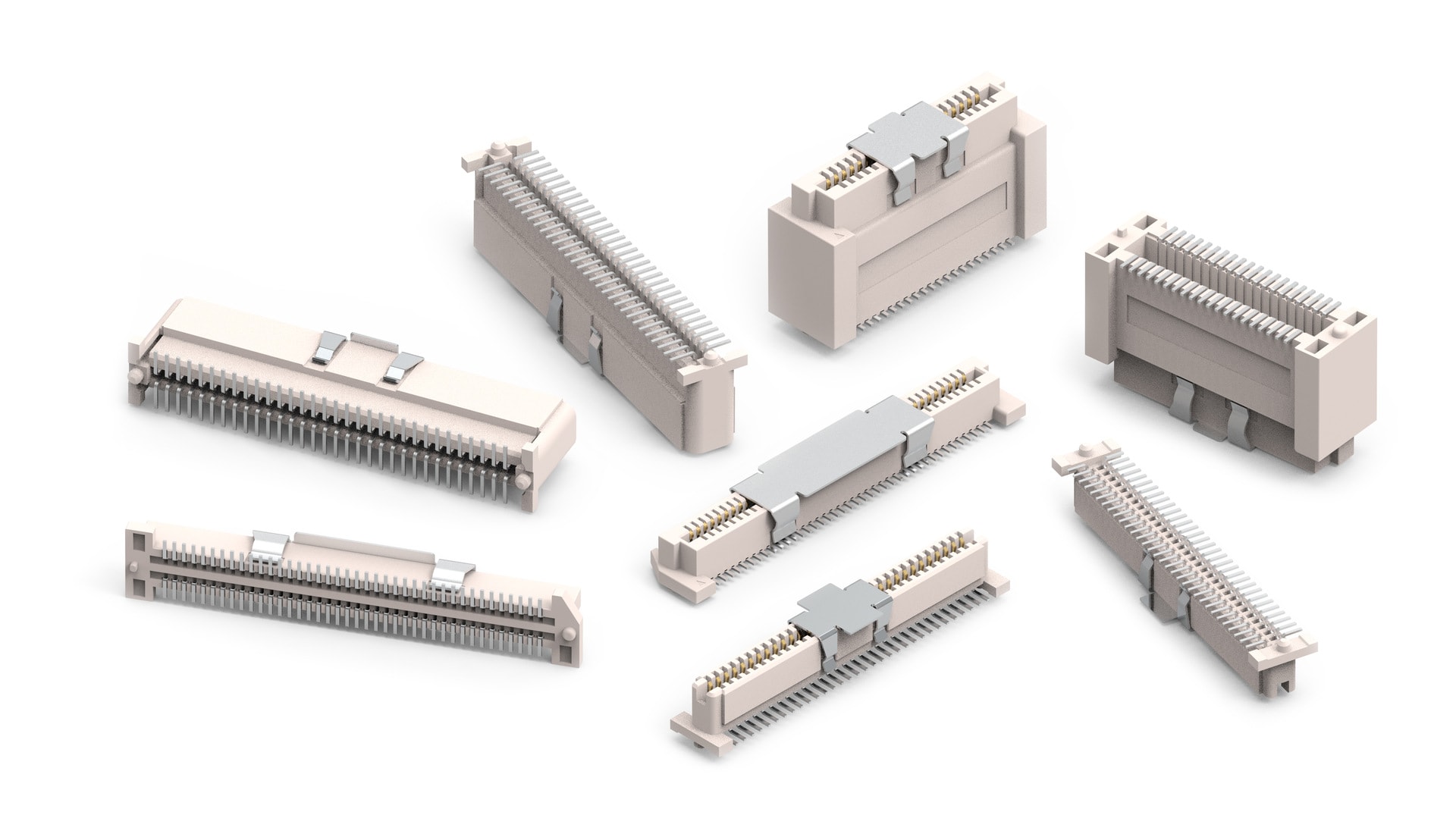

WR-BTB Board to Board

Size	Dimensions	W (mm)	Mount
0.80 MM		-	SMT
1.00 MM		-	SMT

Characteristics

Insulator flammability rating: UL94 V-0
Defined board to board distance from 5.00 mm up to 16.00 mm
Available pin-counts: 64 pins (1.0 mm version) / 40, 80 or 100 pins (0.8 mm version)
Contact plating: selective gold
Operating temperature: -55 °C up to +85 °C
Quality class: 30 mating cycles
Contact resistance: 30 mΩ
Working Voltage: 100 V (AC)
UL approval: E323964

Applications

Board-to-board connection for secure and fast data connections
Defined PCB spacing
In conjunction with SMT spacers or threaded spacers, a stable connection of stacked PCBs.

Products

All

0.80 MM

1.00 MM

	Order Code	Datasheet	Downloads	Status	Pitch (mm)	Pins (pcs)	H (mm)	Gender	Type	I_R (A)	Packaging	Design Kit	Samples
	658857603080	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BTB (rev22a).IntLib \| 4.3 MB CDS Cadence_WR-BTB (rev19a).zip \| 27.1 MB EAG Eagle_WR-BTB (rev21a).lbr \| 343.5 KB CAD files ZIP 3D 3D_658857603080 (rev1).pdf \| 564.2 KB IGS Download_IGES_658857603080 (rev1).iges \| 8.6 MB STP Download_STP_658857603080 (rev1).stp \| 2.1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.8	80	7.6	Male Plug	Vertical	0.5	Tape and Reel with Cap	612690 658001
	658855603040	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BTB (rev22a).IntLib \| 4.3 MB CDS Cadence_WR-BTB (rev19a).zip \| 27.1 MB EAG Eagle_WR-BTB (rev21a).lbr \| 343.5 KB CAD files ZIP 3D 3D_658855603040 (rev1).pdf \| 350.4 KB IGS Download_IGES_658855603040 (rev1).iges \| 5 MB STP Download_STP_658855603040 (rev1).stp \| 1.2 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.8	40	5.6	Male Plug	Vertical	0.5	Tape and Reel with Cap	612690 658001
	658855603100	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BTB (rev22a).IntLib \| 4.3 MB CDS Cadence_WR-BTB (rev19a).zip \| 27.1 MB EAG Eagle_WR-BTB (rev21a).lbr \| 343.5 KB CAD files ZIP 3D 3D_658855603100 (rev1).pdf \| 707.5 KB IGS Download_IGES_658855603100 (rev1).iges \| 10.4 MB STP Download_STP_658855603100 (rev1).stp \| 2.6 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.8	100	5.6	Male Plug	Vertical	0.5	Tape and Reel with Cap	658001
	658801103040	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BTB (rev22a).IntLib \| 4.3 MB CDS Cadence_WR-BTB (rev19a).zip \| 27.1 MB EAG Eagle_WR-BTB (rev21a).lbr \| 343.5 KB CAD files ZIP 3D 3D_658801103040 (rev1).pdf \| 653.8 KB IGS Download_IGES_658801103040 (rev1).iges \| 9.4 MB STP Download_STP_658801103040 (rev1).stp \| 2.2 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.8	40	11.75	Female Receptacle	Vertical	0.5	Tape and Reel with Cap	612690 658001
	658801103080	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BTB (rev22a).IntLib \| 4.3 MB CDS Cadence_WR-BTB (rev19a).zip \| 27.1 MB EAG Eagle_WR-BTB (rev21a).lbr \| 343.5 KB CAD files ZIP 3D 3D_658801103080 (rev1).pdf \| 1.5 MB IGS Download_IGES_658801103080 (rev1).iges \| 17.2 MB STP Download_STP_658801103080 (rev1).stp \| 4.1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.8	80	11.75	Female Receptacle	Vertical	0.5	Tape and Reel with Cap	612690 658001
	658803713080	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BTB (rev22a).IntLib \| 4.3 MB CDS Cadence_WR-BTB (rev19a).zip \| 27.1 MB EAG Eagle_WR-BTB (rev21a).lbr \| 343.5 KB CAD files ZIP 3D 3D_658803713080 (rev1).pdf \| 844.9 KB IGS Download_IGES_658803713080 (rev1).iges \| 11.8 MB STP Download_STP_658803713080 (rev1).stp \| 2.9 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.8	80	3.75	Female Receptacle	Vertical	0.5	Tape and Reel with Cap	612690 658001
	658807713040	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BTB (rev22a).IntLib \| 4.3 MB CDS Cadence_WR-BTB (rev19a).zip \| 27.1 MB EAG Eagle_WR-BTB (rev21a).lbr \| 343.5 KB CAD files ZIP 3D 3D_658807713040 (rev1).pdf \| 660 KB IGS Download_IGES_658807713040 (rev1).iges \| 9.3 MB STP Download_STP_658807713040 (rev1).stp \| 2.2 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.8	40	7.75	Female Receptacle	Vertical	0.5	Tape and Reel with Cap	612690 658001
	658807713080	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BTB (rev22a).IntLib \| 4.3 MB CDS Cadence_WR-BTB (rev19a).zip \| 27.1 MB EAG Eagle_WR-BTB (rev21a).lbr \| 343.5 KB CAD files ZIP 3D 3D_658807713080 (rev1).pdf \| 1.5 MB IGS Download_IGES_658807713080 (rev1).iges \| 17 MB STP Download_STP_658807713080 (rev1).stp \| 4.1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.8	80	7.75	Female Receptacle	Vertical	0.5	Tape and Reel with Cap	612690 658001
	658807713100	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BTB (rev22a).IntLib \| 4.3 MB CDS Cadence_WR-BTB (rev19a).zip \| 27.1 MB EAG Eagle_WR-BTB (rev21a).lbr \| 343.5 KB CAD files ZIP 3D 3D_658807713100 (rev1).pdf \| 1.8 MB IGS Download_IGES_658807713100 (rev1).iges \| 20.8 MB STP Download_STP_658807713100 (rev1).stp \| 5 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.8	100	7.75	Female Receptacle	Vertical	0.5	Tape and Reel with Cap	658001
	658854613080	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BTB (rev22a).IntLib \| 4.3 MB CDS Cadence_WR-BTB (rev19a).zip \| 27.1 MB EAG Eagle_WR-BTB (rev21a).lbr \| 343.5 KB CAD files ZIP 3D 3D_658854613080 (rev1).pdf \| 592.3 KB IGS Download_IGES_658854613080 (rev1).iges \| 8.5 MB STP Download_STP_658854613080 (rev1).stp \| 2.1 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	0.8	80	4.6	Male Plug	Vertical	0.5	Tape and Reel with Cap	612690 658001
	658156303064	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BTB (rev22a).IntLib \| 4.3 MB CDS Cadence_WR-BTB (rev19a).zip \| 27.1 MB EAG Eagle_WR-BTB (rev21a).lbr \| 343.5 KB CAD files ZIP 3D 3D_658156303064 (rev1).pdf \| 401.2 KB IGS Download_IGES_658156303064 (rev1).iges \| 9.5 MB STP Download_STP_658156303064 (rev1).stp \| 2 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	64	6.35	Male Plug	Vertical	1	Tape and Reel with Cap	612690 658001
	658158303064	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BTB (rev22a).IntLib \| 4.3 MB CDS Cadence_WR-BTB (rev19a).zip \| 27.1 MB EAG Eagle_WR-BTB (rev21a).lbr \| 343.5 KB CAD files ZIP 3D 3D_658158303064 (rev1).pdf \| 337.5 KB IGS Download_IGES_658158303064 (rev1).iges \| 6.9 MB STP Download_STP_658158303064 (rev1).stp \| 1.5 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	64	8.35	Male Plug	Vertical	1	Tape and Reel with Cap	612690 658001
	658101003064	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BTB (rev22a).IntLib \| 4.3 MB CDS Cadence_WR-BTB (rev19a).zip \| 27.1 MB EAG Eagle_WR-BTB (rev21a).lbr \| 343.5 KB CAD files ZIP 3D 3D_658101003064 (rev1).pdf \| 423 KB IGS Download_IGES_658101003064 (rev1).iges \| 6.7 MB STP Download_STP_658101003064 (rev1).stp \| 1.6 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	64	10.3	Female Receptacle	Vertical	1	Tape and Reel with Cap	612690 658001
	658107303064	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BTB (rev22a).IntLib \| 4.3 MB CDS Cadence_WR-BTB (rev19a).zip \| 27.1 MB EAG Eagle_WR-BTB (rev21a).lbr \| 343.5 KB CAD files ZIP 3D 3D_658107303064 (rev1).pdf \| 421.4 KB IGS Download_IGES_658107303064 (rev1).iges \| 6.7 MB STP Download_STP_658107303064 (rev1).stp \| 1.6 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	64	7.3	Female Receptacle	Vertical	1	Tape and Reel with Cap	612690 658001
	658105303064	SPEC	6 files EDA models: Components ZIP ALT Altium_WR-BTB (rev22a).IntLib \| 4.3 MB CDS Cadence_WR-BTB (rev19a).zip \| 27.1 MB EAG Eagle_WR-BTB (rev21a).lbr \| 343.5 KB CAD files ZIP 3D 3D_658105303064 (rev1).pdf \| 432.9 KB IGS Download_IGES_658105303064 (rev1).iges \| 7 MB STP Download_STP_658105303064 (rev1).stp \| 1.6 MB Download all 6 files as zip archive ZIP	Active i\| Production is active. Expected lifetime: >10 years.	1	64	5.3	Female Receptacle	Vertical	1	Tape and Reel with Cap	612690 658001

	Order Code	Datasheet
	658857603080	SPEC
	658855603040	SPEC
	658855603100	SPEC
	658801103040	SPEC
	658801103080	SPEC
	658803713080	SPEC
	658807713040	SPEC
	658807713080	SPEC
	658807713100	SPEC
	658854613080	SPEC
	658156303064	SPEC
	658158303064	SPEC
	658101003064	SPEC
	658107303064	SPEC
	658105303064	SPEC

Samples

	Order Code	Datasheet	Downloads	Status	Pitch (mm)	Pins (pcs)	H (mm)	Gender	Type	I_R (A)	Packaging	Design Kit	Samples

WR-BTB

Board-to-Board Connectors

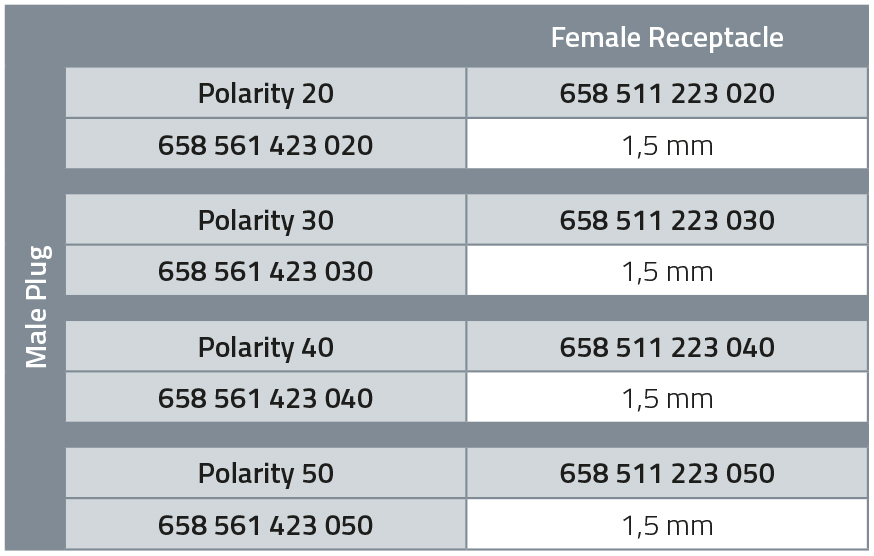

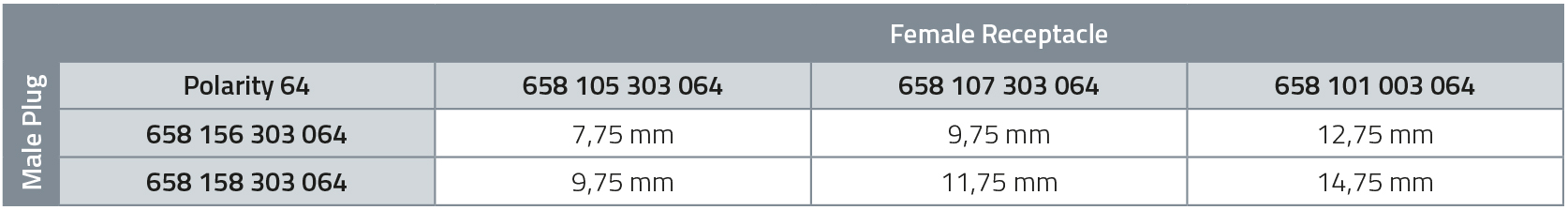

Stacking heights of WR-BTB 0.8 mm & 1.0 mm

eiCan_WR-BTB_EN

Assortments

Articles from this product series can be found in the following assortments:

Design Kit Connector Solutions

Design Kit WR-BTB Board to Board Connector
