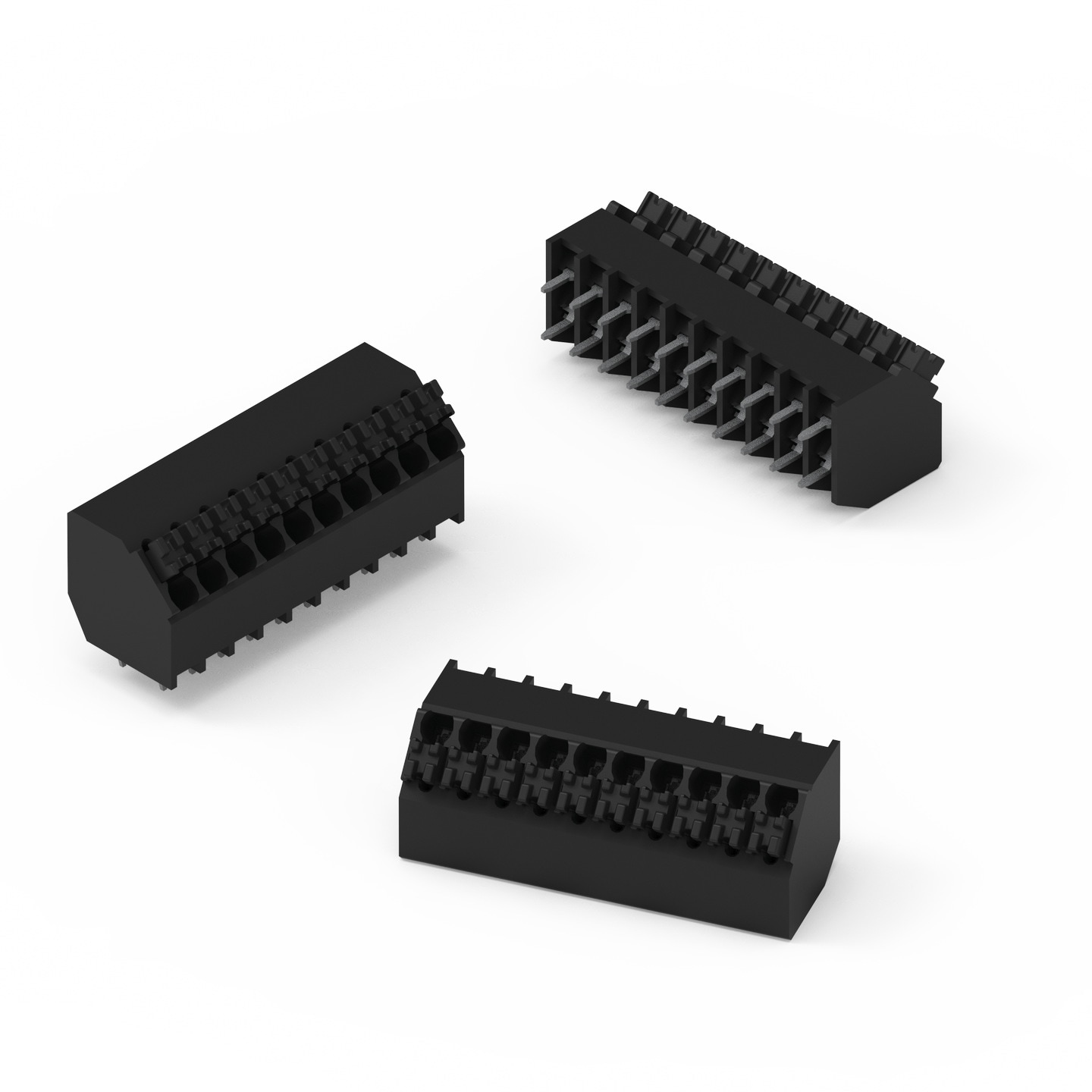

WR-TBL Series 8101 - Screwless Push In 3.5mm pitch - 45° cable entry - THR | Electromechanical Components

General Information
Operating Temperature	-40 up to +125 °C
Pitch	3.5 mm

Material Properties
Insulator Material	PA4T
Insulator Flammability Rating	UL94 V-0
Insulator Color	Black
Spring Material	Stainless Steel
Pin Material	Brass
Pin Plating	Tin over Nickel

Electrical Properties
I_{R cULus}	7 A
I_{R VDE}	13.5 A
Working Voltage [cULus]	300 V
Working Voltage [VDE]	160 V
Withstanding Voltage [cULus]	1600 V (AC)
Withstanding Voltage [VDE]	1400 V (AC)
Contact Resistance [cULus]	20 mΩ
Contact Resistance [VDE]	20 mΩ

Mechanical Properties
Wire Strip Length	8 up to 9 (mm)

Wire Properties
Solid Wire Section (AWG)	24 to 18 (AWG)
Solid Wire Section (Metric)	0.2 to 1 (mm²)
Stranded Wire Section (AWG)	22 to 16 (AWG)
Stranded Wire Section (Metric)	0.2 to 1.5 (mm²)

Certification
cULus Approval	E315414
VDE Approval	40055316

Packaging Properties
Packaging	Tape and Reel

Application Notes

ANE006 Derating of Connectors
PDF

Products

Order Code	Datasheet	Downloads	Pins	Application	PCB/Cable/Panel	Modularity	Type	Wire Section	Design Kit
691810120302	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_WR-TBL_8101_691810120302 (rev1).pdf \| 280.8 KB IGS IGS_WR-TBL_8101_618009231221 (rev1).igs \| 3.2 MB STP STP_WR-TBL_8101_618009231221 (rev1).stp \| 726.6 KB	2	Screwless Push In	PCB	No	45°	22 to 16 (AWG) 0.2 to 1.5 (mm²)	691001
691810120303	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_WR-TBL_8101_691810120303 (rev1).pdf \| 325.3 KB IGS IGS_WR-TBL_8101_691810120303 (rev1).igs \| 3.9 MB STP STP_WR-TBL_8101_691810120303 (rev1).stp \| 876.5 KB	3	Screwless Push In	PCB	No	45°	22 to 16 (AWG) 0.2 to 1.5 (mm²)	–
691810120304	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_WR-TBL_8101_691810120304 (rev1).pdf \| 367.9 KB IGS IGS_WR-TBL_8101_691810120304 (rev1).igs \| 4.5 MB STP STP_WR-TBL_8101_691810120304 (rev1).stp \| 1 MB	4	Screwless Push In	PCB	No	45°	22 to 16 (AWG) 0.2 to 1.5 (mm²)	–
691810120305	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_WR-TBL_8101_691810120305 (rev1).pdf \| 413 KB IGS IGS_WR-TBL_8101_691810120305 (rev1).igs \| 5.1 MB STP STP_WR-TBL_8101_691810120305 (rev1).stp \| 1.1 MB	5	Screwless Push In	PCB	No	45°	22 to 16 (AWG) 0.2 to 1.5 (mm²)	–
691810120306	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_WR-TBL_8101_691810120306 (rev1).pdf \| 456.3 KB IGS IGS_WR-TBL_8101_691810120306 (rev1).igs \| 5.8 MB STP STP_WR-TBL_8101_691810120306 (rev1).stp \| 1.3 MB	6	Screwless Push In	PCB	No	45°	22 to 16 (AWG) 0.2 to 1.5 (mm²)	–
691810120307	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_WR-TBL_8101_691810120307 (rev1).pdf \| 500.4 KB IGS IGS_WR-TBL_8101_691810120307 (rev1).igs \| 6.4 MB STP STP_WR-TBL_8101_691810120307 (rev1).stp \| 1.4 MB	7	Screwless Push In	PCB	No	45°	22 to 16 (AWG) 0.2 to 1.5 (mm²)	–
691810120308	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_WR-TBL-8101_691810120308 (rev1).pdf \| 544.3 KB IGS IGS_WR-TBL_8101_691810120308 (rev1).igs \| 7 MB STP STP_WR-TBL_8101_691810120308 (rev1).stp \| 1.6 MB	8	Screwless Push In	PCB	No	45°	22 to 16 (AWG) 0.2 to 1.5 (mm²)	–
691810120310	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_WR-TBL_8101_691810120310 (rev1).pdf \| 625.8 KB IGS IGS_WR-TBL_8101_691810120310 (rev1).igs \| 8.3 MB STP STP_WR-TBL-8101_691810120310 (rev1).stp \| 1.9 MB	10	Screwless Push In	PCB	No	45°	22 to 16 (AWG) 0.2 to 1.5 (mm²)	–
691810120312	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024	6 files EDA models: Components ZIP ALT Altium_WR-TBL (rev23f).IntLib \| 168.8 MB CDS Cadence_WR-TBL (rev23h).zip \| 338.1 MB EAG Eagle_WR-TBL Spring Clamp (rev23b).lbr \| 2.5 MB CAD files ZIP 3D 3D_WR-TBL_8101_691810120312 (rev1).pdf \| 710.2 KB IGS IGS_WR-TBL_8101_691810120312 (rev1).igs \| 9.5 MB STP STP_WR-TBL_8101_691810120312 (rev1).stp \| 2.2 MB	12	Screwless Push In	PCB	No	45°	22 to 16 (AWG) 0.2 to 1.5 (mm²)	–

Order Code	Datasheet
691810120302	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024
691810120303	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024
691810120304	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024
691810120305	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024
691810120306	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024
691810120307	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024
691810120308	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024
691810120310	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024
691810120312	SPEC PCN pending Due to a pending PCN there will be a new datasheet revision issued for this order code soon. Please find the actual as well based on valid PCN date the new revision datasheet below. If you have further questions please get in contact with our sales staff. SPEC Datasheet valid to 29/01/2024 SPEC Datasheet valid from 30/01/2024
