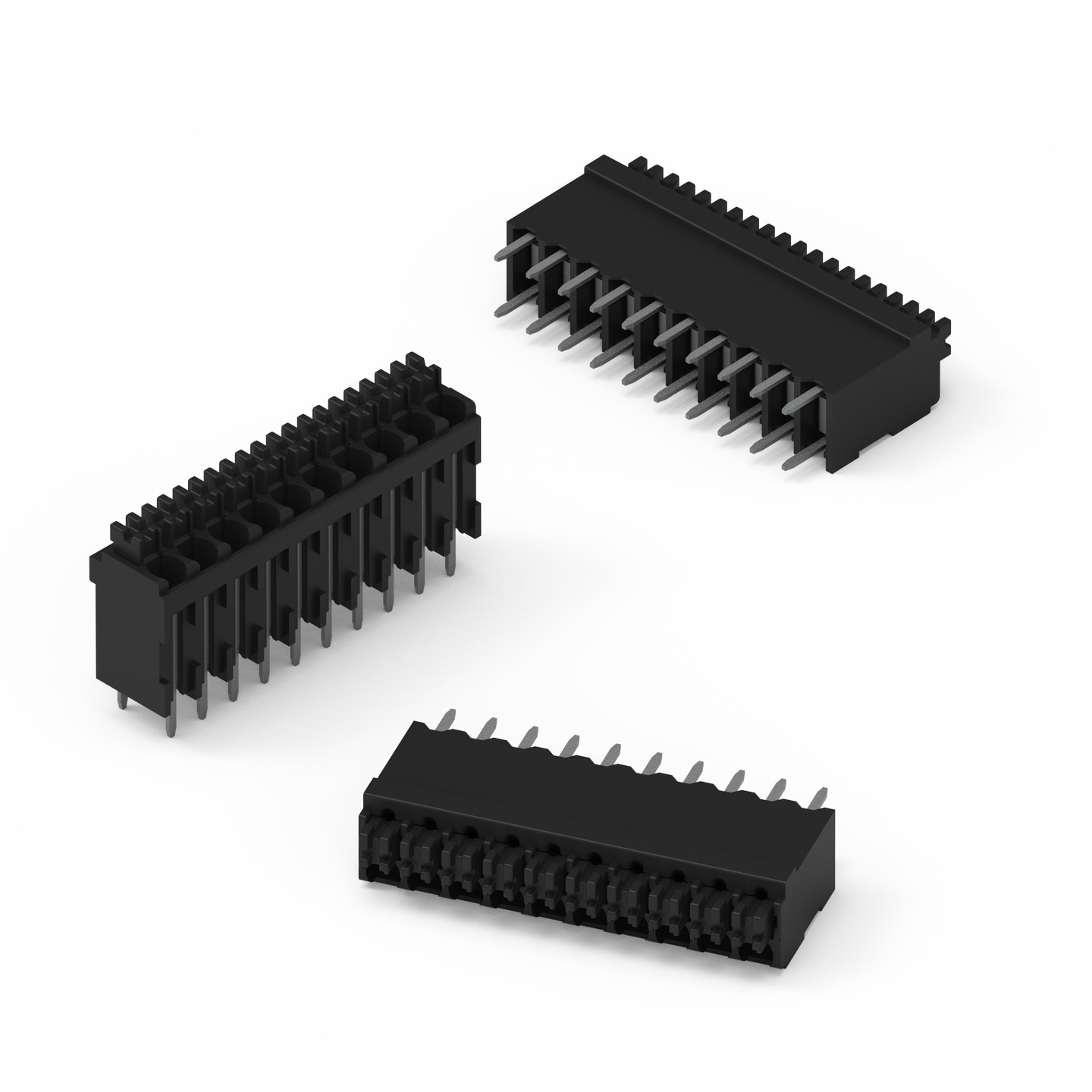

WR-TBL Series 4101 - Screwless Push In 3.5mm pitch - Vertical cable entry - THT

WR-TBL Series 4101 - Screwless Push In 3.5mm pitch - Vertical cable entry - THT
General Information
Operating Temperature-40 °C up to +110 °C
Pitch3.5 mm
Material Properties
Insulator MaterialPA66
Insulator Flammability RatingUL94 V-0
Insulator ColorBlack
Spring MaterialStainless Steel
Pin MaterialBrass
Pin PlatingTin over Nickel
Electrical Properties
IR7 A
IR13.5 A
Working Voltage [cULus]300 V
Working Voltage [VDE]160 V
Withstanding Voltage [cULus]1600 V (AC)
Withstanding Voltage [VDE]1400 V (AC)
RC20 mΩ
RC20 mΩ
Mechanical Properties
Wire Strip Length8 up to 9 (mm)
Wire Properties
Solid Wire Section (AWG)24 to 18 (AWG)
Solid Wire Section (Metric)0.2 to 1 (mm²)
Stranded Wire Section (AWG)22 to 16 (AWG)
Stranded Wire Section (Metric)0.2 to 1.5 (mm²)
Certification
cULus ApprovalE315414
VDE Approval40055316
Packaging Properties
PackagingBox

Products

Order Code Data­sheet Downloads StatusPins (Value)
(pcs)
ApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples
691410100002SPEC
6 files Active i| Production is active. Expected lifetime: >10 years. 2 Screwless Push In PCB No Vertical 22 to 16 (AWG) 0.2 to 1.5 (mm²)691001
691410100003SPEC
6 files Active i| Production is active. Expected lifetime: >10 years. 3 Screwless Push In PCB No Vertical 22 to 16 (AWG) 0.2 to 1.5 (mm²)
691410100004SPEC
6 files Active i| Production is active. Expected lifetime: >10 years. 4 Screwless Push In PCB No Vertical 22 to 16 (AWG) 0.2 to 1.5 (mm²)
691410100005SPEC
6 files Active i| Production is active. Expected lifetime: >10 years. 5 Screwless Push In PCB No Vertical 22 to 16 (AWG) 0.2 to 1.5 (mm²)
691410100006SPEC
6 files Active i| Production is active. Expected lifetime: >10 years. 6 Screwless Push In PCB No Vertical 22 to 16 (AWG) 0.2 to 1.5 (mm²)
691410100007SPEC
6 files Active i| Production is active. Expected lifetime: >10 years. 7 Screwless Push In PCB No Vertical 22 to 16 (AWG) 0.2 to 1.5 (mm²)
691410100008SPEC
6 files Active i| Production is active. Expected lifetime: >10 years. 8 Screwless Push In PCB No Vertical 22 to 16 (AWG) 0.2 to 1.5 (mm²)
691410100010SPEC
6 files Active i| Production is active. Expected lifetime: >10 years. 10 Screwless Push In PCB No Vertical 22 to 16 (AWG) 0.2 to 1.5 (mm²)
691410100012SPEC
6 files Active i| Production is active. Expected lifetime: >10 years. 12 Screwless Push In PCB No Vertical 22 to 16 (AWG) 0.2 to 1.5 (mm²)
Order Code Data­sheet
691410100002SPEC
691410100003SPEC
691410100004SPEC
691410100005SPEC
691410100006SPEC
691410100007SPEC
691410100008SPEC
691410100010SPEC
691410100012SPEC
Samples
Order Code Data­sheet Downloads StatusPins (Value)
(pcs)
ApplicationPCB/Cable/PanelModularityTypeWire SectionDesign Kit Samples
